BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (White)
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

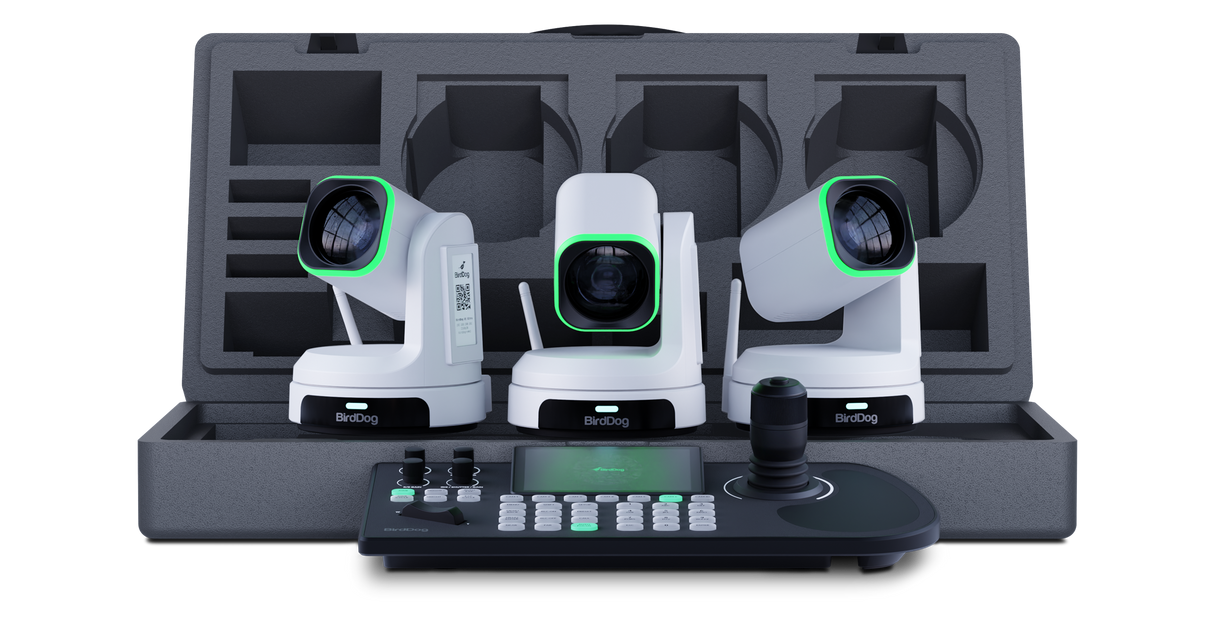

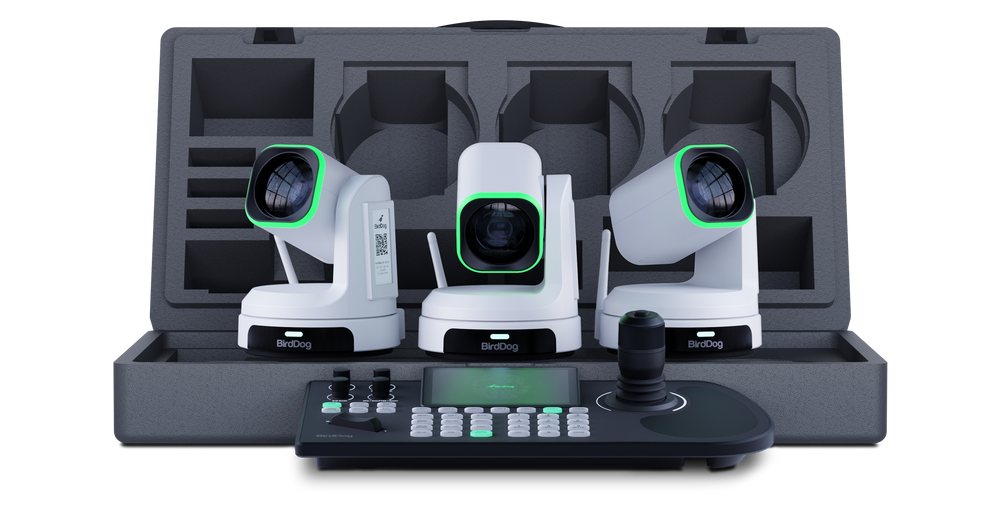

BirdDog 3x X1 30x PTZ Cameras and KBD Keyboard Bundle (White)
Three white X1 30x PTZ cameras, a KBD Controller, and a fitted protective foam case make up this BirdDog bundle for multi-camera Full HD production. Designed for creators who need clarity and flexibility, the X1 30x pairs smooth, controllable movement with a wider angle of view and 30x optical zoom, and it operates over NDI, baseband video, or built-in Wi-Fi as the job demands.
Each camera delivers 1080p up to 60 fps from a Sony 1/2.8 inch Full HD CMOS sensor, with a 608x1080 9:16 vertical mode also available. Encoder protocols cover NDI HX2, NDI HX3, SRT, RTSP, and RTMP alongside HDMI and USB-C UVC outputs, PoE 802.3af, and 802.11ac Wi-Fi. Operators get AI face focus, Halo Tally, an E-Ink display for setup, and a KBD surface whose built-in tally display integrates with TriCaster and vMix.
Key Features
- Three white X1 30x PTZ cameras with 30x optical zoom and Full HD capture
- Sony 1/2.8 inch CMOS sensor; 1080p60 plus vertical 608x1080 (9:16) output
- Streams via NDI HX2/HX3, SRT, RTSP, and RTMP with built-in NDI HX decoding
- Wi-Fi 802.11ac, PoE 802.3af, HDMI, and USB-C UVC 1.1 connectivity
- AI tracking, Halo Tally, and E-Ink display for setup and control
- KBD Controller with integrated screen and tactile camera switching
- Custom protective foam case included; limited 5-year warranty
Specifications
- Image Sensor:Sony 1/2.8” CMOS - FULL HD
- Lens: f=5.2~148.4
- Optical Zoom:30x
- Video Format: 1080p @ 60/59.94/50/30/29.97/25fps, 720p @ 60/50/30/25fps 608x1080p (9:16 ratio) @ 60/59.94/50/30/29.97/25fps
- Horizontal angle of view:58.1° (W) – 2.14° (T)
- Vertical angle of view:33.8° (W) – 1.2° (T)
- Diagonal angle of view:65.4° (W) - 2.48° (T)
- Aperture: F1.3~F4.8
- Focus: AI Face, Auto, Manual
- Exposure:Auto, Shutter Priority, Iris Priority, Manual
- Backlight Compensation: Yes
- Digital Noise Reduction: 2D and 3D Noise Reduction
- SNR: >50dB
- Effective Pixels: 2.07 MP
- Pan/Tilt Rotation:±175°, -90° ~ +90°
- Pan Control Speed: 0.1 -80°/sec
- Tilt Control Speed:0.1 -60°/sec
- Preset Number: 255 presets
- Filter Ring: Φ52mm
- Video Output Interfaces: HDMI, USB-C UVC 1.1, Network
- Video Compression Formats: H.264, H.265
- Network Interfaces:100M adaptive Ethernet port; POE IEEE 802.3af, Wi-Fi IEEE 802.11ac
- Encoder Network Protocols: NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
- HDMI Decoder Network Protocols:NDI|HX2, NDI|HX3
- Control Interfaces:10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
- Control Protocols:VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
- Input Voltage:DC 12V, POE IEEE 802.3af
- Input Current:2.0A (Max)
- Power Consumption: 13W (Max)
- Working Temperature: -10ºC ~ +40ºC
- Working Humidity:20% ~ 80%
- Dimension (W*H*D): 171.6*192.6*171.6mm/ 260*217*197mm (before / after packing)
- Net and Gross Weight: 1.35kg/2.05kg (Net/Gross weight)
- IMAGING
- MECHANICAL
- I/O INTERFACE
- GENERAL
What's Included
- 3x BirdDog X1 30x PTZ Camera Remote Controller
- DC 12V Power Supply
- Welcome Pack
- Rear Silicone Numbers
- USB Cable
- 1x KBD Controller
- 1x Protective foam case for easy transport
- Limited 5-Year Manufacturer Warranty
