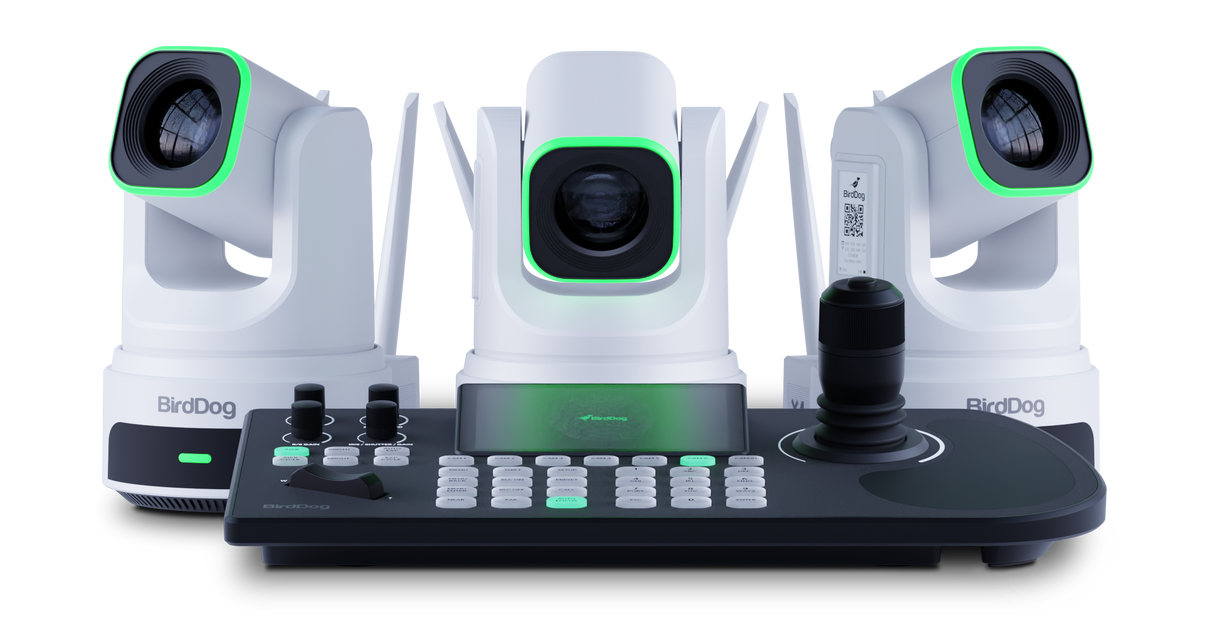

BirdDog 3x X4 Ultra PTZ Cameras and KBD Keyboard Combo (White)

BirdDog 3x X4 Ultra PTZ Cameras and KBD Keyboard Combo (White)

BirdDog's X4 Ultra Combo in white supplies three X4 Ultra 4K PTZ cameras and the KBD Controller as a complete toolset for live production in demanding environments. Positioned as a versatile camera for any production challenge, the X4 Ultra combines top-tier image quality with broad connectivity, and its built-in battery and Wi-Fi 6 let it operate in places where cables cannot reach.

Each camera captures 2160p at up to 60 fps on a Sony 1/1.8 inch CMOS sensor with 20x optical zoom and AI presenter and zone tracking. Outputs include 3G-SDI, HDMI, USB-C UVC, and network, with NDI HX2, NDI HX3, RTSP, RTMP, and SRT streaming; up to four cameras can be managed wirelessly over Wi-Fi 6 via NDI HX3 when paired with BirdDog's receiver. Power options span DC 12V, PoE 802.3at, and the internal 9450 mAh battery.

Key Features

• Three X4 Ultra 20x 2160p60 4K PTZ cameras in white with KBD Controller
• Sony 1/1.8 inch CMOS sensor with 20x optical zoom and AI presenter/zone tracking
• 3G-SDI, HDMI, USB-C UVC, and network outputs; NDI HX2/HX3, RTSP, RTMP, and SRT streaming
• Built-in 9450 mAh battery and Wi-Fi 6 for cable-free placement
• Manage up to four cameras wirelessly via NDI HX3 when paired with BirdDog's receiver
• HALO tally with rear number tally system and 2.13 inch e-Ink display
• PoE 802.3at power option and 3.5mm TRS line/mic audio input

Specifications

• Image Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
• Lens: f= 6.25 - 125mm
• Optical Zoom: 20x
• Video Format 2160p @ 60/59.94/50/30/29.97/25fps,
• 1080p @ 60/59.94/50/30/29.97/25fps,
• 1080i @ 59.94/50fps,
• 720p @ 60/59.94
• Horizontal Angle of View: 60° (W) ~ 3.5°(T)
• Vertical Angle of View: 35° (W) ~ 2.0°(T)
• Diagonal Angle of View: 66.6°(W) ~ 4.0°(T)
• Aperture: F1.58 (W) ~ 3.95 (T)
• Focus: Auto, Manual
• Exposure: Auto, Shutter Priority, Iris Priority, Manual
• Shutter Speed: 1/1 - 1/10000s
• Backlight Compensation: Yes
• Digital Noise Reduction: 3D Noise Reduction
• SNR: ≥45dB
• Effective Pixels: 8.42 MP
• AI Tracking: Presenter Tracking, Zone
• Pan/Tilt Rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 1.7-80°/sec
• Tilt Control Speed: 1.7-60°/sec
• Preset Number: 255 Presets
• Integrated Tally Light: HALO tally and rear number tally system
• Display: e-Ink 2.13” with customization logo
• Video Output Interfaces: 3G-SDI, HDMI, USB-C UVC, Network
• Video Compression Formats: H.264, H.265
• Network Interfaces: 1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6
• Encoder Network Protocols: NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
• Control Interfaces: 1Gbps Ethernet, USB-C, RS-232
• Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®, ONVIF
• Analogue Audio: 3.5mm TRS Line input/Mic Input
• Environmental Operation: Internal
• Input Voltage: DC 12V, POE IEEE 802.3at
• Input Current: 5.0A (Max)
• Battery Capacity: 9450mAh
• Battery operating time (per charge): up to 6 hours run time (usage dependent)
• Working Temperature: 0°C ~ +40°C
• Working Humidity: 20% ~ 80%
• Dimension (W*H*D) mm: 140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)
• Dimension (W*H*D) in: 5.5*7.43*8.0in/ 11.6*9.6*10.0in (before / after packing)
• Net and Gross Weight: 2.19kg (Net Weight)
• IMAGING
• MECHANICAL
• I/0 INTERFACE
• GENERAL

What's Included

• 3x BirdDog X4 Ultra PTZ Cameras IR Remote Controller
• DC 12V Power Supply
• Welcome Pack
• 2x Antennas
• Rear Silicon Numbers
• KBD Controller
• Limited 5-Year Manufacturer Warranty
