BirdDog X5 Ultra 20x 4K PTZ Camera (Black)

BirdDog X5 Ultra 20x 4K PTZ Camera (Black)

BirdDog's X5 Ultra is a 4K PTZ camera built for demanding productions, combining a Sony 4K60 image sensor with an advanced motor drive system for ultra-fine, natural-looking movement on air. It suits broadcasters, event producers, and venues that need precise robotic camerawork, full-size video connectivity, and network performance strong enough to anchor an NDI-based production.

The 1/2.8-inch Sony sensor delivers 2160p60 through 12G-SDI, HDMI 2.0, USB-C UVC, and a 1Gb network port with PoE+ (802.3at). BirdDog's NDI|HX3 implementation runs at full 4K60 alongside NDI|HX2, SRT, RTSP, and RTMP, and a built-in NDI|HX decoder feeds the HDMI outputs. The daylight-visible Halo tally, expanded neural processing for AI tracking, dual e-ink displays, pan and tilt speeds up to 200 degrees per second, and a maximum 28dB noise figure complete the package.

Key Features

• Sony 1/2.8-inch CMOS sensor with 2160p60 output
• NDI|HX3 performance in 4K60, plus NDI|HX2, SRT, RTSP, and RTMP
• Built-in NDI|HX decoder with output up to 2160p30 and 1080p60 over HDMI
• 12G-SDI, HDMI 2.0, USB-C UVC, and 1GbE with PoE+ (802.3at)
• Ultra-fine pan/tilt drive, 0.1-200 degrees per second, max 28dB at full speed

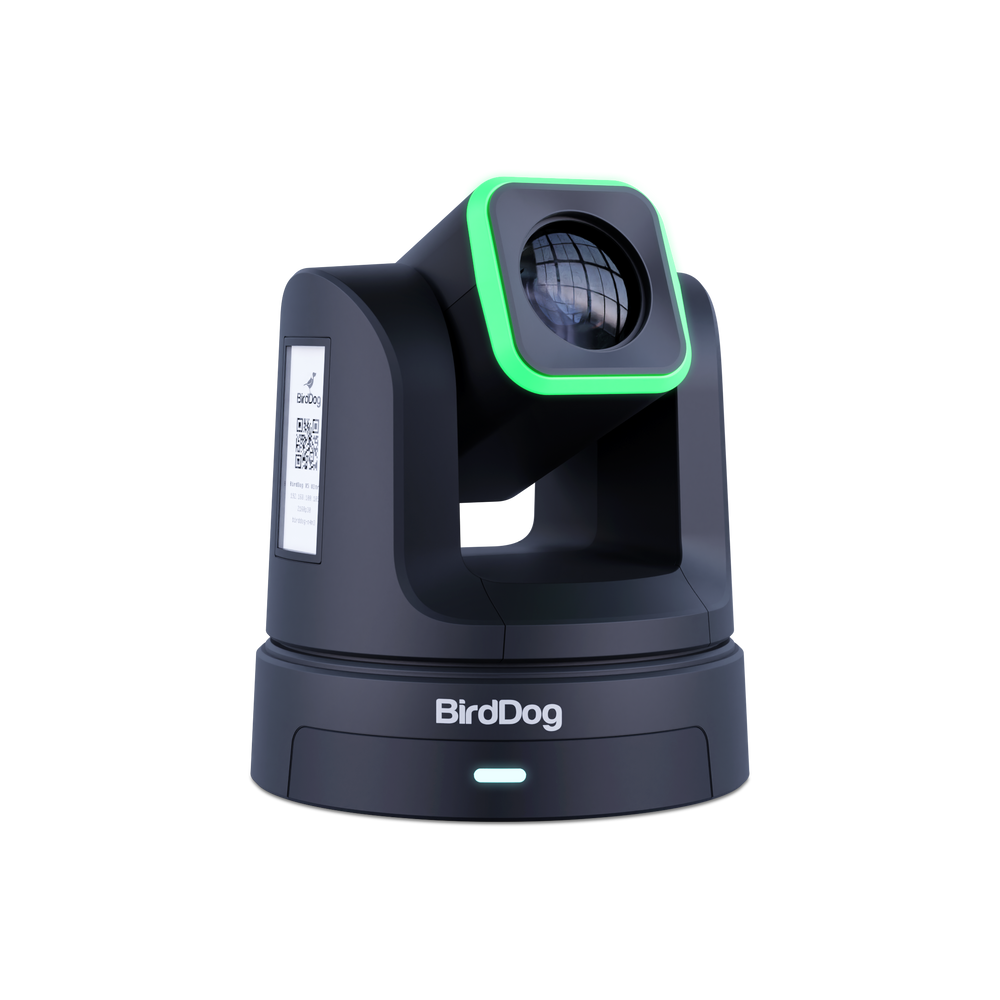

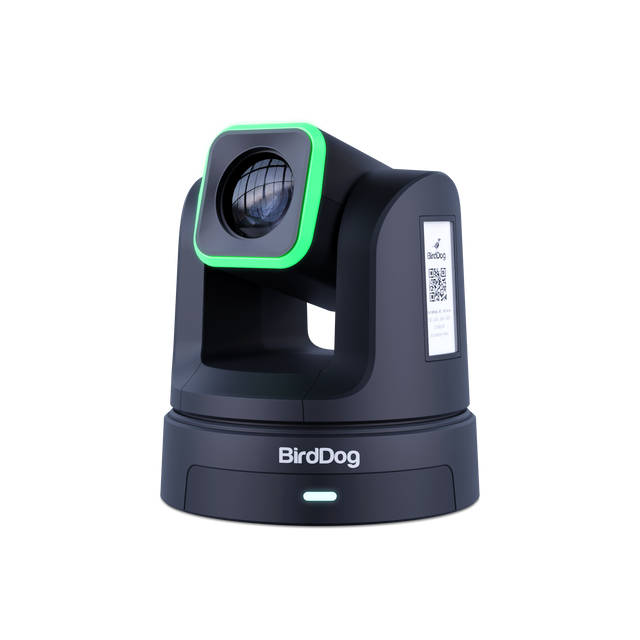

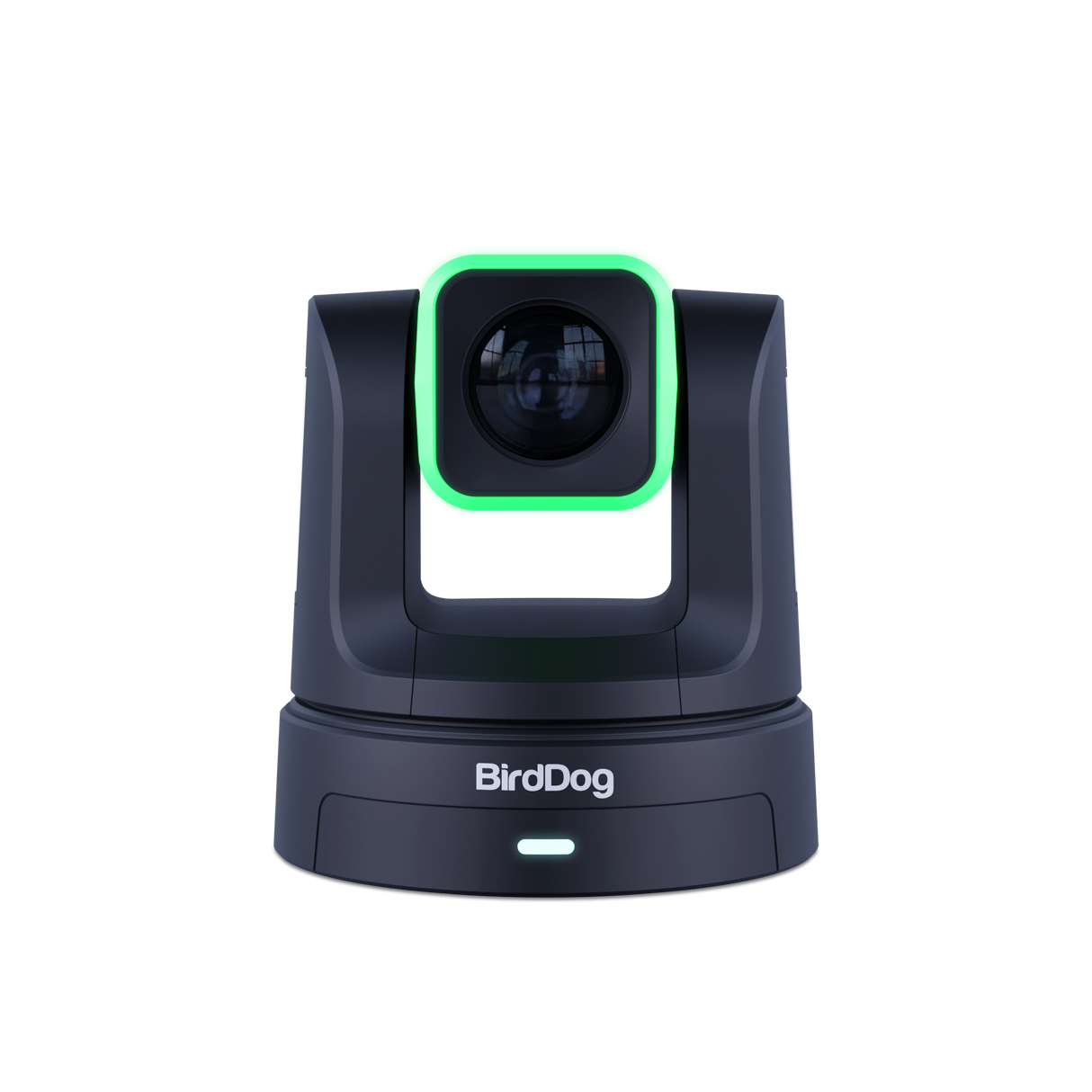

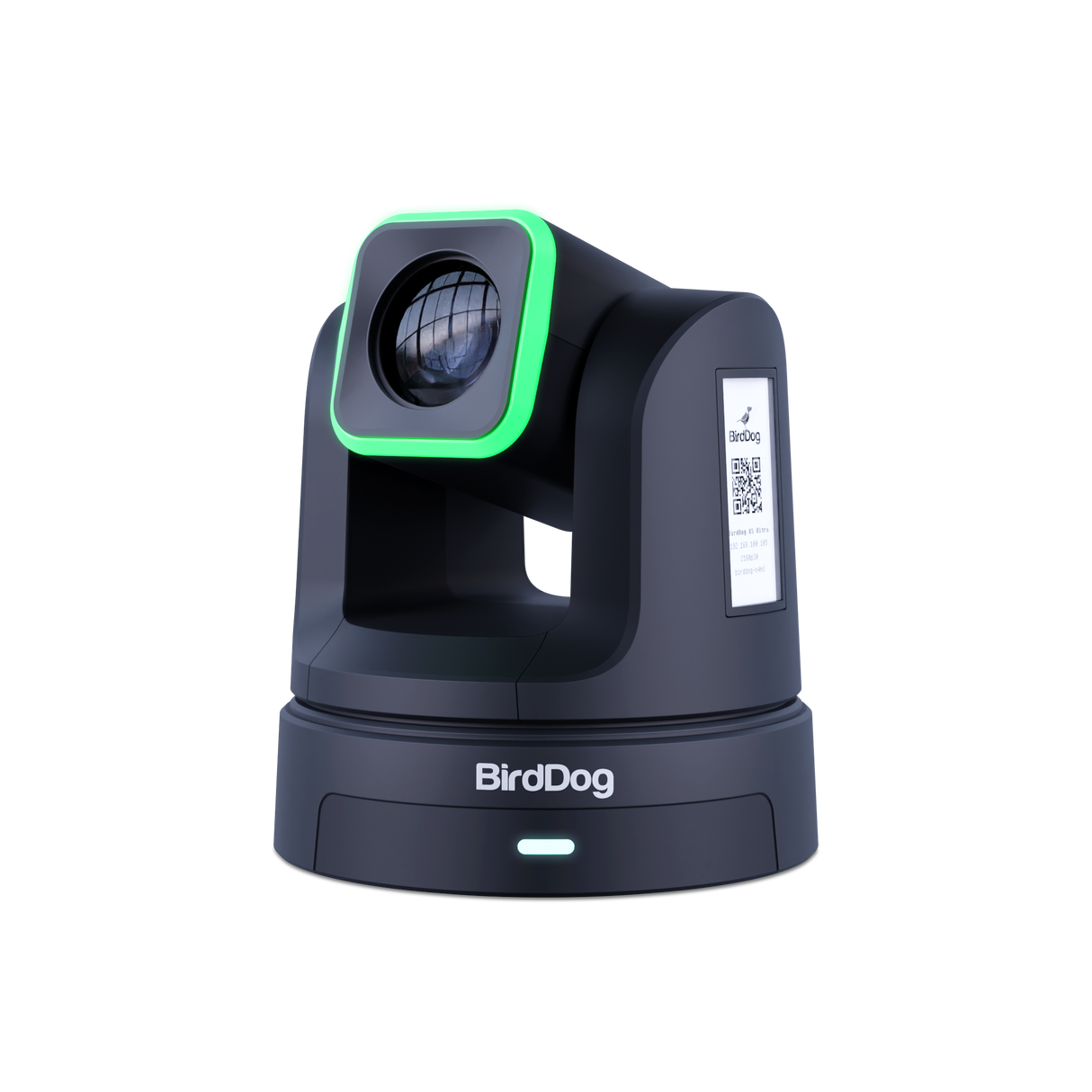

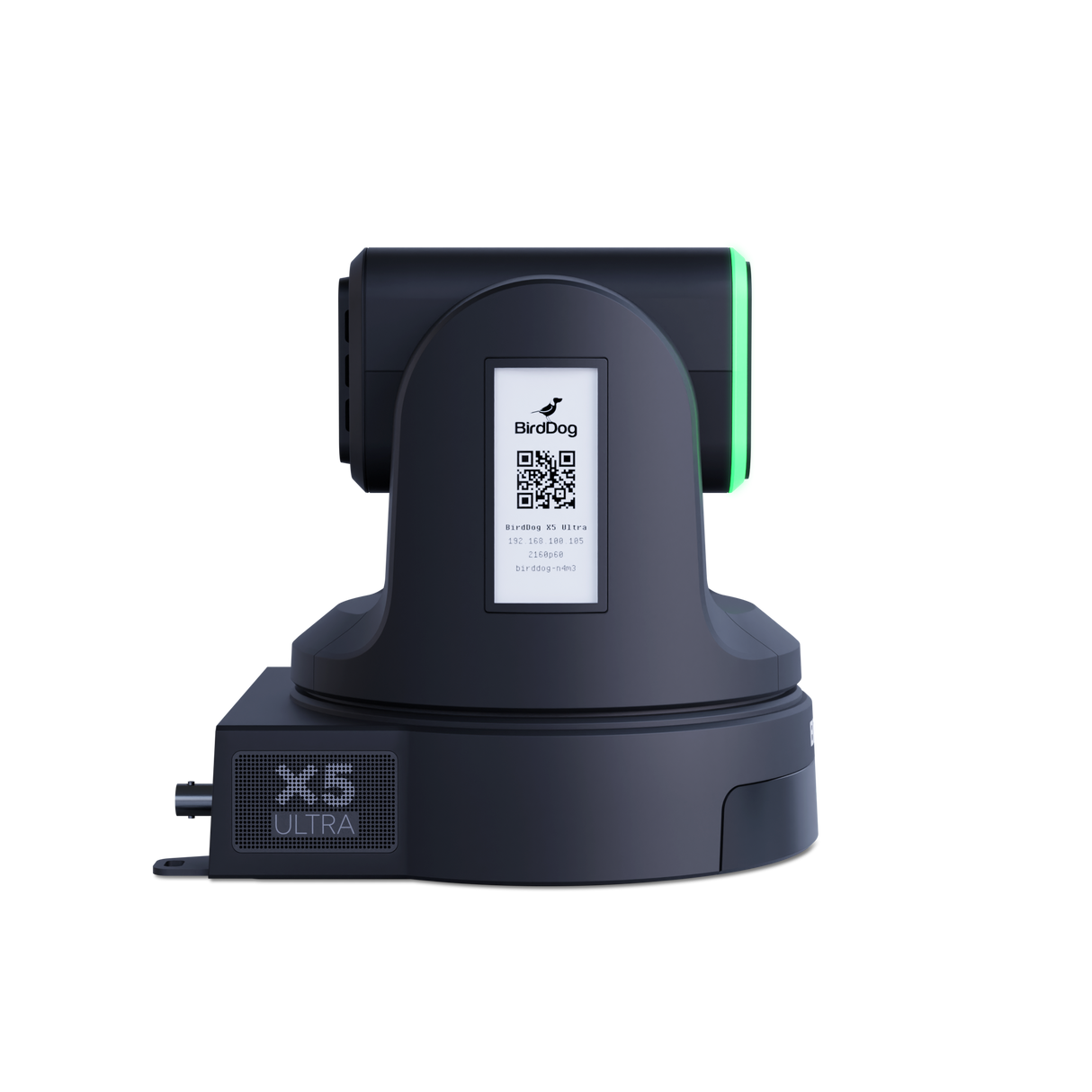

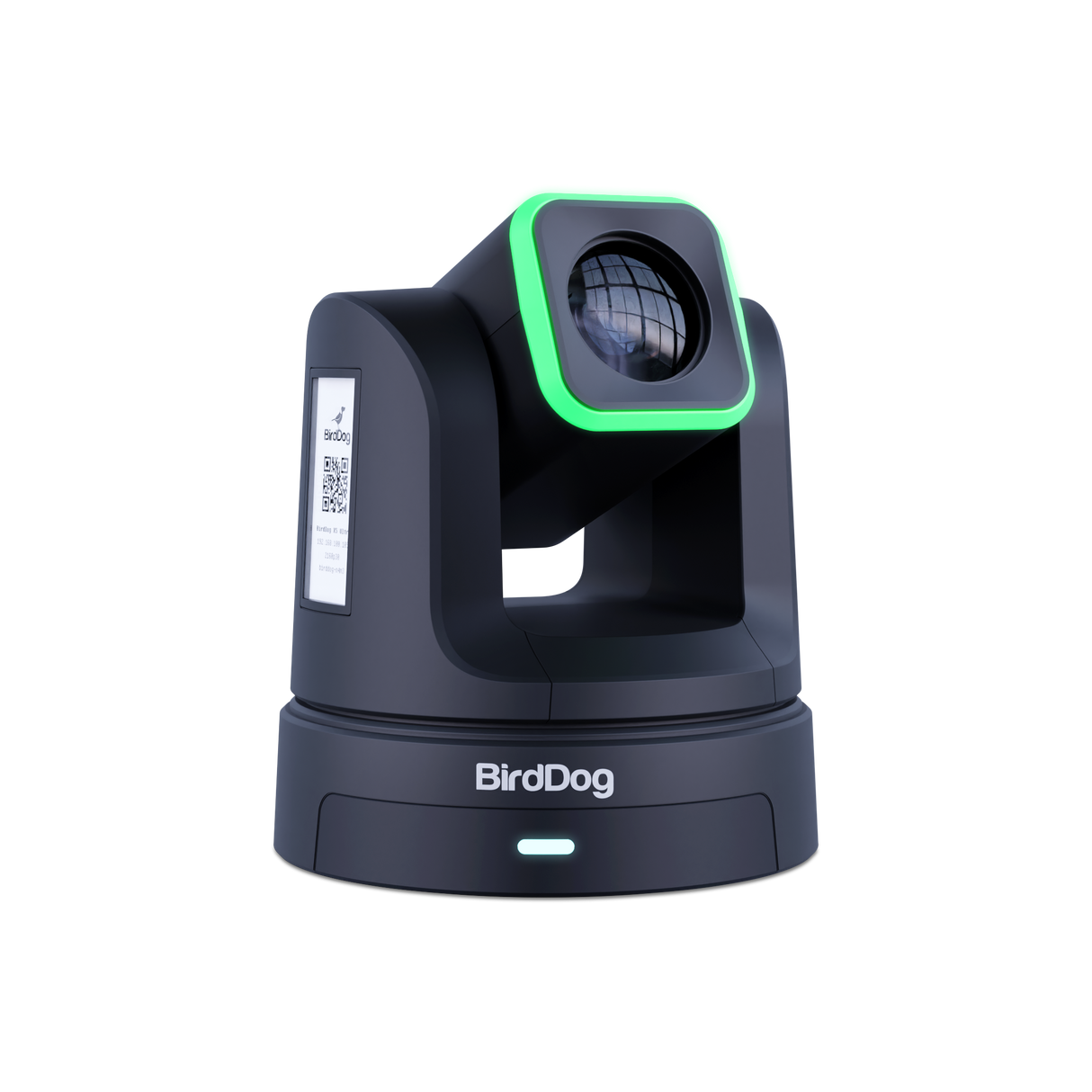

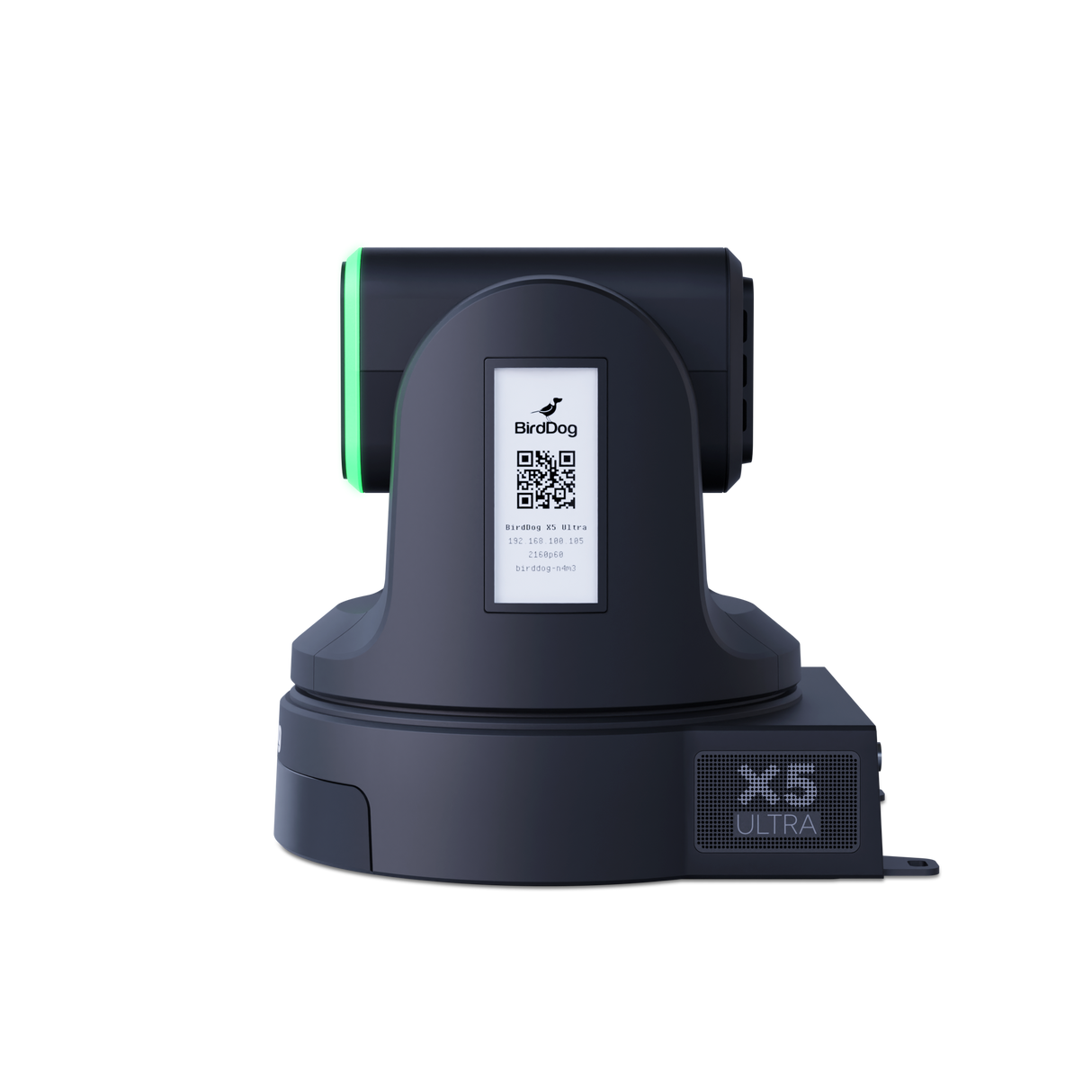

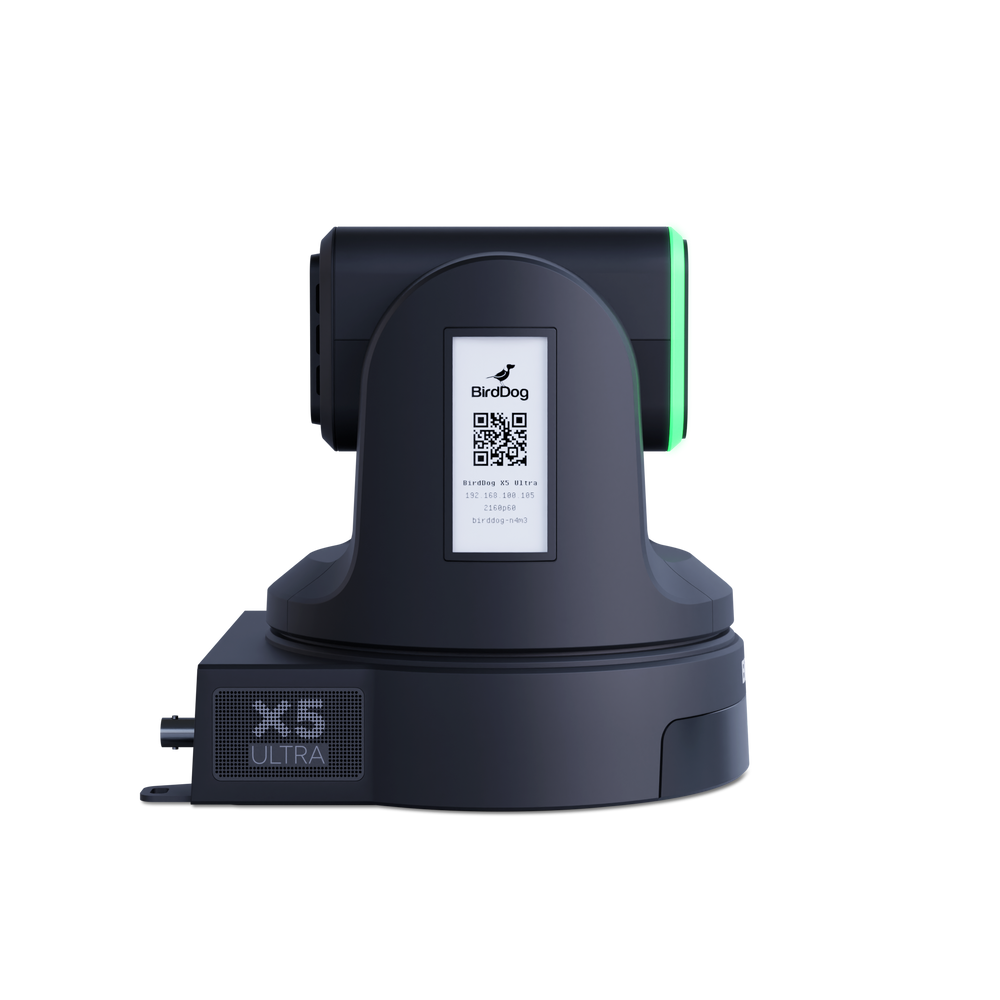

• Daylight-visible Halo tally system and dual e-ink displays
• AI presenter tracking with neural processing headroom for future features

Specifications

• Image Sensor: Sony 1/2.8” CMOS - ULTRA HD
• Lens: f=5.4-104mm
• Optical Zoom: 20x
• Video Format 2160p @ 60, 59.94, 50, 30/29.97/25fps,
• 1080p @ 60, 59.94, 50, 30/29.97/25fps,
• 720p @ 60, 59.94, 50fps
• Horizontal Angle of View: 56.6°(W)-3°(T)
• Vertical Angle of View: 32.5°(W)-1.7°(T)
• Diagonal Angle of View: 64.7°(W)-3.5°(T)
• Aperture: F1.6(W)-F3.6(T)
• Focus: Auto, Manual
• Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
• Shutter Speed: 1/1 - 1/10000s
• Backlight Compensation: Yes
• Digital Noise Reduction: 3D Noise Reduction
• SNR: >50dB
• Effective Pixels: 8.46 MP
• Filter Ring: ∅49mm
• AI Tracking: Presenter
• Pan/Tilt Rotation: ±170°, -30° ~ +90°
• Pan Control Speed: 0.1 -200°/sec
• Tilt Control Speed: 0.1 -200°/sec
• Preset Number: 128 presets, Speed Adjustable
• Integrated Tally Light: Halo style, RGB
• Pan/Tilt Drive System: Ultra-fine drive
• Quietness: Max 28dB at full speed pan

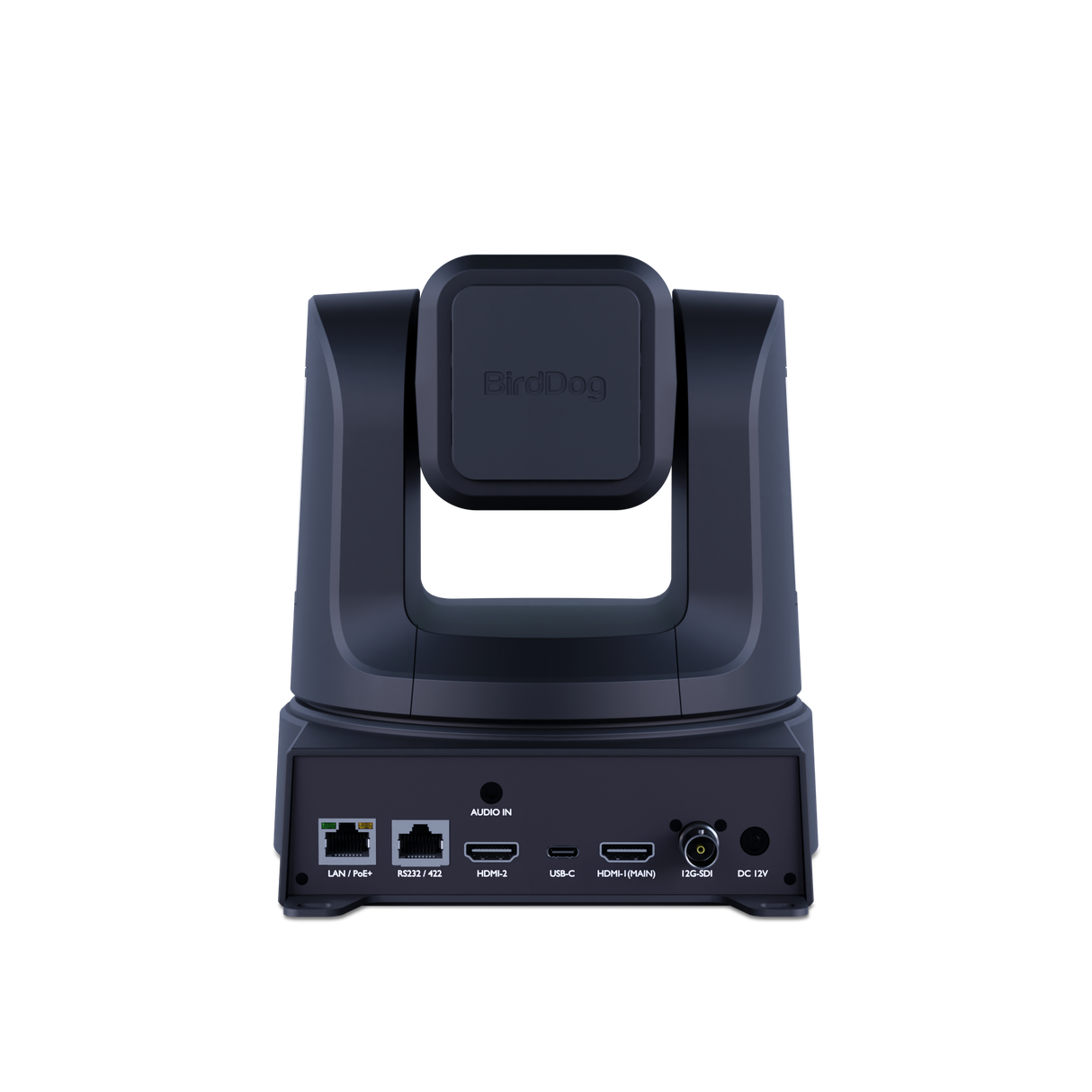

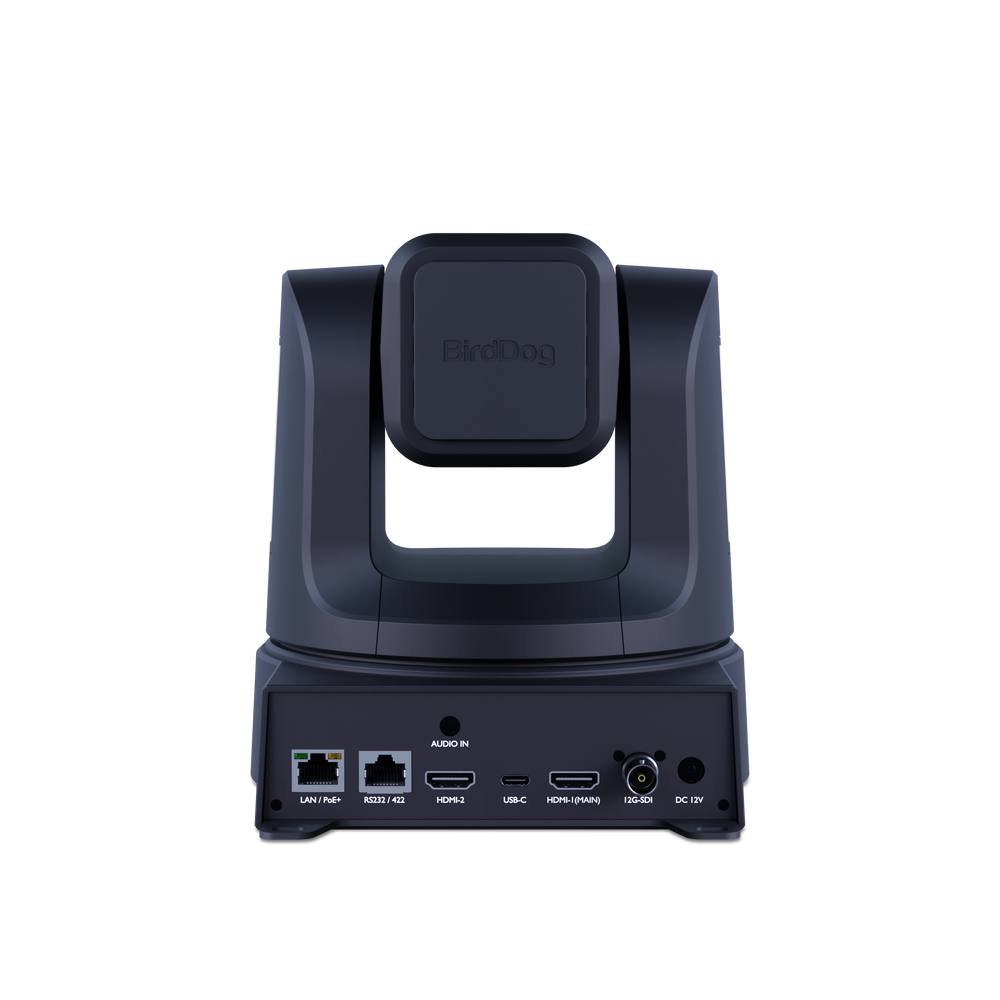

• Video Output Interfaces: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
• Video Compression Formats: H.264, H.265
• Network Interfaces: 1GbE adaptive Ethernet port; PoE+ IEEE 802.3at
• Encoder Network Protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP*
• HDMI Decoder Network Protocols: NDI®|HX2, NDI®|HX3
• Decoder Supported Resolutions HDMI 1 - 2160p30, 1080p60, 1080p30, 720p60
• HDMI 2 - 1080p60, 1080p30, 720p60
• Control Interfaces: 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
• Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
• Analogue Audio: 3.5mm Mic In / Line In (Stereo)
• Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
• Environmental Operation: Indoor
• Input Voltage: DC 12V, PoE+ IEEE 802.3at
• Input Current: 2.0A (Max)
• Power Consumption: 18W (Max)
• Working Temperature: 0ºC ~ +40ºC
• Working Humidity: 20% ~ 80%
• Dimension (W*H*D) mm: 185.7*171.9*200.90mm/ 271*275*245mm (before / after packing)
• Dimension (W*H*D) in: 7.31*6.76*7.90in/ 10.6*10.8*9.6in (before / after packing)
• Net and Gross Weight: 2.31kg/3.76kg (Net/Gross weight)
• IMAGING
• MECHANICAL
• I/0 INTERFACE
• GENERAL

What's Included

• BirdDog X5 Ultra PTZ Camera
• IR Remote Controller
• DC 12V Power Supply
• Welcome Pack
• USB-C Cable (1.8m)
• Limited 5-Year Manufacturer Warranty
