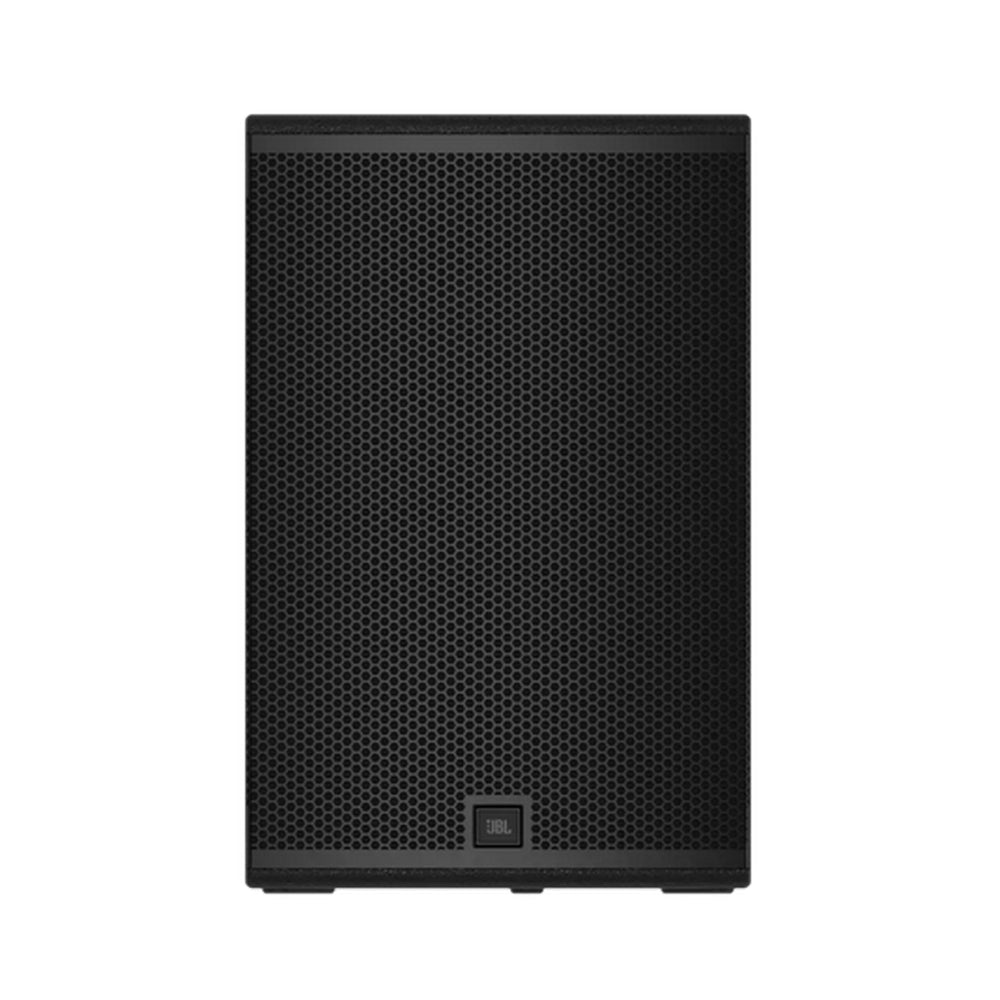

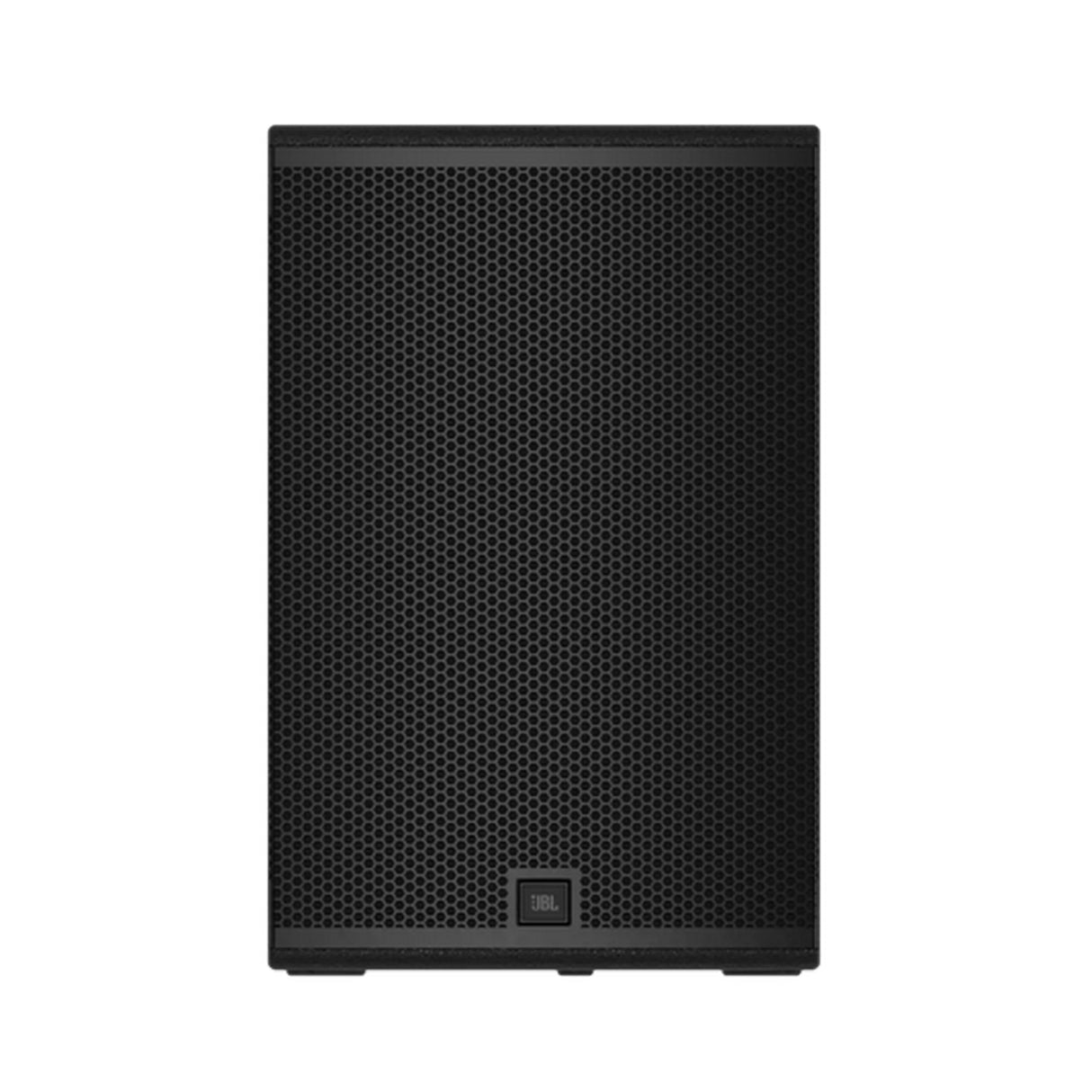

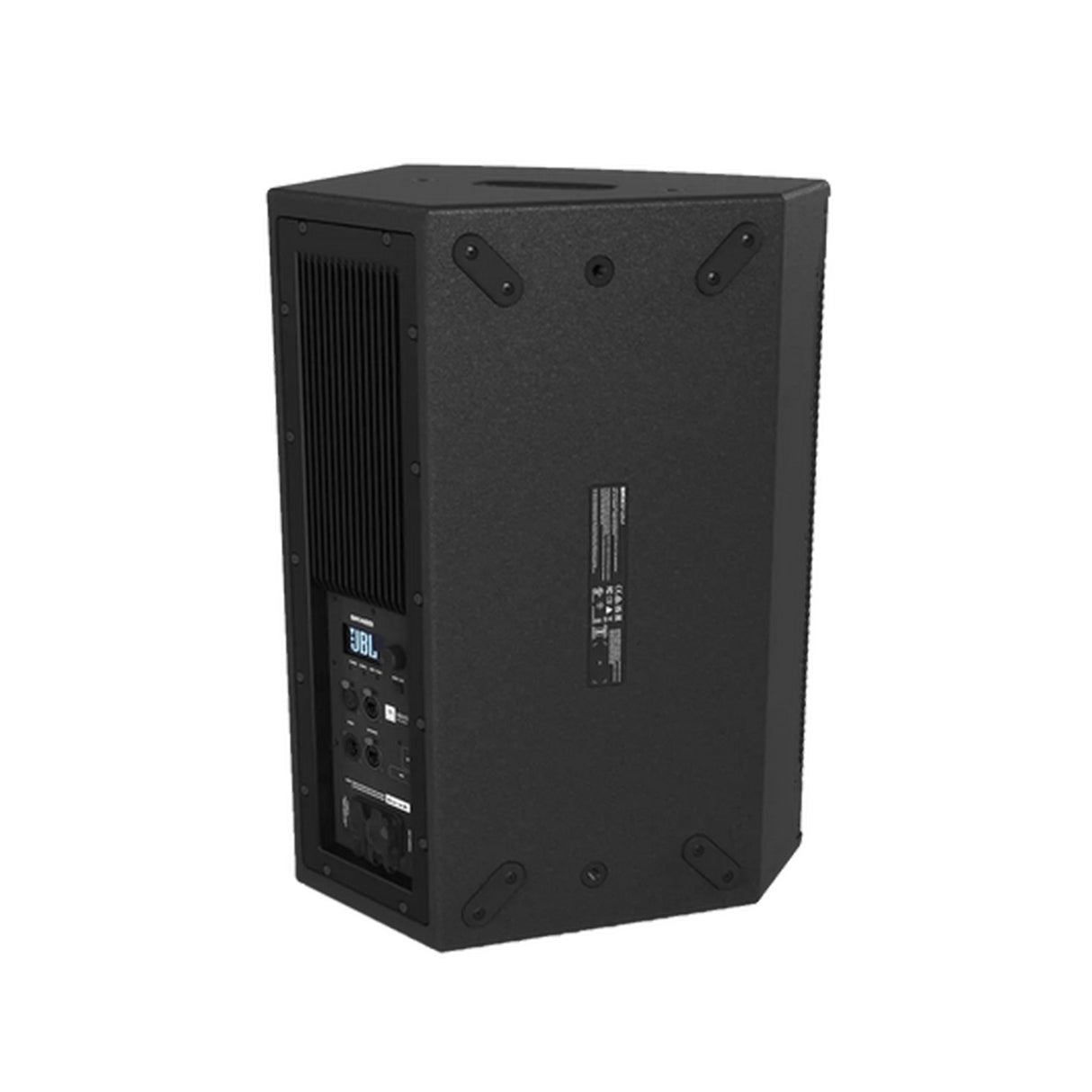

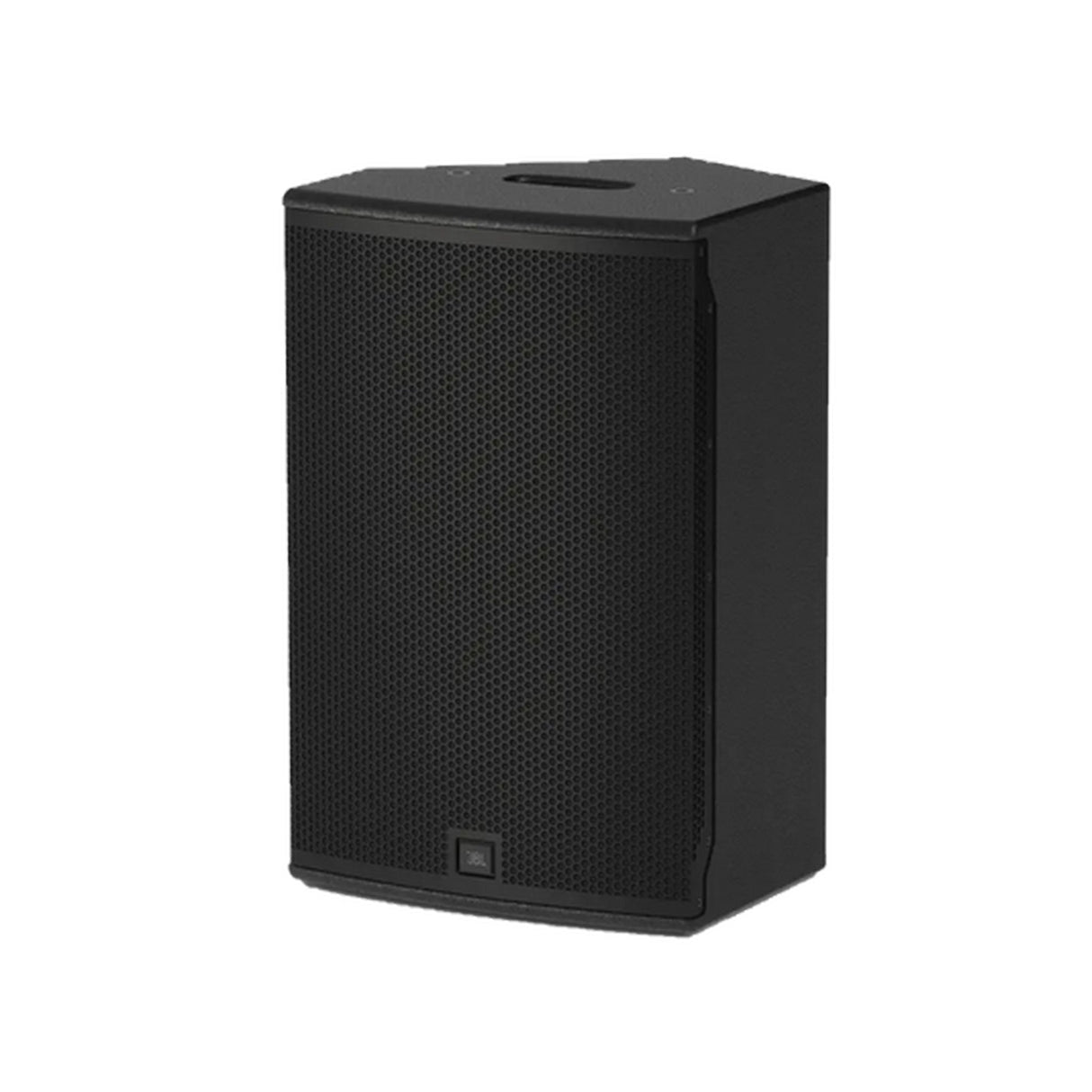

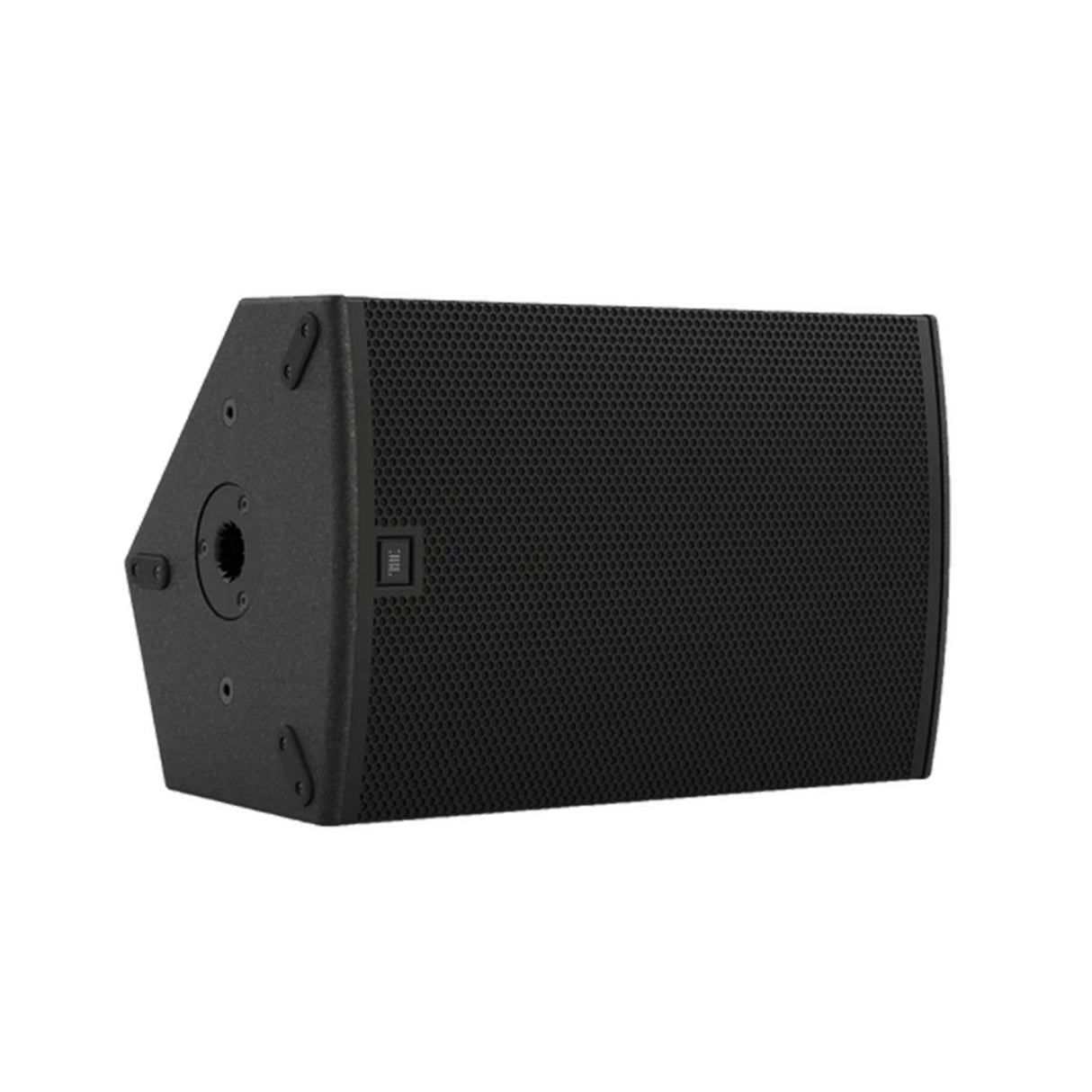

JBL SRX912M 12-Inch Powered Multi-Purpose Loudspeaker
The JBL SRX912M is an exceptionally compact, multi-purpose, two-way powered point-source loudspeaker designed for professional sound reinforcement. It delivers remarkably high output and clarity from a compact footprint, making it suitable for a wide range of live sound applications.
This powered loudspeaker features onboard Class-D amplification and integrated DSP to ensure optimized performance and consistent sound quality. Purposeful enclosure design supports use as a main PA, stage monitor, or front fill in portable and installed sound systems.
Built for reliability in demanding environments, the SRX912M incorporates JBL transducers and proprietary Progressive Transition waveguides for outstanding fidelity and coverage control. Its rugged construction and versatile mounting options make it ideal for touring, fixed installation, and professional event production.
Key Features
- Best-in-Class Performance: Highly efficient system architecture delivers impressive output and clarity from a compact enclosure.

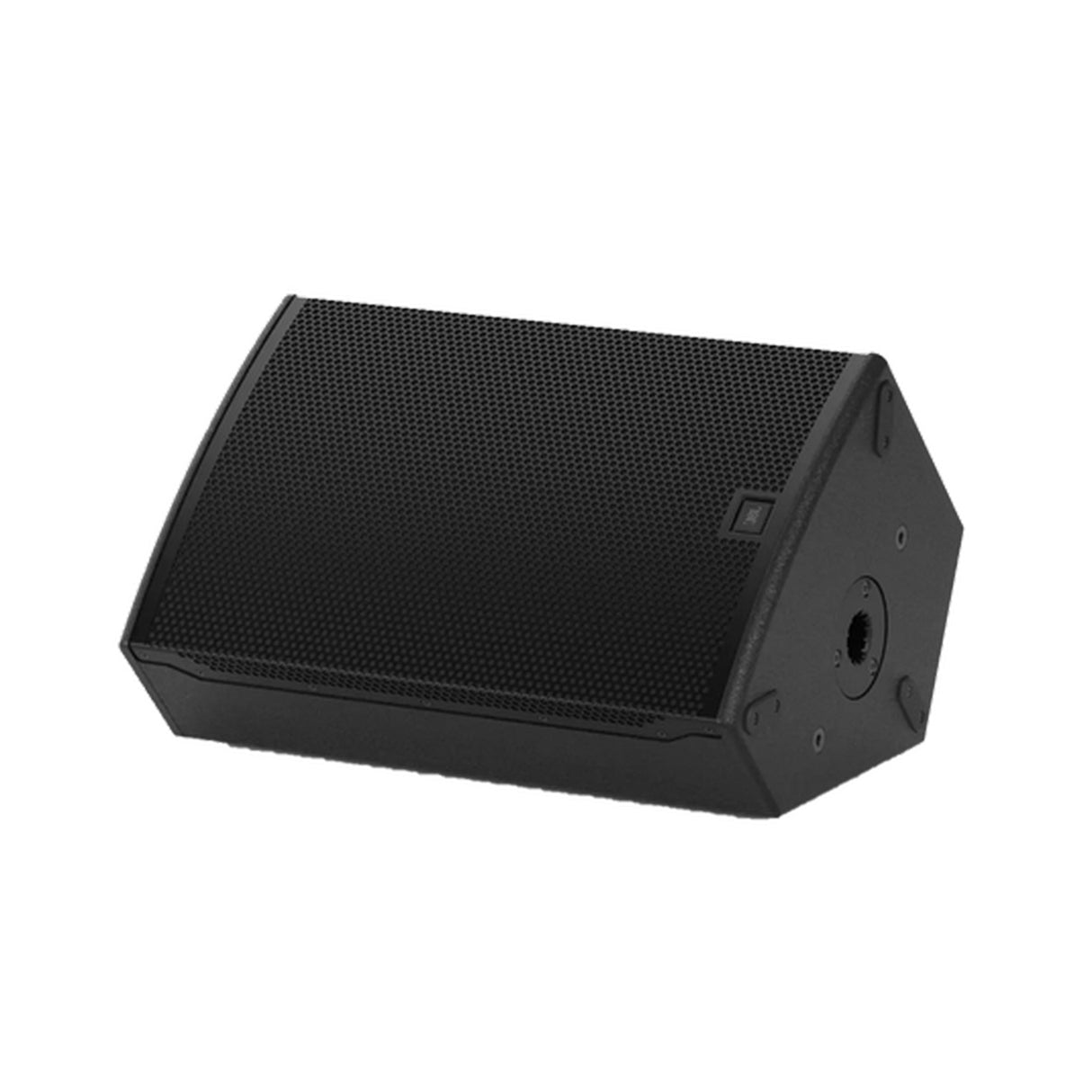

- Multi-purpose Design: Supports use as a main PA, stage monitor, or front fill.
- Powered Solution: Onboard Class-D amplification with integrated DSP for optimized performance.
- Complete System Integration: Part of the SRX900 Series ecosystem of speakers, accessories, and software.
- Rugged Construction: Exterior grade birch plywood enclosure with DuraFlex finish for durability.
Technical Specifications
System TypeMulti-purpose point-source, two-way powered
Frequency Range
50 Hz to 20 kHz (-10 dB)
60 Hz to 19 kHz (-3 dB)
Coverage Pattern
90 degrees horizontal x 60 degrees vertical
Maximum Peak Output
133 dB SPL

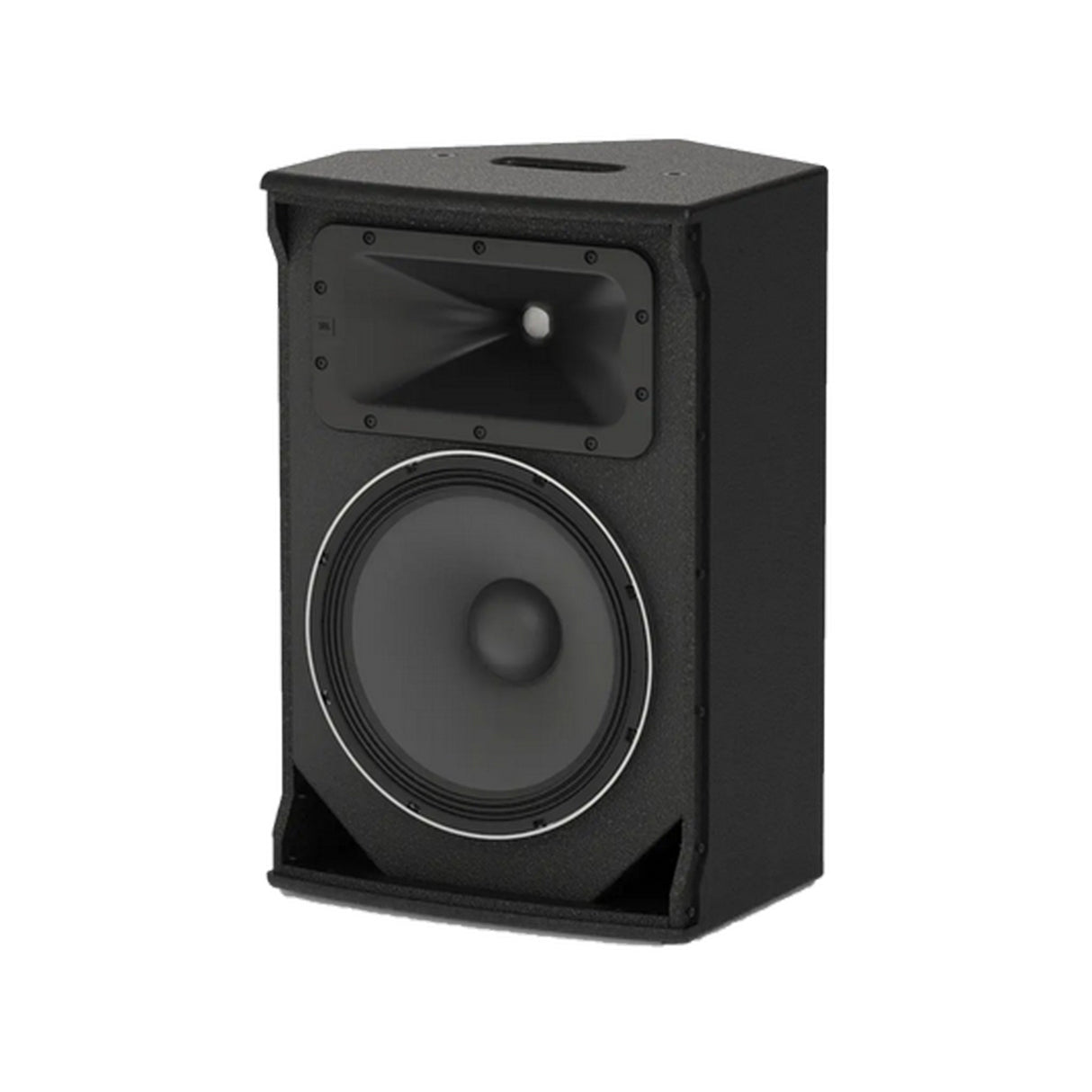

Low Frequency Driver
JBL 272F 12-inch diameter, dual 2.0-inch diameter voice coil, ferrite Differential Drive
High Frequency Driver
JBL 2408H-1, 1-inch exit neodymium compression driver with 1.5-inch voice coil
Amplifier Type
Class-D
Continuous Power
600 Watts LF 400 Watts HF 200 Watts
Peak Power
880 Watts LF 580 Watts HF 300 Watts
Input Type
Balanced line level
Connectors
(2) Neutrik XLR IN OUT
DSP Sample Rate
48 kHz
Bit Depth
24 bit
AC Power
100 to 240 VAC, 50 or 60 Hz
Suspension
(8) JBL QuickLink M10 points
