Blackmagic Design DeckLink Duo 2 Mini Multi-Channel PCI Express Capture and Playback Card
Authorized Dealer
Free Shipping
Low In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

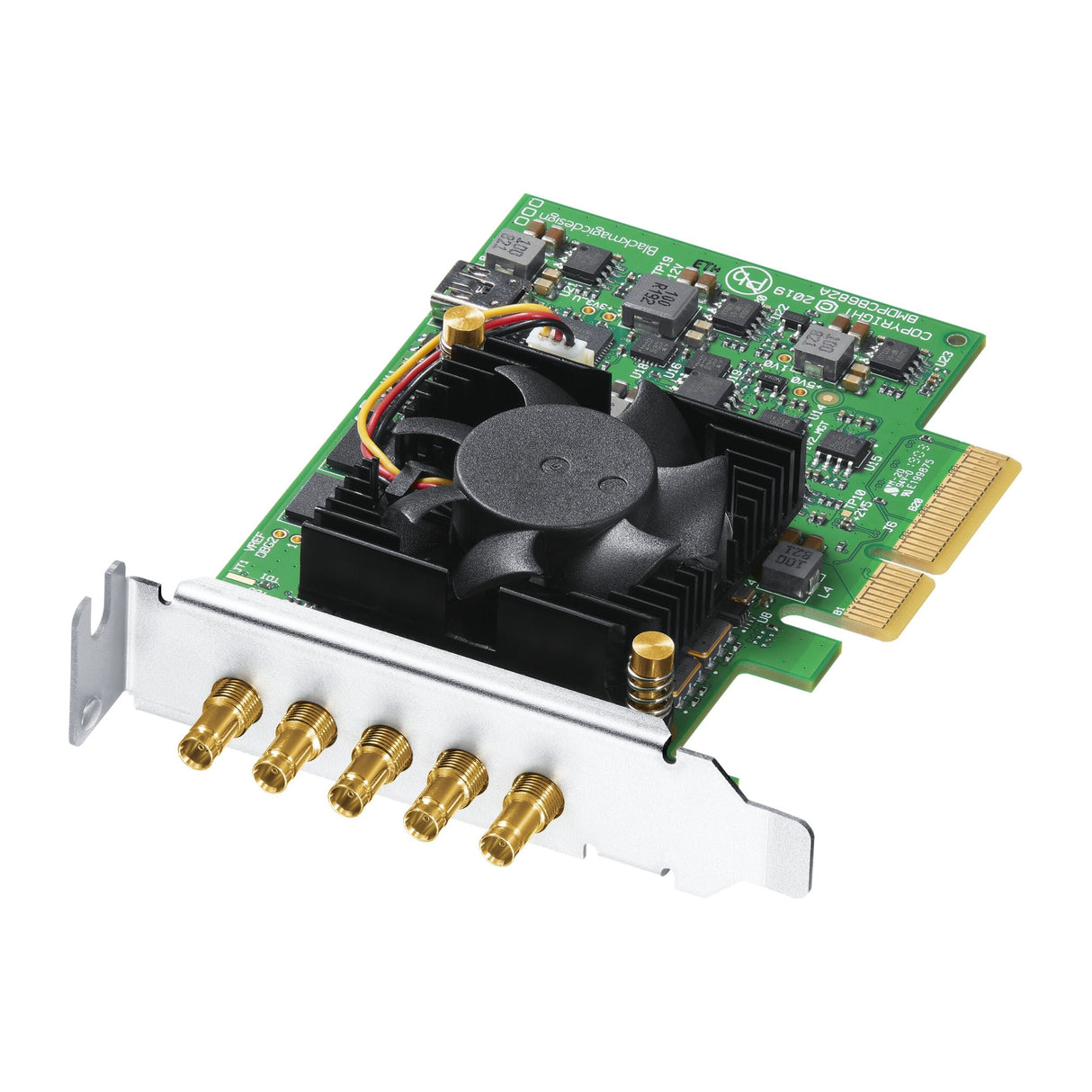

Blackmagic Design DeckLink Duo 2 Mini Multi-Channel PCI Express Capture and Playback Card
The Blackmagic Design DeckLink Duo 2 Mini Multi-Channel PCI Express Capture and Playback Card is the ultimate solution for video professionals needing a versatile and robust video capture and playback device. This low profile, multi-channel PCI Express card features 4 independent mini 3G-SDI connections, letting you configure each channel independently for input or output. Supporting all SD and HD formats up to 1080p60, this device provides the flexibility of four separate cards in one, making it ideal for media play-out systems, multi-screen digital signage, and real-time multi-channel capture systems.
With DeckLink Duo 2 Mini, you can harness high-quality video and audio capture seamlessly. Its bidirectional 3G-SDI connections support 16 channels of embedded audio in both SD and HD. Customizable and compatible with a range of professional video software applications, this PCI Express card is perfect for those looking to streamline their workflow and enhance their production capabilities. Key features include real-time software conversions, support for numerous professional codecs, and compatibility across platforms like macOS, Windows, and Linux.
Key Features
- 4 independent 3G-SDI connections configurable as input or output
- Supports SD and HD formats up to 1080p60
- Flexibility of four separate capture or playback cards in one
- Customizable for media play-out systems, digital signage, and multi-channel capture
- 16 channels of embedded audio in SD and HD
- PC and Mac compatibility
- Real-time hardware-based colorspace conversion
- Software applications including DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and more
Specifications
- SDI Video Inputs: 4 x bidirectional 12-bit SD/HD
- SDI Video Outputs: 4 x bidirectional 12-bit SD/HD
- SDI Audio Inputs: 16 channels embedded in SD and HD
- SDI Audio Outputs: 16 channels embedded in SD and HD
- Sync Input: Tri-Sync or Black Burst
- Computer Interface: PCI Express 4 lane generation 2
- Supported Codecs: Apple ProRes, AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV, DVCPROHD, HDV, HEVC, Uncompressed 8-bit and 10-bit, and more
- Internal Software Upgrade: Firmware built into software driver
- Operating Systems: Mac OS 10.13 or later, Windows 7/8.1/10 (64-bit), Linux
- Power Consumption: 10 Watts
- Operating Temperature: 5°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 45°C (-4°F to 113°F)
- Relative Humidity: 0% to 90% non-condensing
Package Contents
- DeckLink Duo 2 Mini
- SD Card with Software and Manual
- 3 Year Limited Manufacturer's Warranty
