Blackmagic Design Ethernet Switch 820 8x100G/2x10G SMPTE-2110 IP Switch
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

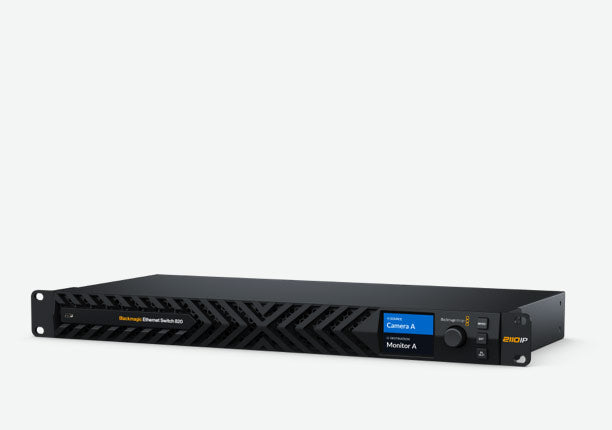

The Blackmagic Ethernet Switch 820 is an extreme-performance, low-latency IP video switch purpose-built for SMPTE-2110 broadcast workflows. In a single rack unit it delivers 8 ultra-fast 100G QSFP28 Ethernet connections plus 2 high-speed 10G RJ45 ports, giving facilities, OB trucks, and IP production environments the bandwidth headroom to carry uncompressed 2110 video, audio, and ancillary data with deterministic timing. Unlike a generic data-center switch, it is engineered specifically for television, with simple front-panel SMPTE-2110 routing and built-in router control so operators can manage sources and destinations directly from the unit.
Designed for the realities of live production, the Switch 820 places all network connections on the rear panel — the same side as the ports on most broadcast equipment — so cabling can be loomed neatly and kept out of the way. A bright front-panel LCD with a control knob lets operators see and switch routing crosspoints at a glance, while a dedicated NMOS control port and separate management port keep configuration, firmware updates, and orchestration cleanly isolated from the media network. Two RJ45 reference connections provide redundant PTP clock distribution for precise 2110 timing across the plant.
Reliability is core to the design. The Ethernet Switch 820 features dual redundant internal power supplies fed by two IEC C14 inputs, six fans for cooling redundancy, and a professional front-to-back airflow path that stays quiet enough to run near talent and equipment in trucks and mini racks. It is the highest-performance model in the Blackmagic Ethernet Switch family, making it ideal for demanding 100G IP infrastructures that need broadcast-grade uptime and straightforward, integrated control.
Features
- 8 x 100G QSFP28 Ethernet ports plus 2 x 10G RJ45 ports for high-bandwidth SMPTE-2110 IP video
- Purpose-built for broadcast with simple front-panel 2110 routing and built-in router control
- Front-panel LCD and control knob for at-a-glance crosspoint monitoring and switching
- Dedicated NMOS control port plus a separate management port for clean network isolation
- Two RJ45 reference ports for redundant 2110 PTP clock distribution
- Dual redundant internal power supplies with two IEC C14 inputs for power resilience
- Six fans and professional front-to-back cooling that runs quiet near talent and racks
- All connections on the rear panel in a compact 1RU chassis for neat, loomed cabling
Technical Specifications
- 100G Ethernet Ports: 8 x 100G QSFP28 connections
- 10G Ethernet Ports: 2 x 10G RJ45 connections
- NMOS Control: 1 x 1G RJ45 for NMOS control
- Management: 1 x 1G RJ45 for configuration and firmware updates
- PTP Clock Reference: 2 x RJ45 Ethernet for 2110 PTP clock
- Power: 2 x IEC C14 inputs, 100-240V AC 50/60Hz internal supplies (dual redundant)
- Cooling: Professional front-to-back airflow, 6 fans for redundancy
- Rack Size: 1 rack unit (1RU)
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
- Warranty: 1 Year Limited Manufacturer's Warranty
What's Included
- Blackmagic Ethernet Switch 820
- Welcome wallet with QR code for software download
