Blackmagic Design Fairlight Live Audio Panel 10 - 10-Fader Control Surface
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

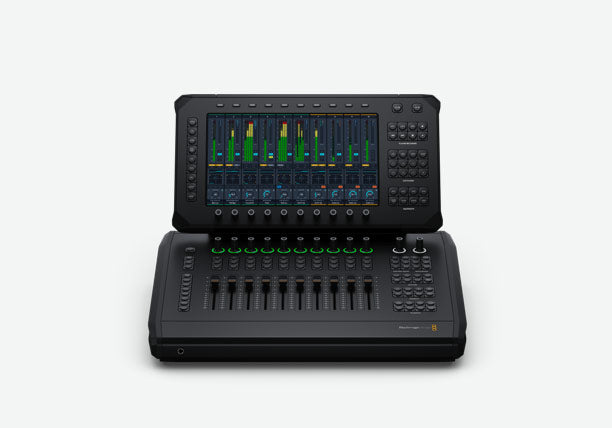

The Blackmagic Design Fairlight Live Audio Panel 10 is a professional desktop control surface built for hands-on live audio mixing within the Fairlight Live ecosystem. Featuring 10 full-travel motorized flying faders, 10 multi-function rotary knobs with ring LED indicators, and dedicated Select, Solo, and Mute buttons on every channel, it replaces endless mouse clicks with fast, tactile control. The motorized faders respond in real time to snapshot recalls and software changes, giving operators precise physical feedback during fast-paced broadcast, sports, and live event productions.
At the heart of the panel is a large 11.6-inch 1920 x 1080 LCD touchscreen that puts channel strips, EQ curves, dynamics processing, and plug-in interfaces directly at your fingertips. Combined with 10 contextual rotary knobs and 10 contextual buttons, the touchscreen delivers immediate access to layers, buses, matrices, aux sends, VCAs, sub-masters, and talkback, so engineers can navigate complex mixes without losing focus on the show.
Designed for modern IP-based facilities, the Audio Panel 10 connects over dual 10G RJ45 Ethernet ports for SMPTE ST 2110 audio and integrates analog mic input, line outputs, a 5-pin XLR headset talkback connection, and dual headphone jacks. With an HDMI monitor output, USB-C computer interface, redundant AC and 12V DC power, and compatibility with macOS and Windows 11, it is a compact yet powerful surface that scales the Fairlight Live workflow to broadcast trucks, studios, and houses of worship.
Features
- 10 full-travel motorized flying faders that respond in real time to snapshot recalls and software changes
- 10 multi-function rotary knobs with ring LED indicators, plus per-channel Select, Solo, and Mute buttons
- Large 11.6-inch 1920 x 1080 LCD touchscreen for channel strips, EQ, dynamics, and plug-in control
- 10 contextual rotary knobs and 10 contextual buttons for layers, bus, matrix, aux, VCA, sub-masters, and talkback
- Dual 10G RJ45 Ethernet ports for SMPTE ST 2110 IP audio
- Built-in mic input, line outputs, 5-pin XLR headset talkback, and dual 6.35mm headphone jacks
- HDMI monitor output supporting HD and Ultra HD video standards
- Redundant power with internal 100-240V AC supply and 12V DC input
Technical Specifications
- Channel Faders: 10 motorized flying faders
- Channel Rotary Knobs: 10 multi-function rotary knobs with ring LED indicators
- Channel Control Buttons: Select, Solo, and Mute per channel
- Contextual Controls: 10 rotary knobs and 10 buttons
- Built-in Display: 11.6 inch 1920 x 1080 LCD touchscreen
- Mic Input: 1 x 3-pin XLR (mic level analog)
- Line Outputs: 2 x 3-pin XLR (line level analog)
- Talkback: 1 x 5-pin XLR headset (input and output)
- Headphone Jacks: 2 x 6.35mm
- IP Audio: 2 x 10G RJ45 Ethernet (SMPTE ST 2110)
- Control Network: 1 x 1G RJ45 for computer connection
- Computer Interface: 1 x USB Type-C
- Monitor Output: 1 x HDMI Type A (HD or Ultra HD)
- Power: Internal 100-240V AC 50/60Hz (IEC C14) plus 4-pin XLR 12V DC input
- Operating Temperature: 0 to 40 C (32 to 104 F)
- Compatible OS: macOS 15 Sequoia / macOS 26 Tahoe or later, Windows 11
What's Included
- Fairlight Live Audio Panel 10 unit
- Welcome wallet with QR code for software download
