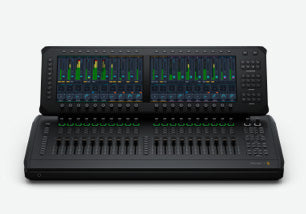

Blackmagic Design Fairlight Live Audio Panel 20 Desktop Mixing Control Surface
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The Blackmagic Design Fairlight Live Audio Panel 20 is a professional desktop control surface built to drive the Fairlight Live software mixer for broadcast, live events, and audio post production. With 20 motorized flying faders, 20 multi-function rotary knobs with ring LED indicators, and dual 11.6 inch 1920x1080 touchscreen displays, it puts hands-on, tactile control of channel levels, EQ, dynamics, plug-ins, and routing right at your fingertips. A large touchscreen for every group of 10 faders gives you a live graphical view of channel strips, metering, processing, and plug-in interfaces as you mix.
Designed for modern IP-based facilities, the panel connects to SMPTE 2110 networks via dual 10G Ethernet, with a separate 1G Ethernet port for computer control, configuration, and software updates. Analog connections include a mic-level XLR input, line-level XLR outputs, dual headphone jacks, and dedicated XLR talkback connections, plus a built-in talkback microphone and four talkback groups for production communication. An HDMI output lets you drive an external monitor for expanded metering and visual feedback.
Because Fairlight Live is software based, the Audio Panel 20 unlocks deep capabilities including spatial and immersive audio with mono, stereo, LCR, 5.1, and ambisonics support, 6-band EQ and full dynamics on every channel, dozens of native plug-ins plus VST and AU hosting, flexible main, sub, aux, mix-minus, and matrix bus architecture, and up to 128 VCA masters. Dual redundant internal power supplies make it dependable for mission-critical live and on-air productions.
Features
- 20 motorized flying faders with Select, Solo, and Mute control per channel
- 20 multi-function rotary knobs with ring LED indicators, plus 20 contextual knobs and 20 contextual buttons
- Two built-in 11.6 inch 1920x1080 LCD touchscreens for graphical channel strip, metering, and plug-in control
- Dedicated keypads for layers, bus, matrix, aux, VCA, sub-masters, masters, snapshots, control room, and globals
- Native SMPTE 2110 IP integration over dual 10G Ethernet, plus 1G Ethernet for computer control and updates
- Built-in talkback microphone with four talkback groups and dedicated XLR talkback I/O
- Dual redundant 100-240V internal power supplies for reliable live and on-air operation
- Analog mic input, line outputs, and dual headphone jacks plus an HDMI monitor output
Technical Specifications
- Channel Faders: 20 motorized flying faders
- Rotary Knobs: 20 multi-function rotary knobs with ring LED indicators; 20 contextual rotary knobs; 20 contextual buttons
- Touchscreens: 2 x 11.6 inch 1920 x 1080 LCD touchscreens
- 2110 IP Networking: 2 x 10G RJ45 Ethernet
- Control Network: 1 x 1G RJ45 for computer connection, configuration, and updates
- Analog Audio Inputs: 1 x 3-pin XLR mic level; 1 x 5-pin XLR talkback headset
- Analog Audio Outputs: 2 x 3-pin XLR line level; 1 x 5-pin XLR talkback; 2 x 6.35mm headphone jacks
- Video Output: 1 x HDMI Type A (HD or Ultra HD)
- USB: 1 x USB Type-C
- Talkback: 1 x built-in talkback microphone; 4 talkback groups
- Power: 2 x 100-240V AC 50/60Hz internal power supplies; 2 x IEC C14 inputs
- Operating Temperature: 0 to 40 C (32 to 104 F); Storage -20 to 60 C (-4 to 140 F); Humidity 0 to 90% non-condensing
What's Included
- Fairlight Live Audio Panel 20
- Welcome wallet with QR code for software download
