Blackmagic Design Intensity Pro 4K PCIe NTSC/PAL HD Ultra HD Capture Playback Device

Blackmagic Design Intensity Pro 4K | PCIe NTSC/PAL HD Ultra HD Capture Playback Device

The Blackmagic Design Intensity Pro 4K is an unparalleled PCIe NTSC/PAL HD Ultra HD capture and playback device, perfect for a wide range of video applications. Whether you are delving into video editing and need real-time previewing on a large-screen TV, a dedicated gamer capturing high frame rate walkthroughs, or transferring precious family memories from VHS tapes to digital format, the Intensity Pro 4K is equipped with all the essential video connections and features to meet your needs. This state-of-the-art device marries both analog and digital connections, effortlessly bridging the gap between legacy equipment and the latest 4K televisions, ensuring seamless connectivity across a variety of devices.

The Intensity Pro 4K delivers top-tier performance with its superior HDMI and analog connection options, ensuring you achieve visually stunning video output every time. With HDMI connectors designed for contemporary HD and Ultra HD tools, as well as analog YUV, S-Video, and NTSC/PAL connections for older analog devices, this versatile unit is designed to work with everything from vintage VHS decks and DVD players to advanced gaming consoles and cutting-edge Ultra HD TVs. Enhance your live streaming, video conferencing, and presentation experiences with this versatile and high-quality capture and playback solution.

Key Features

• Ultra HD and HD Format Support: Captures and plays back 2160p (23.98-30fps) Ultra HD and full range of HD formats including 1080p60, 1080i60 and 720p60
• HDMI Digital Connectivity: HDMI 1.4b input and output with deep color support for contemporary cameras, gaming consoles and Ultra HD displays
• Analog Video Inputs: Component YUV, S-Video and composite NTSC/PAL connections via breakout cable for vintage VHS, DVD players and analog sources
• PCIe Interface: 4-lane PCIe card compatible with 4, 8 and 16-lane slots on Mac, Windows and Linux workstations
• Real-Time Preview Capability: Hardware-accelerated playback enables real-time editing preview on external HDMI displays and televisions
• High Frame Rate Capture: 1080p60 and 720p60 support ideal for gaming walkthroughs and high-motion content
• Compressed and Uncompressed Recording: Capture in uncompressed 10-bit YUV or compressed formats including H.264 for workflow flexibility
• DaVinci Resolve Included: Professional color grading and multi-track editing software included for Mac and Windows
• Media Express Software: Easy-to-use capture and playback application for Mac, Windows and Linux systems

Technical Specifications

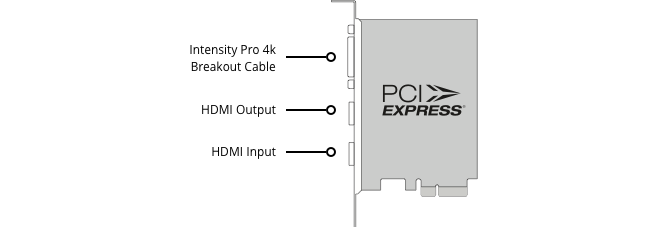

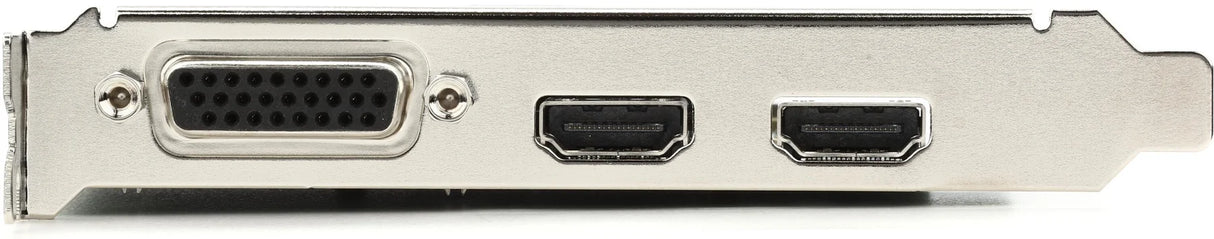

• HDMI Video Input: 1 x HDMI type A connector
• HDMI Video Output: 1 x HDMI type A connector
• HDMI Audio Input: 8 Channels embedded in SD, HD, and Ultra HD
• HDMI Audio Output: 8 Channels embedded in SD, HD, and Ultra HD
• Analog Video Input: Component, Composite, or S-Video
• Analog Video Output: Component, Composite, or S-Video
• Analog Audio Input: 2 Channel RCA HiFi audio in 24-bit
• Analog Audio Output: 2 Channel RCA HiFi audio in 24-bit
• SPDIF Audio Output: 2 Channel 24-bit
• Multiple Rate Support: Switchable HDMI and component analog video connections
• Computer Interface: PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots
• SD Format Support: 625i/50 PAL and 525i/59.94 NTSC, 480p
• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, and 2160p30
• HDMI Video Sampling: RGB 4:4:4 in HD, YUV 4:2:2 in Ultra HD
• HDMI Audio Sampling: 48kHz and 24-bit
• Color Space: REC 601, REC 709
• HDMI Color Precision: 10-bit
• HDMI Configuration: HDMI 1.4b supports Deep Color
• Copy Protection: Not applicable for protected HDMI sources
• UHD/HD Down Conversion: Software-based during playback
• HD Up Conversion: Real-time SD to 1080HD and 720HD during capture
• Real-Time Effects: Supported in Final Cut Pro X, Premiere Pro CC, and Avid Media Composer
• OS Compatibility: Mac OS X 10.9 and later, Windows 7 and 8, Linux

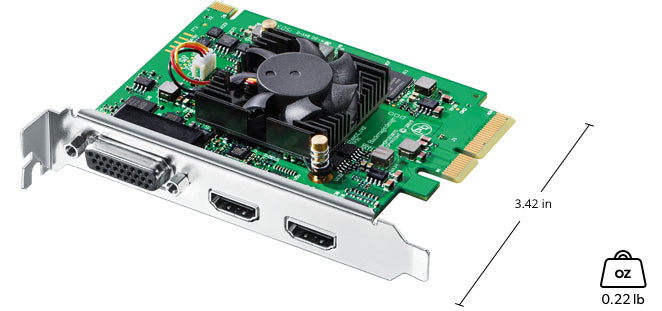

• Dimensions: 3.42 inches depth
• Weight: 0.22 lbs
• Physical Installation: PCI Express 4 lane, supports multiple PCIe slots
• Operating Temperature: 5 to 40 degrees C (32 to 104 degrees F)
• Storage Temperature: -20 to 45 degrees C (-4 to 113 degrees F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Intensity Pro 4K
• Software SD card
• Breakout Cable
• 12 Months Limited Warranty
