Blackmagic Design Teranex Mini SDI to HDMI 12G Converter (Used)

Blackmagic Design Teranex Mini SDI to HDMi 12G SD HD Ultra HD Supported Converter (Used)

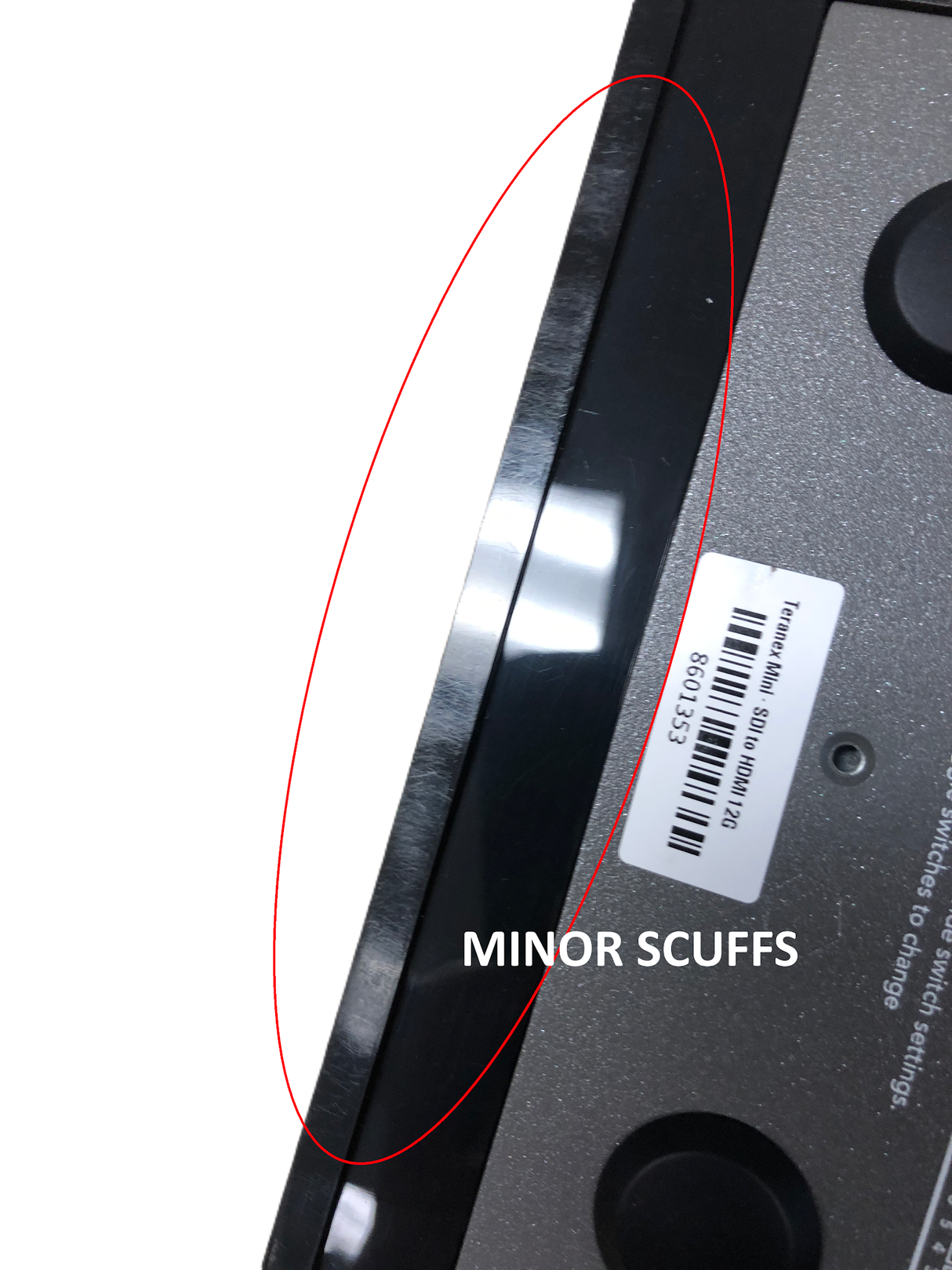

The Blackmagic Design Teranex Mini SDI to HDMI 12G Converter is the ultimate solution for professional video conversion, ensuring high-quality signal integrity and compatibility across various formats. Perfect for broadcast professionals, filmmakers, and video enthusiasts, this versatile converter allows you to transform your SDI signal into an HDMI output with exceptional ease. This used unit is fully functional and has been tested prior to listing — see the condition notes above and the photos for an accurate representation.

Designed with cutting-edge 12G-SDI technology, the Teranex Mini supports all major video formats, including SD, HD, 6G, and 12G-SDI rates. It features an integrated down converter for seamless Ultra HD compatibility, allowing your HDMI display to automatically select the best format for optimal viewing. Whether you need to monitor professional SDI signals on consumer HDMI displays, connect to video projectors, or de-embed audio for separate processing, this converter handles it all with precision and reliability.

Beyond video conversion, the Teranex Mini also excels in audio de-embedding, offering balanced analog and digital audio outputs via XLR connectors. It automatically switches between SD, HD, 2K, and 4K formats, ensuring compatibility with a broad range of equipment. Integrated software control via Mac OS X or Windows, along with optional hardware control panels, provides flexible configuration options to suit any workflow.

Key Features

• Supports 12G-SDI to HDMI conversion
• Compatible with SD, HD, 2K, and 4K formats
• Includes down converter for Ultra HD displays
• De-embeds audio to balanced analog or AES/EBU formats
• Automatic format switching between SD/HD/2K and 4K
• Re-clocking and multi-rate support for signal integrity
• Software control via USB or Ethernet
• Optional hardware control panels available

Specifications

• SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching
• SDI Video Output: 1 x 12G-SDI loop output
• HDMI Output: 1 x HDMI 2.0 type A connector supporting 2160p60
• Analog Audio Output: 2 channels professional balanced analog audio via XLR connectors
• AES/EBU Audio Output: 4 channels professional 110 ohm balanced digital audio via XLR connectors
• Multi-Rate Support: Automatic switching between SD/HD/2K and 4K
• Updates and Configuration: USB or Ethernet
• Re-Clocking: Yes
• SD Format Support: 525/29.97 NTSC, 625/25 PAL
• HD Format Support: Various including 1280 x 720p60 and 1920 x 1080p60
• 2K Format Support: Various including 2048 x 1080p24
• 4K Format Support: Various including 3840 x 2160p60
• SDI Compliance: SMPTE standards
• SDI Video Rates: SDI video connections are switchable between SD, HD level B 3G-SDI, 6G-SDI, and 12G-SDI
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• HDMI Format Support: Various including 3840 x 2160p60
• HDMI Color Space: REC 601, REC 709
• HDMI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
• Software Control: Mac OS X and Windows via USB or Ethernet
• Power Supply: 1 x built-in international AC power supply, 90 - 240V AC
• Power Consumption: 15 Watts
• Operational Voltage Range: 90 - 240V AC
• Environmental Specs: Operating temperature 0 to 40 deg C, Storage temperature -20 to 60 deg C, Relative Humidity 0% to 90%

Package Contents

• Teranex Mini - SDI to HDMI 12G
• Software
• SD Card

Please note: All sales are final for this item.
