Blackmagic Design URSA Cine Mount B4 - B4 Broadcast Lens Mount
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

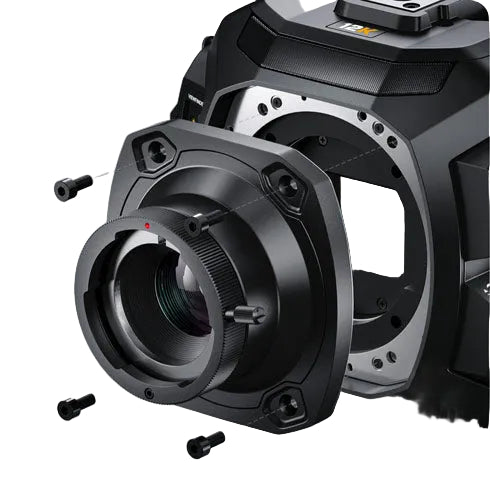

The Blackmagic Design URSA Cine Mount B4 is an interchangeable lens mount that lets you fit professional B4 broadcast and box lenses to the large-format Blackmagic URSA Cine 12K camera. Engineered specifically for live production, sports, and replay workflows, the mount incorporates precision optics with spherical aberration correction that are matched to the URSA Cine RGBW sensor, so you retain the image quality, color science, and dynamic range broadcast operators expect when shooting with familiar 2/3-inch broadcast glass.
Because B4 lenses are designed for smaller broadcast sensors, this mount applies a B4 crop and uses its built-in optics to deliver clean, full-resolution images. On the URSA Cine 12K it enables 4.6K B4 crop 16:9 capture at frame rates up to 240 fps, making it ideal for high-frame-rate slow-motion replay, multi-camera live events, and ENG-style production where servo zoom broadcast lenses with their long focal ranges and back-focus controls are essential.
The URSA Cine Mount B4 swaps in like the camera's other interchangeable mounts (PL, LPL, and EF), giving rental houses, broadcasters, and live production facilities the flexibility to repurpose a single URSA Cine body across cinema and broadcast jobs. For full lens control, pair it with the separate Blackmagic URSA Cine B4 Adapter Cable, which converts the camera's 7-pin EXT connector to the 12-pin Hirose control connection used by professional broadcast B4 lenses.
Features
- Interchangeable B4 lens mount for the Blackmagic URSA Cine 12K camera
- Use professional 2/3-inch B4 broadcast and box lenses for live production
- Built-in optics with spherical aberration correction matched to the URSA Cine RGBW sensor
- Enables 4.6K B4 crop 16:9 capture at up to 240 fps for high-frame-rate slow motion
- Ideal for live sports, replay, multi-camera, and ENG-style broadcast workflows
- Swappable alongside the camera's PL, LPL, and EF mount options
- Supports full broadcast lens control via the optional URSA Cine B4 Adapter Cable (7-pin EXT to 12-pin Hirose)
Technical Specifications
- Mount Type: B4 bayonet lens mount (for broadcast and box lenses)
- Compatible Camera: Blackmagic URSA Cine 12K
- Sensor Matching: Optics designed to match the URSA Cine RGBW sensor
- Optical Correction: Spherical aberration correction
- Maximum B4 Resolution: 4.6K B4 crop 16:9
- Maximum Frame Rate (B4 crop): Up to 240 fps
- Lens Control: Via optional URSA Cine B4 Adapter Cable (7-pin EXT to 12-pin Hirose)
- Interchangeable With: PL, LPL, and EF URSA Cine mount options
