Blackmagic Design Videohub 10x10 12G Zero Latency Video Router
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Blackmagic Design Videohub 10x10 12G Zero Latency Video Router
The Blackmagic Design Videohub 10x10 12G Zero Latency Video Router is a cutting-edge solution for professional video routing needs. Whether you are working with SD, HD, or Ultra HD video standards, this versatile device supports all combinations seamlessly. Featuring 10 12G-SDI inputs and 10 12G-SDI outputs, this one rack unit offers exceptional connectivity options that cater to all industry requirements. The front panel includes an LCD screen that allows you to preview video before routing and displays routing labels and video standards prominently. Furthermore, routing operations are simplified with direct button selections and an intuitive spin knob control equipped with an electronic clutch.
What sets the Blackmagic Videohub 10x10 12G apart is its impressive feature set, including SDI re-clocking on all SDI outputs, external Ethernet control compatibility, and support for all SDI video standards up to an astonishing 2160p60. This makes it an ideal choice for professionals looking for zero latency performance in live broadcast, post-production, and other critical applications. Its robust build ensures reliable operation in any high-stress environment, boasting an array of video standards and connectivity options that meets both current and future needs.
Key Features
- Zero latency video routing
- Supports SD, HD, and Ultra HD simultaneously on the router
- 10 12G-SDI inputs and 10 12G-SDI outputs

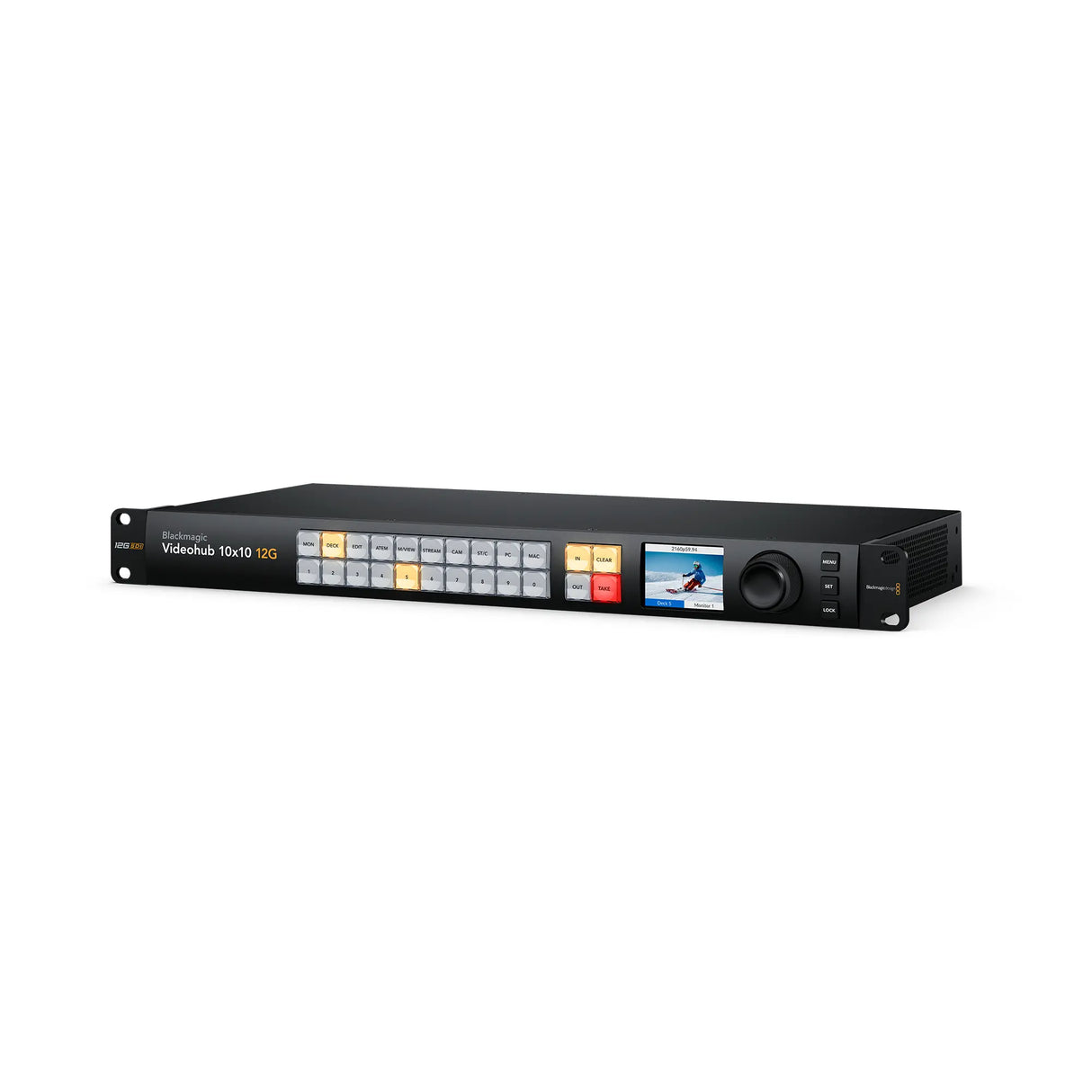

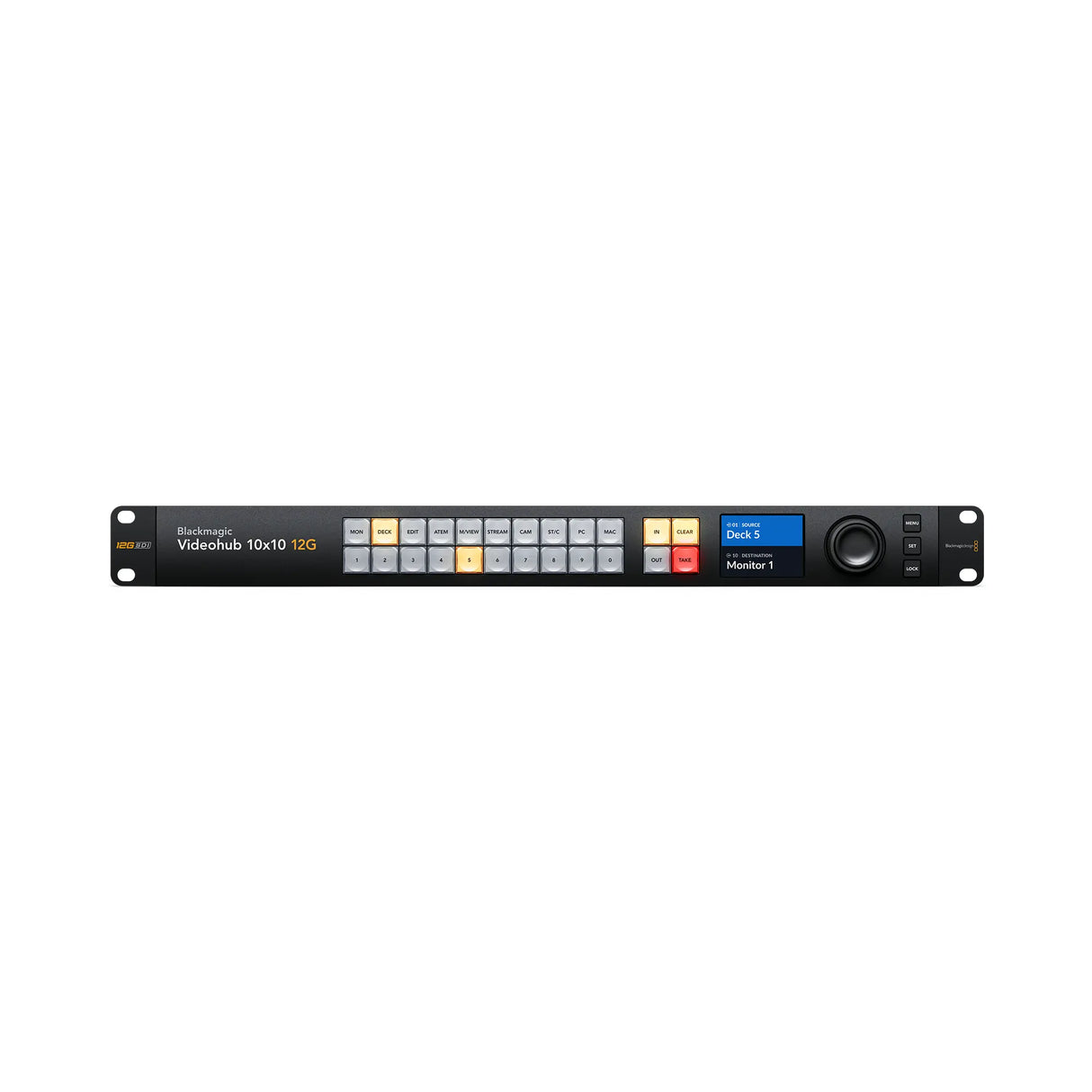

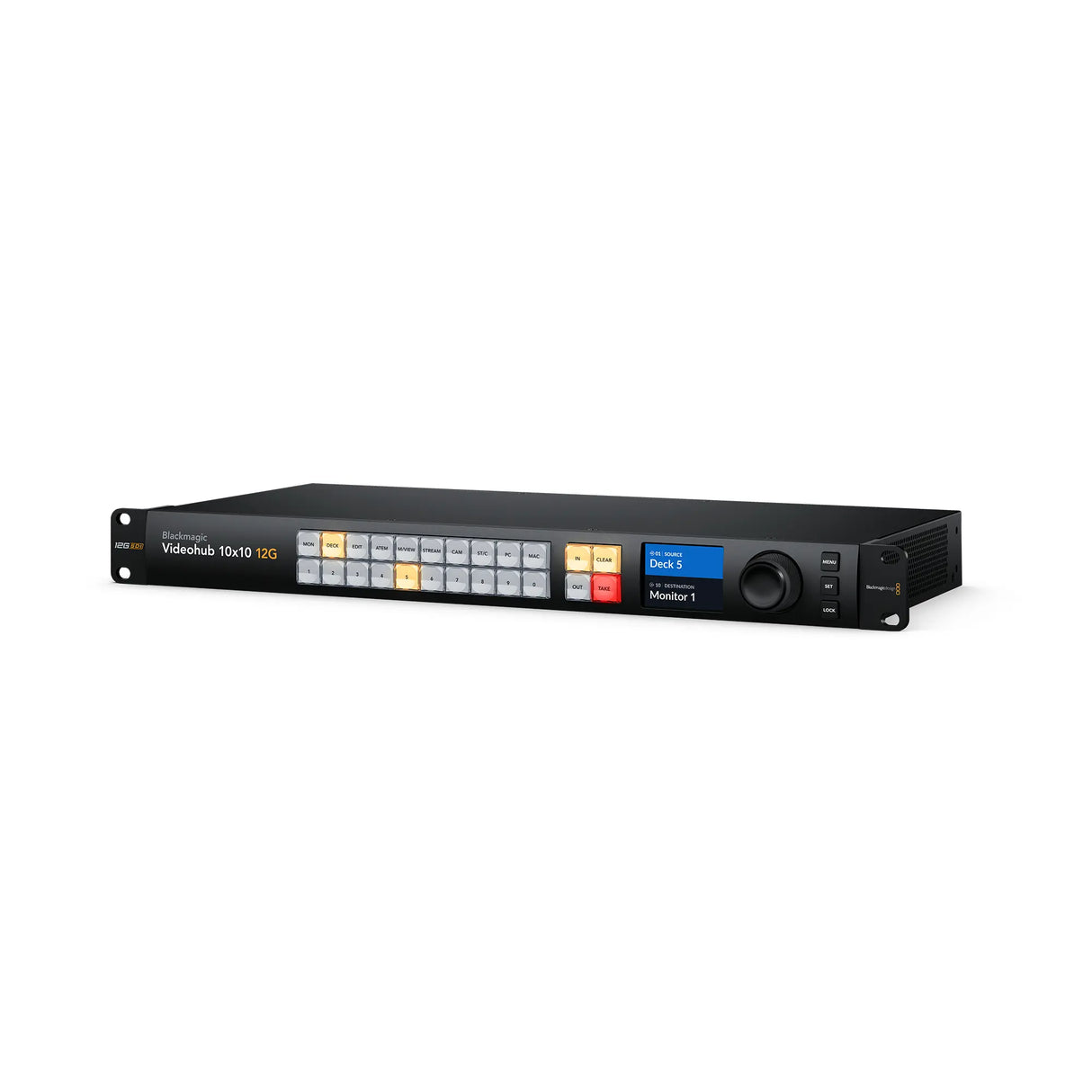

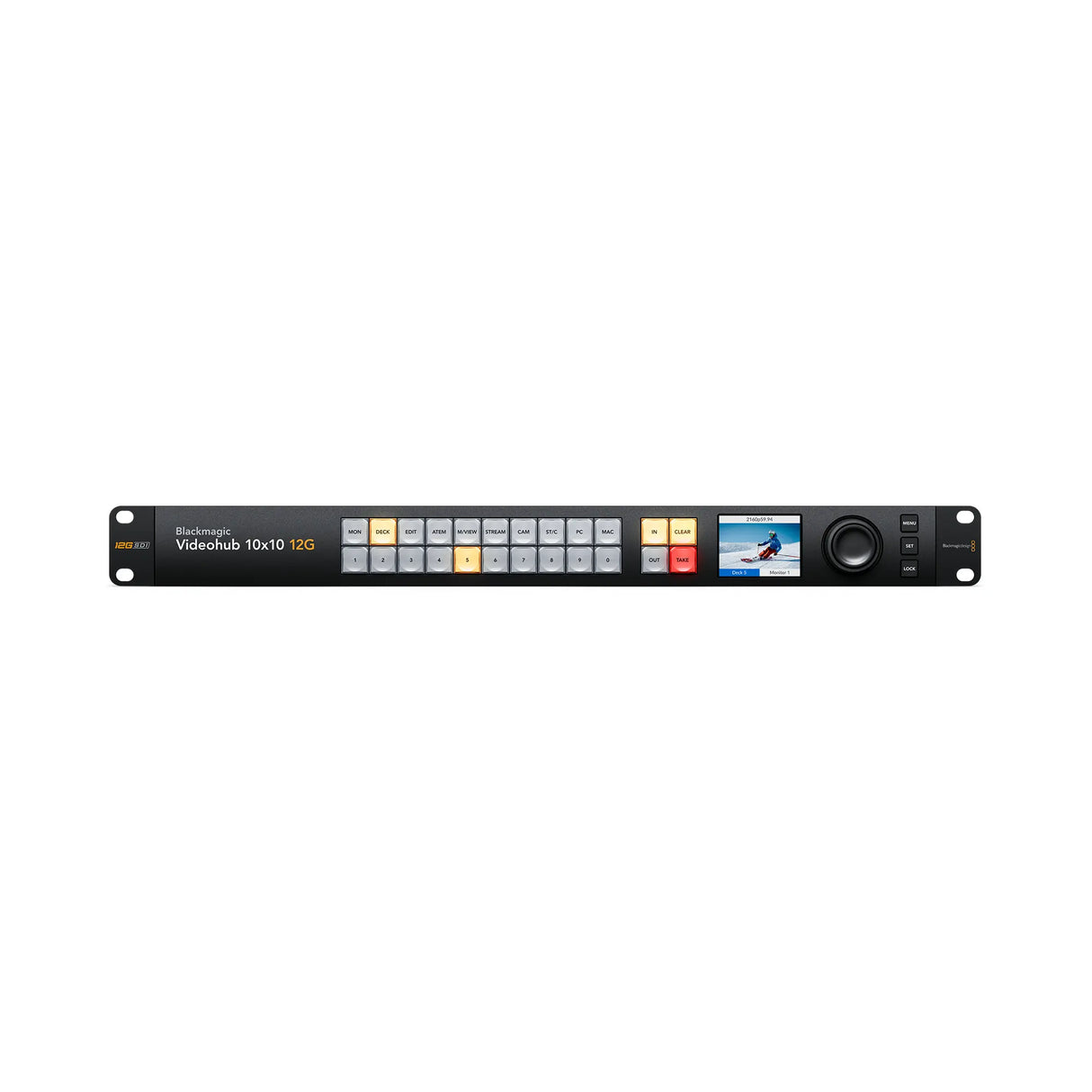

- Front panel LCD for video preview and routing labels
- Direct button selection and spin knob control
- SDI re-clocking on all outputs
- External Ethernet control
- Supports video standards up to 2160p60
- Built-in control panel with 24 buttons and 2.2-inch color display
- Software control panel available for Mac and Windows
Specifications
- SDI Video Inputs: 10
- SDI Video Outputs: 10
- SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
- Reference Inputs: Tri-Sync or Black Burst
- Reference Outputs: Reference terminating loop output
- Ethernet: Supports 10/100/1000 BASE-T
- Computer Interface: USB-C
- Video Standards: Full range of SD, HD, 2K, Ultra HD, and 4K
- SDI Audio Sampling: 48kHz and 24-bit
- Power Supply: 1 x Internal 100 - 240V AC 50/60Hz
- Power Usage: 20.8 W max
- Dimensions: 1.74 x 9.3 x 19 inches
- Weight: 6.64 lbs
- Operating Temperature: 0 to 40 Degrees C (32 to 104 Degrees F)
- Storage Temperature: -20 to 60 Degrees C (-4 to 140 Degrees F)
- Relative Humidity: 0% to 90% non-condensing
Package Contents
- 1 x Blackmagic Videohub 10x10 12G Router
- IEC power cable
- Three Year Limited Manufacturer's Warranty
- Twelve Month Warranty on the front panel
