Blackmagic Design Videohub 80 x 80 12G Zero Latency Video Router

The Blackmagic Design Videohub 80 x 80 12G Zero Latency Video Router is an advanced video routing solution designed to meet the most demanding requirements of modern video production. Featuring 80 12G-SDI inputs and 80 12G-SDI outputs, this high-capacity router supports any combination of SD, HD, and Ultra HD video standards simultaneously. Perfect for broadcast, post-production, and live event settings, the Videohub ensures seamless video switching with zero latency, providing the highest quality signal routing.

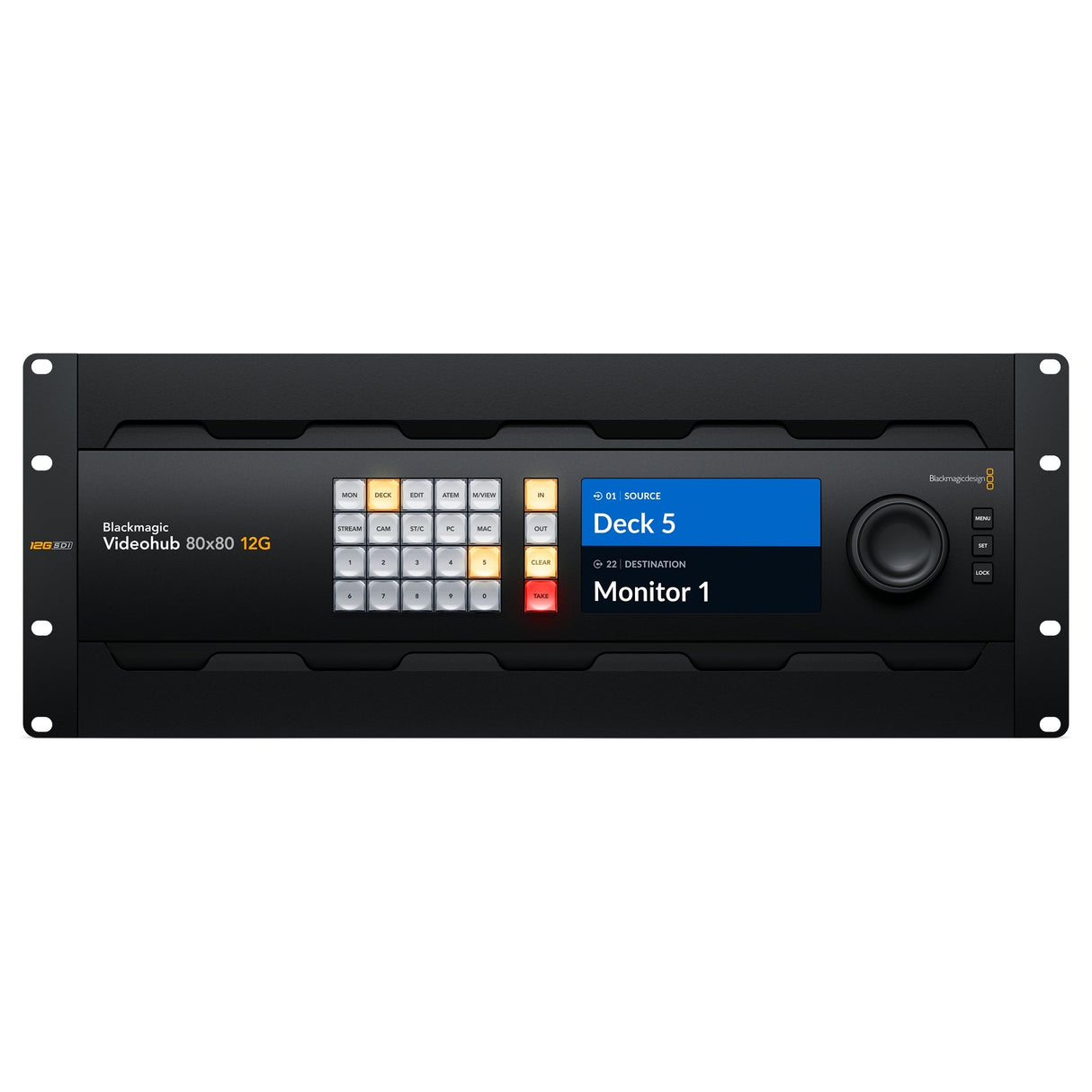

What sets the Blackmagic Videohub apart is its stylish and efficient four rack unit design that includes a large full HD LCD display for previewing video and easy-to-read routing labels. The system is controlled through direct button selection and a large knob control with an electronic clutch, offering intuitive and flexible operation. External Ethernet control and SDI re-clocking on all outputs further enhance its capabilities. Designed for reliability, the videohub includes redundant power supplies and reference connections, making it an indispensable element in any professional video setup.

Key Features

• Zero latency routing of SD, HD, and Ultra HD video
• 80 12G-SDI inputs and 80 12G-SDI outputs
• Real-time video preview on a large full HD LCD display
• SDI re-clocking on all outputs
• External Ethernet control capabilities
• Direct button selection and knob control with electronic clutch
• Stylish four rack unit design
• Redundant power supplies and reference connections

Specifications

• SDI Reclocking: On all SDI outputs
• SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
• Computer Interface: USB-C
• Reference Inputs: Tri-Sync or Black Burst
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Color Precision: 10-bit, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes
• SDI Color Space: REC 601, REC 709, REC 2020
• External Control Panel: Supports Blackmagic Videohub Smart Control Pro and Videohub Master Control Pro hardware panels
• Operating Systems: Mac 12.0 Monterey or later, Windows 10 64-bit, Windows 11
• Display: Built-in 5-inch LCD for video and menu settings
• Power Supply: 2 x Internal 100 - 240V AC 50/60Hz
• Dimensions: Width 9.37 Inches, Length 19 Inches, Height 6.96 Inches

Package Contents

• Blackmagic Videohub 80 x 80 12G Video Router
• Welcome wallet with QR code for software download
• IEC power cables
