Description

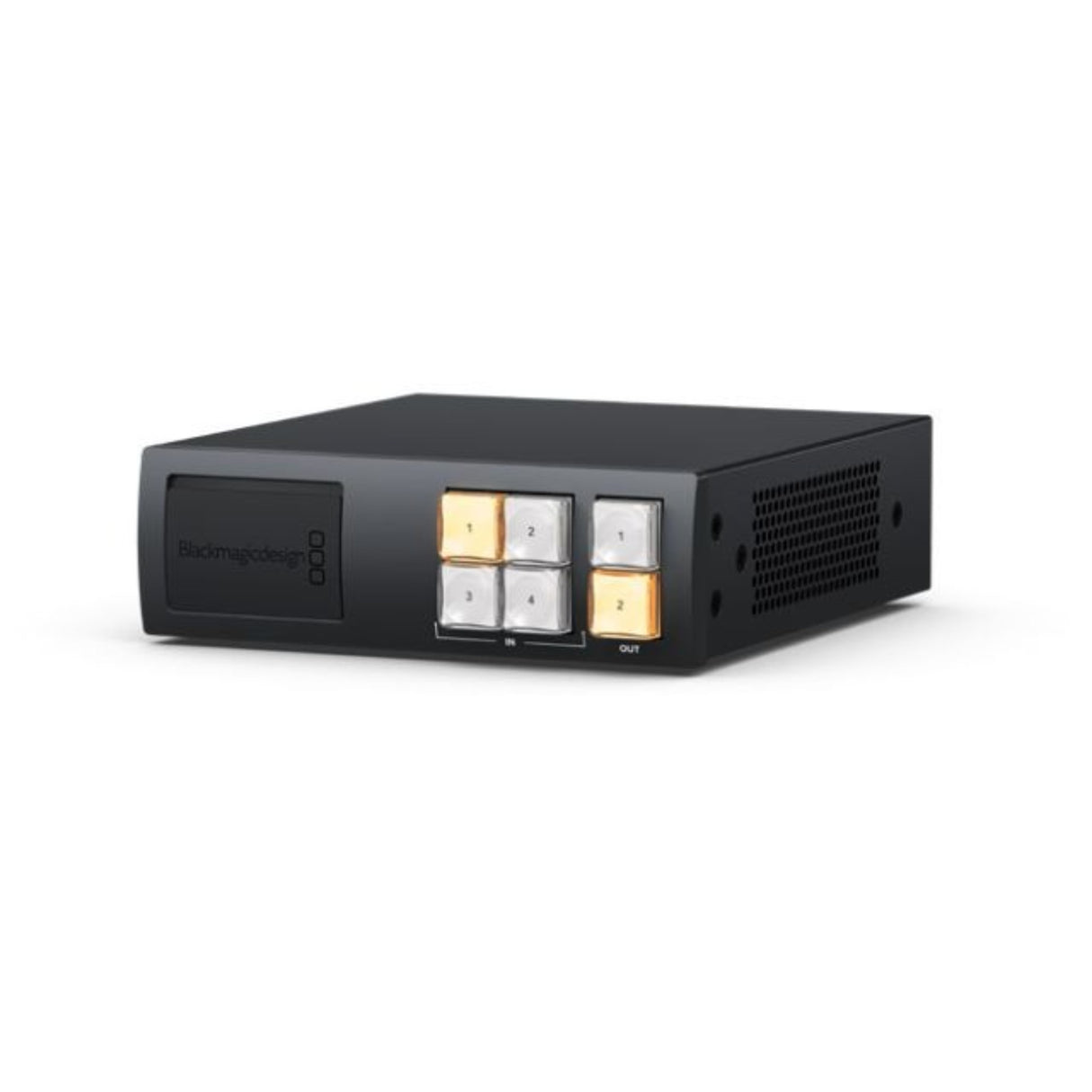

Blackmagic Design Videohub Mini 4x2 12G SDI Router
The Blackmagic Design Videohub Mini 4x2 12G is a compact zero-latency SDI video router with 4 x 12G-SDI inputs and 2 dedicated 12G-SDI outputs, plus a loop output for each input. Supporting any combination of SD, HD, and Ultra HD signals simultaneously, this router enables flexible signal routing in small broadcast installations, edit suites, and mobile production racks.
The front panel includes a 12G-SDI patch input for emergency connections and a USB-C output that functions as an HD webcam source for live streaming software. SDI re-clocking on all outputs regenerates signals for longer cable runs and cleaner downstream connections.
Key Features
- 4 x 12G-SDI Inputs: Connects four video sources in any combination of SD, HD, and Ultra HD formats.
- 2 x 12G-SDI Outputs: Two dedicated routing outputs plus loop outputs on each input.
- Zero Latency: Instantaneous signal routing with no processing delay for live production use.
- SDI Re-Clocking: Regenerates SDI signals on all outputs for improved jitter performance and longer cable distances.
- Front Panel Patch: Emergency 12G-SDI input connection for quick equipment insertion.
- USB-C Webcam Output: Streams any routed source as HD webcam video for live streaming software.
Technical Specifications
- SDI Inputs: 4 x 12G-SDI (rear) + 1 x 12G-SDI (front patch)
- SDI Outputs: 2 x 12G-SDI + loop outputs
- SDI Standard: Auto-detect SD/HD/3G/6G/12G-SDI
- Format Support: Up to 2160p60
- Control: Front panel buttons, Ethernet, Videohub software
- USB: USB-C webcam output
- Power: 100-240V AC, 12V DC backup
