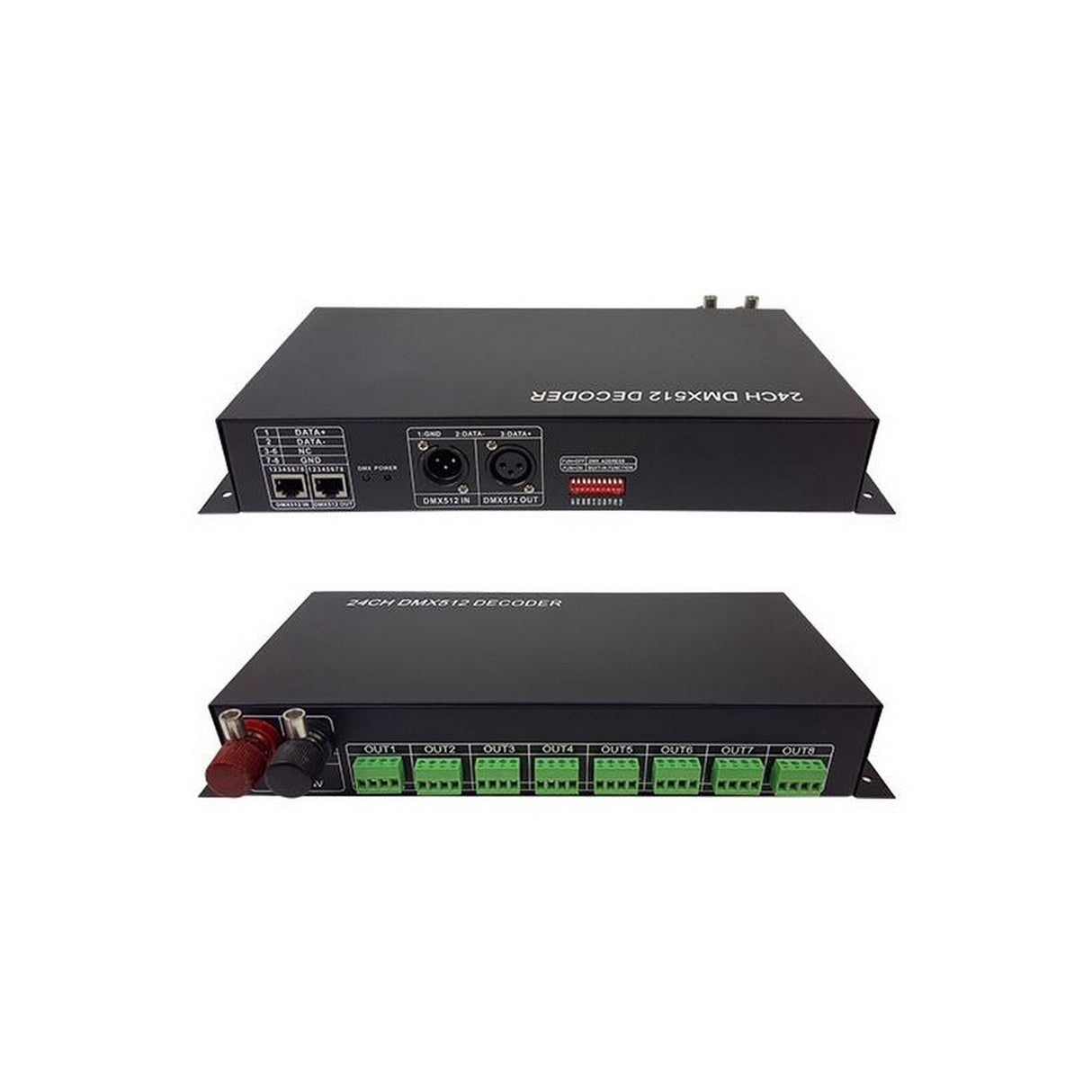

Blizzard Lighting Komply DMX-24 24 Channel 8x RGB DMX Decoder
Blizzard Lighting Komply DMX-24 24 Channel 8x RGB DMX Decoder
Free Shipping
Blizzard Lighting Komply DMX-24 24 Channel 8x RGB DMX Decoder
Komply DMX-24 is a 24-channel (8x RGB) DMX decoding driver designed to convert a universal DMX512 digital signal to PWM signal. It can be controlled by DMX512 console, with 256-level gradation. It features 24 total output channels, 2A per channel, RJ45 In/Out, DMX In/Out, and is dipswitch addressable.
Key Features
- Converts DMX512 signal to PWM signal
- 1~24 output channels (8x RGB)
- 256-grayscale levels per channel
- RJ45 + DMX input/output
- 7 static colors + auto in standalone
- Dipswitch addressable
- Easy to mount and configure
- Certifications: CE, Rohs
Technical Specifications
24CH DMX512 decoding driver
DMX In/Out
RJ45 and XLR
Grayscale
256/channel
Weight & Dimensions
Dimensions
340 x 142 x 57mm
Weight
3 lbs
Power & Current
Input voltage
12V to 24V
Input DMX Signal
DMX512/1990 digital
Output
24 channels @ up to 2A per channel
Output power
12V:<576W, 24V:<1152W
Thermal
Working temperature
-24 to 60C
