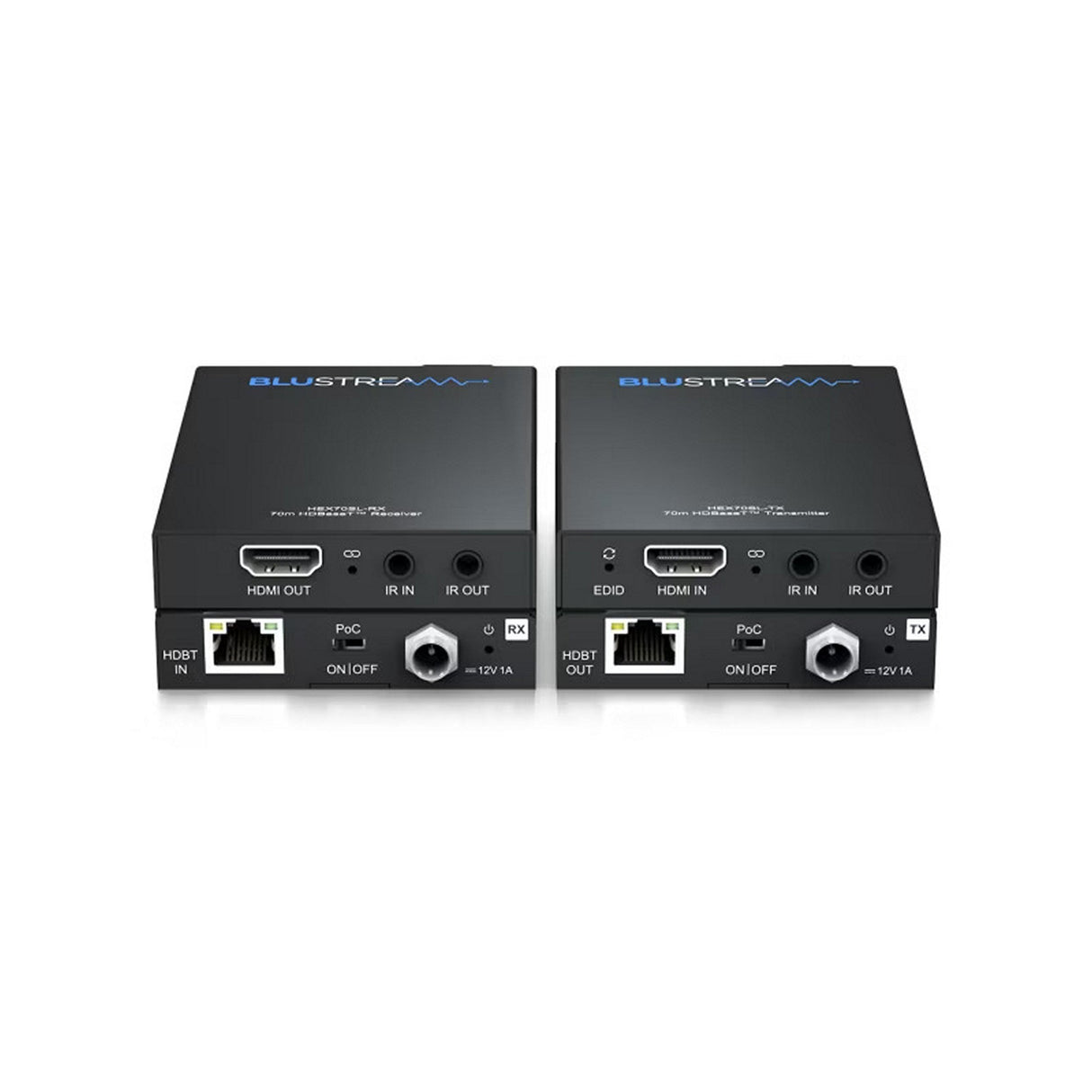

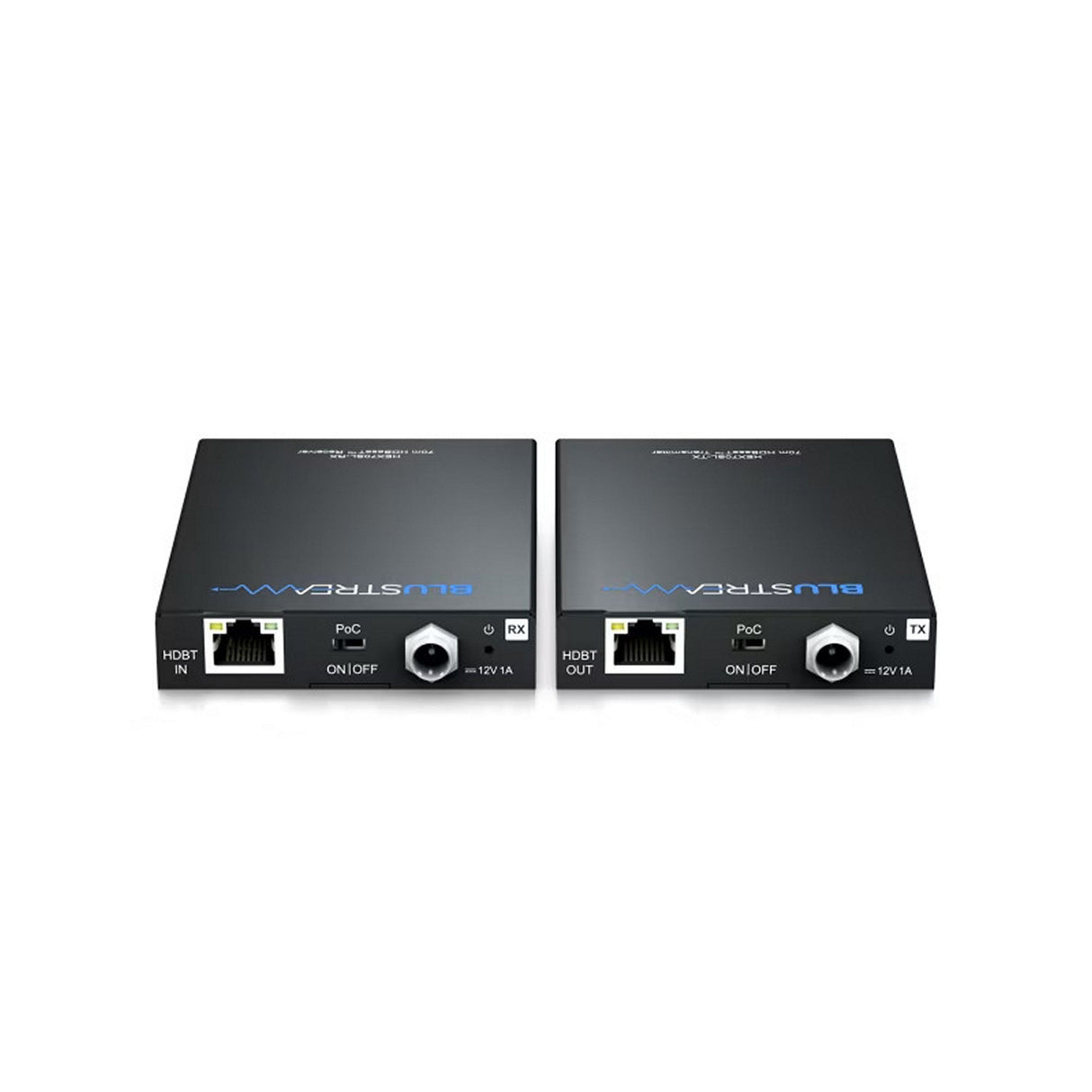

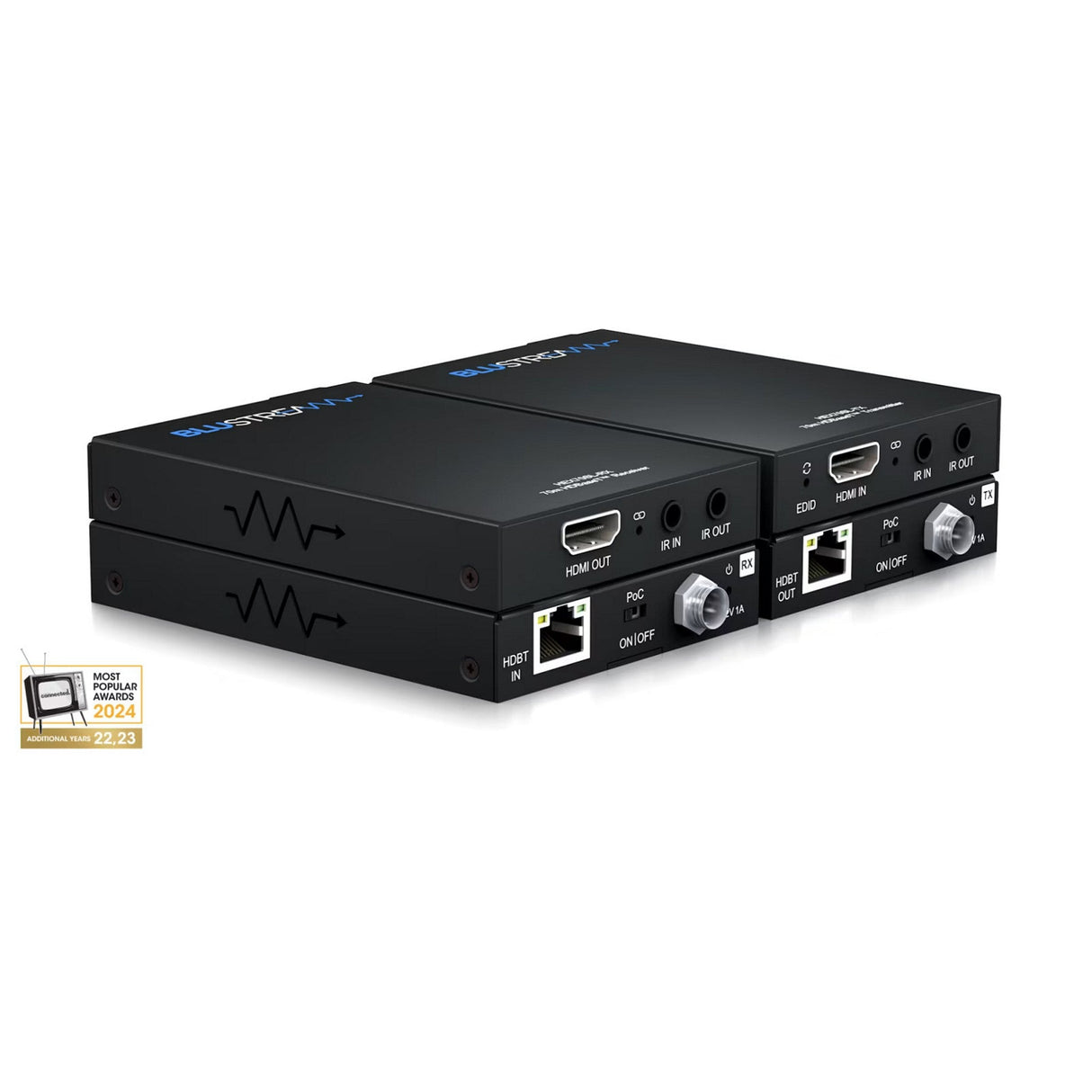

Blustream HEX70SL 70 Meter HDMI HDBaseT Extender Slimline Kit
The Blustream HEX70SL-KIT 4K HDBaseT extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
Key Features
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Enhanced slimline chassis
- Extends HDMI 1080p up to a distance of 70m over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional IR pass-through
- Supplied with Blustream IR Receiver and Emitter
- Supports Bi-directional PoC to power extenders from either Transmitter or Receiver end
- HDCP 2.2 Compliant with Smart EDID management
Technical Specifications
HEX70SL-TX
Video Input Connectors
1 x HDMI Type A, 19-pin, female
Video Output Connectors
1 x HDBaseT RJ45 connector
IR Input Ports
1 x 3.5mm stereo jack
IR Output Ports
1 x 3.5mm mono jack
EDID
Pin hole button
HEX70SL-RX
Video Input Connectors
1 x HDBaseT RJ45 connector
Video Output Connectors
1 x HDMI Type A, 19-pin, female
IR Input Ports
1 x 3.5mm stereo jack
IR Output Ports
1 x 3.5mm mono jack
Power Supply
12V/1A DC
Dimensions
106mm x 73mm x 16mm (L x W x H)
Shipping Weight
0.8kg
Operating Temperature
32°F to 104°F (-5°C to +55°C)
Storage Temperature
-4°F to 140°F (-25°C to +70°C)
Item Includes
1x HEX70SL-TX
1x HEX70SL-RX
1x 12V/1A DC Power Supply
1x IR Emitter
1x IR Receiver
2x Mounting Kit
1x Quick Reference Guide
Warranty
3 Year Warranty
