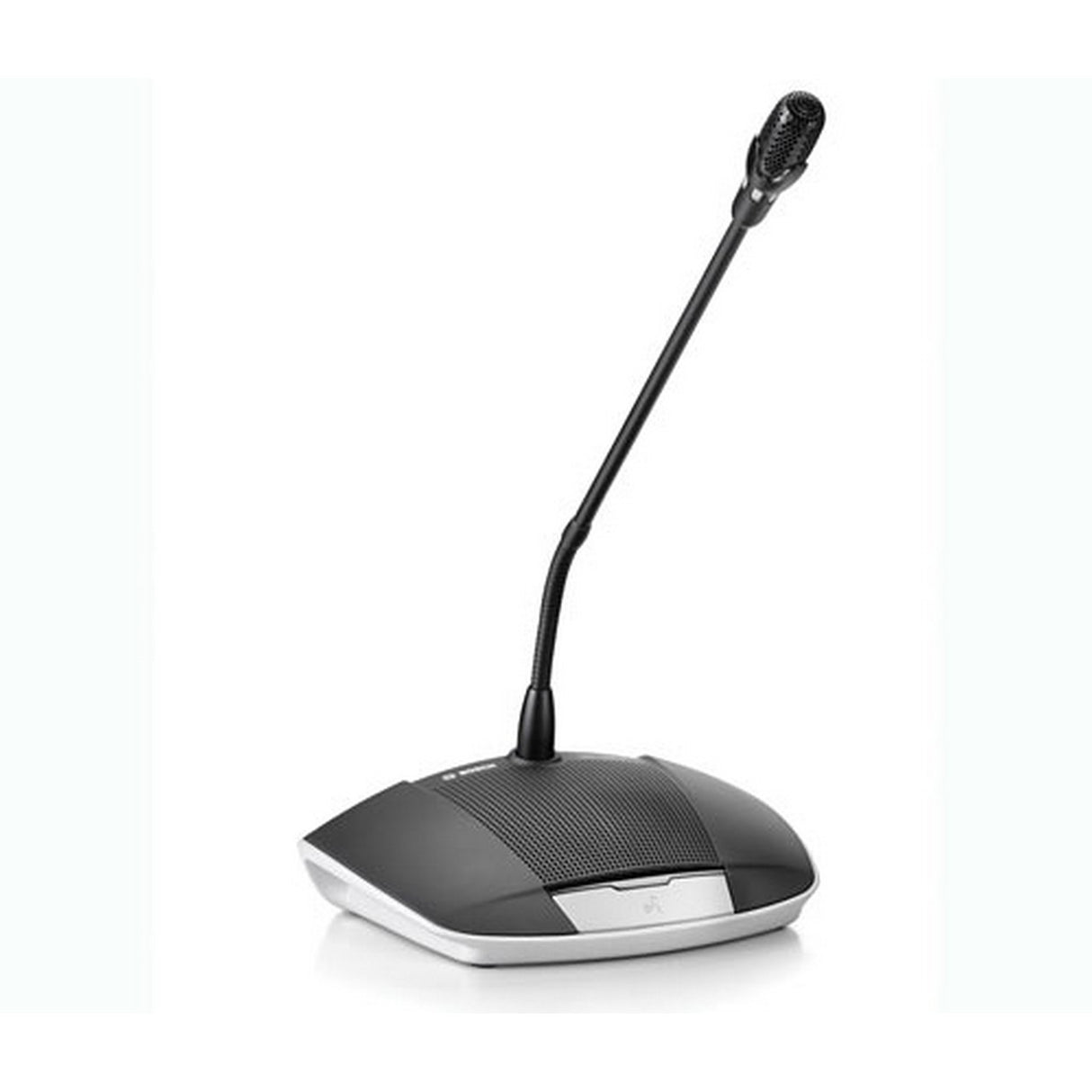

Bosch CCSD-DL Discussion Device with Long Microphone
Bosch CCSD-DL Discussion Device with Long Microphone
Bosch CCSD-DL Discussion Device with Long Microphone
Discussion device with long microphone
Key Features
- Unique patent pending possible-to-speak indicator
- Plug and play functionality for ensuring fast installation and reconfiguration times
- Compact, attractive ergonomic design
- Easily configured as a participant device or chairperson device
- Immunity to mobile phone interference
Technical Specifications
Power consumption
1.3 W
Frequency response
30 Hz to 20 kHz (System electrical)
THD
<0.5 %
S/N
>93 dBA
Sampling rate
44.1 kHz
Headphones load impedance
> 32 ohms < 1k ohm
Loudspeaker max. peak output power
4 W
Loudspeaker nominal output
72 dB SPL
Participants loudspeaker frequency response
200 Hz to 16 kHz (acoustical)
Microphone polar pattern
Cardioid
Participants microphone frequency response
125 Hz to 15 kHz
Microphone nominal input
85 dB SPL
Dimensions device without microphone(H x W x D)
64 x 203 x 146 mm(2.5 x 8.0 x 5.7 in)
Height with microphone in horizontal position
130 mm (5.1 in)
Length of microphone from mounting surface
CCSD-DS: 310 mm (12.2 in) CCSD-DL: 480 mm (18.9 in)
Weight
Approx. 1 kg (2.2 lb)
Mounting
Tabletop (portable or fixed)
Material (top)
Plastic ABS+PC
Material (base)
Metal ZnAl4
Color (top)
Traffic black (RAL 9017) matt-gloss
Color (base)
Pearl light grey (RAL 9022) matt-gloss
Operating temperature
0 deg C to +35 deg C (+32 deg F to +95 deg F)
Storage and transport temperature
-40 deg C to +70 deg C(-40 deg F to +158 deg F)
Relative humidity
5% to 98% non-condensing
Air pressure
600 to 1100 hPa
