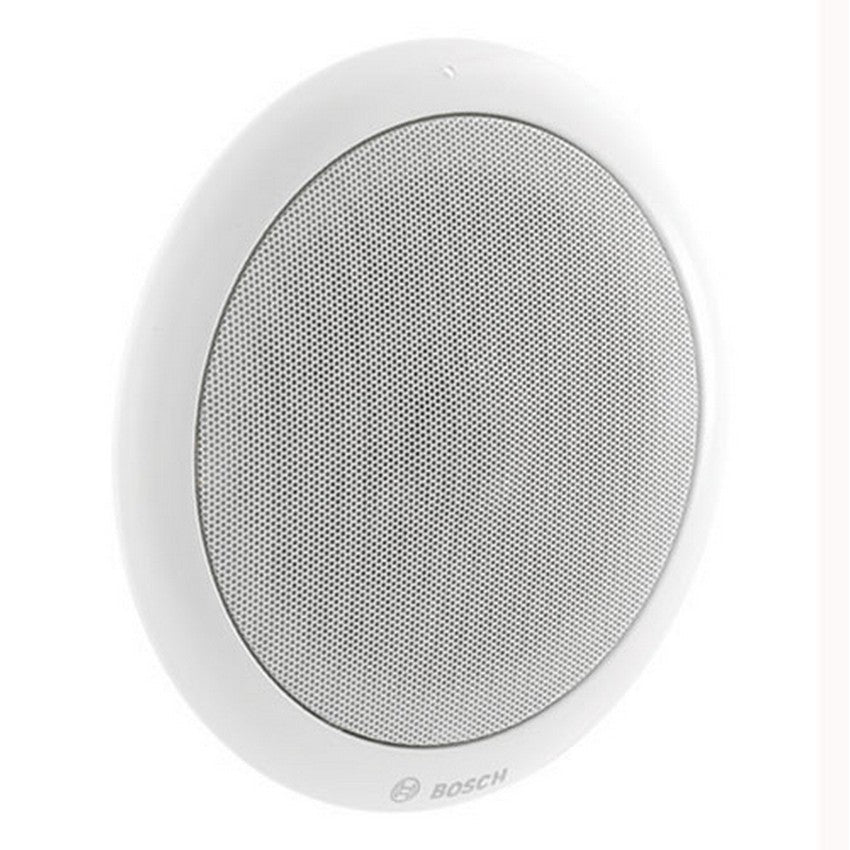

Bosch LC1-WC06E8 4-Inch 6W ABS Ceiling Loudspeaker
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Bosch LC1-WC06E8 4-Inch 6W ABS Ceiling Loudspeaker
4" Ceiling loudspeaker, 6 watt, composite grille, round, EVAC compliant; swimming pool application with LC1 accessories
Key Features
- Excellent speech and music reproduction
- Easy installation with one grille size and one complete set of accessories
- Choice of different ceiling mounting methods
- Optional Pilot Tone indication
- EN 54 24, UL2043, UL1480 certified
Technical Specifications
Description
Ceiling loudspeaker
Rated power
6 W (6 / 3 / 1.5 / 0.75 W)
Sound Pressure Level at rated power / 1 W (1 kHz, 1 m)
96 dB / 88 dB
Sound Pressure Level at rated power / 1 W (1 kHz, 4 m)
84 dB / 78 dB
Opening angle at 1 kHz / 4 kHz(-6 dB)
180 / 75
Effective frequency range (-10 dB)
85 Hz to 20 kHz
Rated voltageRated impedance
70 V , 100 V
6 W
833 Ohm , 1667 Ohm
3 W
1667 Ohm , 3333 Ohm
1.5 W
3333 Ohm , 6666 Ohm
0.75 W
6666 Ohm , 13333 Ohm
Connector
3pole screw-terminal block
Diameter
220 mm (8.67 in)
Maximum depth*
125 mm (4.92 in)
Color
White (RAL 9010)
Material (frame / front grille)
ABS
Weight
820 g (1.81 lb)
Operating temperature
-25 C to +55 C (-13 F to +131 F)
Storage and transport temperature
-40 C to +70 C (-40 F to +158 F)
Relative humidity
<95%
