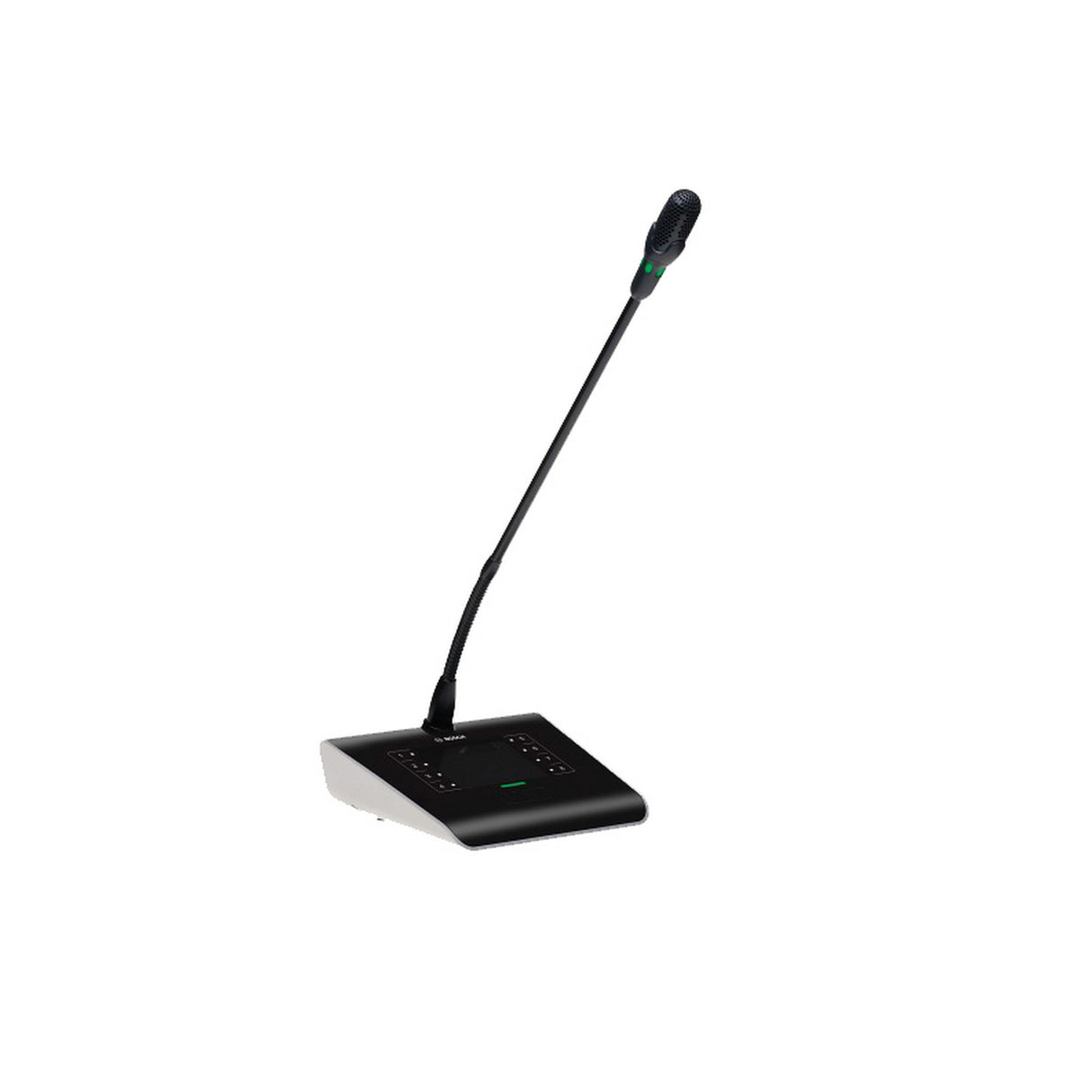

Bosch PLM-8CS Plena Matrix 8 Zone Call Station Microphone
Bosch PLM-8CS Plena Matrix 8 Zone Call Station Microphone
Bosch PLM-8CS Plena Matrix 8 Zone Call Station Microphone
The PLM-8CS PLENA matrix 8 Zone Call Station is an accessory of the PLM-8M8 PLENA matrix 8 channel DSP Matrix Mixer, and like any good accessory it has a complementary aesthetic design, but behind the good looks and sleek design, there is a product of substance and usability.
Key Features
- Capacitive touch
- Programmable zone selection
- Modern aesthetic design
- Powered from PLM-8M8
- Loop-through to connect with either more Call Stations or Wall Control Panels
Technical Specifications
Electrical
Power supply (supplied by PLM-8M8)
Voltage range
30 - 50 VDC
Power consumption
1.5 W
Performance
Microphone type
Cardoid
Frequency response (-3dB)
100 Hz to 20 kHz (+0/-3 dB)
Input Clip level
-11 dBu (-13.3 dBV)
THD+N (1 kHz, 6 dBFS)
Dynamic range (A-weighted) (mid gain setting)
>97 dB(A)
Output level
24.4 dBu (22.2 dBV)
Connectors 2x
RS485 loop-through RJ45
Mechanical
Base dimensions (H x W x D)
50 x 156 x 140 mm
(2 x 6.1 x 25.5 in)
Microphone stem length
390 mm (15.35 In)
Weight
Approx. 0.77 kg
Approx. 1.69 lb
Environmental
Operating temperature
-10 degrees C to +45 degrees C
Storage temperature
-40 degrees C to +70 degrees C
Relative humidity
<95%
