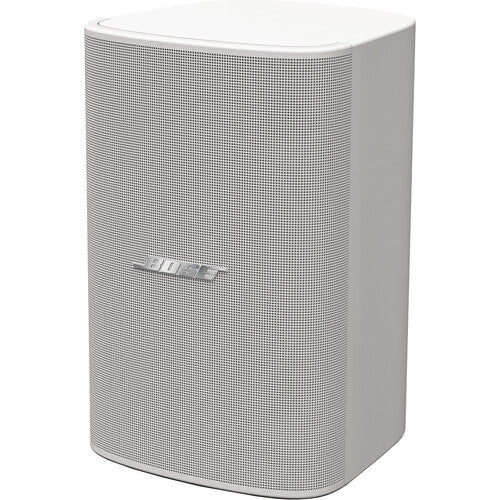

Bose DesignMax DM6SE 6.5-Inch Surface Mount Loudspeakers, White, Pair
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Bose DesignMax DM6SE 6.5-Inch Surface Mount Loudspeakers, White, Pair
The Bose Professional DesignMax DM6SE loudspeakers deliver rich low-end performance and clear, intelligible highs in a sleek, modern enclosure designed for professional installations. With coaxial two-way drivers and an IP55 weather-resistant rating, these loudspeakers are ideal for both indoor and outdoor commercial applications. The DM6SE mounts securely with the hidden QuickHold U-bracket, ensuring fast, safe, and hassle-free installation.
Featuring a 6.5 inch woofer and a 1.25 inch coaxial tweeter within Bose’s Dispersion Alignment System, the DM6SE provides consistent, balanced audio coverage across a wide 59 Hz to 20 kHz frequency range. Its durable construction and premium design make it a perfect choice for restaurants, retail spaces, hospitality venues, and outdoor entertainment areas.
Key Features
- High-Quality Audio: Coaxial two-way driver design delivers full-range sound with rich lows and detailed highs.
- Professional Performance: 125W RMS power handling supports high-output installations.
- Durable Construction: IP55-rated for indoor and outdoor environments.
- Quick Installation: Hidden QuickHold U-bracket allows fast, secure mounting and reduces strain during setup.
- Elegant Design: White finish blends seamlessly into modern commercial spaces.
- Part of the Bose DesignMax loudspeaker series
Technical Specifications
-
General
- Product Name: Bose DesignMax DM6SE Surface-Mount Loudspeakers
- Brand: Bose Professional
- Model: DesignMax DM6SE
- Manufacturer Part Number: 829682-0220
- Product Type: Surface-mount loudspeaker
- Series: DesignMax
- Configuration: Full-range loudspeaker
- Color: White
- Quantity: Pair (2 speakers)
- Country of Origin: China (subject to change)
-
Driver
- Driver Configuration: 6.5 inch woofer and 1.25 inch coaxial tweeter
-
Performance
- Frequency Response: 59 Hz – 20 kHz
- Power Handling (RMS): 125 W
- Sensitivity: 90 dB SPL (1 W @ 1 m)
- Maximum SPL: 111 dB continuous, 117 dB peak
- Coverage Pattern: Wide dispersion with Dispersion Alignment System
-
Electrical / System
- System Compatibility: 70V / 100V distributed audio systems
- Low-Impedance Operation: Supported
-
Construction
- Enclosure Type: Surface-mount enclosure with hidden U-bracket
- Enclosure Material: Engineered plastics
- Grille: Perforated steel grille
- Ingress Protection: IP55 weather-resistant
-
Physical
- Depth: 13.4 in (340 mm)
- Mounting Type: Surface-mount (wall)
Installation / Use Cases
- Wall-mounted commercial audio installations
- Retail stores, restaurants, and hospitality environments
- Outdoor and indoor applications requiring weather-resistant speakers
- Office and corporate audio systems
- Background and foreground music systems
- Distributed audio systems where ceiling installation is not practical
Package Contents
- 2 × Bose DesignMax DM6SE surface-mount loudspeakers
- Mounting hardware
- User documentation
Frequently Asked Questions
What is the Bose DesignMax DM6SE used for?
The Bose DesignMax DM6SE is a surface-mount loudspeaker designed for commercial audio systems, providing full-range sound for background music and foreground applications.
Does the Bose DM6SE come as a pair?
Yes. This product includes a pair of Bose DesignMax DM6SE surface-mount loudspeakers.
Can the Bose DM6SE be used indoors and outdoors?
Yes. The DM6SE is designed for indoor and select outdoor applications, making it suitable for commercial environments such as patios and exterior areas.
What size driver is used in the Bose DM6SE?
The Bose DesignMax DM6SE features a 6.5-inch woofer paired with a high-frequency compression driver for full-range audio performance.
Is the Bose DM6SE compatible with 70V and 100V systems?
Yes. The DM6SE supports 70V/100V distributed audio systems as well as low-impedance operation.
Where is the Bose DesignMax DM6SE typically installed?
It is typically surface-mounted on walls in retail stores, restaurants, hospitality spaces, and other commercial environments requiring full-range audio coverage.
