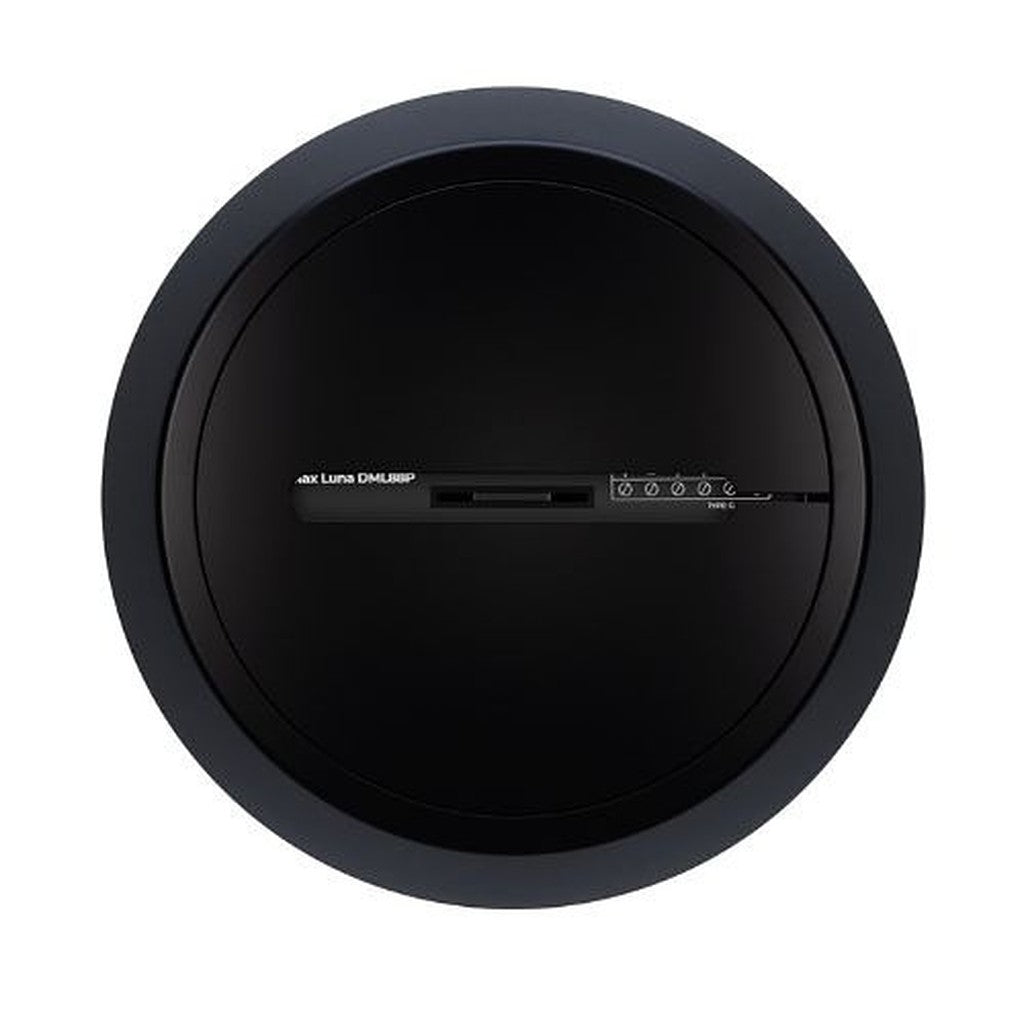

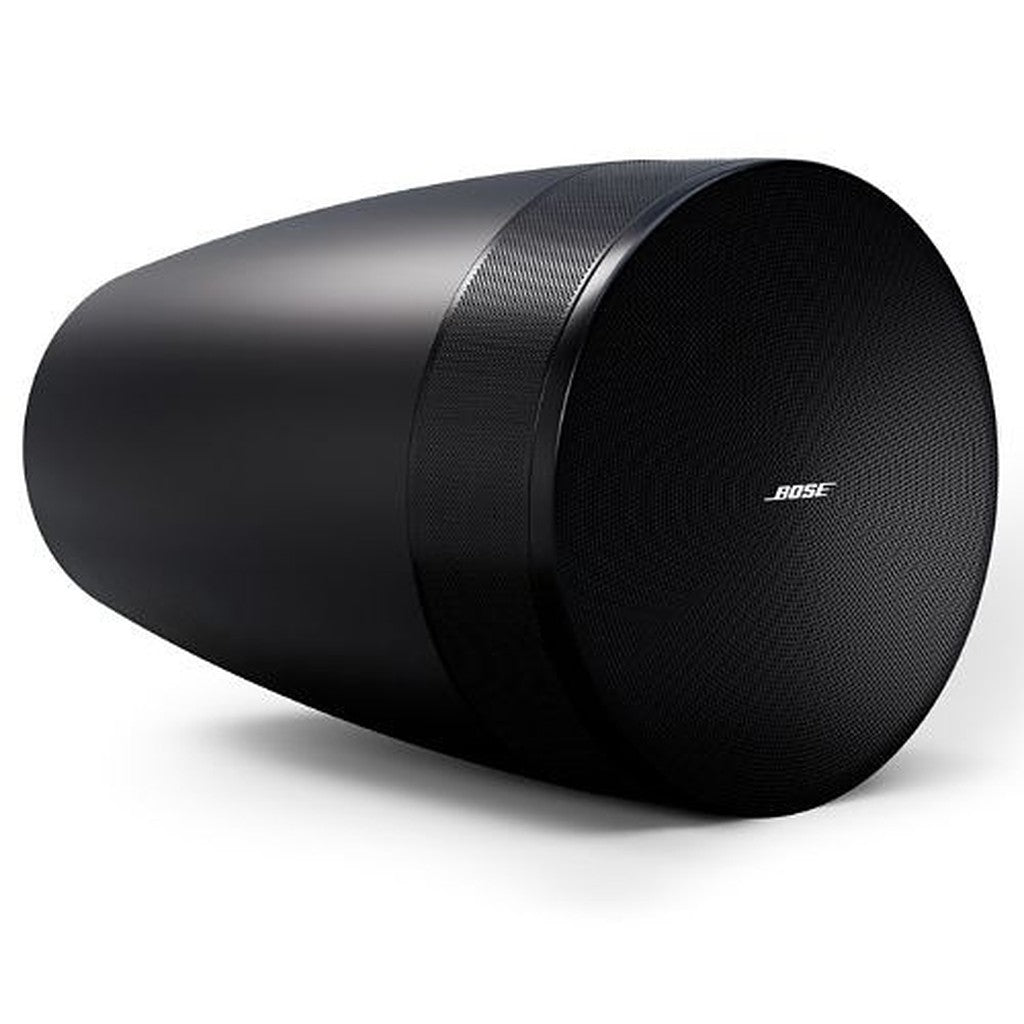

Bose DML88P DesignMax Luna Pendant Loudspeaker Black - Black

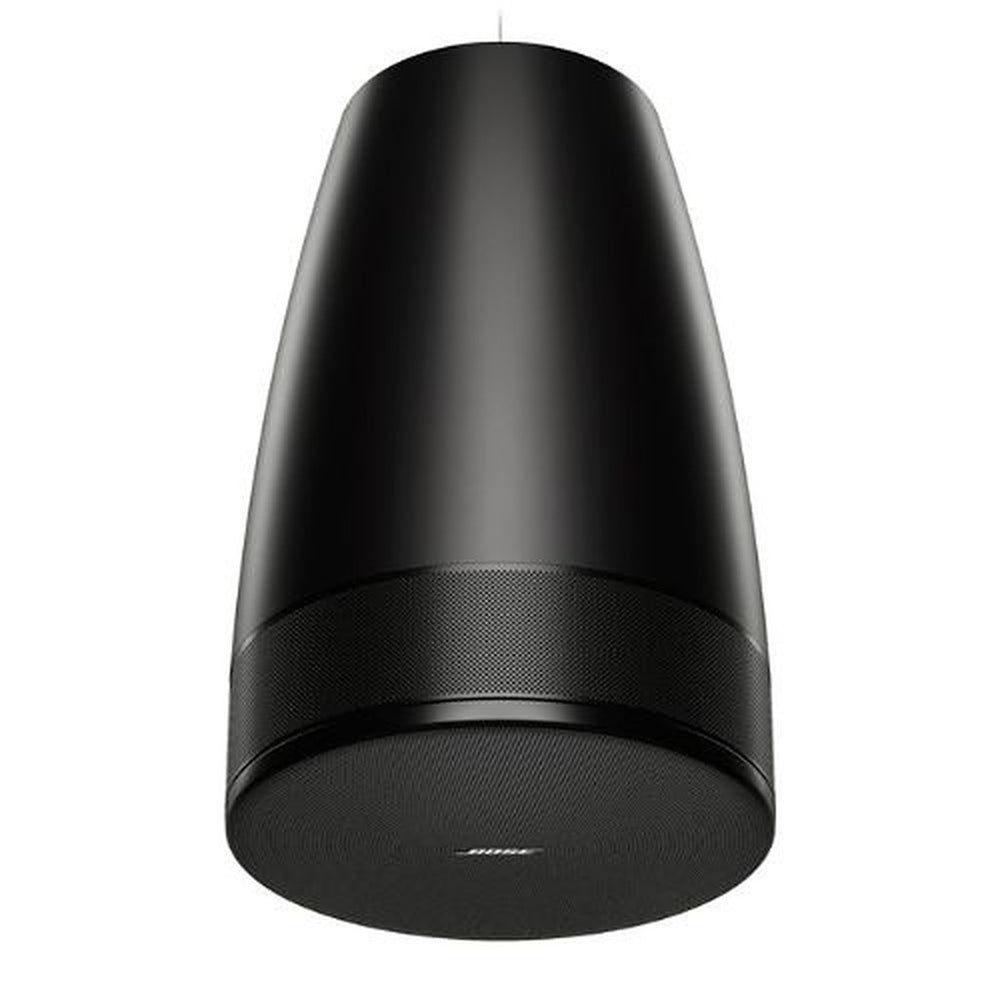

Bose DML88P DesignMax Luna Pendant Loudspeaker

The Bose DML88P DesignMax Luna Pendant Loudspeaker is an extended-range commercial pendant loudspeaker for open-ceiling spaces. It combines a proprietary Ring Array configuration, eight 2-inch mid-high drivers, an integrated 8-inch woofer, 140° conical coverage, and full-range performance down to 40 Hz.

Designed for retail stores, restaurants, breweries, fitness clubs, studios, amusement spaces, recreation areas, education facilities, and gymnasiums, the DML88P gives integrators a high-performance pendant speaker for commercial audio installations. Available in black and white finish options, it supports clean architectural matching while helping reduce speaker count with wide, even coverage.

The DesignMax Luna platform supports streamlined installation with concealed wiring, paintable grilles, and factory-optimized performance when paired with Bose Professional amplifiers and processors. UL Listed compliance, 70V/100V transformer taps, and 8-ohm bypass operation make it ready for professional distributed audio systems.

DesignMax Luna Pendant Speaker for Commercial Audio

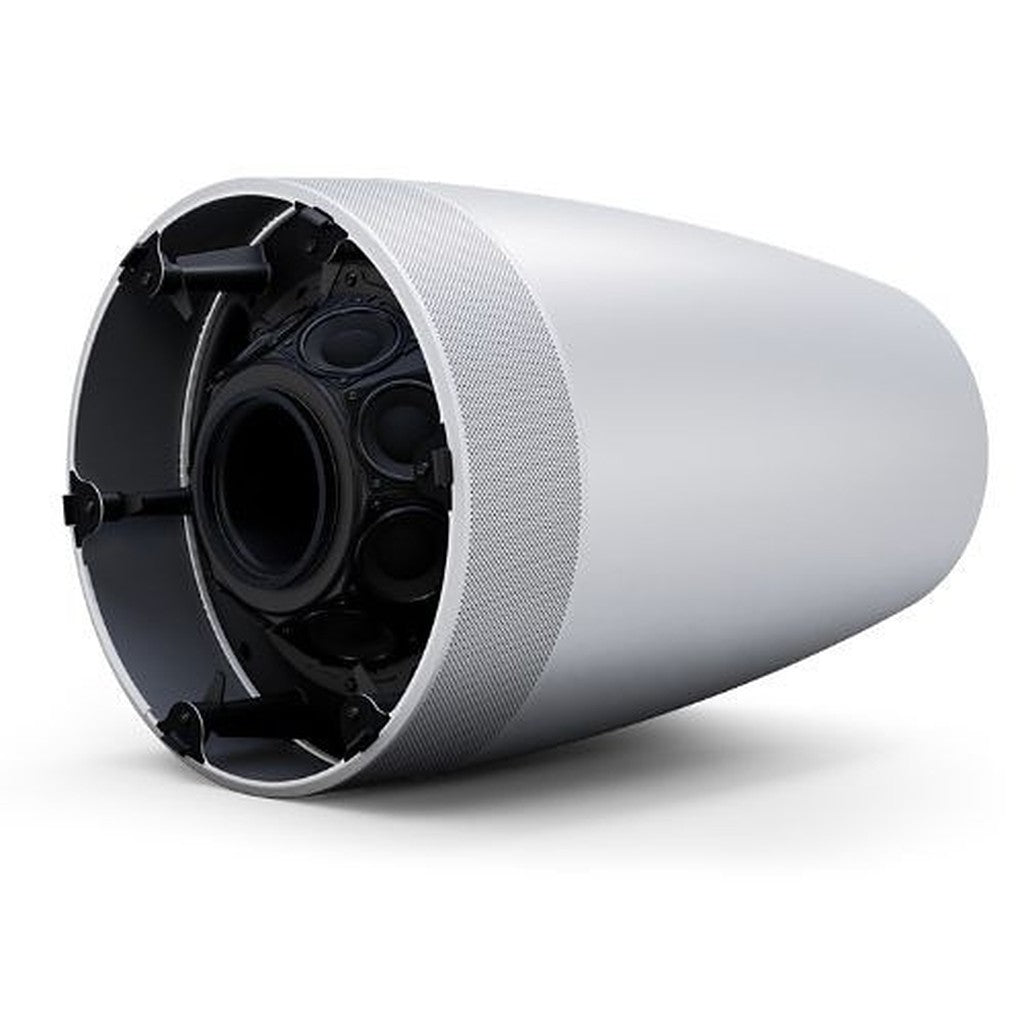

• Ring Array Configuration: Eight 2-inch mid-high drivers work with an integrated 8-inch woofer for balanced full-range sound.
• Extended Low-Frequency Performance: Frequency range reaches down to 40 Hz, reducing the need for separate subwoofers in many open-ceiling spaces.
• 140° Conical Coverage: Wide, even dispersion helps cover larger areas with fewer loudspeakers.
• Flexible Suspension: Supports single-cable or two-point suspension for balanced installation in varied ceiling structures.
• Concealed Wiring Design: Streamlined pendant form factor keeps commercial spaces visually clean and installation-friendly.
• 70V/100V and 8-Ohm Operation: Transformer taps support distributed systems, while bypass mode supports low-impedance amplifier configurations.
• Black and White Finish Options: Choose the finish that best matches the ceiling, interior design, or installation plan.
• Professional Compliance: UL Listed, UL 1480A, NFPA 70, NFPA 90A, and CE-compliant for commercial installations.

Full-Range Pendant Loudspeaker With 8-Inch Woofer

• Applications: Retail stores, restaurants, breweries, fitness clubs, studios, amusement spaces, recreation spaces, education facilities, and gymnasiums.
• Recommended Processing: No loudspeaker EQ required; Bose Professional EQ voicing and SmartBass processing are available.
• Compatible Accessories: DesignMax pendant threaded rod adapter and conduit adapter.
• Mounting Point: 3-hole suspension cable attachment point for flexible pendant installation.

Color Variants

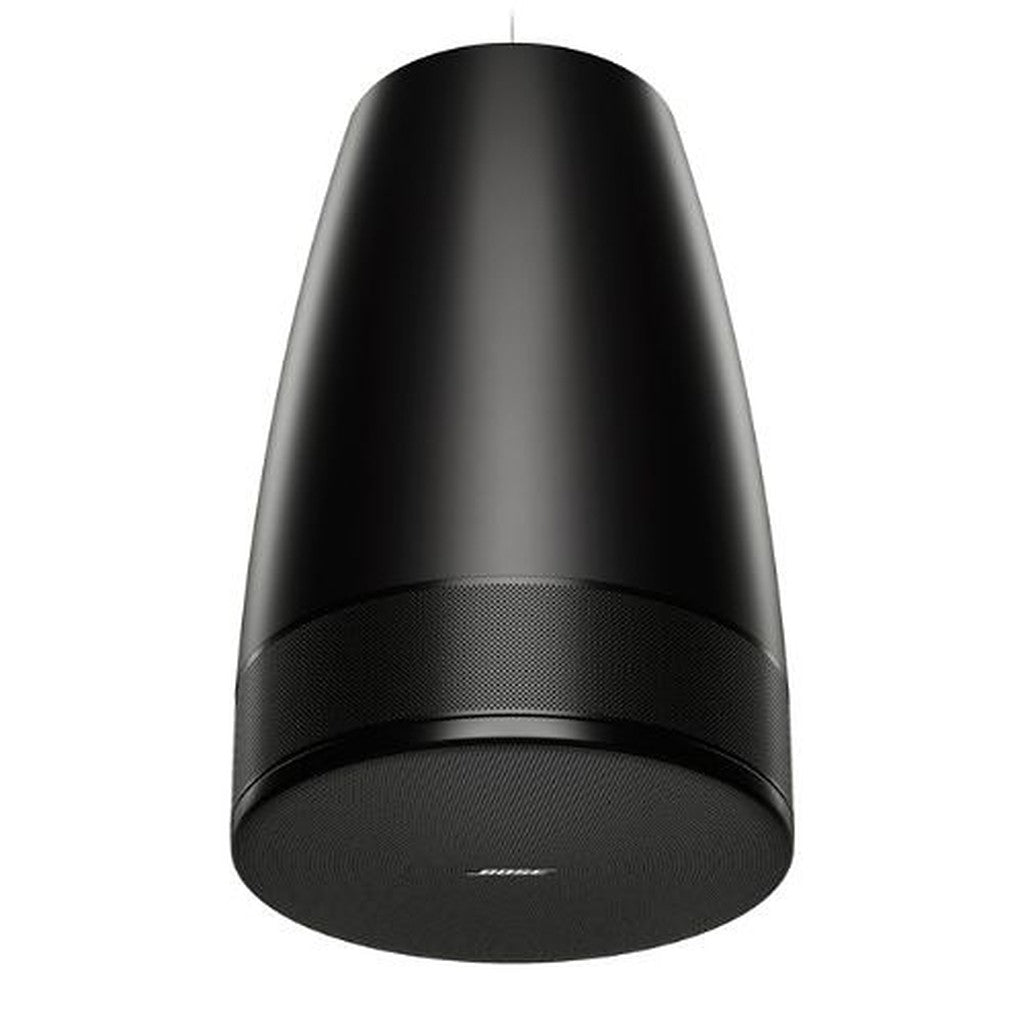

• 892117-0100: DesignMax Luna DML88P Black

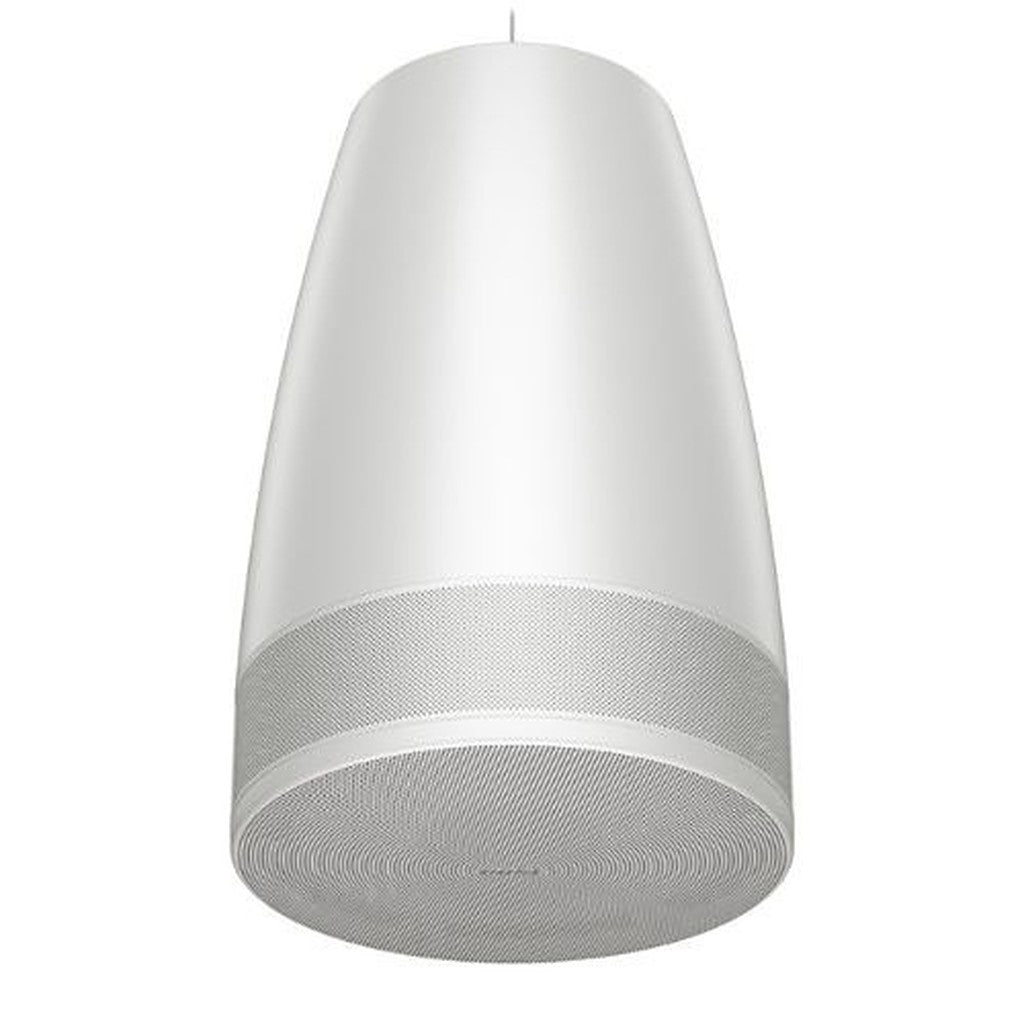

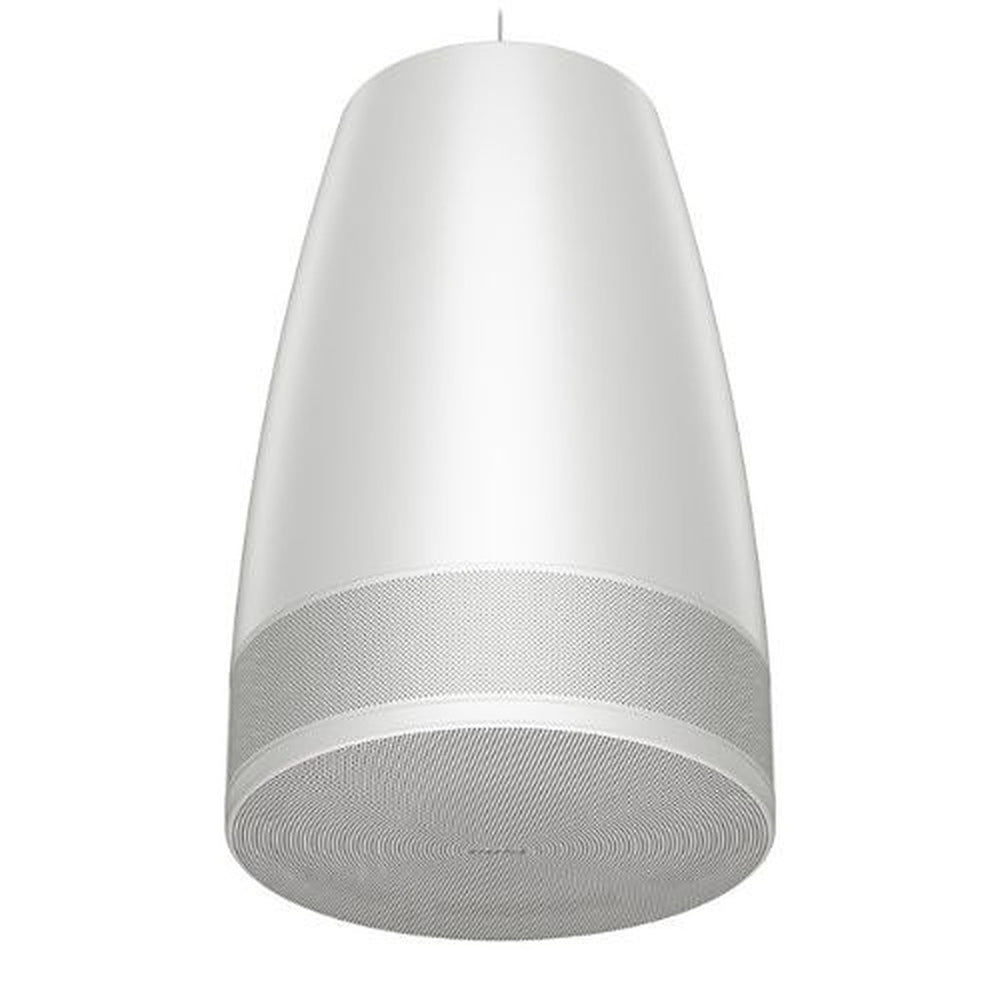

• 892117-0200: DesignMax Luna DML88P White

Technical Specifications

• Model: DML88P
• Product Codes: 892117-0100 Black; 892117-0200 White
• Product Type: Extended-range pendant loudspeaker system
• Color Options: Black and white
• Speaker Configuration: Passive 2-way
• Low-Frequency Driver: 1 x 8" woofer

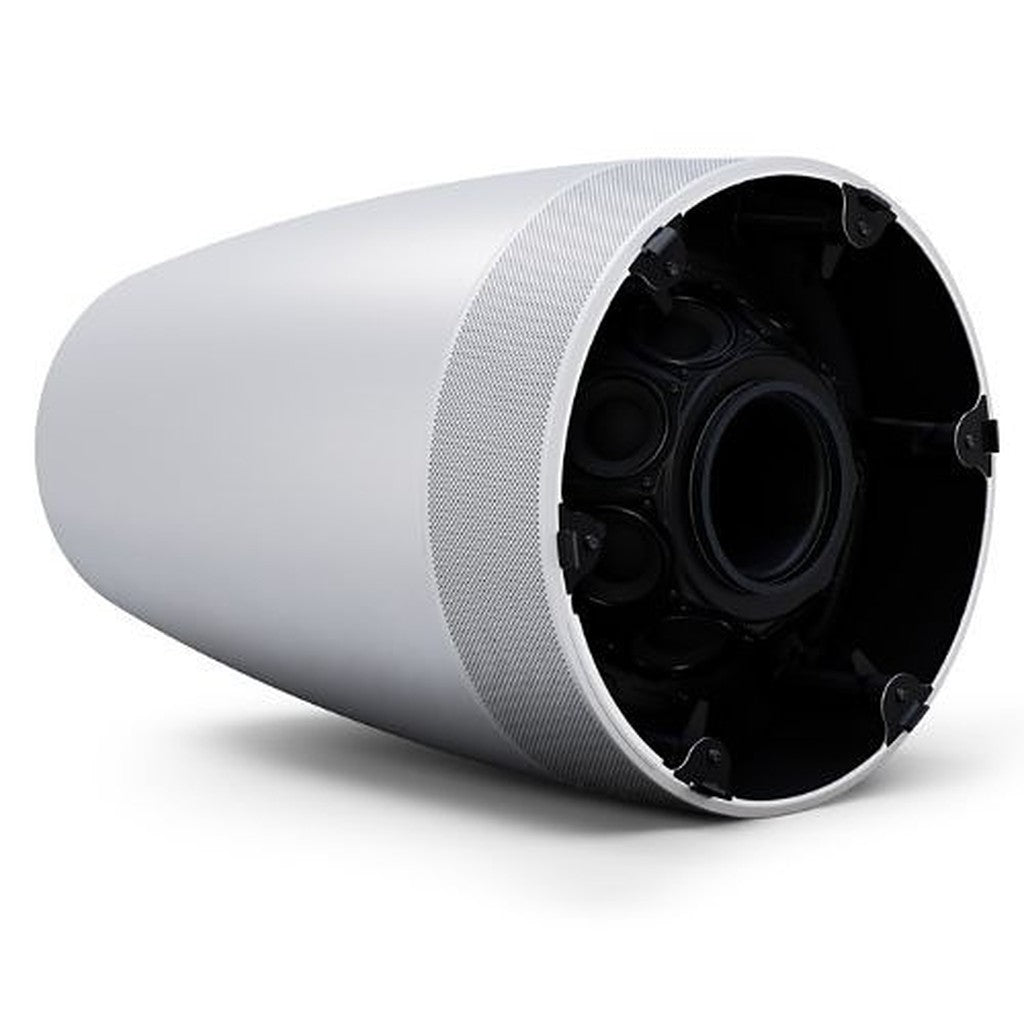

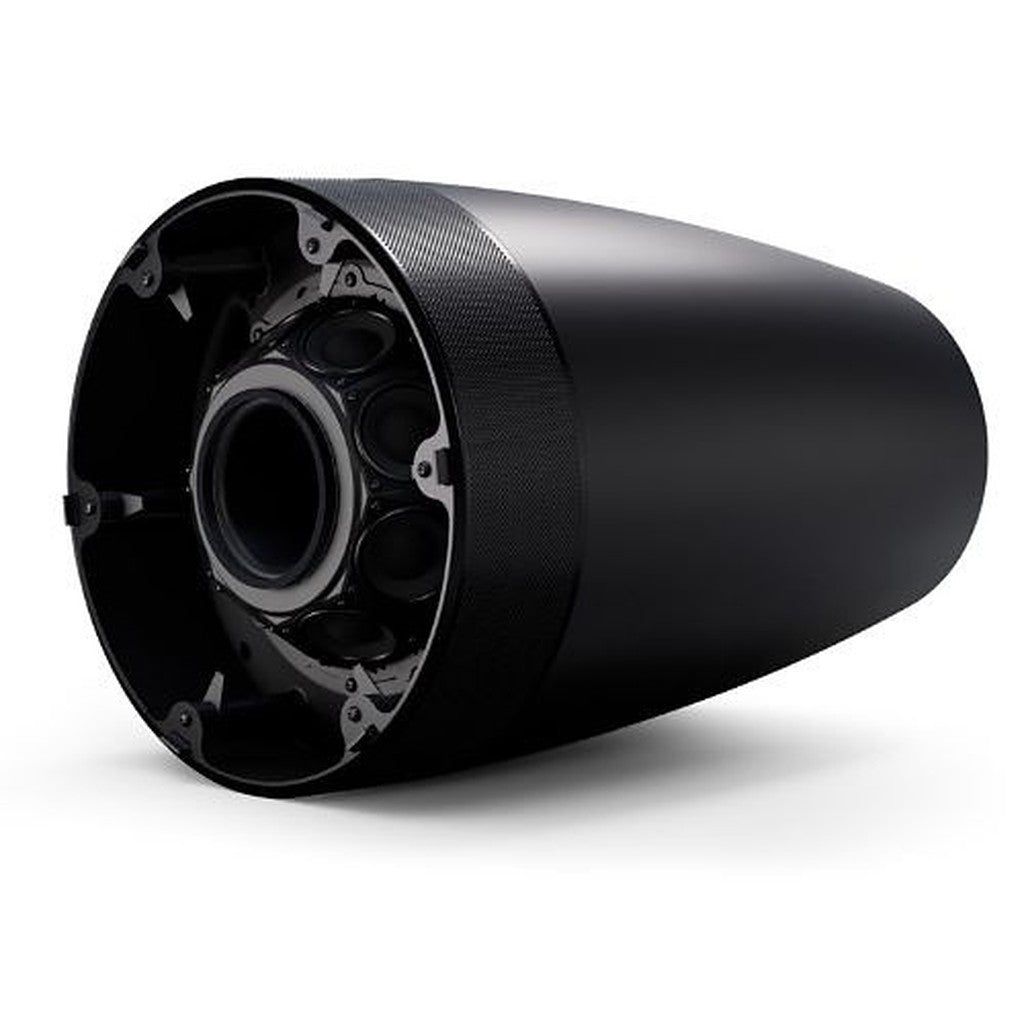

• High-Frequency Drivers: 8 x 2" drivers in circular array
• Frequency Response: 50 Hz to 15,000 Hz (-3 dB)
• Frequency Range: 40 Hz to 20,000 Hz (-10 dB)
• Nominal Coverage: 140° conical
• Power Handling, Long-Term Continuous: 140 W AES; 100 W Bose Professional Extended-Lifecycle Test
• Power Handling, Peak: 560 W AES; 400 W Bose Professional Extended-Lifecycle Test
• Sensitivity: 85 dB SPL, 1 W at 1 m
• Calculated Maximum SPL at 1 m, Continuous: 107 dB AES; 105 dB Bose Professional Extended-Lifecycle Test
• Calculated Maximum SPL at 1 m, Peak: 113 dB AES; 111 dB Bose Professional Extended-Lifecycle Test
• Crossover: 600 Hz passive 2-way crossover
• Nominal Impedance: 8 ohms, transformer bypass

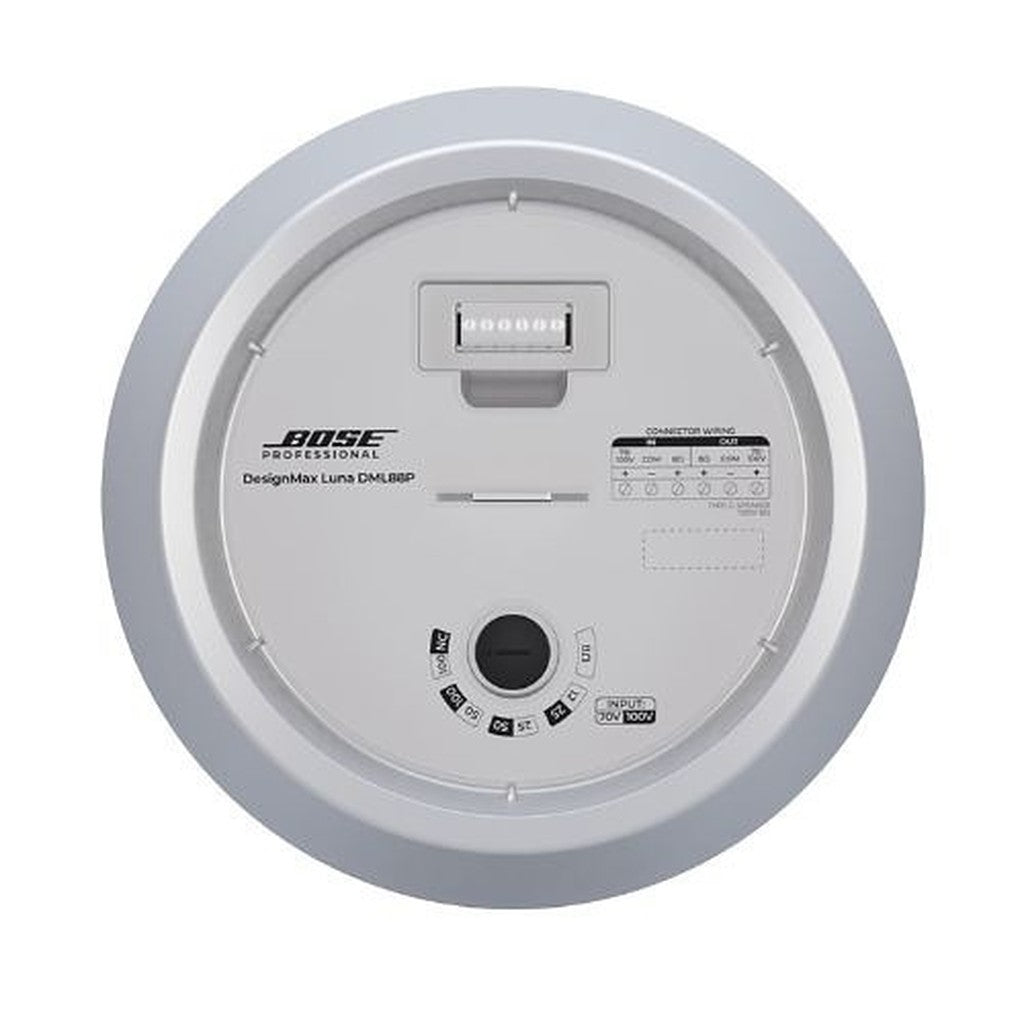

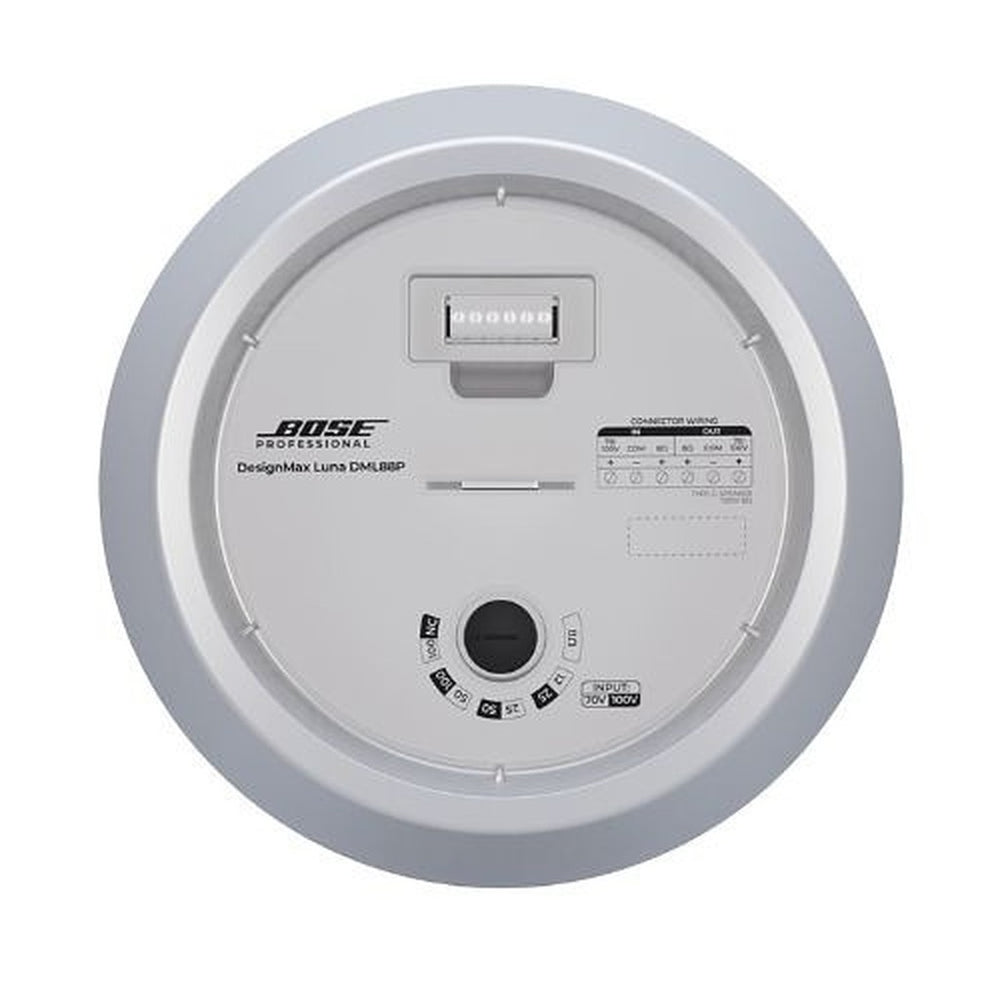

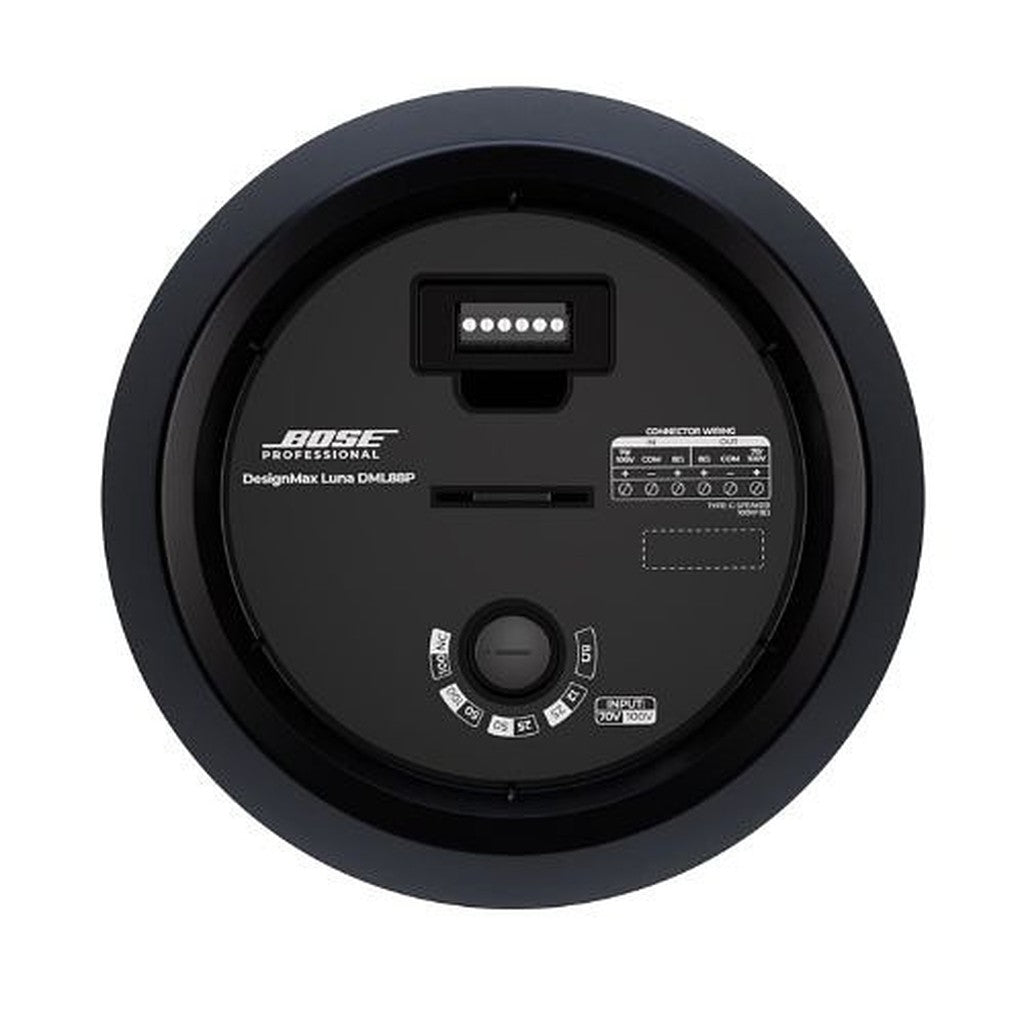

• Transformer Taps, 70V: 12 W, 25 W, 50 W, 100 W, bypass
• Transformer Taps, 100V: 25 W, 50 W, 100 W, bypass
• Recommended High-Pass Protection: 40 Hz high-pass filter
• Connectors: 6-pin Euroblock connector with loop-through
• Accepted Wire Gauge: 18 AWG to 14 AWG
• Enclosure Material: Engineered plastics

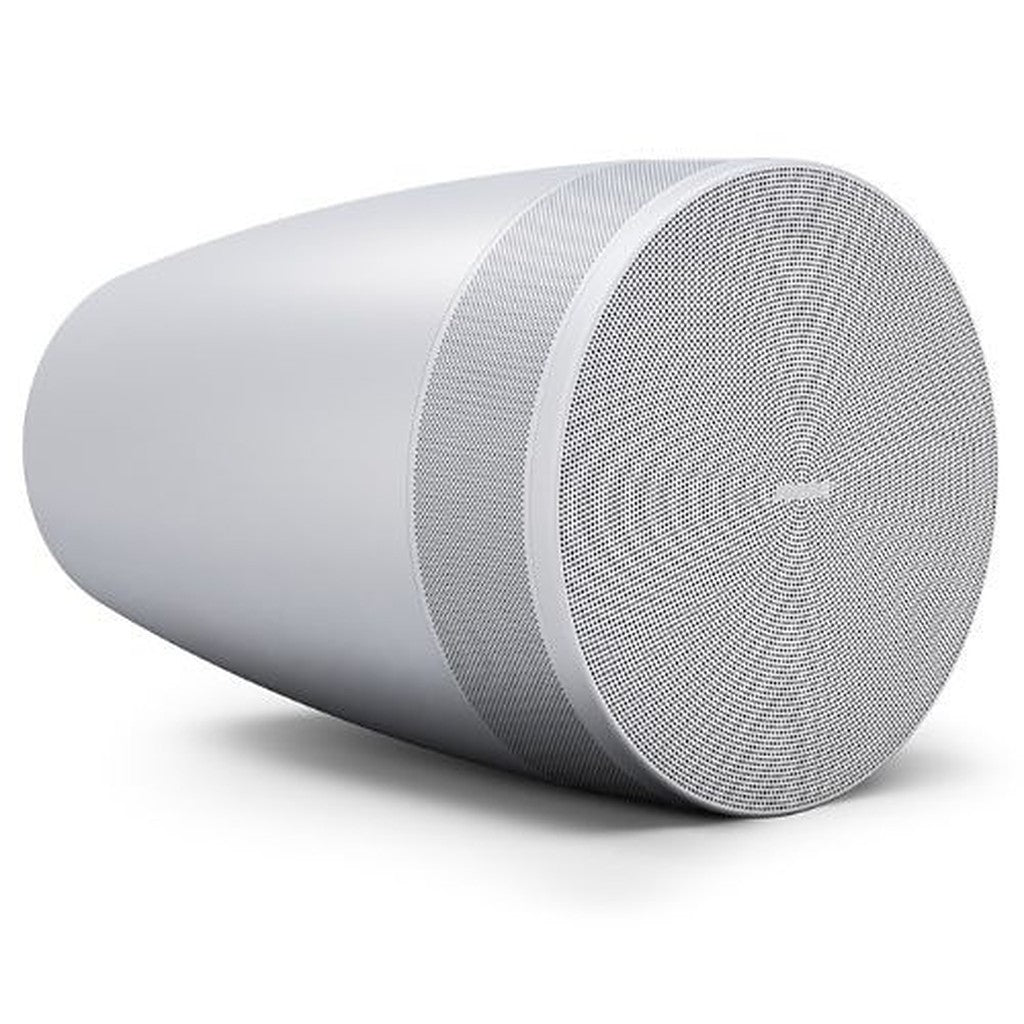

• Grille: Perforated steel, powder-coated finish, paintable
• Logo: Rotatable and removable
• Environmental Rating: Indoors only
• Operating Temperature Range: 32°F to 122°F
• Compliance: UL Listed, UL 1480A, NFPA 70, NFPA 90A, and CE-compliant

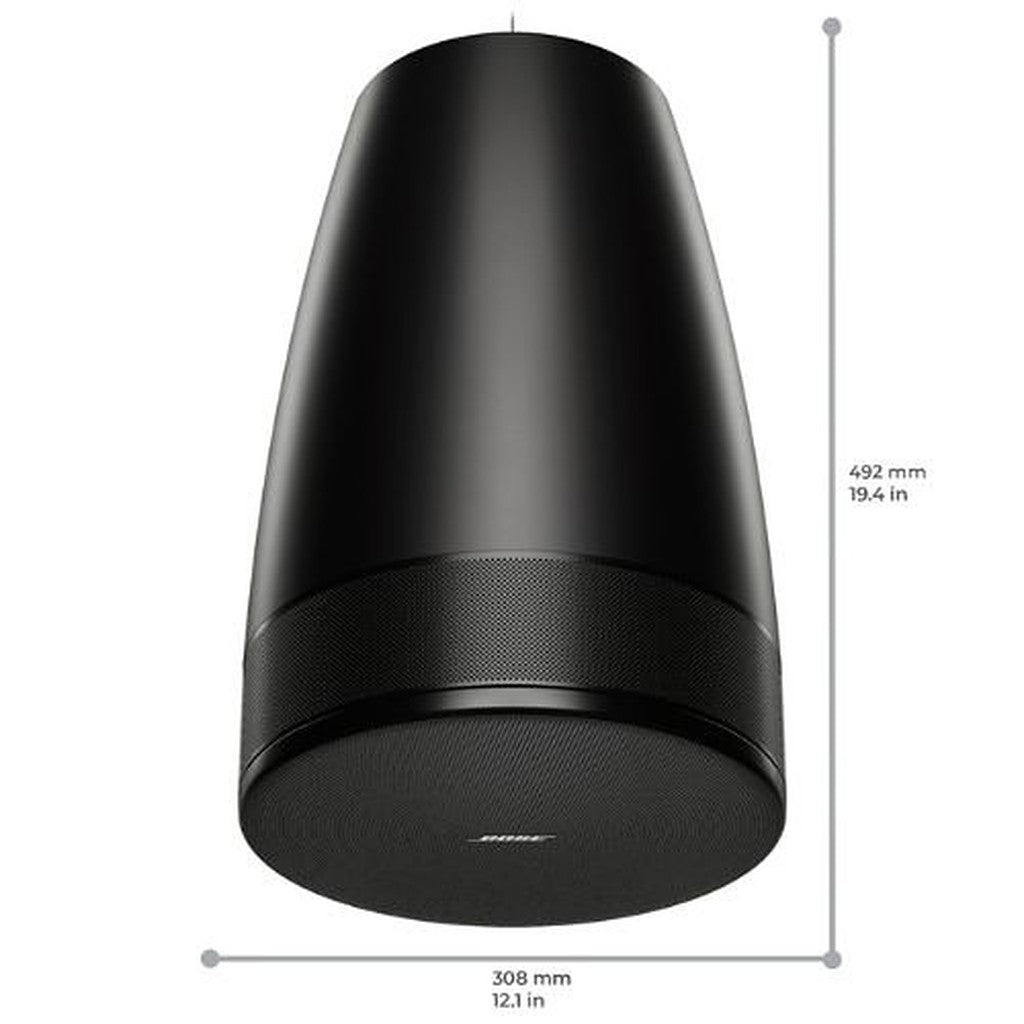

• Product Dimensions: 12.1" diameter x 19.4" deep
• Net Weight: 22.0 lbs
• Suspension Cable Dimensions: 0.13" diameter x 15.0 ft long
• Shipping Weight: 28.3 lbs

What's In the Box

• DesignMax Luna DML88P Loudspeaker x 1

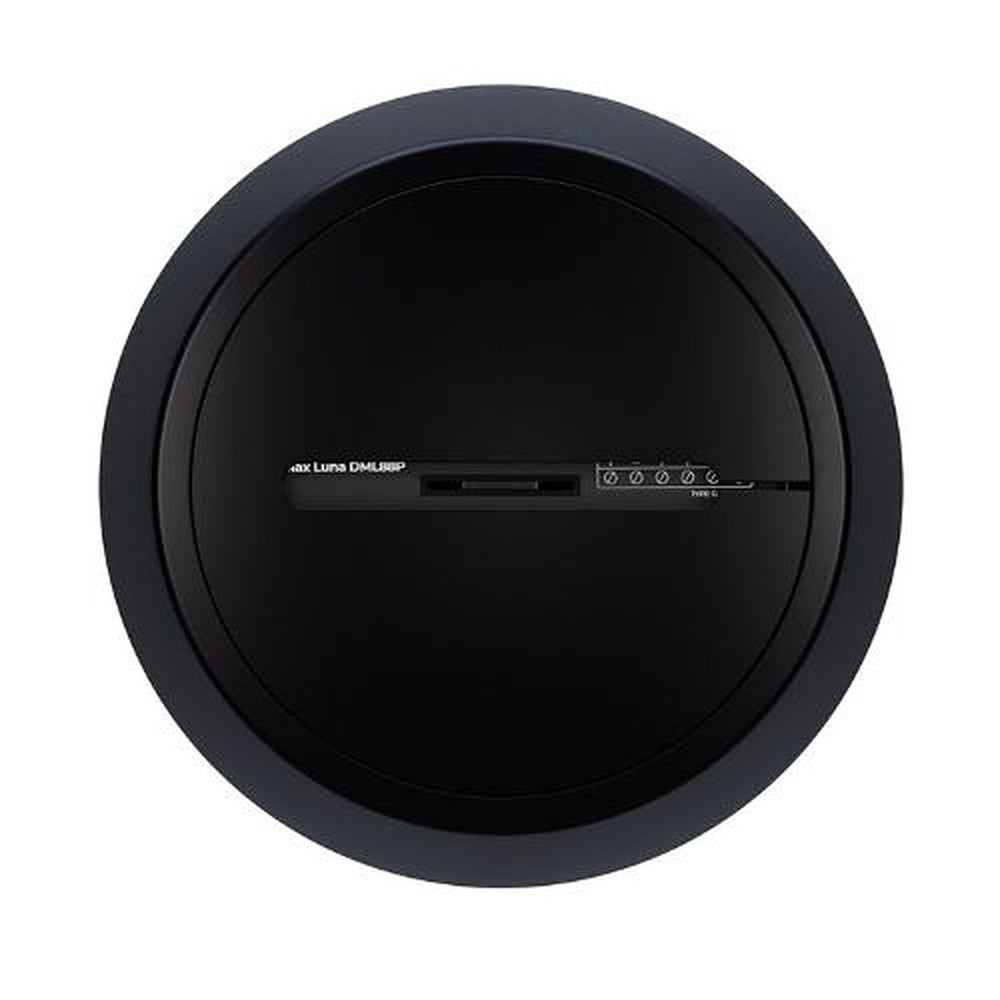

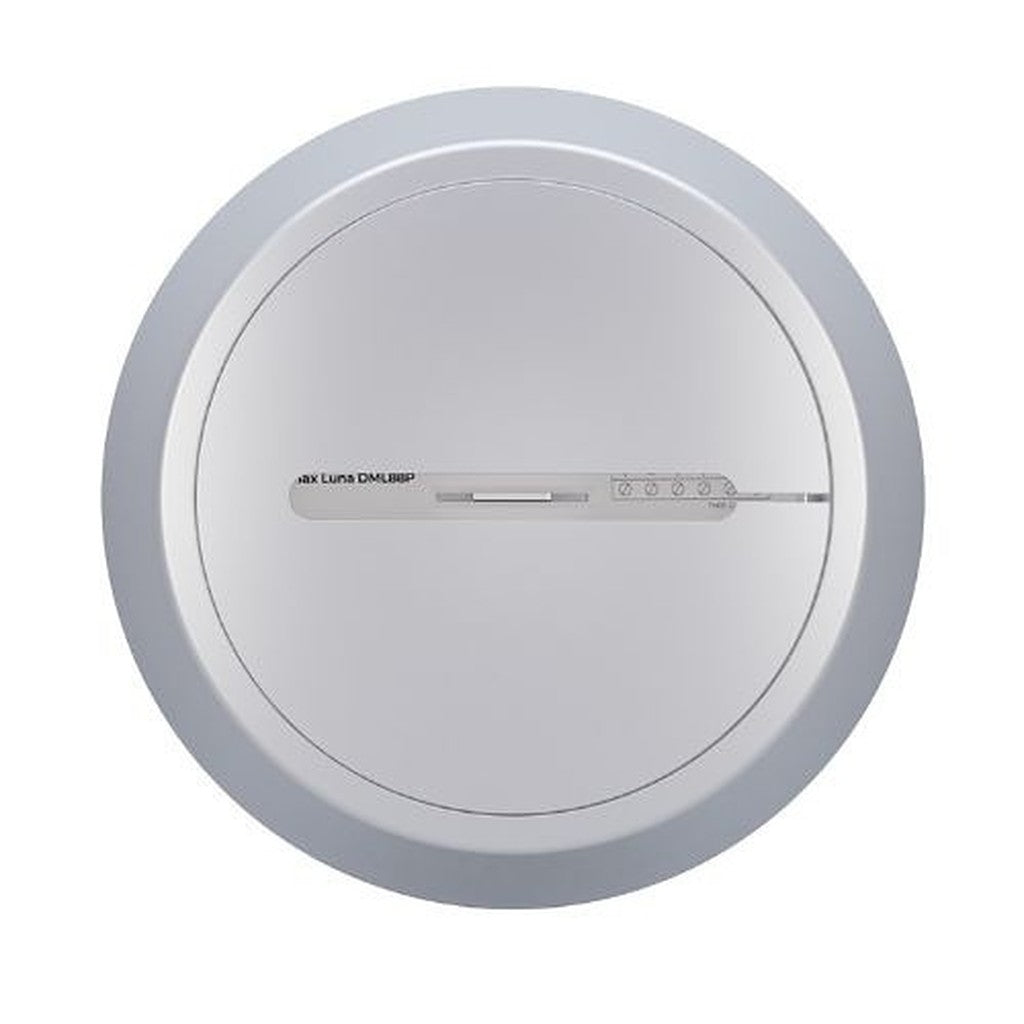

• Connection Panel Cover x 1
• Adjustable Suspension Cable System x 1
• Cable Ties x 4
• Installation Guide x 1
