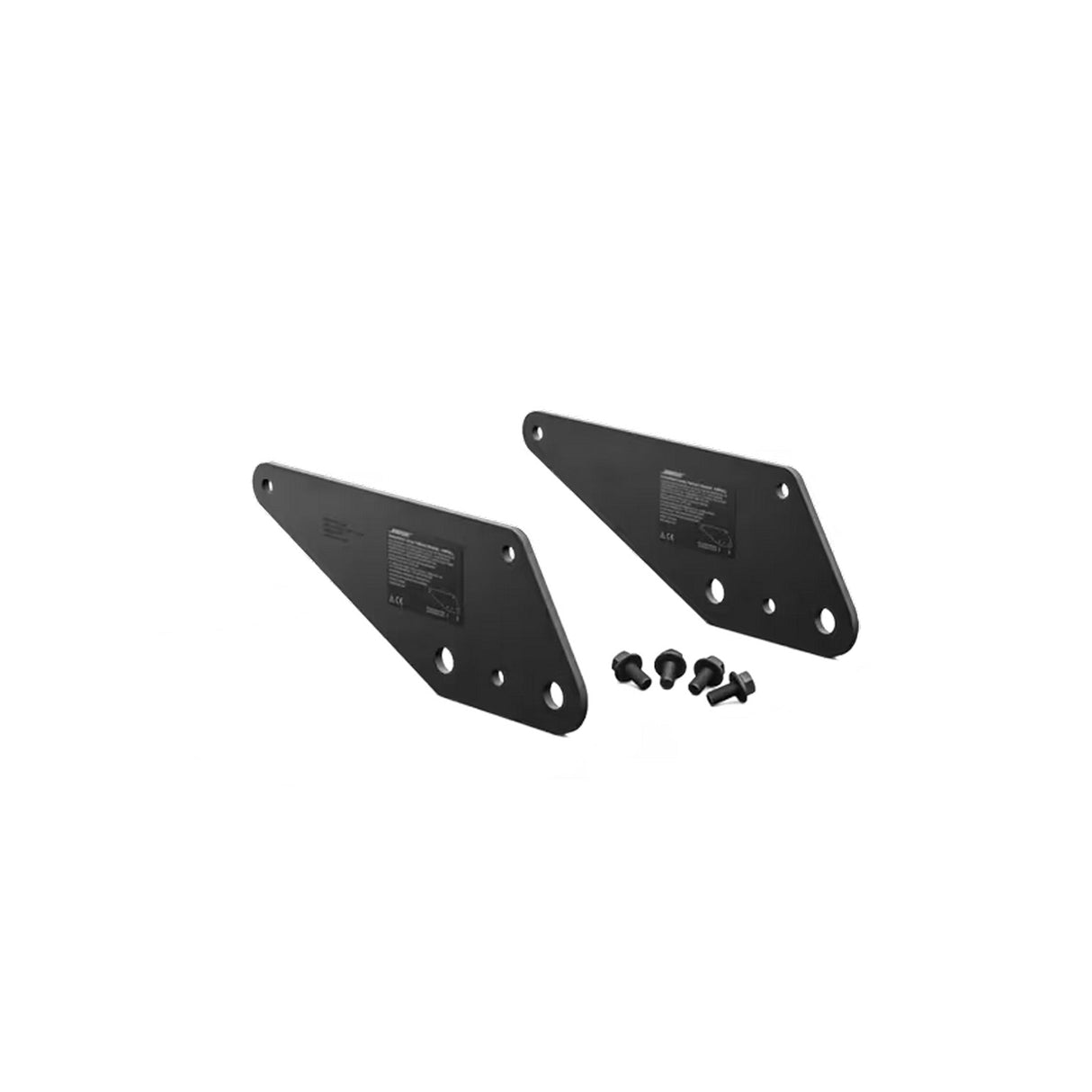

Bose Professional ArenaMatch AMPULL Array Pullback Bracket (Pair)

Bose Professional ArenaMatch AMPULL Array Pullback Bracket

Bose Professional ArenaMatch AMPULL is a pullback bracket designed to secure the bottom module of an ArenaMatch loudspeaker array in permanent installations. It enables controlled attachment of the array to building structures while allowing adjustment of the overall array angle. This makes it ideal for ArenaMatch deployments where precise aiming and stable support are required.

The pullback bracket is engineered specifically for use with ArenaMatch DeltaQ Array loudspeakers. It supports single-point attachment and integrates into the ArenaMatch rigging system. The bracket design allows installers to fine-tune array angle during installation.

The AMPULL kit supports consistent rigging practices across ArenaMatch systems using manufacturer-approved hardware. All required fasteners are included to support proper installation. The accessory is intended for use with ArenaMatch AM10, AM20, and AM40 loudspeakers only.

Key Features

• Bottom Array Stabilization: Secures the bottom module of an ArenaMatch array to building structure
• Array Angle Adjustment: Allows adjustment of overall array angle during installation
• ArenaMatch Compatibility: Designed for use with ArenaMatch AM10, AM20, and AM40 loudspeakers
• Single-Point Rigging Support: Supports single-point attachment applications
• Accessory Kit Format: Shipped in pairs with required fasteners included

Technical Specifications

Product Type
Array pullback bracket rigging accessory kit

Compatible Loudspeakers
Bose Professional ArenaMatch AM10
Bose Professional ArenaMatch AM20
Bose Professional ArenaMatch AM40

Working Load Limit (WLL)
450 lb (205 kg), each side, single point

Available Color
Black

Product Dimensions (H × W)
5.9" × 15.6"
150 mm × 396 mm

Net Weight
11.3 lbs (5.1 kg)

What’s in the Box

(2) ArenaMatch AMPULL brackets
(4) M12 × 30 mm screws with plastic washers
(1) Installation guide
