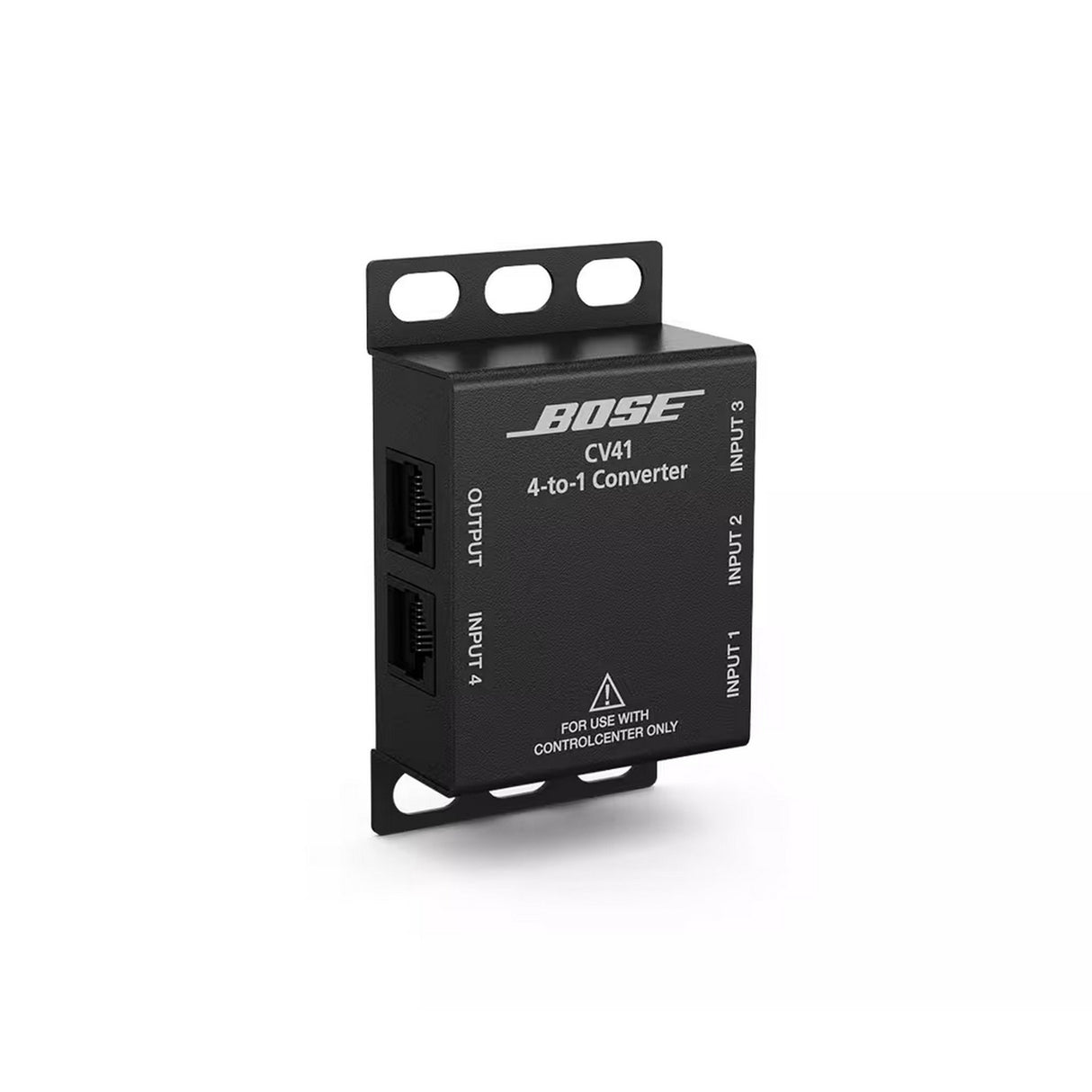

Bose Professional ControlCenter CV41 4-to-1 Converter

Bose Professional ControlCenter CV41 4-to-1 Converter

The Bose Professional ControlCenter CV41 is a compact 4-to-1 converter designed to simplify wiring when using multiple ControlCenter CC-1 zone controllers with compatible PowerShare amplifiers. It enables centralized homerun wiring while maintaining reliable system control.

The CV41 supports connection of up to four CC-1 controllers, consolidating their signals into a single connection to the amplifier. This reduces cabling complexity and improves installation efficiency in distributed audio systems.

Designed for use with Bose Professional ControlCenter and PowerShare systems, the CV41 is ideal for retail, hospitality, and worship environments requiring scalable zone control. Its compact form factor allows easy integration into equipment racks or installation spaces.

Key Features

• 4-to-1 Converter Design: Consolidates up to four ControlCenter CC-1 controllers
• Simplified Wiring: Enables homerun wiring for cleaner, more efficient installations
• System Compatibility: Designed for use with Bose PowerShare PS602 and PS604 amplifiers
• Flexible Installation: Compact enclosure supports rack or equipment-area mounting
• Professional Integration: Optimized for distributed audio control applications

Technical Specifications

Product Type
4-to-1 controller wiring converter

Compatible Controllers
Bose Professional ControlCenter CC-1

Cable Requirements
Cat 5

Maximum Controller Quantity
2 ControlCenter CC-1 controllers per CV41 with PowerShare PS602
4 ControlCenter CC-1 controllers per CV41 with PowerShare PS604

Maximum Cable Length
25 ft (7.6 m) to PowerShare amplifier
2000 ft (609 m) to ControlCenter CC-1

Connectors
(5) RJ-45, TIA/EIA 568B wiring standard

Color
Black

Suspension / Mounting
2RU rack ears

Product Dimensions (H × W × D)
88 × 51 × 27 mm
3.5" × 2.0" × 1.1"

What's in the Box

(1) ControlCenter CV41
(1) Installation Guide
