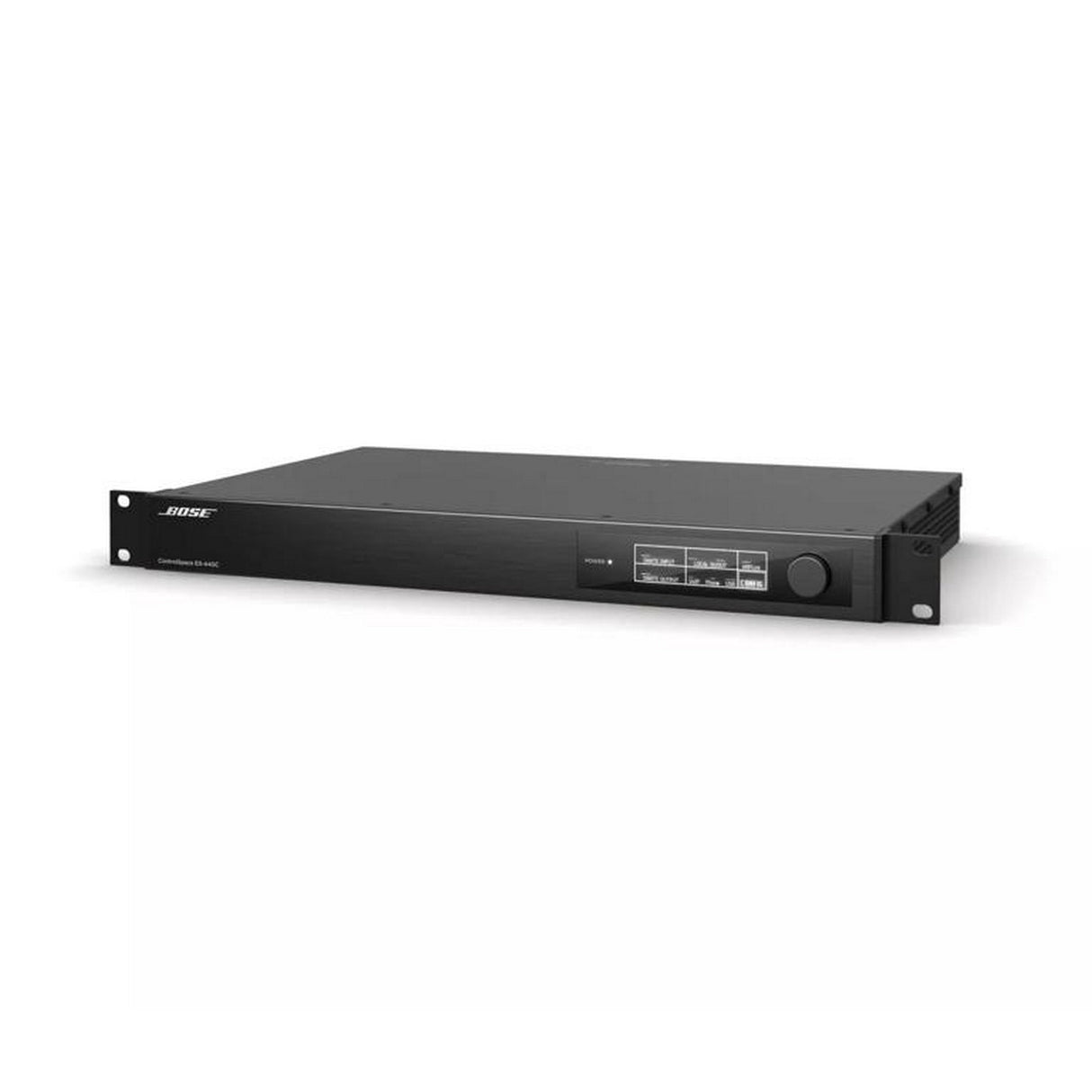

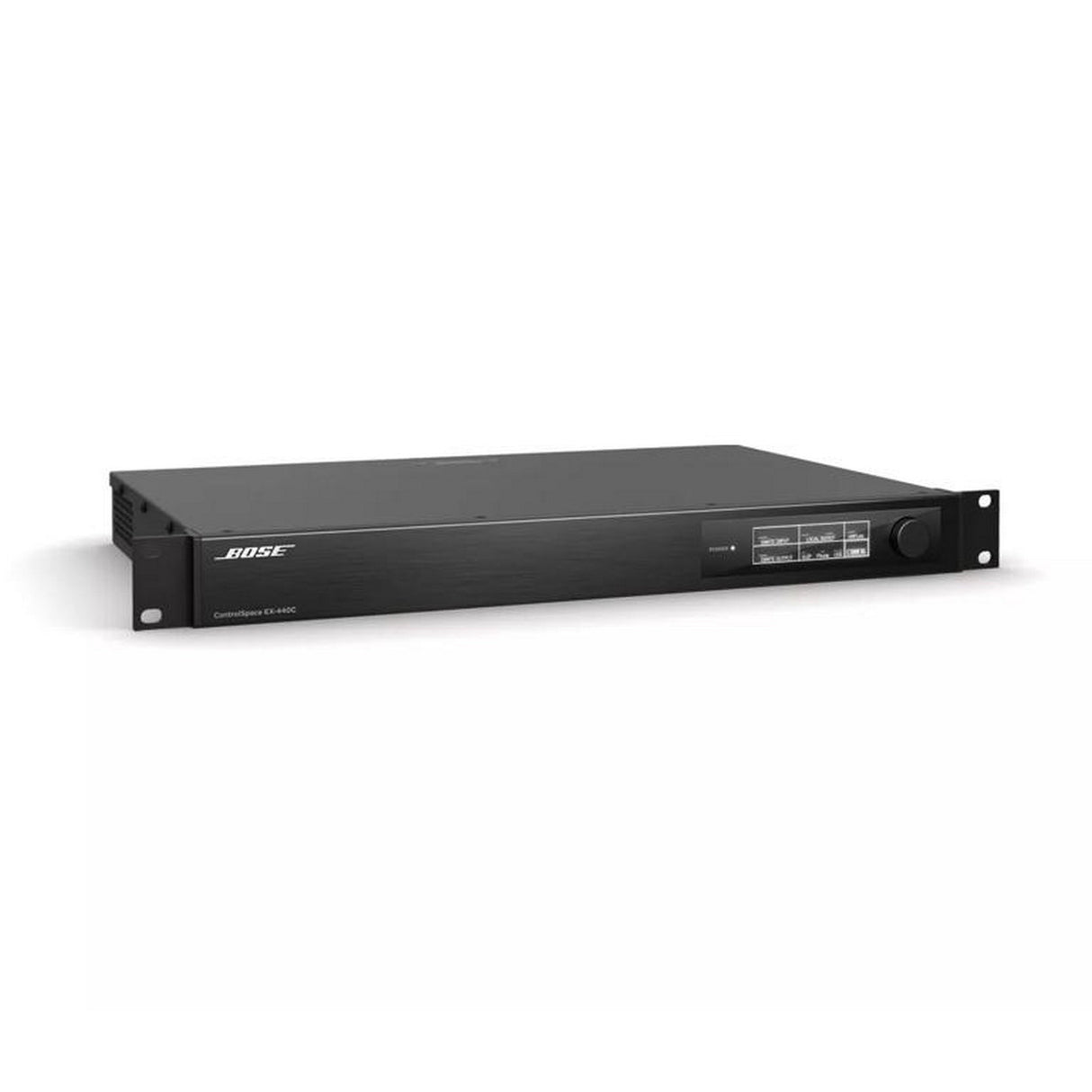

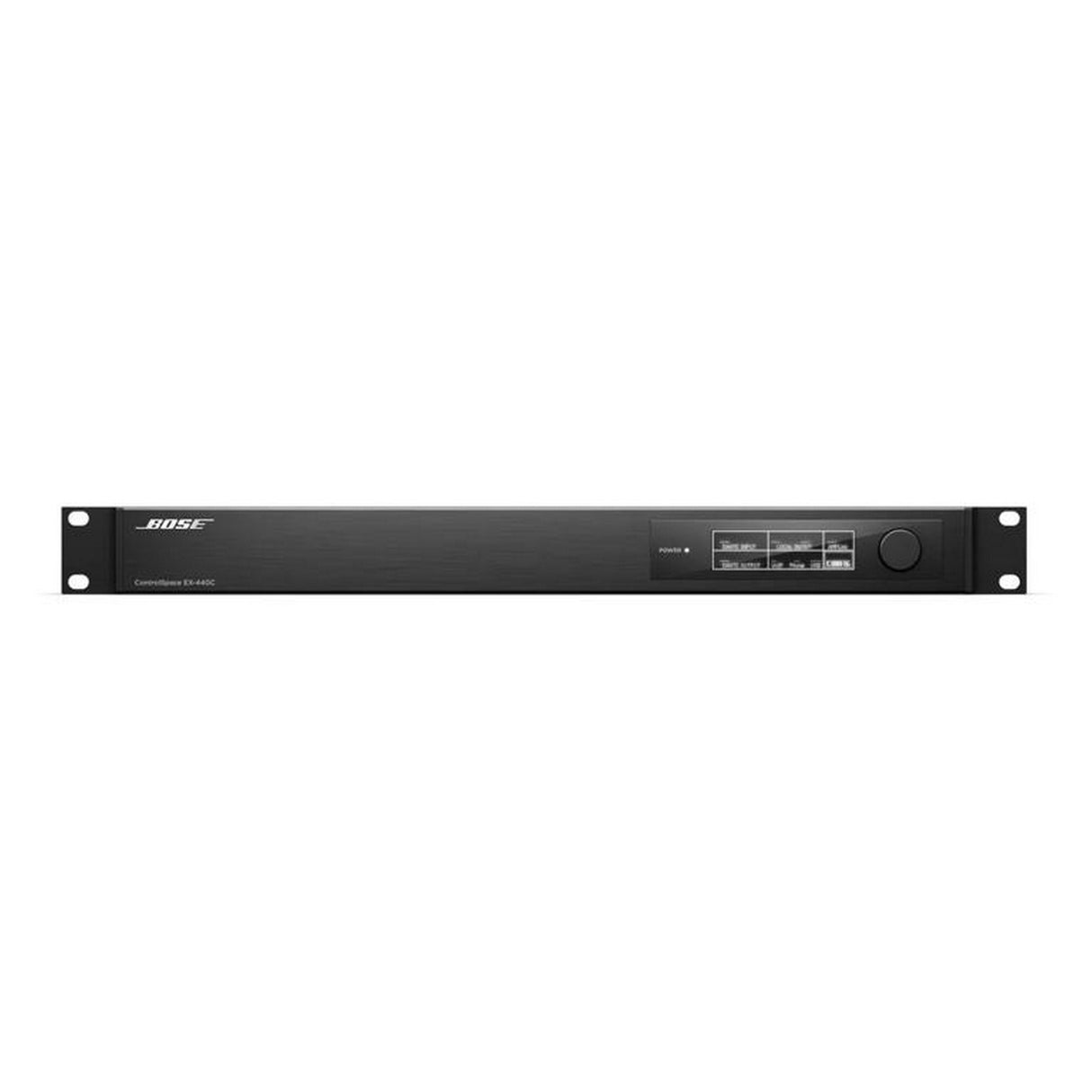

Bose Professional ControlSpace EX-440C Conferencing Sound Processor

Bose Professional ControlSpace EX-440C Conferencing Sound Processor

Bose Professional ControlSpace EX-440C is a conferencing sound processor designed for small- to medium-size meeting environments. It enables microphone integration, signal processing, and system connectivity for integrators and AV designers, supporting conferencing and collaboration workflows. This makes it ideal for rooms where integrated audio processing and flexible connectivity are required.

The processor operates as an all-in-one platform with analog, digital, VoIP, PSTN, USB, Dante, and AmpLink connectivity. It includes onboard acoustic echo cancellation and DSP to manage conferencing audio paths and routing. Configuration and control are performed through ControlSpace Designer software.

The system supports applications that require centralized conferencing audio control and networked audio integration. It is suited for conference rooms, courtrooms, and distance learning environments. The design allows integration with compatible Bose Professional amplifiers, microphones, and networked audio systems.

Key Features

• All-in-one conferencing processor: Supports VoIP, PSTN, and USB soft codecs in a single 1RU unit
• Eight-channel AEC: Provides acoustic echo cancellation with multiple references
• Dante audio networking: Includes 16 × 16 Dante channels for networked audio integration
• AmpLink connectivity: Provides four channels of digital audio to AmpLink-equipped amplifiers
• Software-based configuration: Uses ControlSpace Designer for drag-and-drop system setup

Technical Specifications

Channel Separation (Crosstalk)
< -105 dB at +4 dBu, 1 kHz input signal

Dynamic Range
> 115 dB, A-weighted, 20 Hz – 18 kHz, analog input to analog output

Frequency Response
18 Hz – 20 kHz (+0.8 dB/-0.2 dB), 1 kHz reference

THD+N
< 0.003% at +4 dBu (A-weighted, 20 Hz – 18 kHz) / < 0.01% at +44 dBu (A-weighted, 20 Hz – 18 kHz)

AEC-Enabled
Yes

AEC Channels
8

AEC Latency
50 ms

Noise Reduction
32 dB

AEC References
4

Tail Length
480 ms

Input Channels
4 balanced, mic/line

Analog Input Connectors
(1) 6-pin Euroblock, 3.81 mm, detachable

Equivalent Input Noise
-118 dB at 44 dB gain

Sensitivity Options
0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB

Input Impedance
12 kΩ at 1 kHz, with or without phantom power

Maximum Input Level
+24 dBu

Phantom Power
48 VDC, 10 mA, software-selectable per input

Digital Audio Channels
16 Dante in × 16 Dante out / 4 AmpLink out

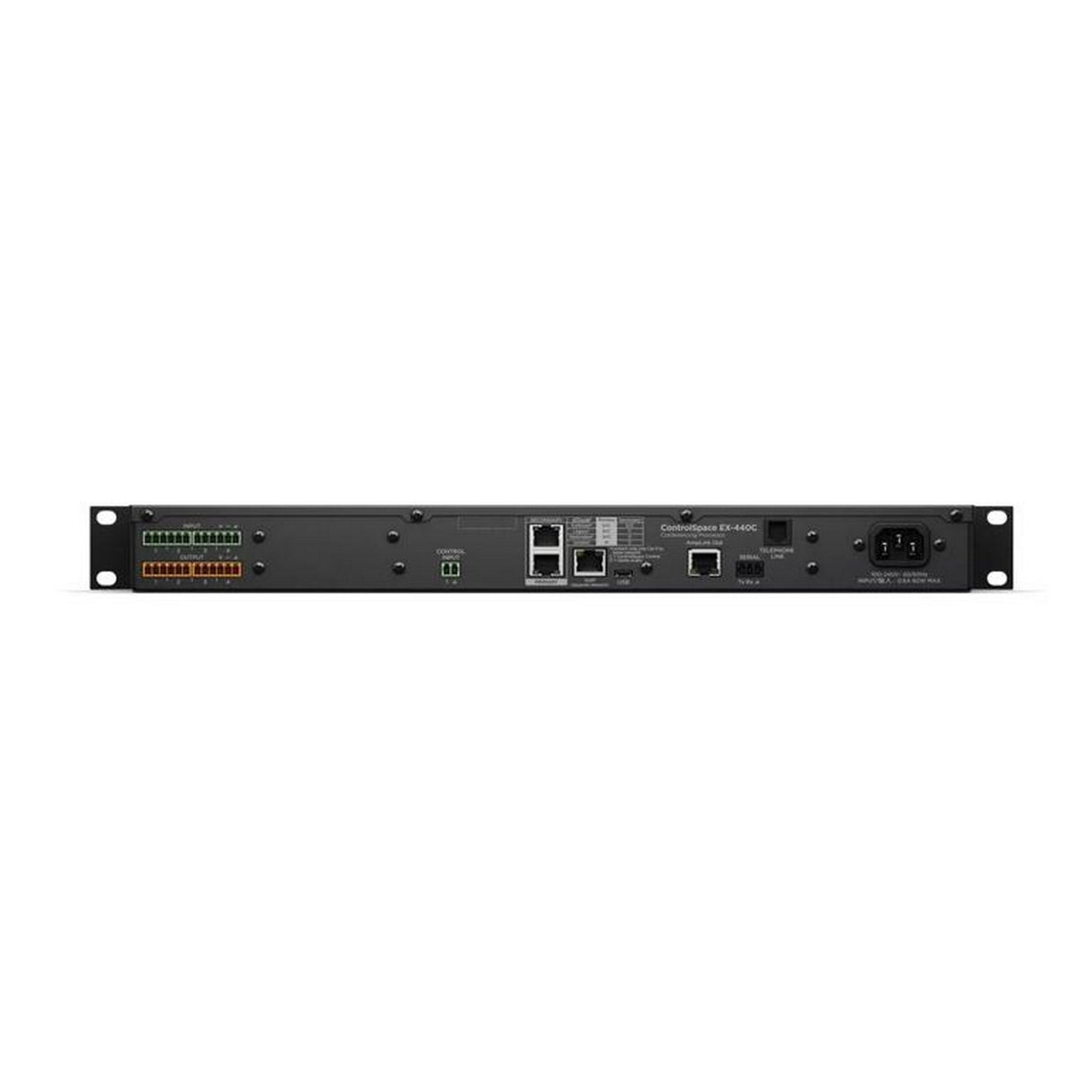

Digital Audio Connectors
(2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out

Analog Output Channels
4 balanced, line

Analog Output Connectors
(2) 6-pin Euroblock, 3.81 mm

Maximum Output Level
+24 dBu

Output Impedance
200 Ω

Safety Compliance
UL60065 (8th edition)
CAN/CSA-C22.2 No.60065 (8th edition)
IEC/EN60065 (8th edition)
UL62368-1 (2nd edition)
CAN/CSA-C22.2 No. 62368-1-14 (2nd edition)
IEC/EN 62368-1 (2nd edition)

EMC
EN 55032:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55035:2017
FCC Part 15B Class A
AS/NZS CISPR 32:2015
ICES-003 Class A
CISPR13

Mains Connector
IEC 60320-C14 inlet

Mains Voltage
85–264 VAC, 50/60 Hz

AC Power Consumption
35 W typical at 104 °F (40 °C) ambient

Power Dissipation
60 W (205 BTU/hr, 52 kcal/hr)

Software Applications
ControlSpace Designer 5.5 or later (Windows)

Display
256 × 64 OLED

LED Status Indicators
(1) power/status LED

Delay
43 s

A/D and D/A Converters
48 kHz / 24-bit

Audio Latency
1.05 ms, analog input to analog output without AEC

DSP-Enabled
Yes

Colors
Black

Cooling System
2 variable-speed side-venting fans

Suspension/Mounting
Standard rack ears

Operating Temperature Range
0 °C to 40 °C (32 °F to 104 °F)

Product Dimensions (H×W×D)
1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)

Net Weight
7.1 lbs (3.2 kg)

Rack Spaces
1RU

What’s in the Box

(1) ControlSpace EX-440C
(4) 6-pin Euroblock connectors
(1) 2-pin Euroblock connector
(1) 3-pin Euroblock connector
(6) Cable ties
(1) Installation guide
