Bose Professional DesignMax DM12SE 12-Inch Surface-Mount Loudspeaker - Black

Bose Professional DesignMax DM12SE 12-Inch Surface-Mount Loudspeaker

The Bose Professional DesignMax DM12SE Surface-Mount Loudspeaker is a passive 12-inch coaxial speaker for high-output indoor and outdoor commercial audio systems. It combines an 8-ohm design, 38 Hz low-frequency extension, 102-degree conical coverage, weather-treated drivers, and an IP55 enclosure in selectable black or white finishes.

Designed for performance venues, houses of worship, hospitality spaces, fitness facilities, retail environments, nightlife venues, outdoor patios, theaters, and multipurpose rooms, the DM12SE delivers broad point-source coverage from a compact architectural enclosure. Its 12-inch woofer and coaxially mounted compression driver provide full-range reproduction, while the included pan-and-tilt bracket supports precise aiming during permanent installations.

The enclosure uses UV-resistant engineered plastics with a powder-coated aluminum grille for demanding installed applications. A rear 4-pin Euroblock connector accepts 18 to 14 AWG wiring, and multiple M8 mounting points support the included bracket plus safety or pullback cables. Bose Professional amplifier and processor EQ voicings are available, although dedicated loudspeaker EQ is not required.

Key Features

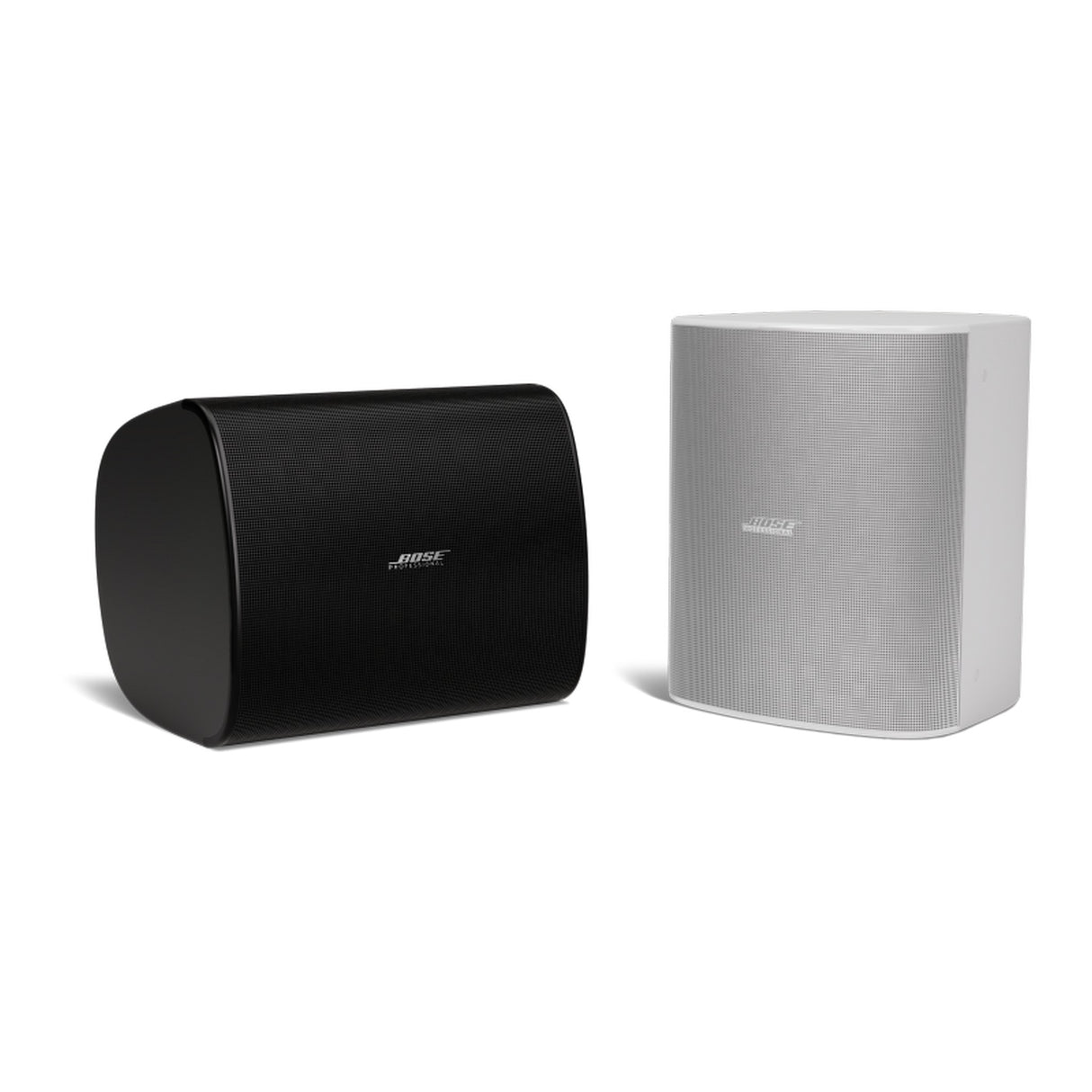

• Black and White Variants: Choose a black finish similar to RAL 9005 or a white finish similar to RAL 9003 for coordinated installations.

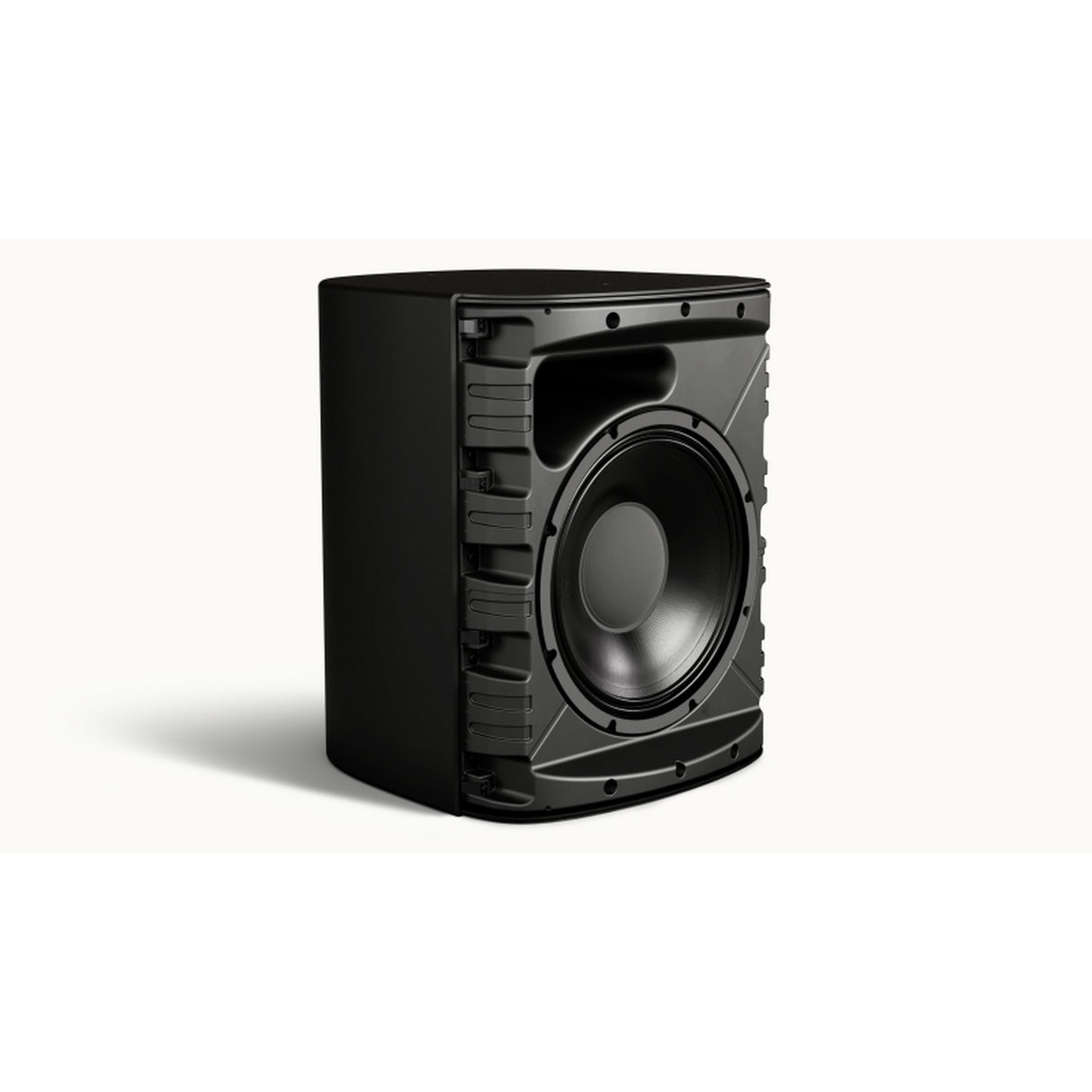

• 12-Inch Coaxial Design: A weather-treated woofer and center-firing compression driver create consistent point-source coverage.
• Full-Range Performance: Extends down to 38 Hz while reaching 20 kHz for music and speech applications.
• 102-Degree Conical Coverage: Provides broad horizontal and vertical dispersion for predictable audience coverage.
• 300W Continuous AES Handling: Supports demanding installed sound systems with up to 1200W AES peak power handling.
• Indoor and Outdoor Installation: An IP55-rated, UV-resistant enclosure and weather-treated transducers support exposed commercial applications.

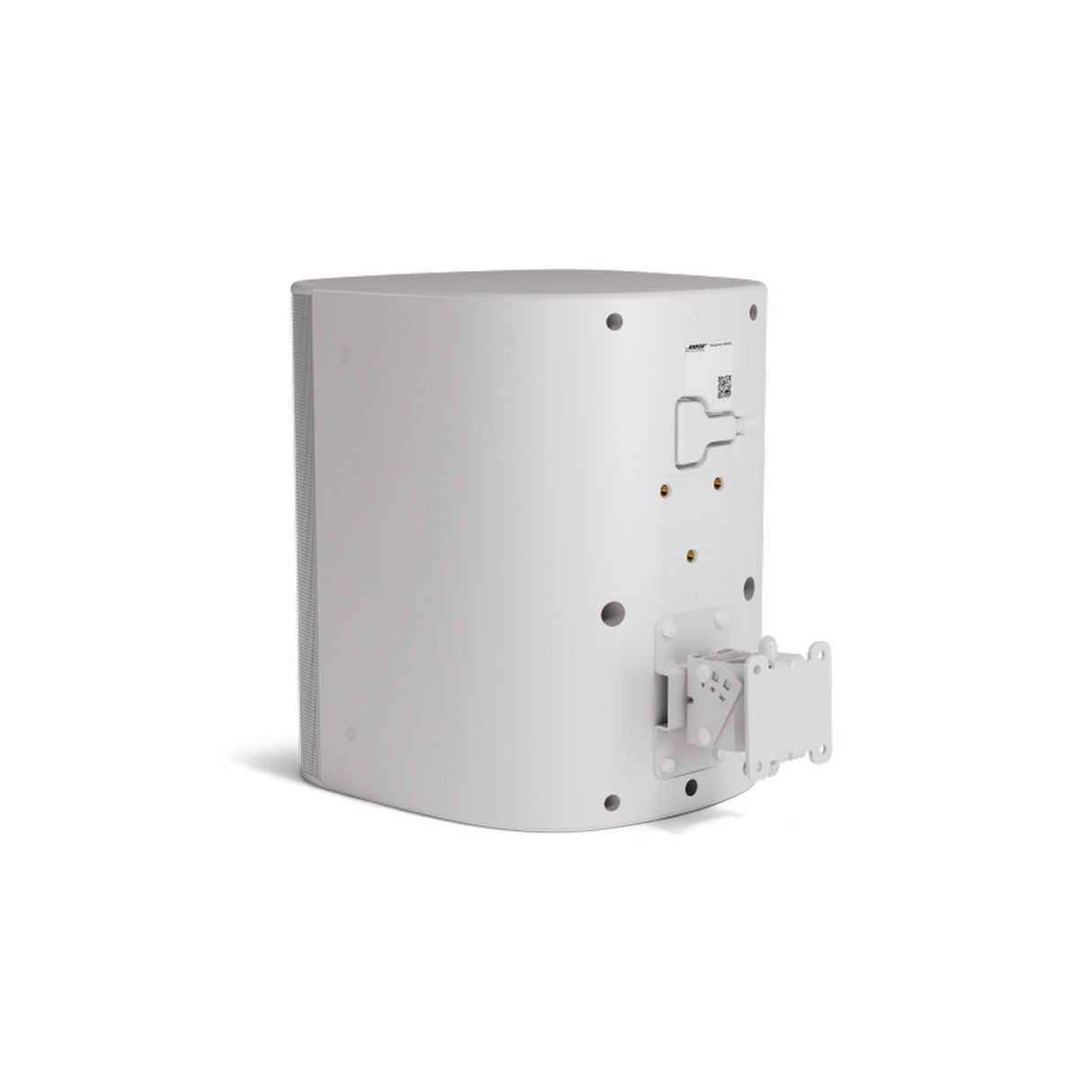

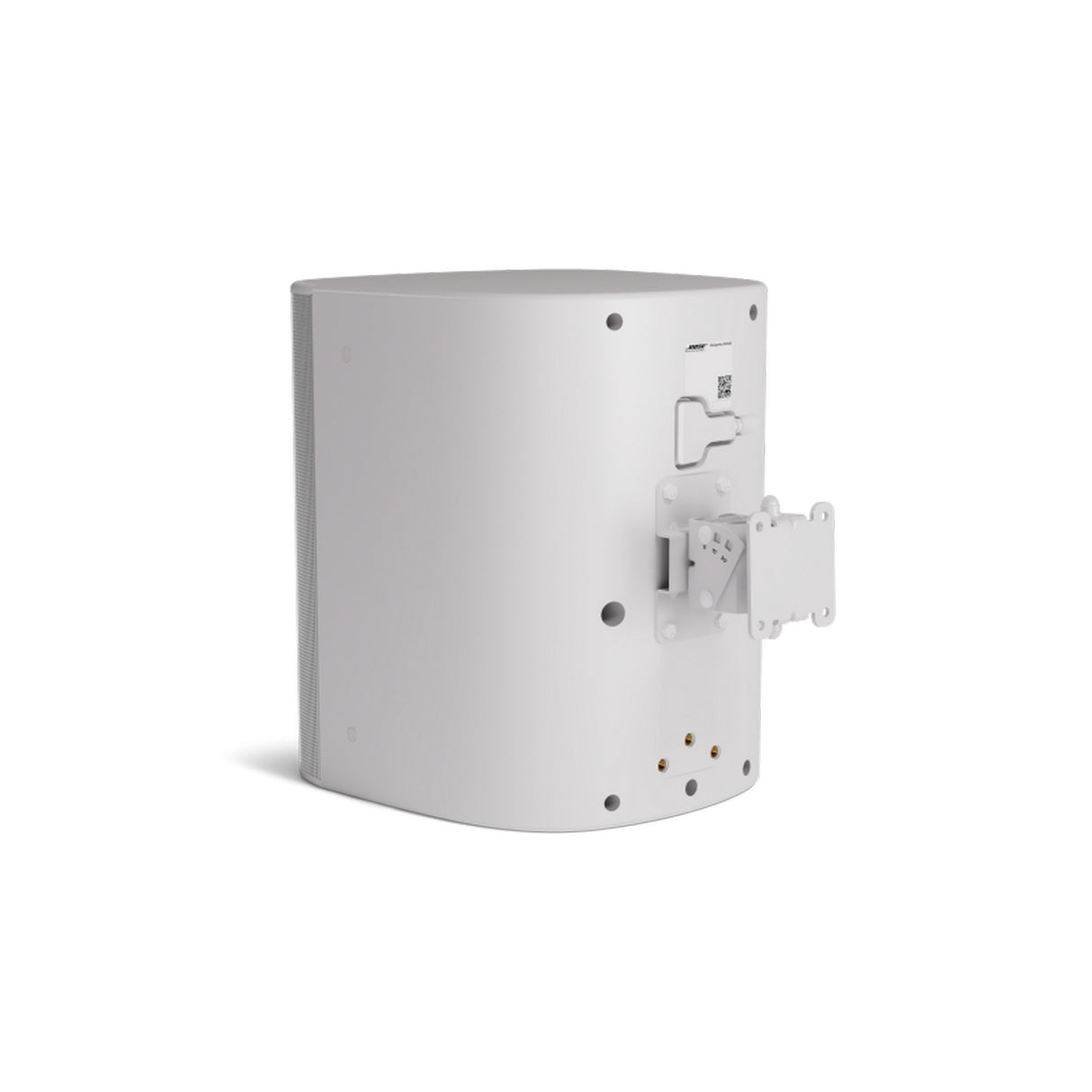

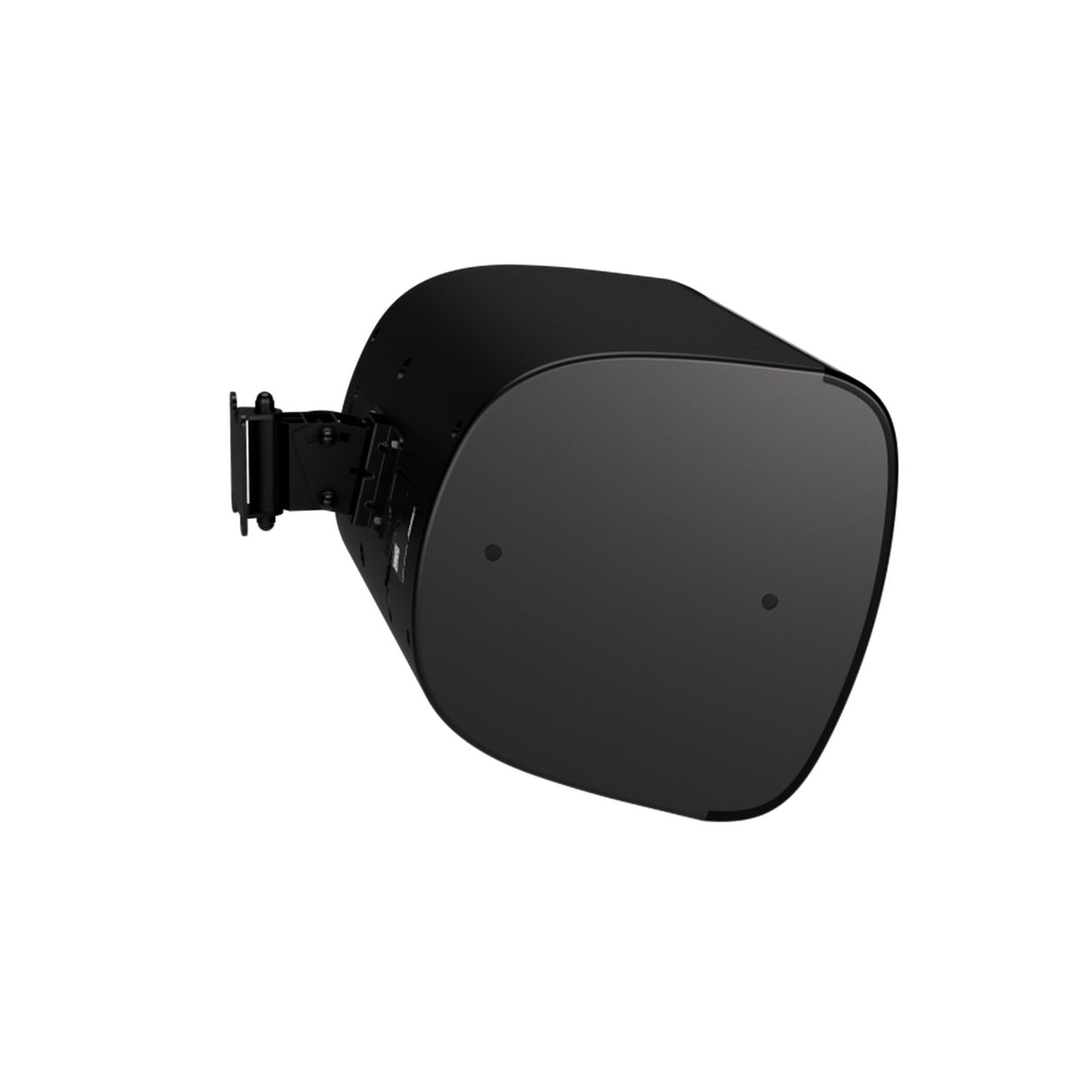

• Flexible Mounting: The included outdoor-ready pan-and-tilt bracket enables accurate positioning and secure permanent installation.
• Installation-Ready Connectivity: A covered 4-pin Euroblock connection accepts professional 18 to 14 AWG speaker wiring.

Color Variants

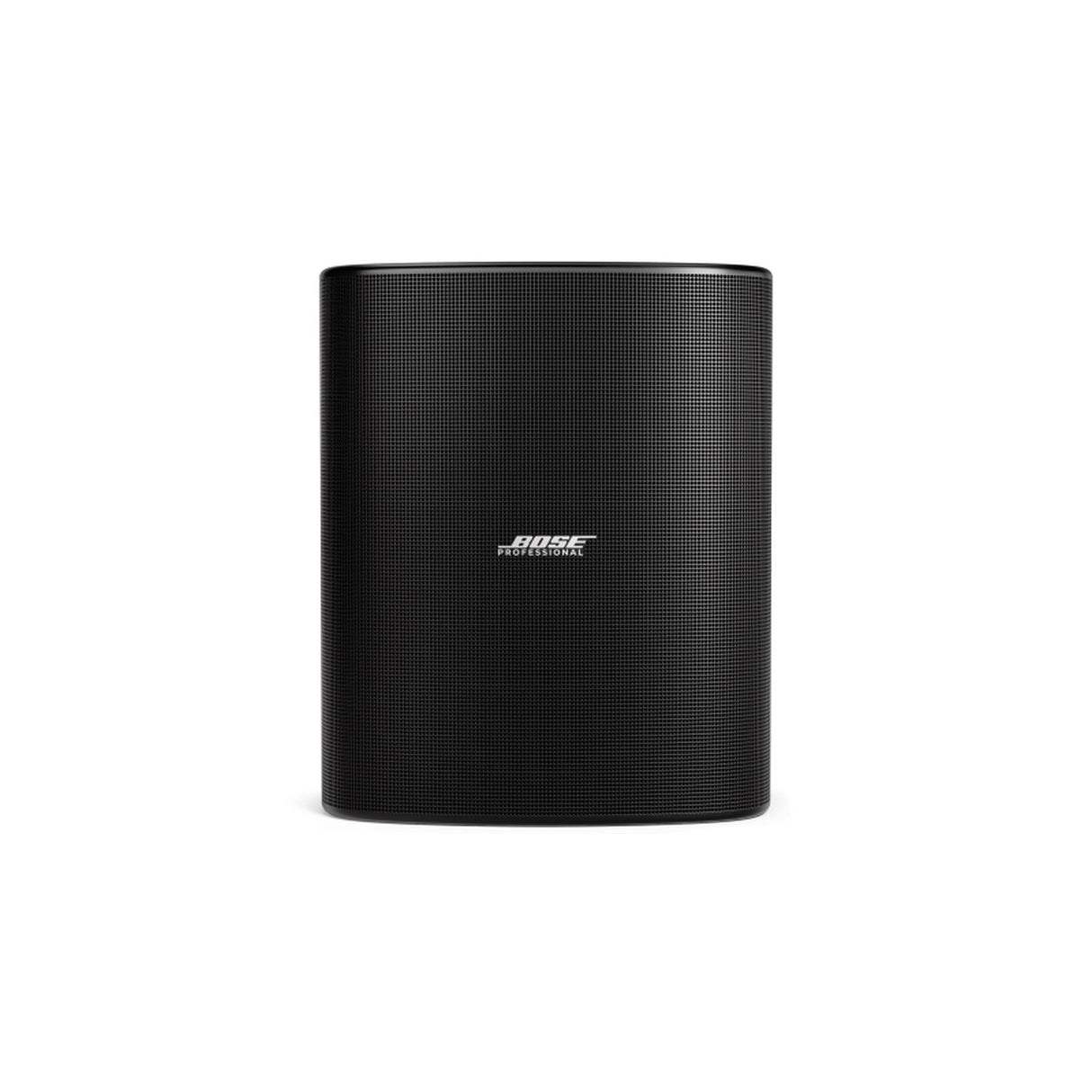

• A01114-0100: DesignMax DM12SE, Black

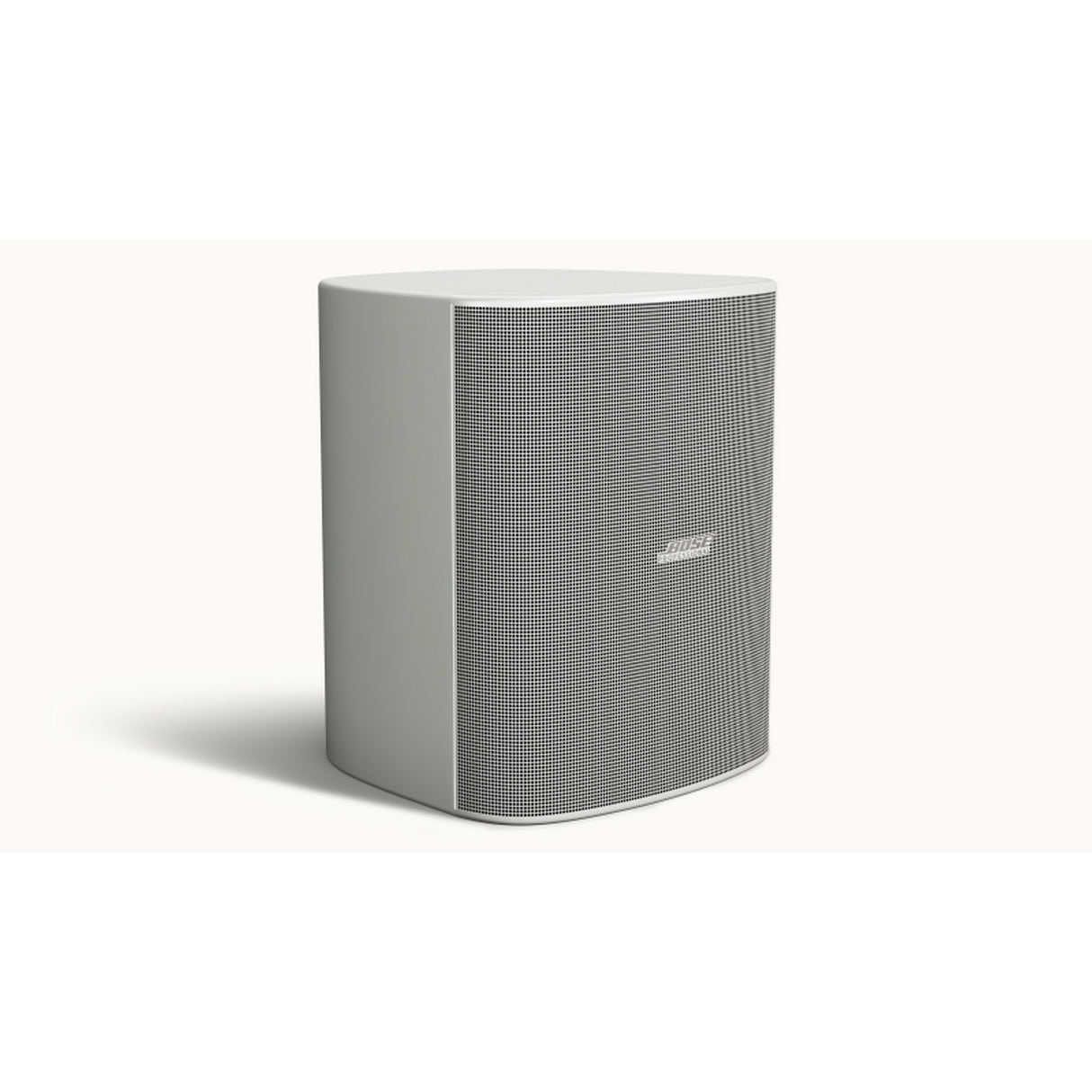

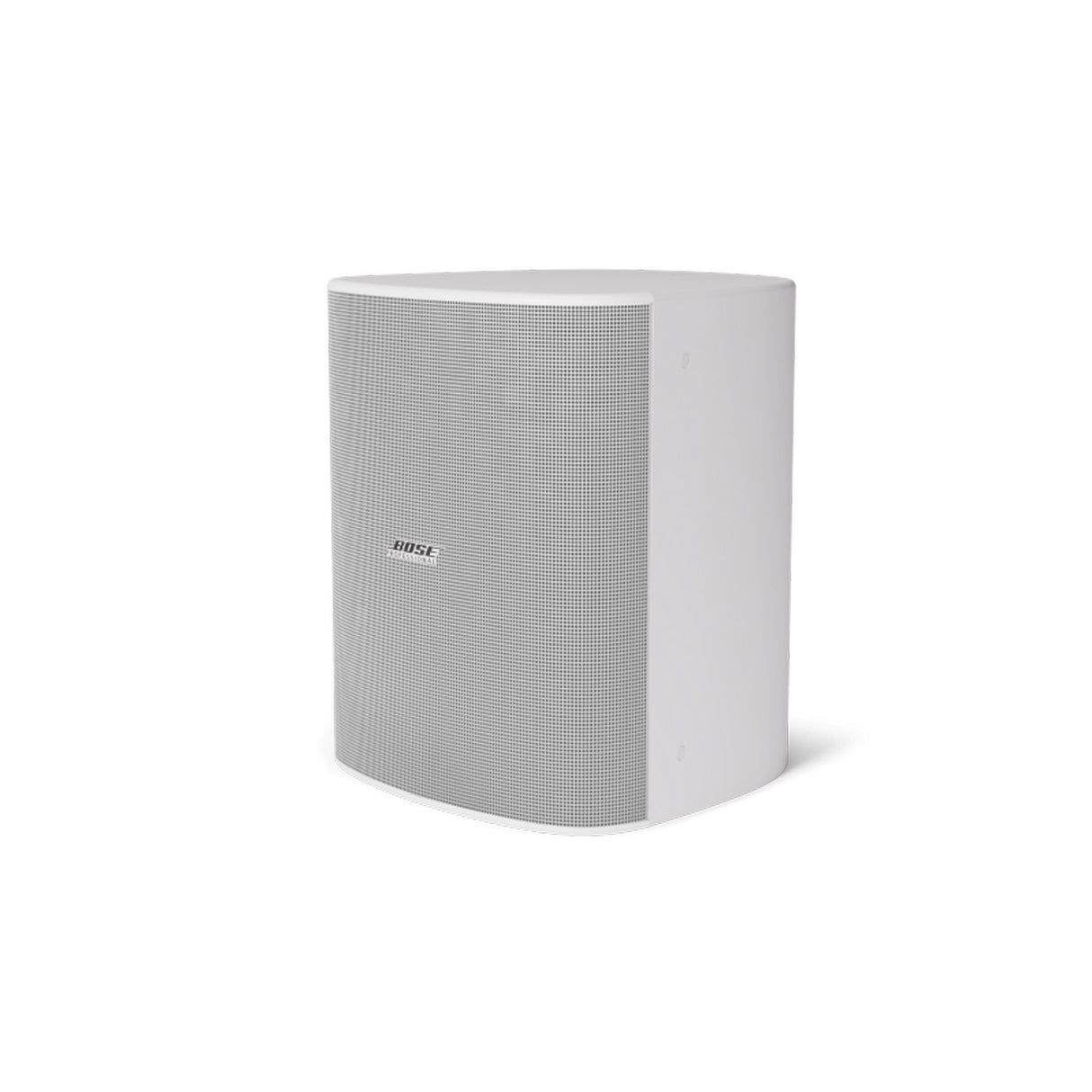

• A01114-0200: DesignMax DM12SE, White

Technical Specifications

• Product Type: Passive coaxial surface-mount loudspeaker
• Nominal Impedance: 8 ohms
• Frequency Response (-3 dB): 53 Hz to 20 kHz
• Frequency Range (-10 dB): 38 Hz to 20 kHz
• Nominal Coverage: 102-degree conical, 500 Hz to 8 kHz
• AES Long-Term Continuous Power Handling: 300 W
• AES Peak Power Handling: 1200 W
• Extended-Lifecycle Continuous Power Handling: 200 W
• Extended-Lifecycle Peak Power Handling: 800 W
• Sensitivity: 94 dB SPL, 1 W at 1 m
• AES Calculated Maximum SPL at 1 m, Continuous: 119 dB
• AES Calculated Maximum SPL at 1 m, Peak: 125 dB
• Extended-Lifecycle Calculated Maximum SPL at 1 m, Continuous: 117 dB
• Extended-Lifecycle Calculated Maximum SPL at 1 m, Peak: 123 dB
• Loudspeaker EQ: Not required; Bose Professional EQ voicing and SmartBass processing available
• Recommended High-Pass Protection: 40 Hz with a minimum 12 dB/octave filter
• Low-Frequency Driver: 1 x 12-inch weather-treated woofer
• High-Frequency Driver: 1 x 1.4-inch weather-treated compression driver with 1-inch exit, coaxial center-firing
• Enclosure Material: Injection-molded engineered plastic with UV fade resistance
• Grille: Perforated aluminum with powder-coated finish, tamper-resistant design, paintable
• Logo: Rotatable
• Available Colors: Black similar to RAL 9005 and white similar to RAL 9003; paintable
• Environmental Rating: IP55 for indoor or outdoor use
• Operating Temperature: -13 to 158 degrees F

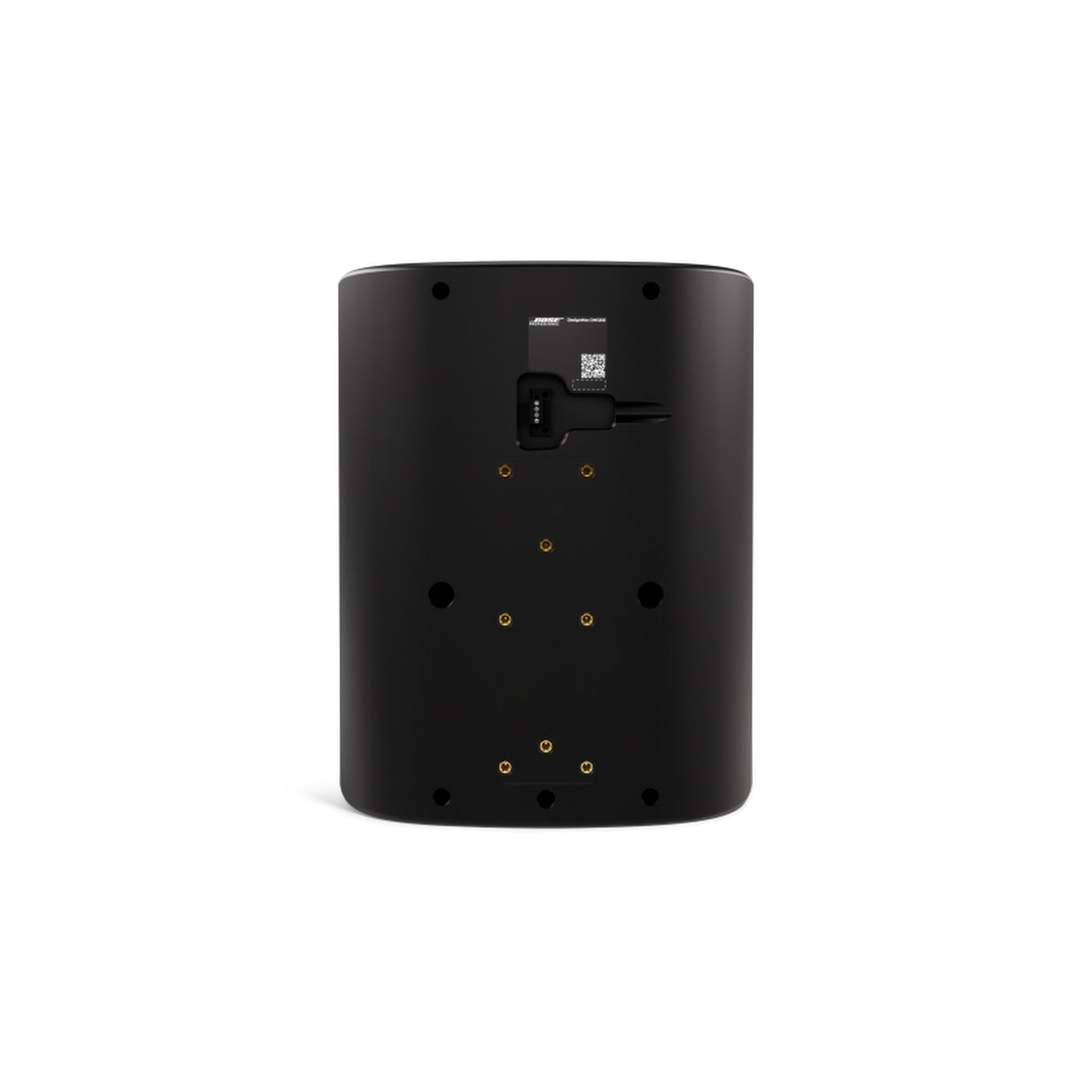

• Connector: Rear-panel 4-pin Euroblock
• Supported Wire Gauge: 18 to 14 AWG
• Top Mounting Points: 2 x M8 threaded inserts
• Side Mounting Points: 2 x M8 threaded inserts
• Rear Bracket Mounting Points: 6 x M8 threaded inserts

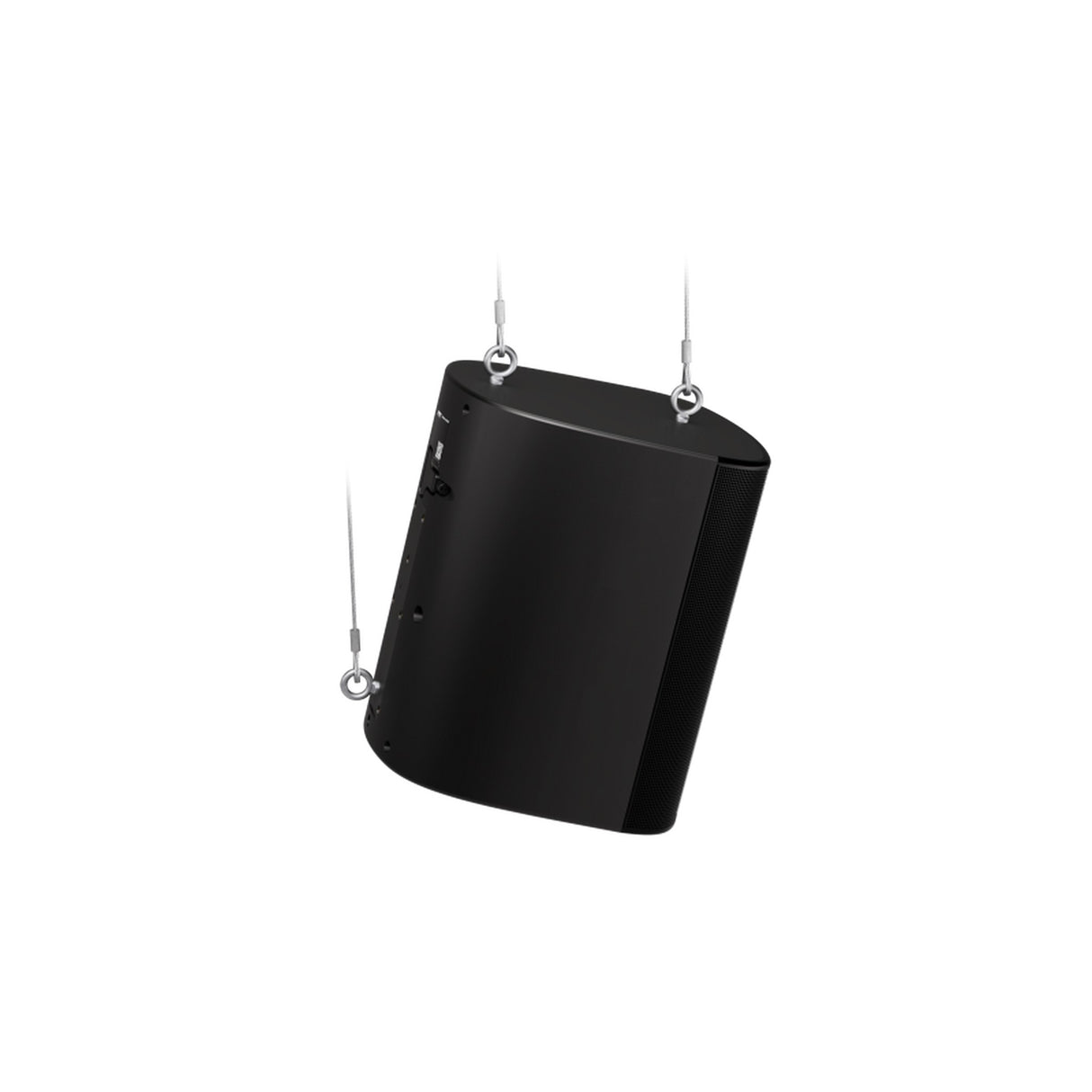

• Rear Safety/Pullback Points: 2 x M8 threaded inserts
• Product Dimensions (H x W x D): 19.1 x 16 x 16 inches
• Net Weight: 37.4 lb
• Certifications and Compliance: ETL and cETL certified under UL 1480A and CSA 22.2 No. 205-17; NFPA 70, NFPA 90A, and CE compliant
• Black Product Code: A01114-0100
• White Product Code: A01114-0200
• Black UPC: 840409501636
• White UPC: 840409501643

What's In the Box

• 1 x Bose Professional DesignMax DM12SE Loudspeaker in selected color
• 1 x Pan-and-Tilt Surface-Mount Bracket with Mounting Hardware
• 1 x Input Panel Cover
• 1 x Installation Guide
