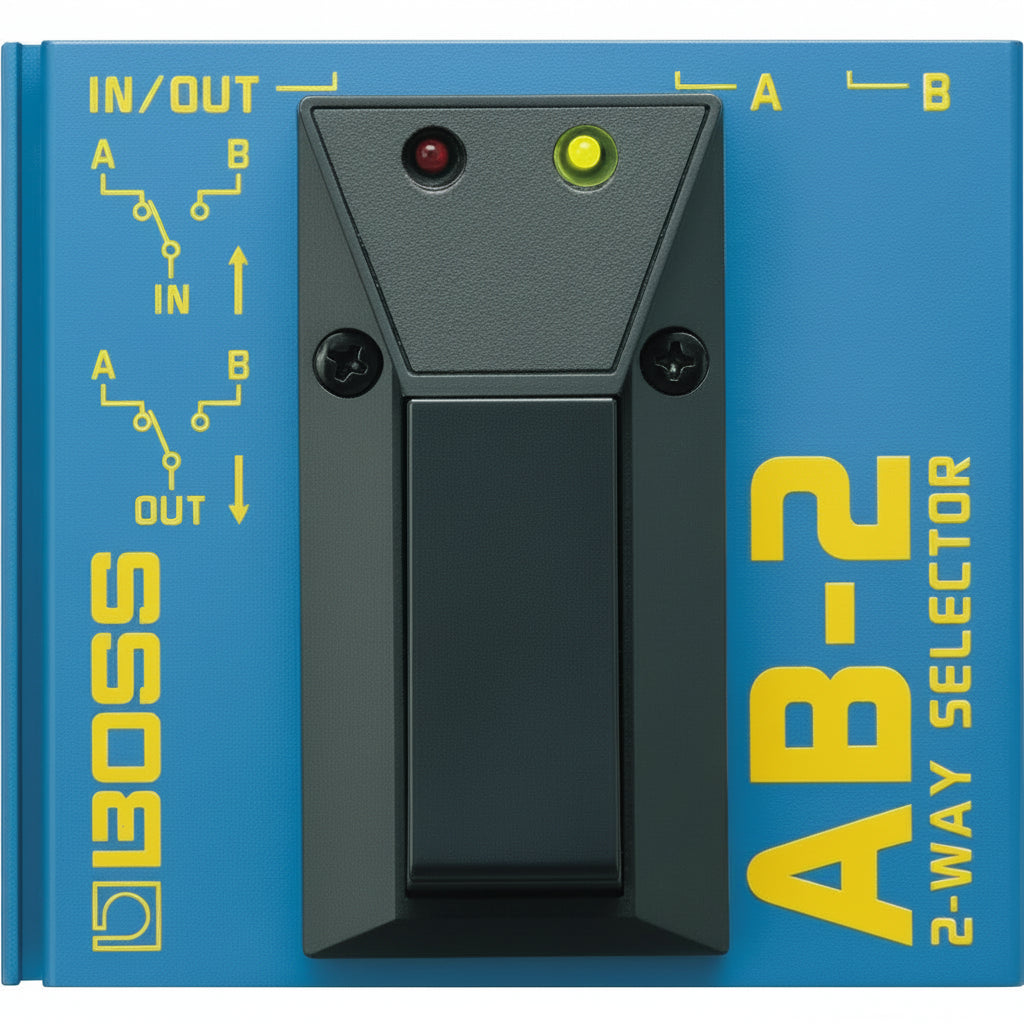

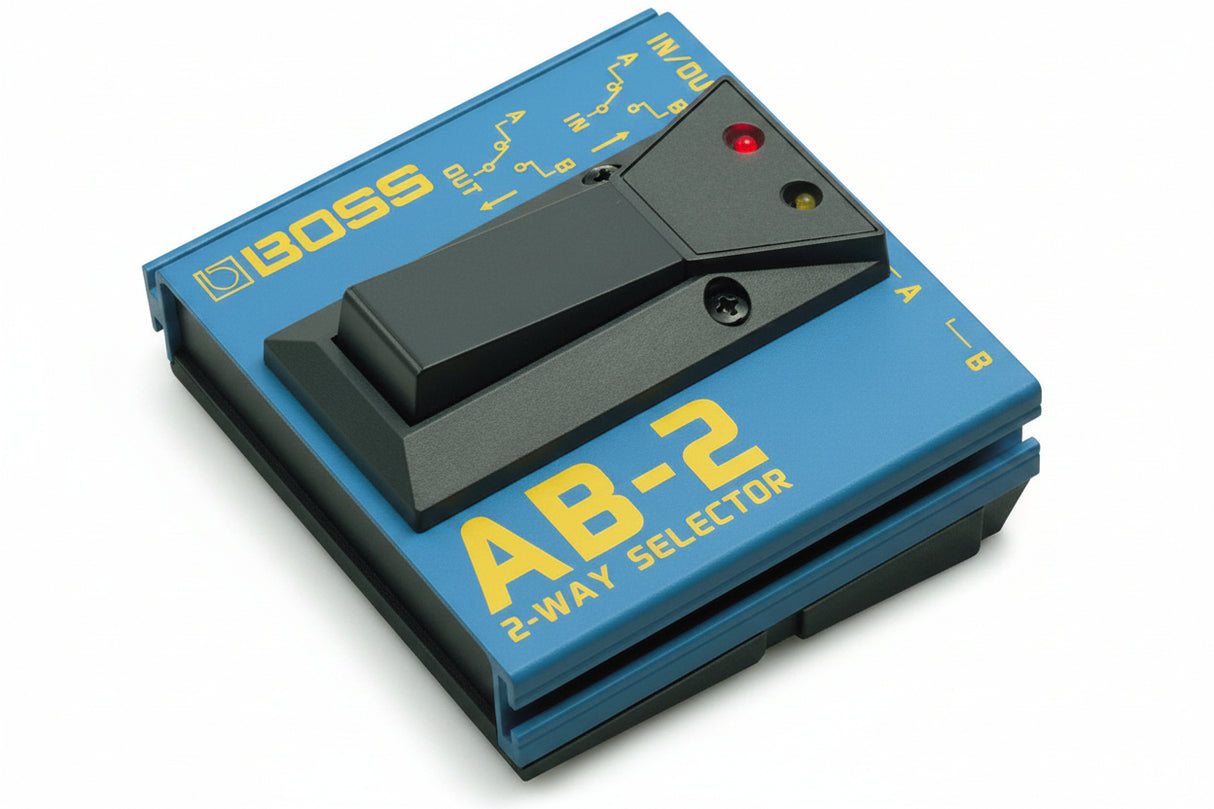

BOSS AB-2 2-Way A/B Selector Pedal

BOSS AB-2 2-Way A/B Selector Pedal

The BOSS AB-2 2-Way A/B Selector Pedal provides silent, one-stomp switching between two signal paths. Its reversible design can route one guitar to two amplifiers or accept two guitars into one effects or amplifier chain, making it a compact solution for instrument selection, amp switching, effects routing, and tuner muting.

Players can use the AB-2 to move between clean and lead amplifiers, change instruments without repatching cables, select alternate effects setups, or create a tuning-mute path between an amplifier and tuner. Red and yellow indicators clearly identify the active A or B channel, while the single pedal control keeps operation straightforward during performances and rehearsals.

The BOSS AB-2 uses three signal connections labeled A, B, and IN/OUT, allowing the same pedal to function as either an input or output selector. Two AAA batteries power the switching circuit for approximately 100 hours with carbon batteries under continuous-use conditions. It is designed for instrument and effects-level signals and should not be used to switch power-amplifier speaker outputs.

Key Features

• Reversible A/B Routing: Select between two inputs feeding one output or route one input to either of two outputs.
• Silent Switching: One-click pedal operation changes signal paths without requiring manual cable changes.
• Multiple Rig Applications: Switch guitars, effects setups, amplifiers, or an amplifier and tuner from a single pedal.
• Channel Indicators: Red A and yellow B LEDs provide immediate visual confirmation of the selected path.
• Compact Foot Control: Single-pedal operation fits easily into stage, rehearsal, and pedalboard setups.
• Battery Powered: Runs from two AAA batteries without requiring an external power adapter.
• Long Battery Runtime: Provides approximately 100 hours of continuous operation with carbon batteries under specified conditions.

Technical Specifications

• Brand: BOSS
• Model: AB-2
• Product Type: 2-Way A/B Selector Pedal
• Routing: A/B input to one output or one input to A/B outputs
• Nominal Input Level: -20 dBu
• Nominal Output Level: -20 dBu
• Control: Pedal
• Indicators: A red, B yellow
• Connections: A jack, B jack, IN/OUT jack
• Current Draw: 5 mA or less
• Power Supply: 2 R03/LR03 AAA batteries
• Expected Carbon Battery Life: Approximately 100 hours under continuous use
• Signal Compatibility: Instrument and effects-level signals
• Width: 3.8"
• Depth: 3.5"
• Height: 1.7"
• Weight: 0.5 lb

What's In the Box

• BOSS AB-2 2-Way Selector
• 2 AAA batteries
• Number sticker
• Owner's manual
