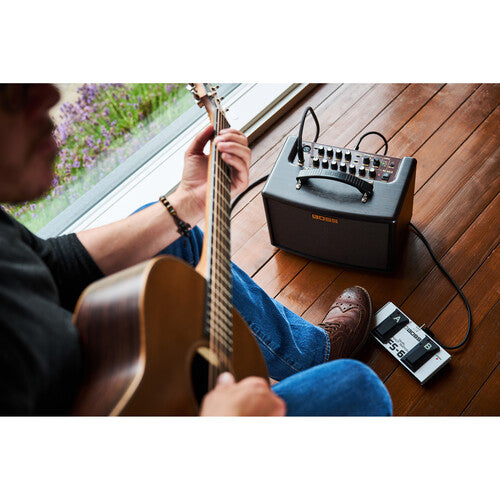

BOSS AC-22LX 10W Stereo Acoustic Guitar Amplifier

BOSS AC-22LX 10W Stereo Acoustic Guitar Amplifier

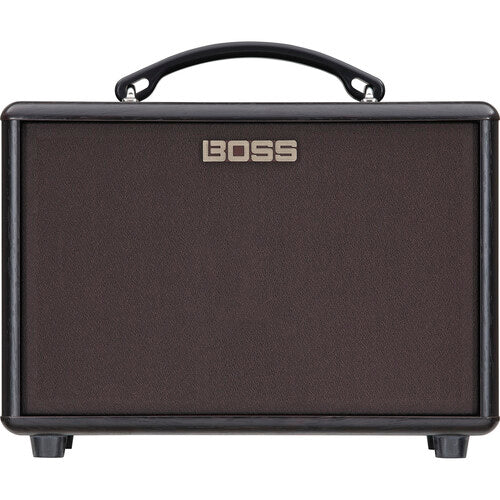

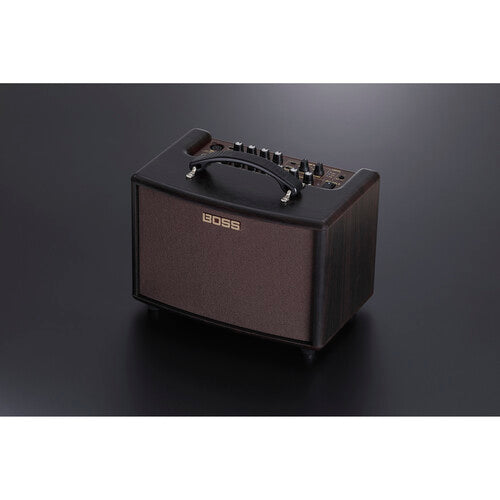

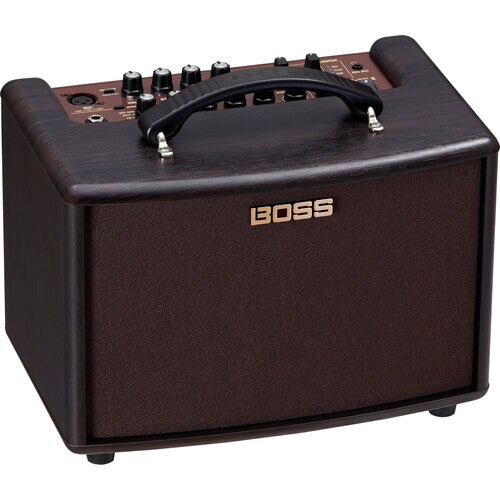

The BOSS AC-22LX acoustic guitar amplifier is a compact 10-watt stereo amp for acoustic-electric guitars and other pickup-equipped acoustic instruments. Its dual 5-inch speakers and Air Feel processing recreate the depth and spatial character of traditional stereo microphone techniques while providing dedicated instrument and microphone channels for performance, practice, recording, and streaming.

Five Air Feel modes - Dry, XY, AB, ORTF, and Mid-Side - let players shape how an amplified acoustic instrument occupies the stereo field. The Guitar/Instrument channel includes three-band EQ, reverb, and reverb-plus-chorus processing, while the microphone channel adds an XLR input with 48 V phantom power, two-band EQ, and dedicated reverb. Fifteen memories provide fast recall of frequently used sound setups.

The AC-22LX also supports modern performance and content-creation workflows with an onboard Rhythm Box, built-in looper, stereo line outputs, auxiliary input, and USB audio with Loopback. It operates from the included AC adapter or eight AA batteries for portable use. The AC-22LX Editor expands sound editing and rhythm options, while optional Bluetooth, wireless MIDI, expression, and footswitch accessories provide additional control.

Key Features

• 10W Stereo Amplification: Delivers 5 watts per channel through two custom-designed 5-inch speakers for compact stereo acoustic reproduction.
• Air Feel Processing: Offers Dry, XY, AB, ORTF, and Mid-Side modes that recreate the spatial characteristics of common stereo microphone configurations.
• Dedicated Instrument Channel: Provides three-band EQ plus reverb and reverb-with-chorus processing for acoustic-electric guitars and other pickup-equipped instruments.
• Independent Microphone Channel: Includes an XLR microphone input with 48 V phantom power, two-band EQ, volume control, and dedicated reverb.
• 15 Sound Memories: Stores and recalls complete sound setups for faster changes between instruments, songs, and performance configurations.
• Integrated Rhythm and Looper Tools: Includes 15 onboard rhythm patterns and a looper that can be controlled with an optional footswitch.
• USB Recording and Streaming: Functions as a USB audio interface with Loopback for computer recording, playback monitoring, and livestreaming workflows.
• Portable Power Options: Runs from the included 9 V AC adapter or eight AA alkaline or rechargeable Ni-MH batteries.

Technical Specifications

• Product Type: Acoustic instrument amplifier
• Rated Power Output: 10 W total, 5 W + 5 W stereo
• Speakers: Two 5" speakers
• Guitar/Instrument Nominal Input Level: -10 dBu
• Guitar/Instrument Input Impedance: 10 M ohms
• Microphone Nominal Input Level: -40 dBu
• Microphone Input Impedance: 5 k ohms
• Aux Input Nominal Level: -20 dBu
• Aux Input Impedance: 15 k ohms
• Line Output Nominal Level: -10 dBu
• Air Feel Modes: Dry, XY, AB, ORTF, Mid-Side
• Sound Memories: 15
• Onboard Rhythm Patterns: 15
• Editor Rhythm Selections: 119
• Looper: Built-in; optional footswitch required for operation

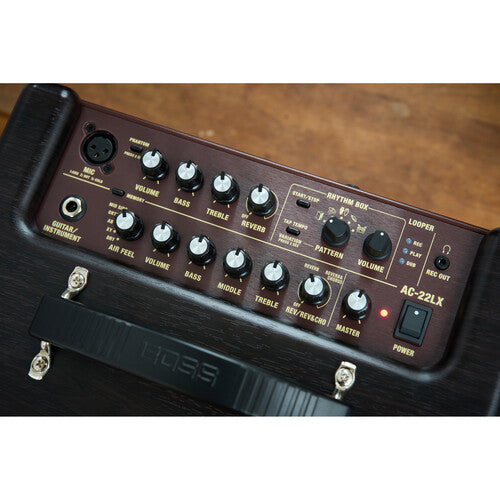

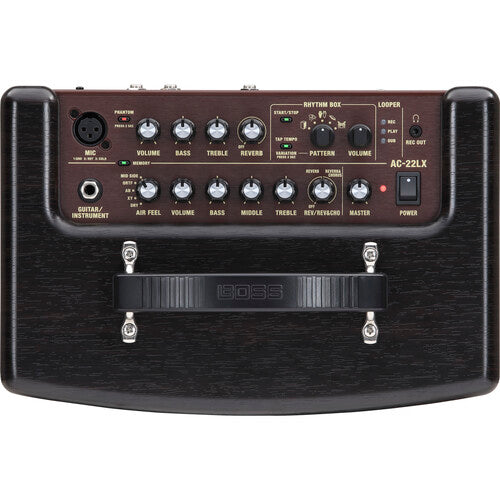

• Guitar/Instrument Controls: Air Feel, Volume, Bass, Middle, Treble, Reverb/Reverb & Chorus
• Microphone Controls: Phantom, Volume, Bass, Treble, Reverb
• Rhythm Box Controls: Start/Stop, Tap Tempo/Variation, Pattern, Volume
• General Controls: Power, Master, Memory, USB Loopback
• Rhythm Pattern Knob Selections: Cajon, Shaker, Conga, Tambourine, Drums
• Indicators: Power, Phantom, Memory, Start/Stop, Tap Tempo/Variation, REC, Play, Dub

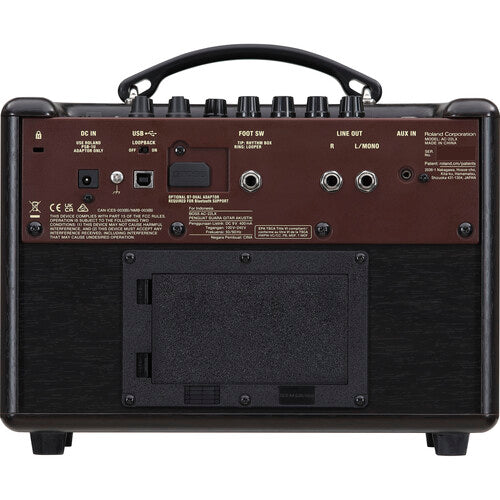

• Guitar/Instrument Input: 1/4" phone jack
• Microphone Input: XLR
• Microphone Phantom Power: 48 V DC, 14 mA maximum
• Phones/Rec Output: 1/8" stereo mini phone jack
• Aux Input: 1/8" stereo mini phone jack
• Line Outputs: Left/Mono and Right 1/4" phone jacks
• Footswitch Input: 1/4" TRS phone jack
• Bluetooth Adapter Connection: Dedicated connector for optional BT-DUAL adapter
• USB: USB Type-B
• DC Input: 9 V DC
• Power Supply: AC adapter or eight AA batteries
• Supported Batteries: AA alkaline or rechargeable AA Ni-MH
• Current Draw: 400 mA
• Alkaline Battery Life: Approximately 8 hours
• Rechargeable Ni-MH Battery Life: Approximately 10 hours with 2500 mAh batteries
• Editor Compatibility: macOS, Windows, iOS, Android
• Optional Footswitches: BOSS FS-5U, FS-6, FS-7
• Optional Bluetooth Adapter: BOSS BT-DUAL Bluetooth Audio MIDI Dual Adaptor
• Optional Wireless MIDI Expression Pedal: BOSS EV-1-WL
• Optional Wireless Footswitch: BOSS FS-1-WL
• Dimensions: 12.5" W x 8.3" D x 10.4" H
• Weight: 8.8 lb excluding AC adapter

What's In the Box

• BOSS AC-22LX Acoustic Amplifier
• AC adapter
• Power cord
• Owner's manual
• Using the Unit Safely leaflet
