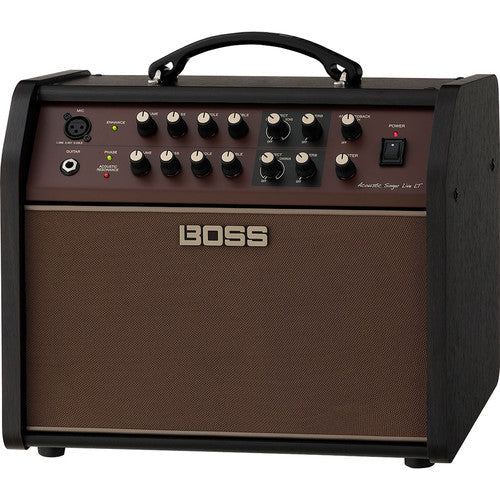

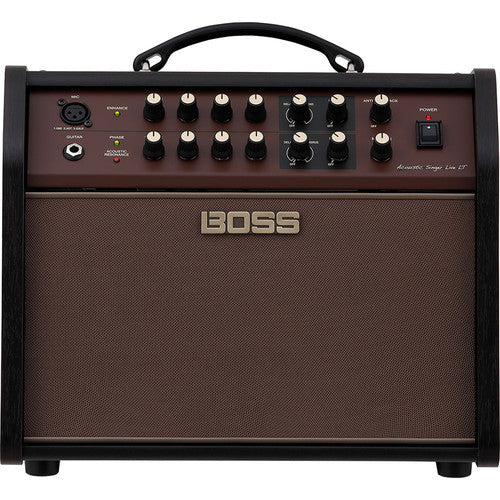

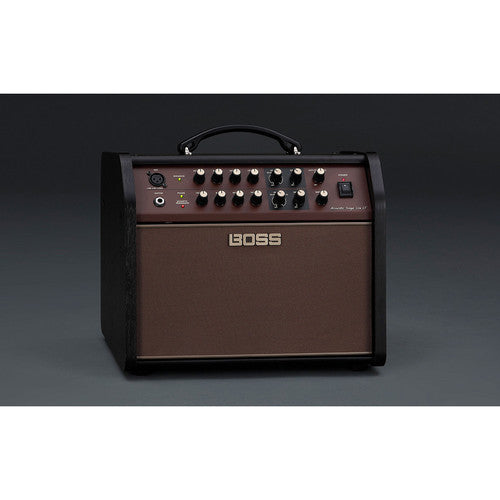

BOSS Acoustic Singer Live LT 60W Acoustic Guitar and Vocal Amplifier

BOSS Acoustic Singer Live LT 60W Acoustic Guitar and Vocal Amplifier

The BOSS Acoustic Singer Live LT is a 60-watt bi-amplified acoustic guitar and vocal amplifier designed for performing singer-guitarists. Its dedicated guitar and microphone channels combine independent tone shaping and effects with a 6.5-inch woofer and 1-inch dome tweeter, providing a compact amplification system for acoustic-electric instruments, vocals, rehearsals, and live performances.

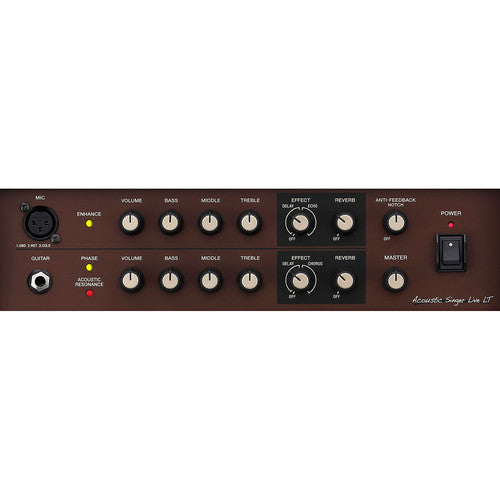

A discrete guitar channel provides three-band EQ, Acoustic Resonance processing, phase control, delay or chorus effects, and reverb for shaping amplified acoustic instruments. The separate microphone channel includes its own three-band EQ, one-touch Enhance processing, delay or echo, and reverb. A shared notch filter helps control troublesome feedback frequencies during stage use, while independent channel volume controls simplify balancing guitar and vocals.

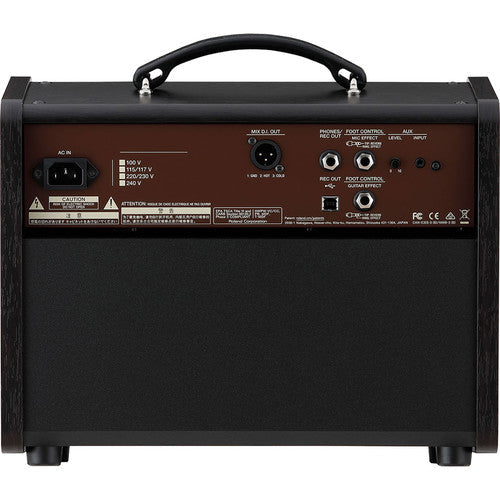

For connection to larger sound systems and recording equipment, the Acoustic Singer Live LT provides a balanced XLR Mix D.I. output that combines the microphone, guitar, and auxiliary signals. USB connectivity supports computer-based recording, while the stereo auxiliary input accommodates external playback devices. Separate foot-control connections allow optional BOSS footswitches to operate microphone and guitar effects during a performance.

Key Features

• 60W Bi-Amp Design: Drives the woofer with 50 watts and the tweeter with 10 watts for dedicated full-range acoustic amplification.
• Dual Guitar and Vocal Channels: Provides independent input circuitry, volume adjustment, three-band EQ, and effects for an acoustic-electric guitar and microphone.
• Acoustic Resonance Processing: Helps restore the natural acoustic character of guitars equipped with piezo pickups.
• Dedicated Vocal Processing: The microphone channel includes Enhance, delay or echo, reverb, and independent equalization for vocal reinforcement.
• Feedback Control: A guitar-channel phase switch and shared notch filter help address feedback problems encountered during amplified performances.
• Balanced Mix D.I. Output: Sends the combined microphone, guitar, and auxiliary signals to a PA system, powered speaker, recorder, or audio interface.
• USB Recording Connectivity: A USB Type-B connection integrates the amplifier with a compatible computer recording setup.
• Footswitch Control: Separate microphone-effect and guitar-effect control jacks support optional BOSS FS-5U, FS-6, and FS-7 footswitches.

Technical Specifications

• Model: ACS-LIVELT
• Product Type: Acoustic guitar and vocal amplifier
• Rated Power Output: 60 W total
• Woofer Amplifier Output: 50 W
• Tweeter Amplifier Output: 10 W
• Woofer: 6.5" x 1
• Tweeter: 1" dome tweeter x 1
• Channels: Guitar and microphone
• Microphone Input Nominal Level: -33 dBu
• Microphone Input Impedance: 2.5 k ohms
• Guitar Input Nominal Level: -10 dBu
• Guitar Input Impedance: 5 M ohms
• Aux Input Nominal Level: -8 dBu
• Aux Input Impedance: 10 k ohms
• Microphone Channel EQ: Bass, Middle, Treble
• Microphone Channel Effects: Enhance, Delay/Echo, Reverb
• Guitar Channel EQ: Bass, Middle, Treble
• Guitar Channel Processing: Phase and Acoustic Resonance
• Guitar Channel Effects: Delay/Chorus and Reverb
• Anti-Feedback Control: Notch filter
• Microphone Input: XLR
• Guitar Input: 1/4" phone jack
• Aux Input: Stereo 1/8" mini phone jack
• Phones/Rec Output: Stereo 1/4" phone jack
• Mix D.I. Output: XLR
• Microphone Effect Foot Control: 1/4" TRS phone jack
• Guitar Effect Foot Control: 1/4" TRS phone jack
• USB: USB Type-B
• Power Input: AC
• Power Consumption: 40 W
• Optional Footswitches: BOSS FS-5U, FS-6, FS-7
• Dimensions: 14.4" W x 10.7" D x 11.8" H
• Weight: 22.5 lb

What's In the Box

• BOSS Acoustic Singer Live LT Amplifier
• Owner's Manual
• Power Cord
