BOSS BCB-30X Compact Customizable Pedalboard

BOSS BCB-30X Compact Customizable Pedalboard

The BOSS BCB-30X Pedalboard is a compact, customizable effects board and protective carrying case for musicians using smaller pedal setups. Its cut-to-fit high-density foam insert accommodates BOSS compact pedals, 200- and 500-series models, and other pedal sizes while keeping the overall footprint easy to transport.

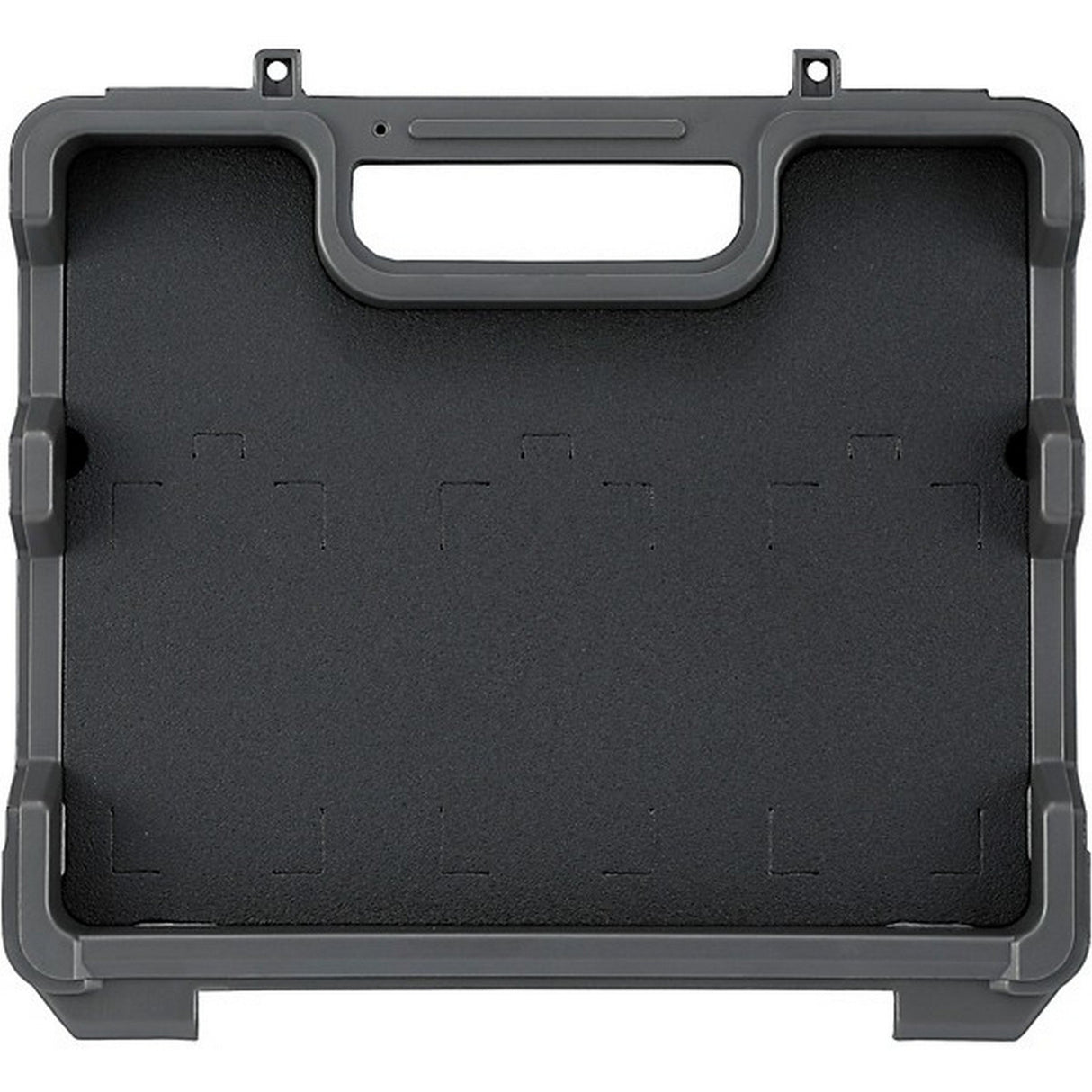

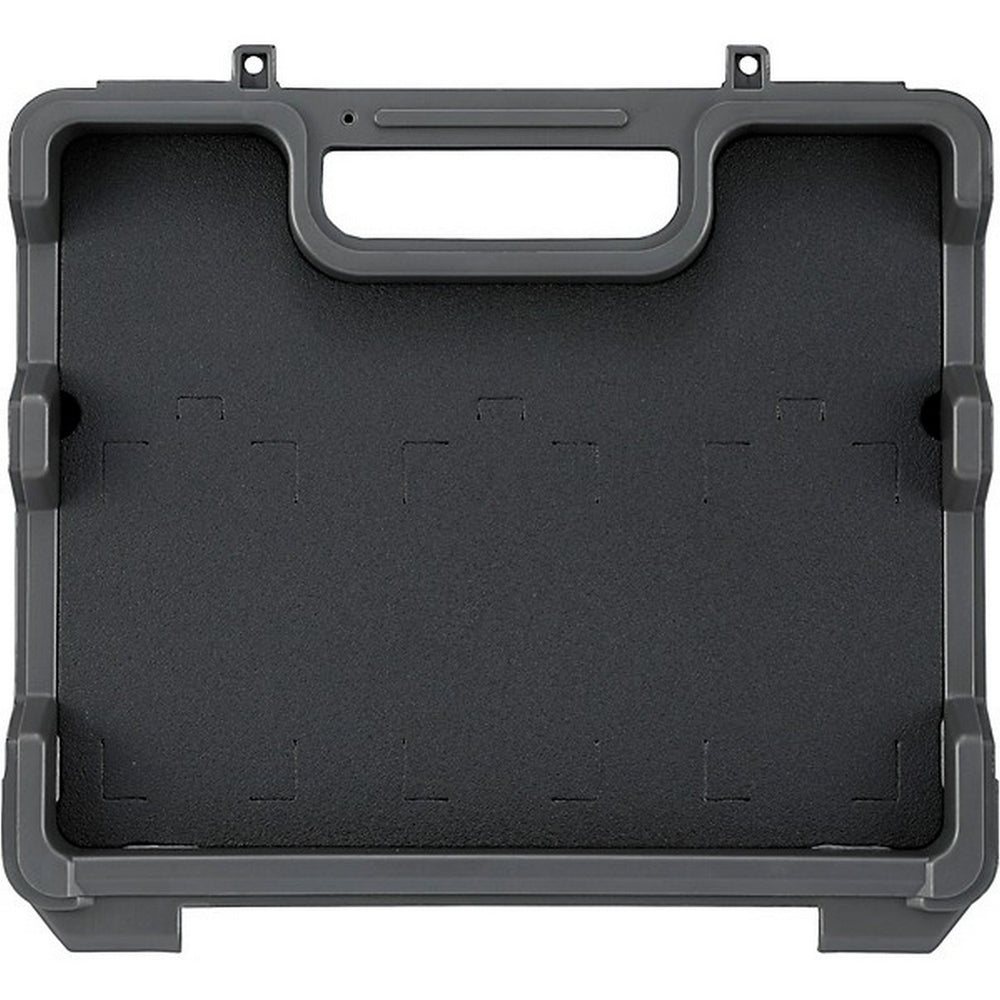

The included insert arrives pre-scored for three BOSS compact pedals but can be trimmed with a utility knife for mini, standard, and larger stompboxes. A routing channel beneath the insert keeps DC wiring organized, while the included four-connection daisy-chain cable can distribute power to as many as four pedals when paired with an optional compatible BOSS power adapter.

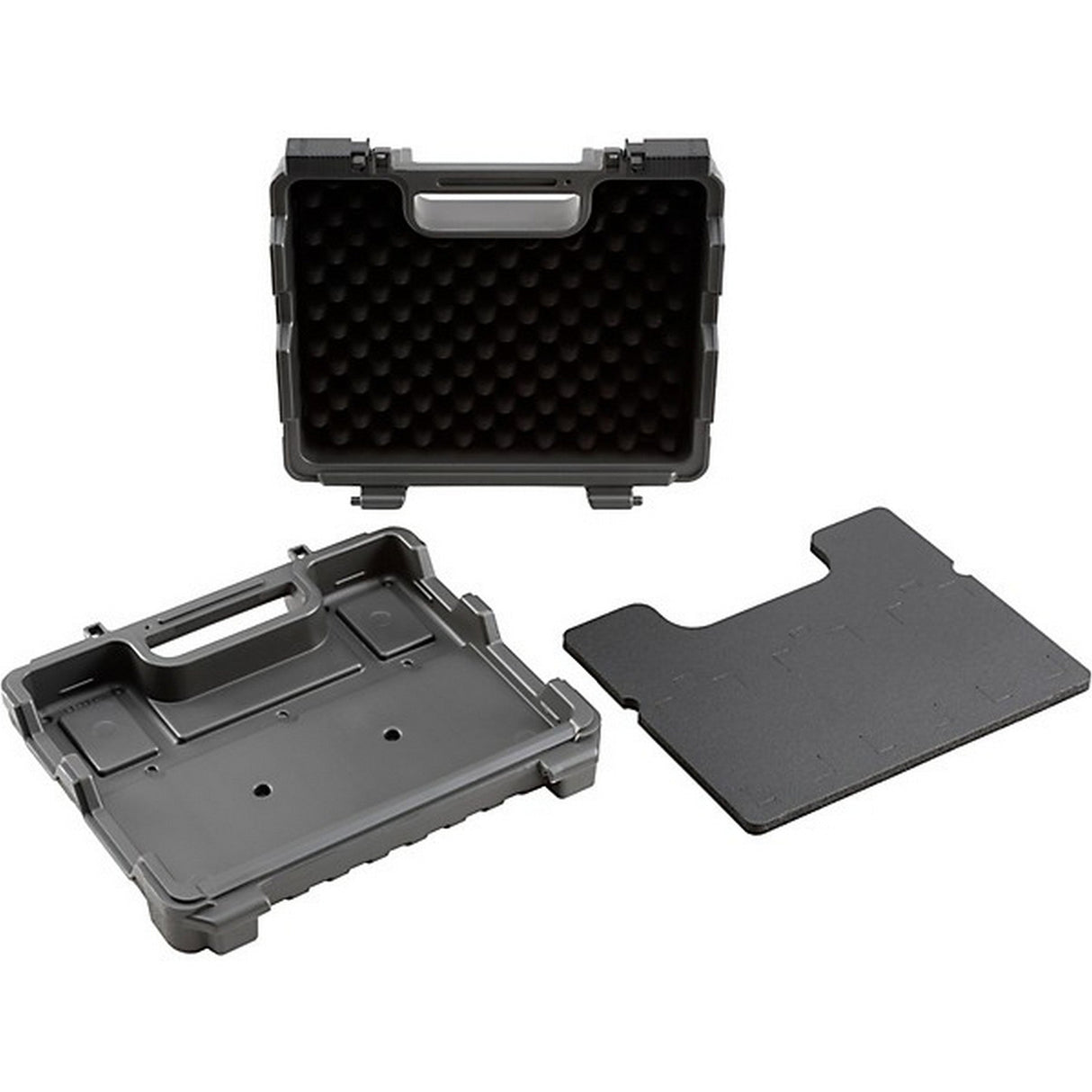

Rugged molded construction, a detachable locking lid, integrated carrying handle, and interior lid cushioning make the BCB-30X suitable for rehearsals, gigs, travel, and compact secondary rigs. Rubber feet improve stability without scratching floors, and the customizable layout lets players adapt the board as their effects setup changes.

Key Features

• Customizable Foam Insert: High-density foam can be cut to accommodate different pedal shapes and sizes.

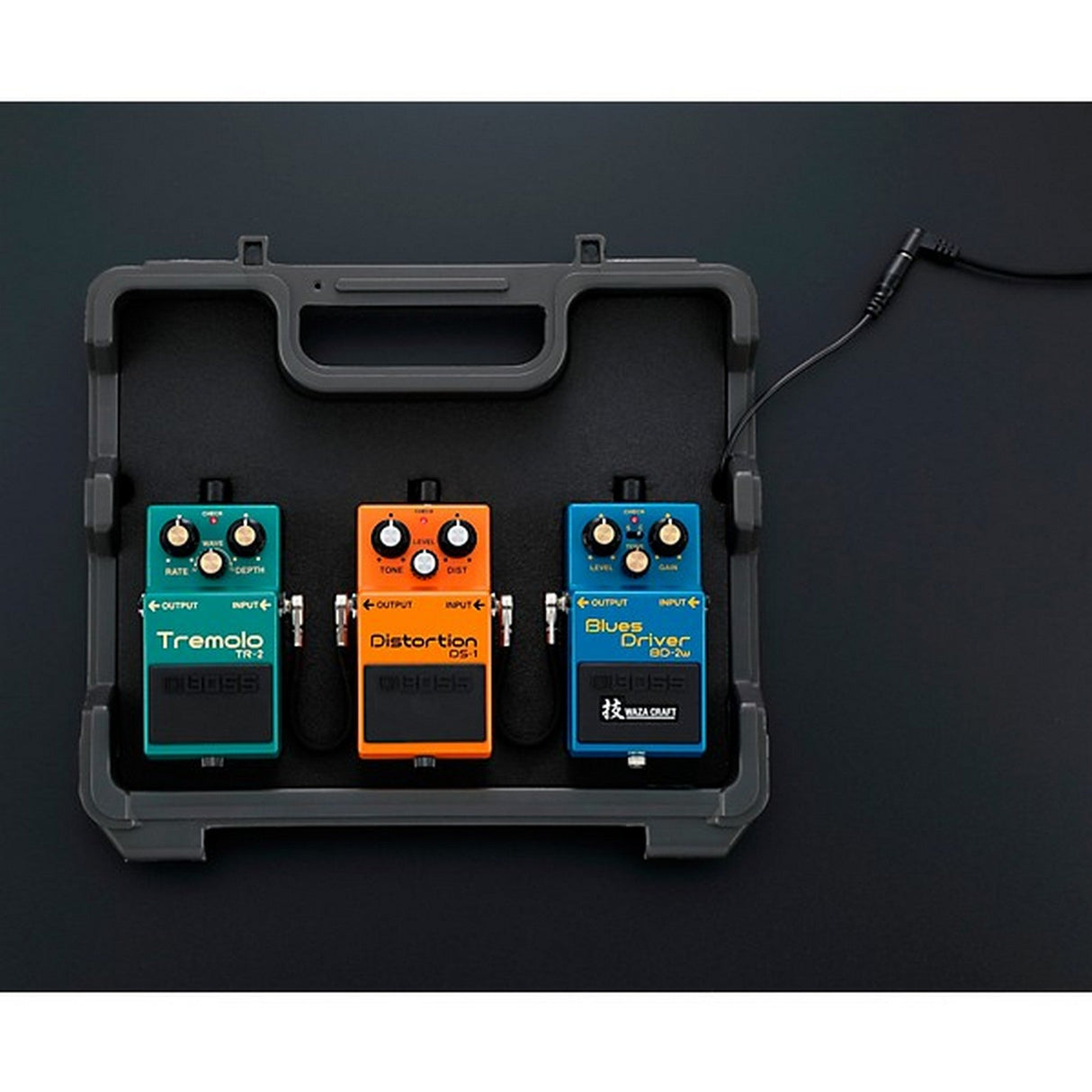

• Pre-Scored Compact Layout: Included insert is prepared for an initial arrangement of three BOSS compact pedals.
• Broad Pedal Compatibility: Supports compact, 200-series, 500-series, mini, and larger stompbox formats through custom cutting.
• Integrated Cable Routing: An under-insert channel helps keep DC power wiring organized and out of the playing area.
• Four-Pedal Power Distribution: Included parallel DC cable can power up to four pedals with an optional compatible BOSS adapter.
• Detachable Protective Lid: Locking molded lid removes quickly for performance and cushions pedals during transport.
• Portable Construction: Integrated carrying handle and compact dimensions make the board easy to move between sessions.
• Stable Floor Placement: Rubber feet provide grip while helping protect finished floors from scratches.

Technical Specifications

• Brand: BOSS
• Model: BCB-30X
• Product Type: Compact Customizable Pedalboard
• Insert Type: Customizable high-density foam
• Pre-Scored Layout: Three BOSS compact pedals
• Supported Pedal Formats: BOSS compact, 200-series, 500-series, mini, and other pedal sizes accommodated through insert customization
• Insert Pad Thickness: 0.4"
• Cable Management: Under-insert DC cable routing channel
• Power Distribution: Included 4-pin parallel DC cable supports up to four pedals
• Power Adapter: BOSS PSA-series AC adapter, sold separately
• Construction: Rugged molded pedalboard and protective lid
• Lid: Locking, detachable, foam lined
• Carrying Handle: Integrated
• Feet: Rubber
• Width: 13"
• Depth: 12.1"
• Height: 3.9"
• Weight: 2.9 lb

What's In the Box

• 4-pin parallel DC cable
• 0.4" pre-cut insert pad
• Owner's manual
