BOSS BF-3 Stereo Flanger Guitar & Bass Effects Pedal

BOSS BF-3 Stereo Flanger Guitar & Bass Effects Pedal

The BOSS BF-3 Stereo Flanger is a modulation effects pedal for guitar and bass with dedicated instrument inputs, stereo outputs, tap tempo, and four operating modes. Ultra, Standard, Gate/Pan, and Momentary modes cover traditional sweeping flange sounds, deeper modulation, rhythmic slicer-style textures, and effects that engage only while the pedal is held.

Ultra mode increases the intensity beyond the standard flange response, while Gate/Pan changes character according to the output configuration. In mono, Gate/Pan produces abrupt volume changes for a gated, slicer-like effect; through stereo outputs, the modulation moves between left and right channels for a rotating spatial effect. Momentary mode lets players introduce flanging precisely within a phrase.

Independent Guitar and Bass inputs adapt the BF-3 to either instrument, and dual outputs support mono or stereo pedalboard systems. Rate, Depth, Resonance/Manual, and Mode controls provide direct access to the sweep behavior, while pedal-based tap tempo synchronizes the effect with a performance. Buffered bypass, standard 9 V battery operation, and optional PSA-series power make the BF-3 suitable for stage and studio rigs.

Key Features

• Four Flanger Modes: Select Ultra, Standard, Gate/Pan, or Momentary operation for conventional and experimental modulation sounds.
• Ultra Mode: Produces a stronger flanging effect than the Standard setting for more pronounced modulation.
• Gate/Pan Mode: Creates gated slicer-style changes in mono or alternating spatial movement through stereo outputs.
• Momentary Operation: Applies the flanger only while the pedal is held for precisely timed accents within a performance.
• Tap Tempo: Set the modulation rate directly from the pedal to coordinate flange sweeps with musical timing.
• Guitar and Bass Inputs: Dedicated 1/4" connections accommodate either instrument from the same compact pedal.
• Stereo Outputs: Dual 1/4" outputs expand the modulation effect across compatible stereo amplifier and recording systems.

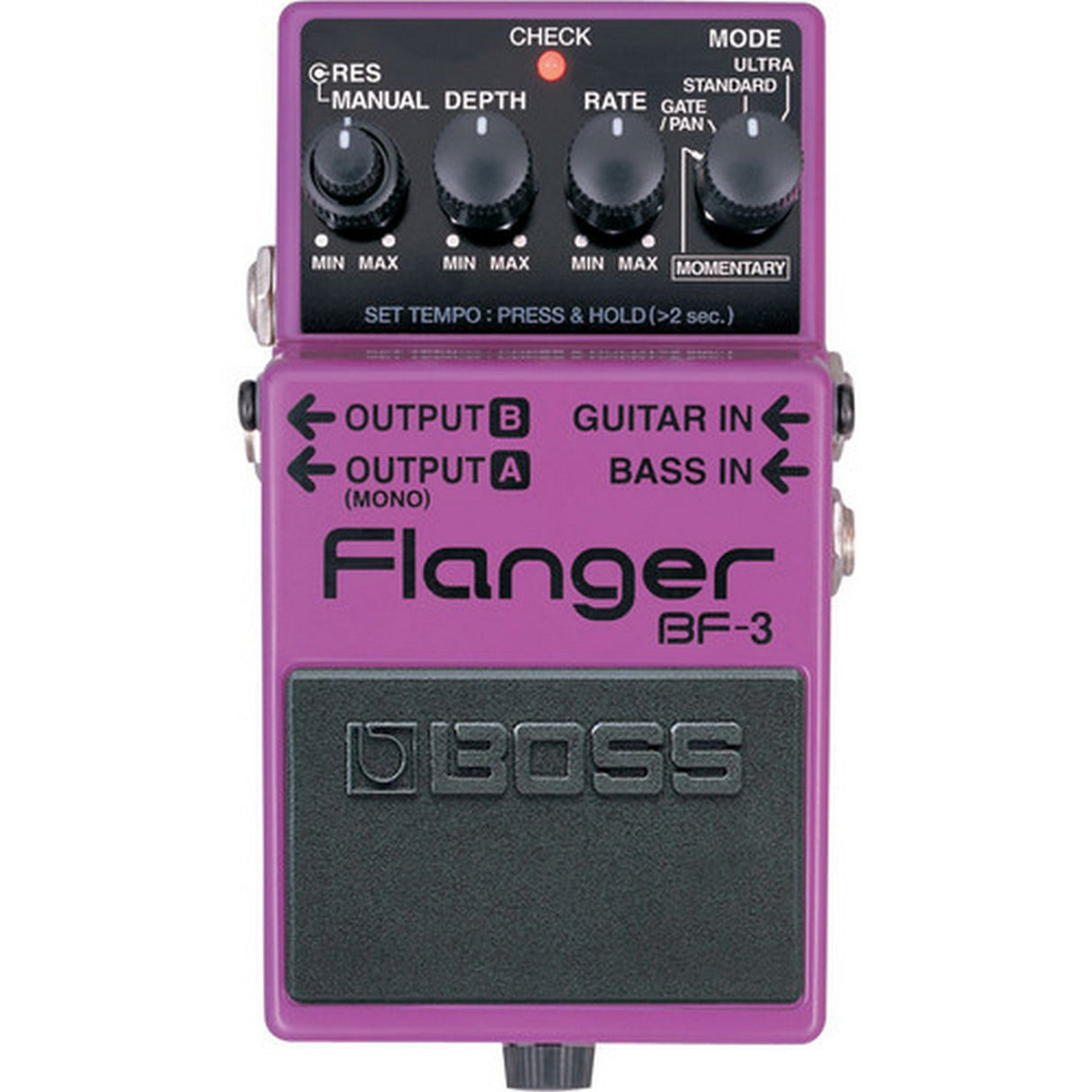

• Hands-On Sound Shaping: Rate, Depth, Resonance/Manual, and Mode controls provide immediate adjustment of the flange response.

Technical Specifications

Effects and Controls

• Brand: BOSS
• Model: BF-3
• Product Type: Stereo Flanger Effects Pedal
• Compatible Instruments: Guitar, Bass
• Modes: Ultra, Standard, Gate/Pan, Momentary
• Controls: Mode, Rate, Depth, Resonance/Manual, pedal switch
• Tempo Control: Tap tempo via pedal
• Indicator: Check indicator for effect and battery status
• Bypass: Buffered bypass

Audio Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 MOhm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kOhm
• Recommended Load Impedance: 10 kOhm or greater

Connections

• Guitar Input: 1/4" phone jack
• Bass Input: 1/4" phone jack
• Output A: 1/4" phone jack, mono
• Output B: 1/4" phone jack
• Output Configuration: Mono or stereo
• Power Input: DC IN

Power

• Battery: 9 V alkaline, 6LR61
• Optional AC Adapter: BOSS PSA series
• Current Draw: 60 mA
• Expected Alkaline Battery Life: Approximately 4 hours of continuous use

Physical Specifications

• Width: 2.9"
• Depth: 5.1"
• Height: 2.3"
• Weight: 0.9 lb including battery
• Warranty: 5 years

What's In the Box

• 9 V alkaline battery
• Safety, important notes, and product information leaflet
• Registration card
