BOSS BP-1W Waza Craft Booster/Preamp Pedal

BOSS BP-1W Waza Craft Booster/Preamp Pedal

The BOSS BP-1W Waza Craft Booster/Preamp Pedal is an all-analog guitar boost and preamp with three selectable voices. CE and RE modes recreate the preamp characteristics of the BOSS CE-1 Chorus Ensemble and Roland RE-201 Space Echo, while NAT provides a clean boost with minimal tonal coloration.

CE mode emphasizes a bright response with a tight low end, while RE mode adds warmth, body, saturation, and analog compression as Gain increases. NAT suits players who want to raise signal level without substantially changing the guitar's character. Independent Gain and Level controls also let the BP-1W push downstream pedals or amplifier inputs for additional drive.

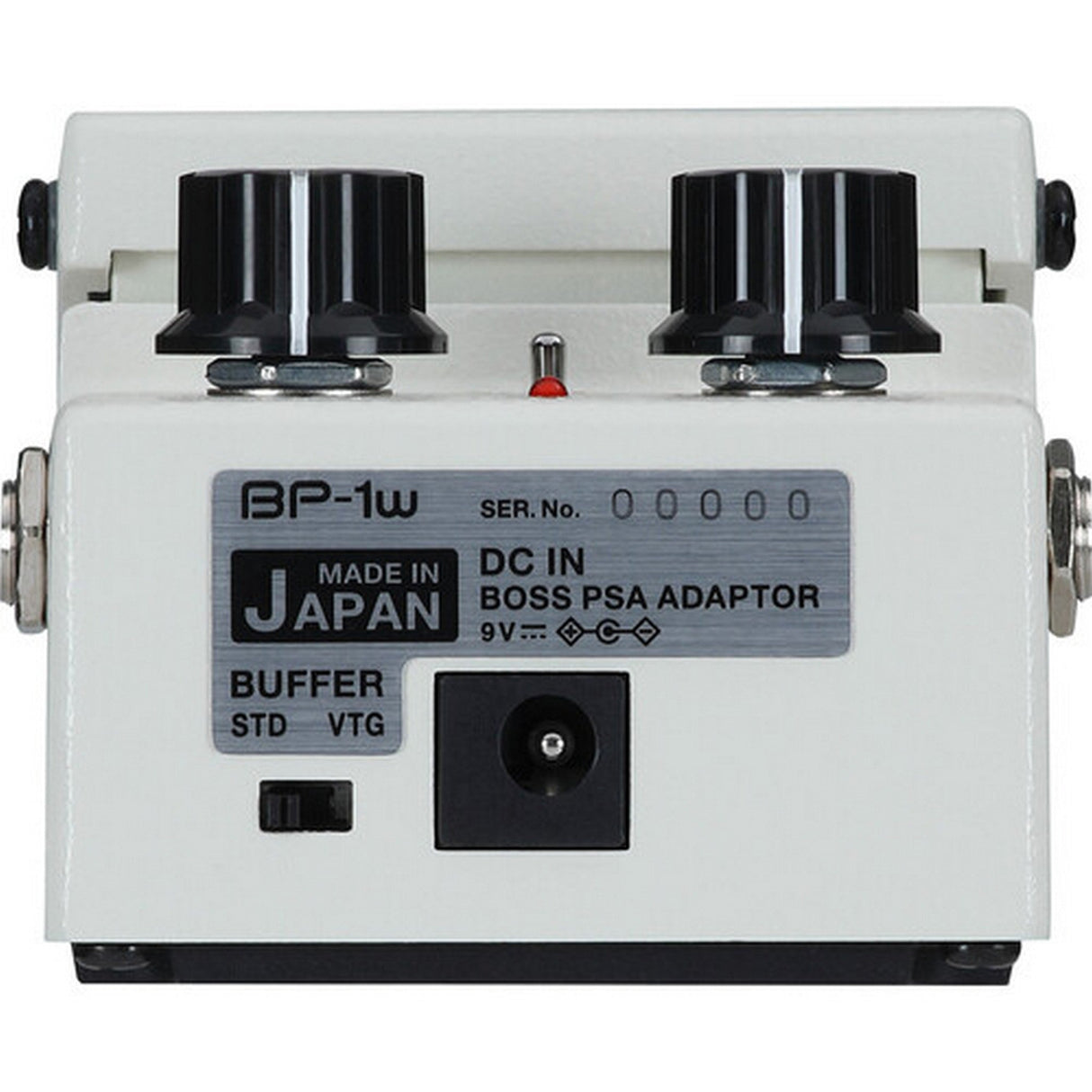

A rear-panel buffer switch provides Standard and Vintage input characteristics. Standard maintains a 1 MOhm input impedance when the effect is active, while Vintage lowers it to 100 kOhm for a warmer response, particularly with passive pickups. The standard buffer remains active during bypass, and the Japan-made Waza Craft design uses dedicated analog circuitry throughout.

Key Features

• Three Preamp Modes: Select CE, RE, or NAT responses for vintage-inspired coloration or a cleaner modern boost.
• CE Preamp Character: Recreates the bright, bell-like response and tight low-end character associated with the BOSS CE-1 preamp.
• RE Preamp Character: Adds the warm, full response and increasing saturation associated with the Roland RE-201 preamp circuit.
• Natural Clean Boost: NAT mode increases signal level with minimal coloration for conventional clean-boost applications.
• Gain and Level Controls: Adjust saturation independently from overall output level for flexible pedal and amplifier driving.
• Selectable Input Buffer: Switch between Standard and Vintage impedance characteristics to alter feel and tonal response.
• Buffered Bypass: Keeps the standard buffer engaged for signal conditioning whenever the effect is bypassed.
• Waza Craft Construction: Uses dedicated analog circuitry and is manufactured in Japan.

Technical Specifications

Audio

• Brand: BOSS
• Model: BP-1W
• Product Type: Booster/Preamp Effects Pedal
• Instrument: Guitar
• Circuitry: Analog
• Modes: CE, RE, NAT
• Nominal Input Level: -20 dBu
• Input Impedance with Effect Off: 1 MOhm
• Input Impedance with Effect On, STD Buffer: 1 MOhm
• Input Impedance with Effect On, VTG Buffer: 100 kOhm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kOhm
• Recommended Load Impedance: 10 kOhm or greater
• Bypass: Buffered bypass

Controls and Connections

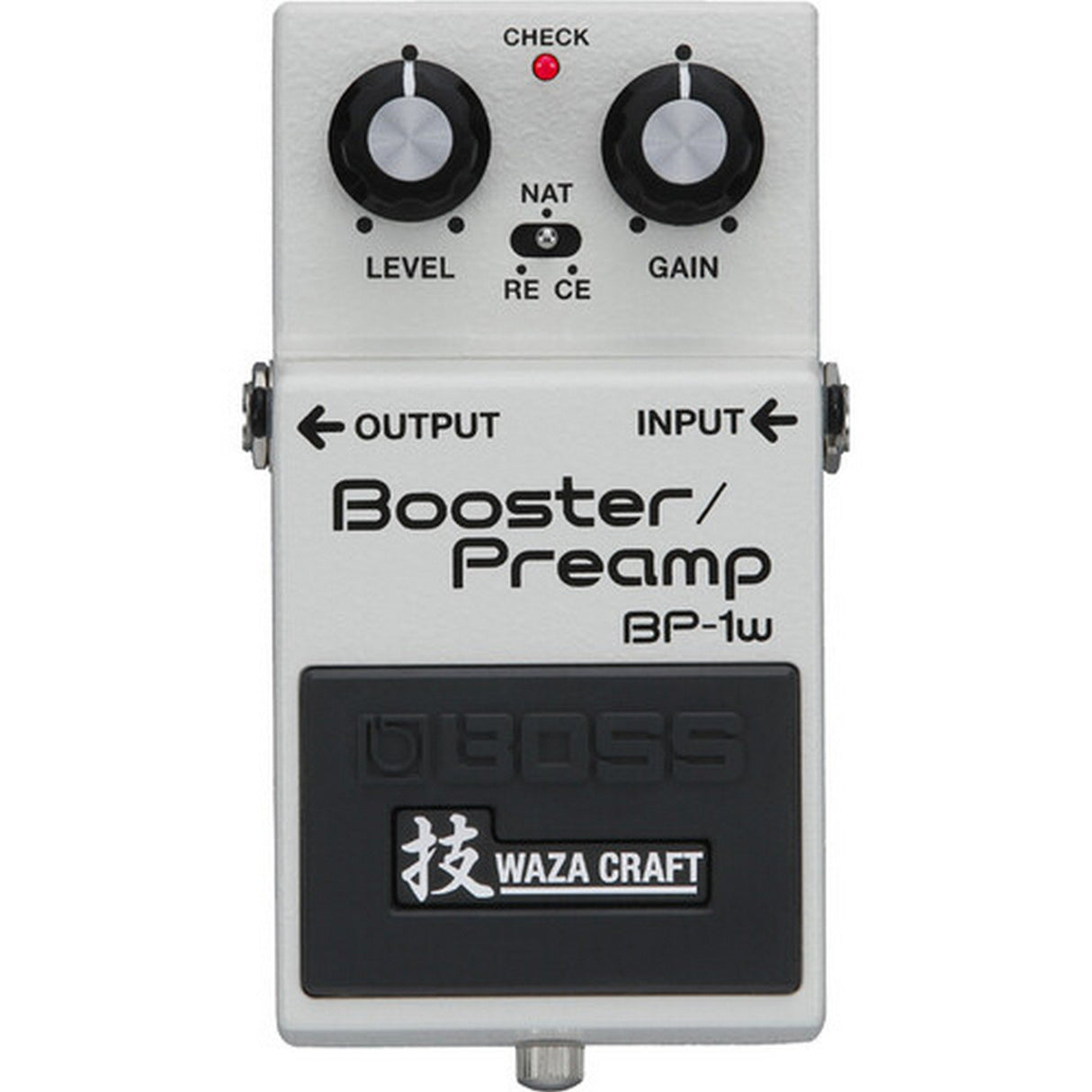

• Controls: Gain, Level, Buffer switch, Mode switch, pedal switch
• Buffer Settings: STD, VTG
• Indicator: Check indicator with battery-status function
• Input: 1/4" phone jack
• Output: 1/4" phone jack
• Power Connection: DC IN

Power

• Battery: 9 V alkaline, 6LR61
• Optional AC Adapter: BOSS PSA series
• Current Draw: 60 mA
• Expected Alkaline Battery Life: Approximately 4.5 hours of continuous use

Physical Specifications

• Width: 2.9"
• Depth: 5.1"
• Height: 2.3"
• Weight: 0.9 lb including battery
• Country of Manufacture: Japan
• Warranty: 5 years

What's In the Box

• BOSS BP-1W Waza Craft Booster/Preamp Pedal
• 9 V alkaline battery
• Using the Unit Safely leaflet
