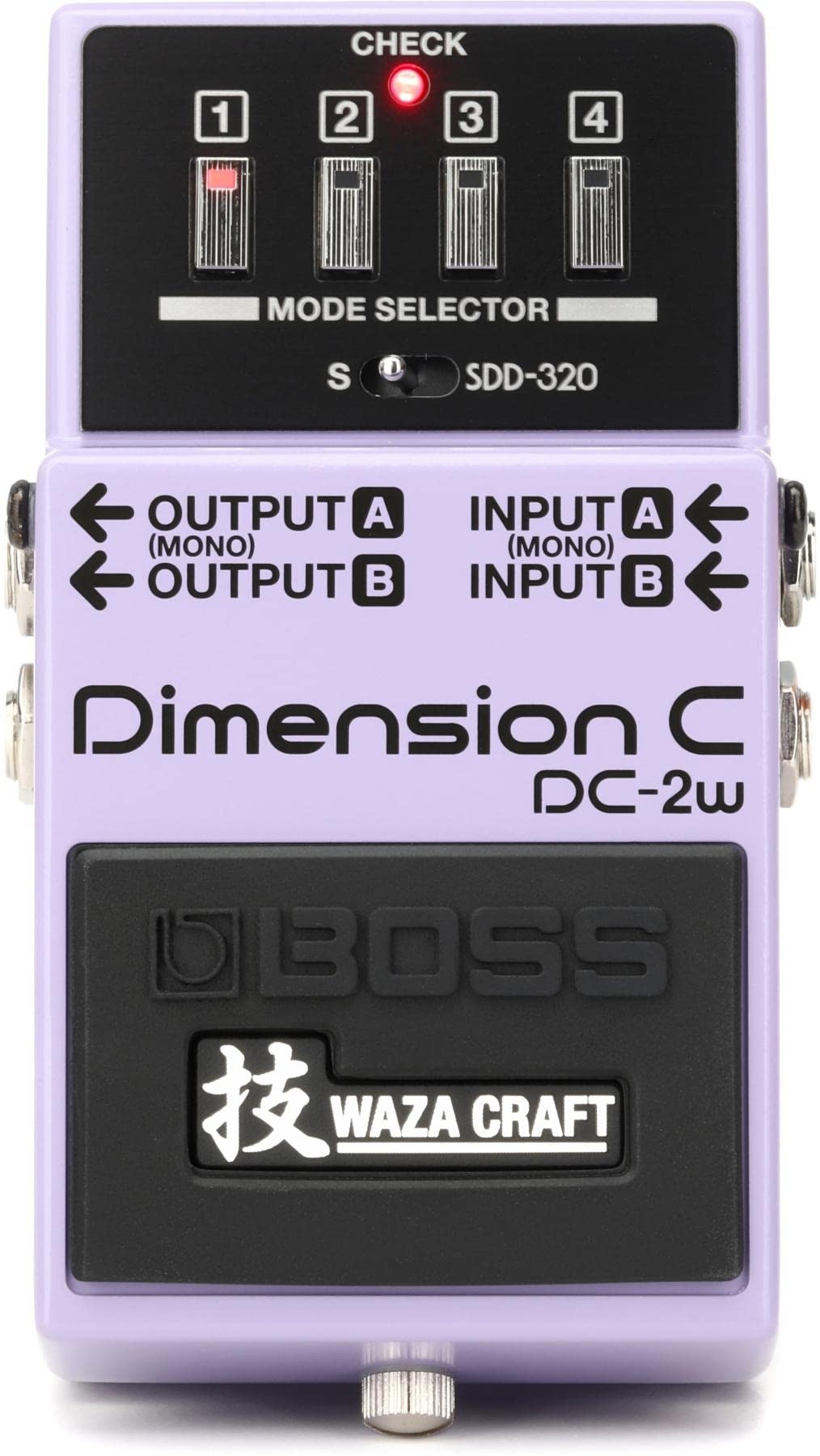

Boss DC-2w Waza Craft Dimension C Studio Rack Effect Guitar Pedal

The genuine BOSS and Roland Dimension effect is back, and it’s now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original ‘80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Key Features

• Premium Waza Craft pedal with all-analog audio circuitry
• Standard mode provides the sound of the original DC-2 Dimension C pedal
• SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
• Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
• Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
• Premium buffer and enhanced bypass circuitry
• Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
• Made in Japan
• BOSS five-year warranty

Technical Specifications

Modes
S (Standard)
SDD-320
Nominal Input Level
-20 dBu
Input Impedance
2.2 M ohms
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
S/SDD-320 switch
MODE SELECTOR <1>--<4> buttons
Indicators
CHECK indicator (Serves also as battery check indicator)
MODE SELECTOR <1>--<4> indicators
Connectors
INPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
65 mA
Expected battery life under continuous use
Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Leaflet ("USING THE UNIt'sAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
SIZE AND WEIGHT
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
450 g
1 lb
