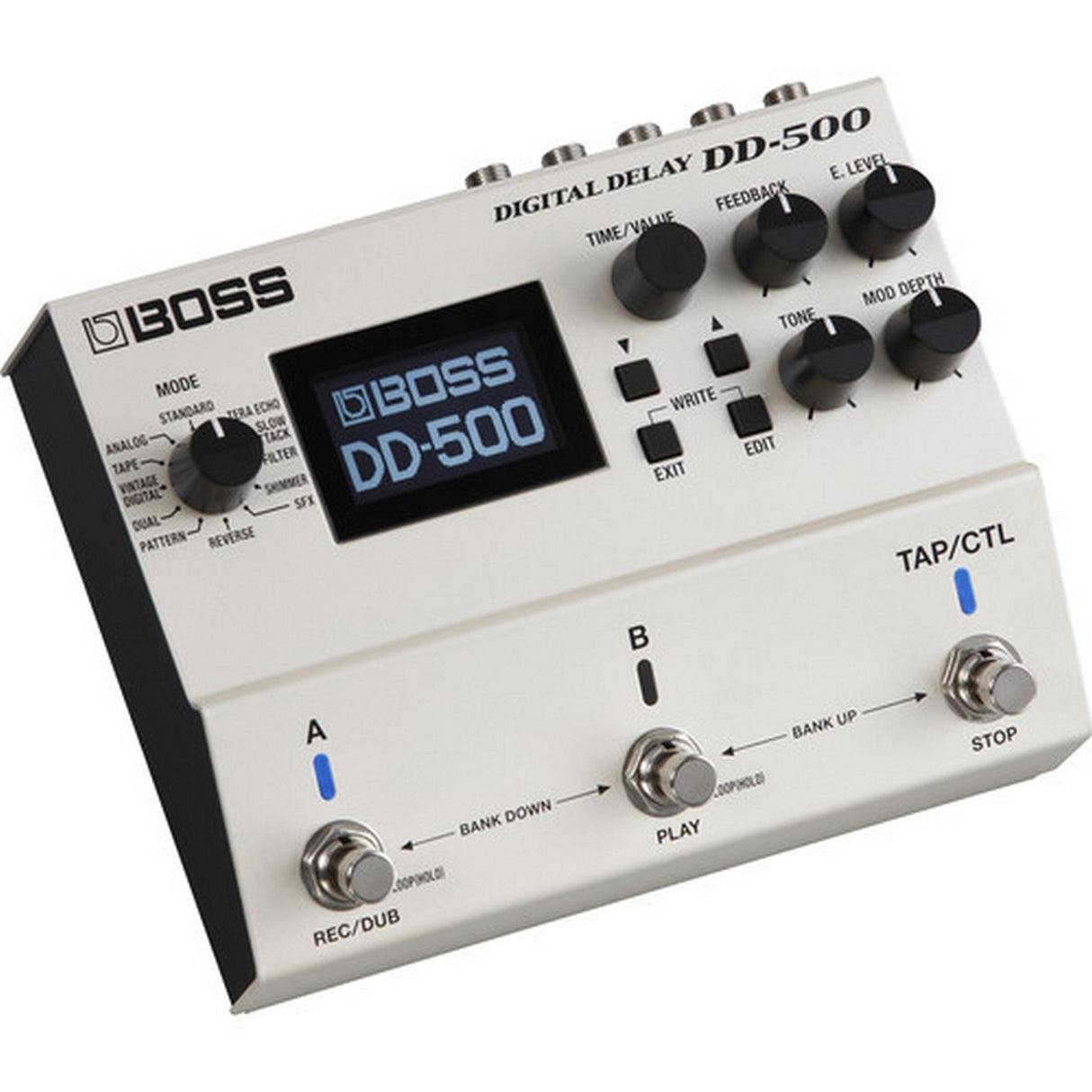

BOSS DD-500 Digital Delay Pedal with 12 Delay Modes

BOSS DD-500 Digital Delay Pedal

The BOSS DD-500 Digital Delay Pedal combines 12 delay modes, up to 10 seconds of delay time, patch memory, a phrase looper, and extensive real-time control in a stage-ready effects processor. Its 32-bit AD/DA conversion, 32-bit floating-point processing, and 96 kHz sampling support detailed delay processing while preserving an analog dry signal path.

Guitarists can move from clean digital echoes and analog-style repeats to tape, reverse, shimmer, filter, patterned, and ambient effects without changing pedals. Two delays can operate together with flexible routing, while assignable footswitches, tap tempo, external control, MIDI, and expression support make the DD-500 suitable for advanced pedalboards and performance rigs.

A backlit graphic LCD provides access to patch names, delay settings, routing, and detailed editing parameters. The DD-500 supports selectable buffered or relay-based true bypass, stereo inputs and outputs, USB-MIDI, and standard MIDI connections. It operates from four AA alkaline batteries or an optional PSA-series AC adapter for flexible stage and studio integration.

Key Features

• 12 Delay Modes: Covers Standard, Analog, Tape, Vintage Digital, Dual, Pattern, Reverse, Tera Echo, Slow Attack, Filter, Shimmer, and SFX sounds.
• High-Resolution Processing: Uses 32-bit AD/DA conversion, 32-bit floating-point processing, and a 96 kHz sampling rate.
• Extended Delay Time: Provides up to 10 seconds of delay, depending on the selected processing mode.
• Flexible Patch Memory: Supports 198 patches in two-patch operation or up to 297 patches with three-patch A/B/C operation.
• Integrated Phrase Looper: Records up to 120 seconds in 48 kHz mono operation, with delay available during looping.
• Assignable Performance Control: Three onboard footswitches support patch selection, tap tempo, bypass, and configurable real-time functions.
• Advanced Connectivity: Stereo audio I/O, external footswitch and expression control, USB-MIDI, and MIDI IN/OUT support complex pedalboard systems.
• Selectable Bypass: Offers buffered bypass with delay carryover or relay-based true bypass for different signal-routing requirements.

Technical Specifications

• Model: DD-500
• Product Type: Digital delay effects pedal
• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32-bit
• Processing: 32-bit floating point
• Delay Modes: 12
• Delay Types: Standard, Analog, Tape, Vintage Digital, Dual, Pattern, Reverse, Tera Echo, Slow Attack, Filter, Shimmer, SFX
• Maximum Delay Time: 10 seconds, depending on delay mode
• Phrase Loop: 60 seconds at 96 kHz mono or 48 kHz stereo; 120 seconds at 48 kHz mono
• Phrase Loop Effects: Delay can be applied during looping
• Patches: 198 with 99 banks x 2 A/B; 297 with 99 banks x 3 A/B/C
• Footswitches: A, B, TAP/CTL

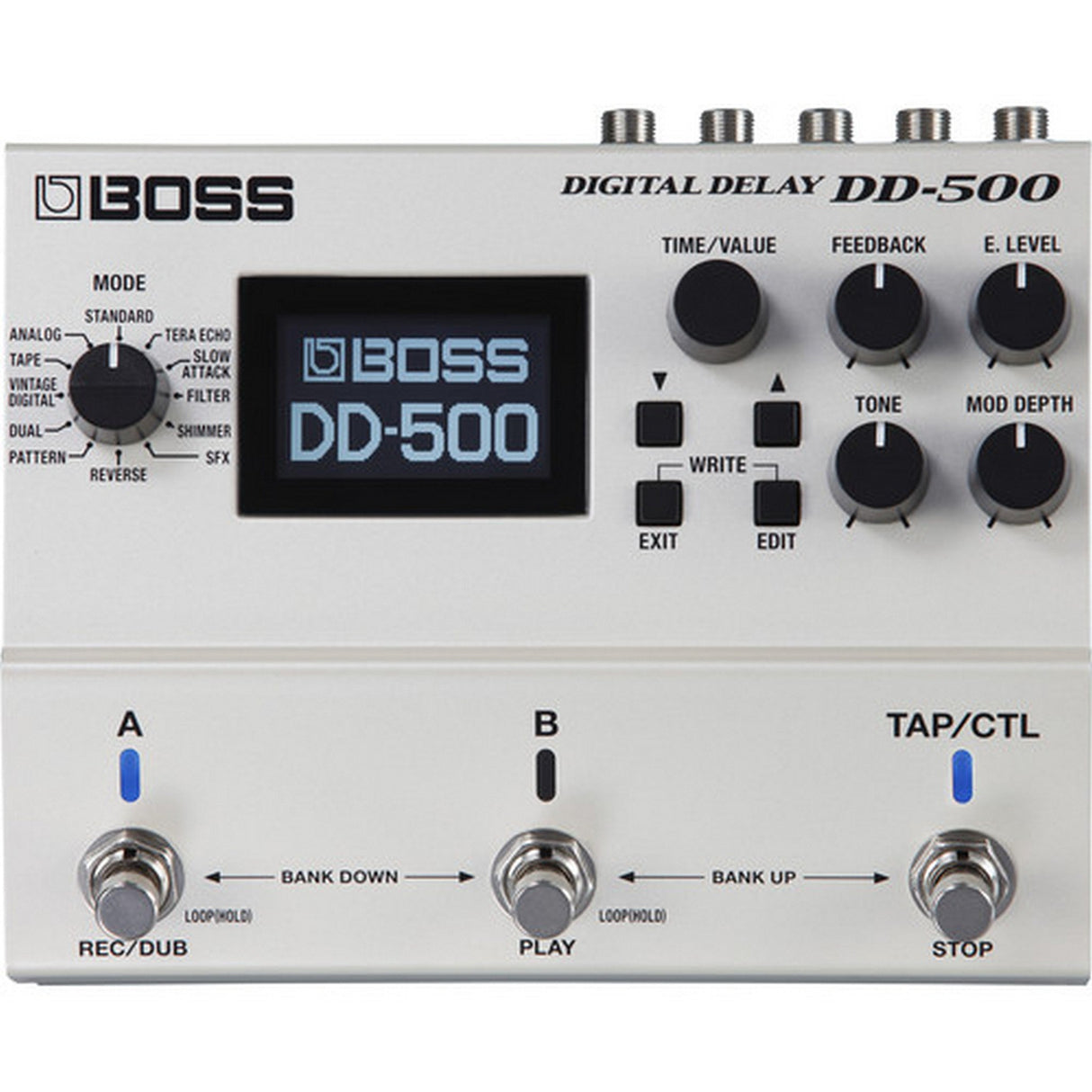

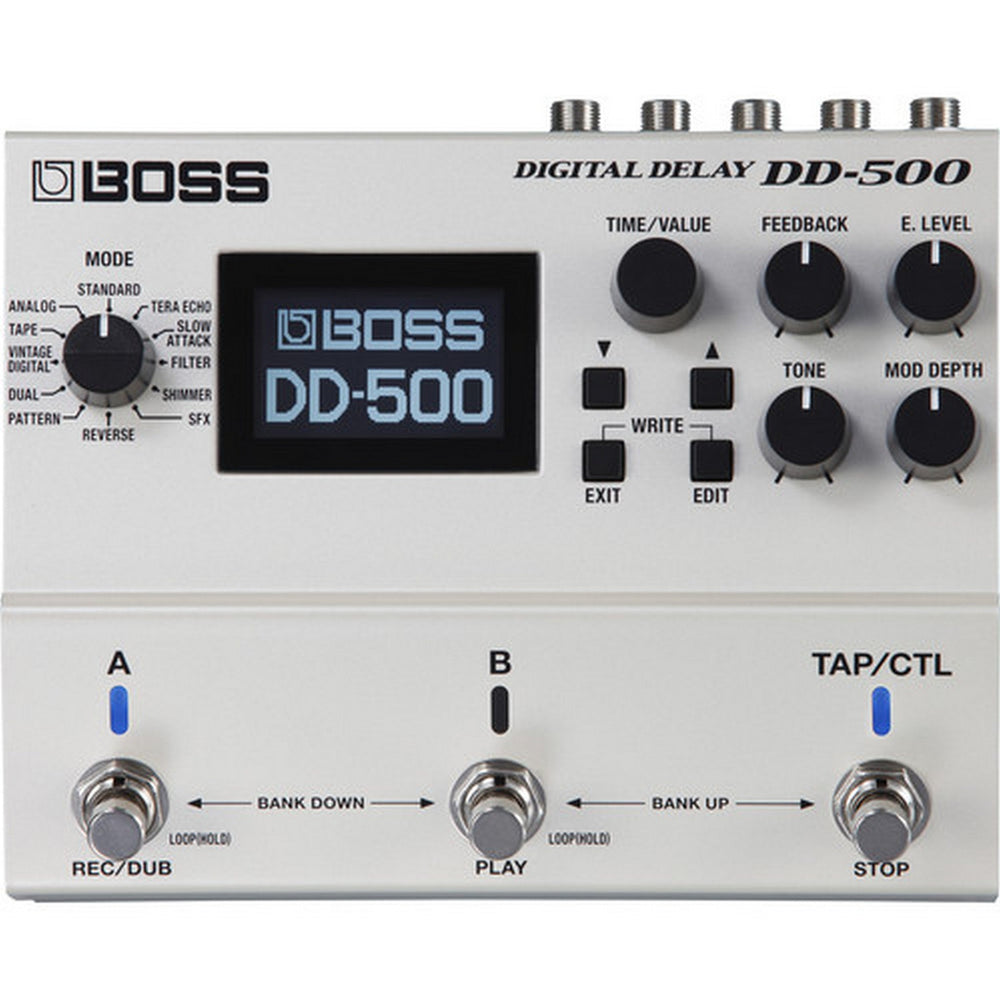

• Controls: MODE, TIME/VALUE, FEEDBACK, E.LEVEL, TONE, MOD DEPTH
• Display: 128 x 64-dot backlit graphic LCD
• Nominal Input Level: -10 dBu
• Maximum Input Level: +8 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Maximum Output Level: +8 dBu
• Output Impedance: 2 k ohms
• Recommended Load Impedance: 20 k ohms or greater
• Bypass: Selectable buffered bypass or relay-based true bypass

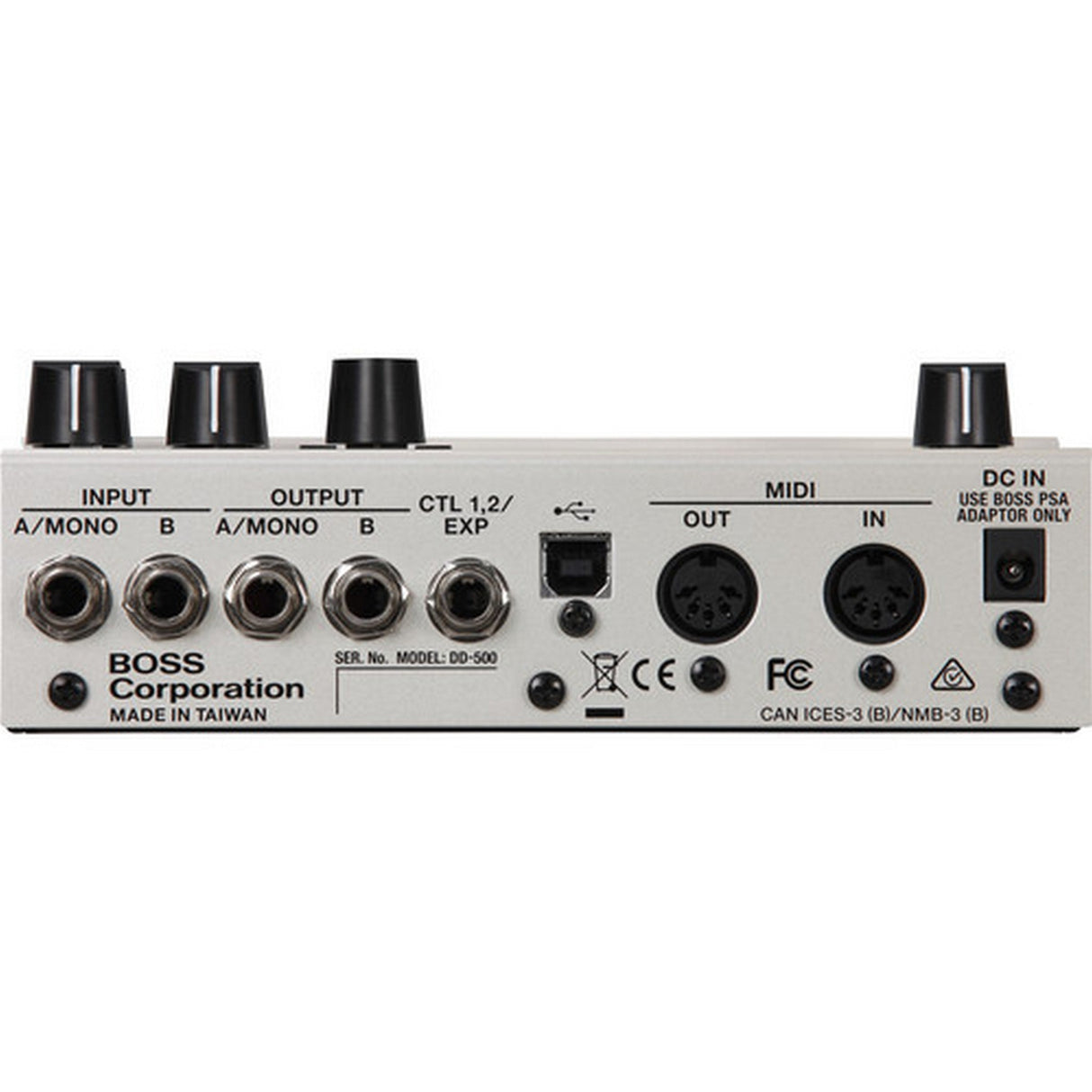

• Audio Inputs: INPUT A/MONO and INPUT B, 1/4-inch phone type
• Audio Outputs: OUTPUT A/MONO and OUTPUT B, 1/4-inch phone type
• External Control: CTL 1,2/EXP, 1/4-inch TRS phone type
• USB: USB Type-B COMPUTER port with USB-MIDI
• MIDI: MIDI IN and MIDI OUT
• Power Connector: DC IN
• Power Supply: Four AA alkaline batteries or optional AC adapter
• Compatible AC Adapter: BOSS PSA series
• Current Draw: 200 mA
• Expected Battery Life: Approximately 7 hours with alkaline batteries under continuous use
• Optional Footswitches: BOSS FS-5U, FS-5L, FS-6, FS-7
• Optional Expression Pedals: BOSS FV-500H, FV-500L, Roland EV-5
• Dimensions (W x D x H): 6.7 x 5.4 x 2.4"
• Weight: 2.2 lb including batteries
• Package Dimensions (L x W x H): 9.9 x 7.9 x 4.5"
• Package Weight: 3.7 lb

What's In the Box

• BOSS DD-500 Digital Delay Pedal
• Four AA alkaline batteries
• Owner's manual
• Safety information leaflet
