BOSS DM-101 Delay Machine Analog Delay Pedal with 12 Modes

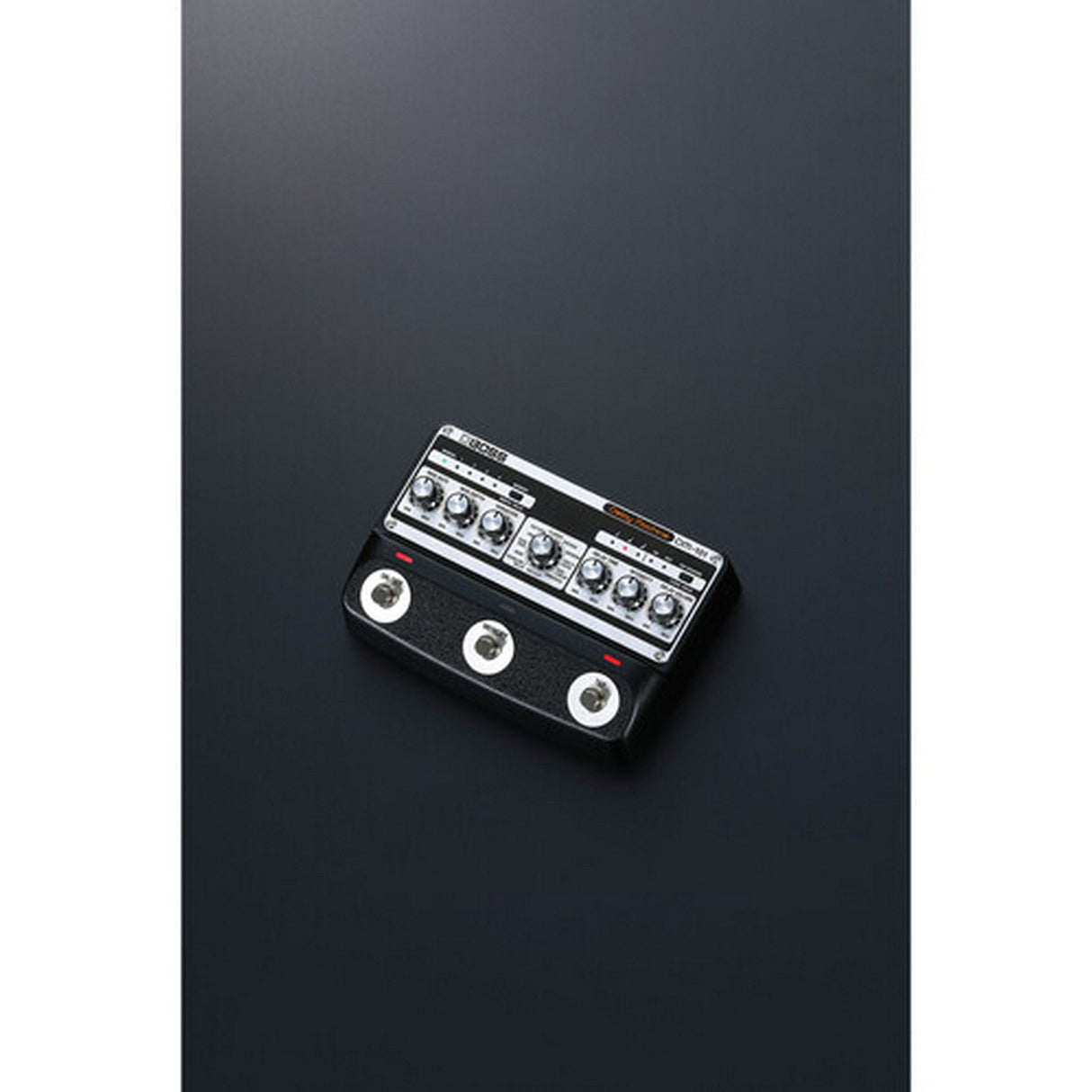

BOSS DM-101 Delay Machine Analog Delay Pedal

The BOSS DM-101 Delay Machine Analog Delay Pedal combines eight bucket-brigade device (BBD) chips with digital CPU control to produce 12 analog delay modes while keeping the audio signal path fully analog. It adds stereo processing, tap tempo, 127 user memories, modulation controls, MIDI, and configurable routing to traditional BBD delay circuitry.

Players can move from warm vintage echoes to clearer modern repeats, multi-head textures, ambience, rhythmic patterns, and expansive stereo effects. Six modes support stereo operation, making the DM-101 well suited for a stereo analog delay guitar rig, wet/dry amplifier setup, or MIDI-controlled pedalboard. Dedicated modulation and Variation controls provide immediate sound shaping without menu-driven editing.

Classic mode extends delay time to 1200 ms, while other modes alter BBD configuration, filtering, clock behavior, modulation, and stereo placement. Selectable carryover can preserve delay trails after bypass, and four memories are directly accessible from the pedal. External footswitch, expression, MIDI, and USB update connections support professional stage and studio integration.

Key Features

• Eight Analog BBDs: Uses eight 2048-stage bucket-brigade devices with precision CPU control while maintaining a fully analog audio path.
• 12 Delay Modes: Provides Classic, Vintage, Modern, Multi-Head, Non-Linear, Ambience, Reflect, Doubling+Delay, Wide, Dual Mod, Pan, and Pattern effects.
• Six Stereo Modes: Reflect, Doubling+Delay, Wide, Dual Mod, Pan, and Pattern create spatial effects across two outputs.
• 127 User Memories: Stores extensive custom setups, with four memories directly selectable from the pedal and additional locations accessible through MIDI.
• Tap Tempo and Divisions: Provides foot-controlled delay timing with selectable rhythmic subdivisions for performance use.
• Dedicated Modulation Controls: MOD RATE and MOD DEPTH knobs provide immediate adjustment of modulation behavior.
• Mode-Specific Variation Control: Changes parameters unique to each delay algorithm, including modulation shapes, head combinations, stereo offsets, and patterns.
• Expanded External Control: Supports footswitches, expression pedals, MIDI IN/OUT, and configurable stereo output routing.

Technical Specifications

• Model: DM-101
• Product Type: Analog delay effects pedal
• Audio Circuit: Fully analog BBD signal processing with digital CPU control
• BBD Configuration: Eight 2048-stage BBDs
• Delay Modes: 12
• Modes: Classic, Vintage, Modern, Multi-Head, Non-Linear, Ambience, Reflect, Doubling+Delay, Wide, Dual Mod, Pan, Pattern
• Stereo Modes: Reflect, Doubling+Delay, Wide, Dual Mod, Pan, Pattern
• Classic Maximum Delay Time: 1200 ms
• Modern Maximum Delay Time: 840 ms
• Non-Linear Delay Range: 35 to 190 ms for consecutive short delays
• Memory: 127 user memories plus Manual mode
• Directly Accessible Memories: Four plus current panel settings
• Bypass: Buffered bypass
• Carryover: Selectable delay-trail carryover
• Nominal Input Level: -10 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater

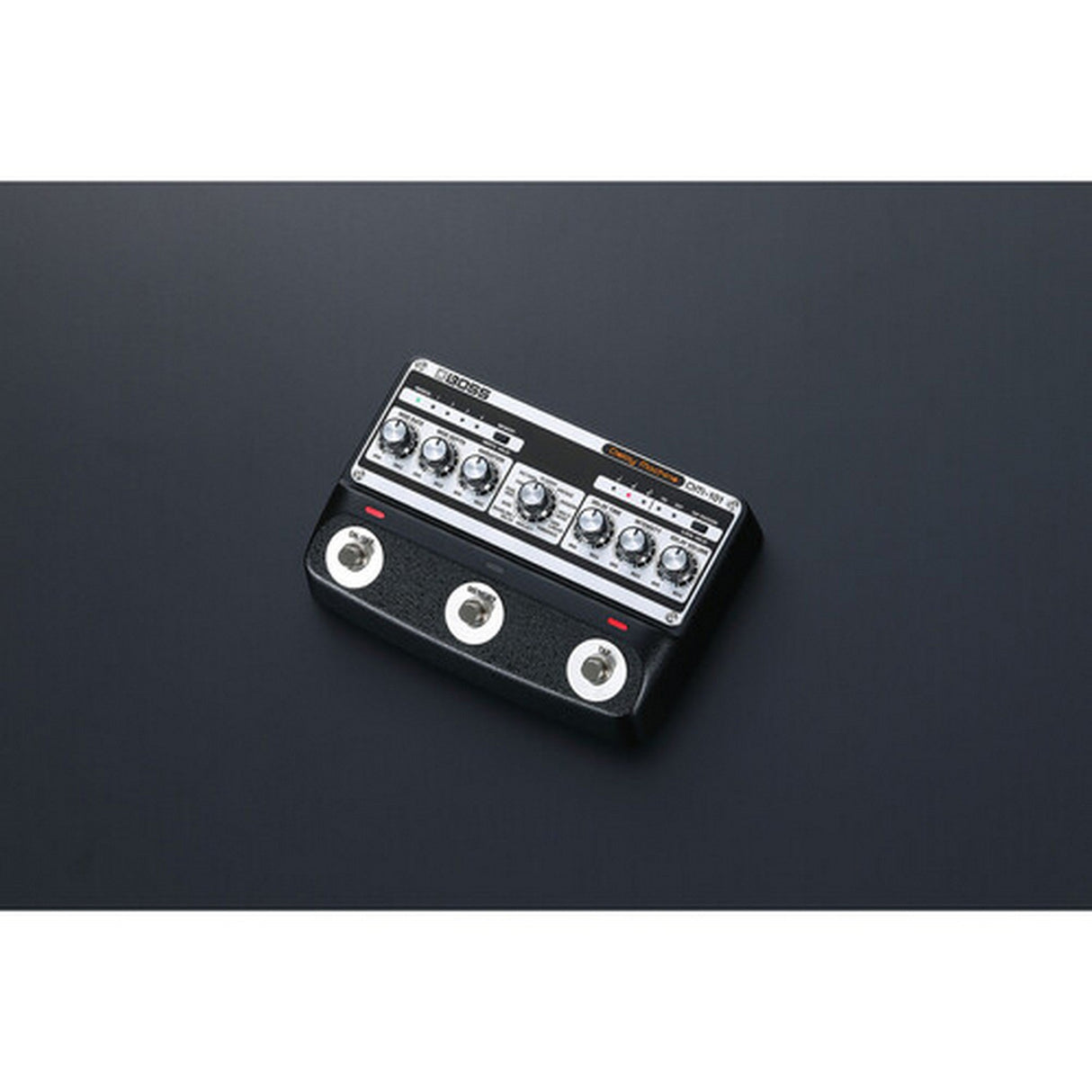

• Footswitches: ON/OFF, MEMORY, TAP

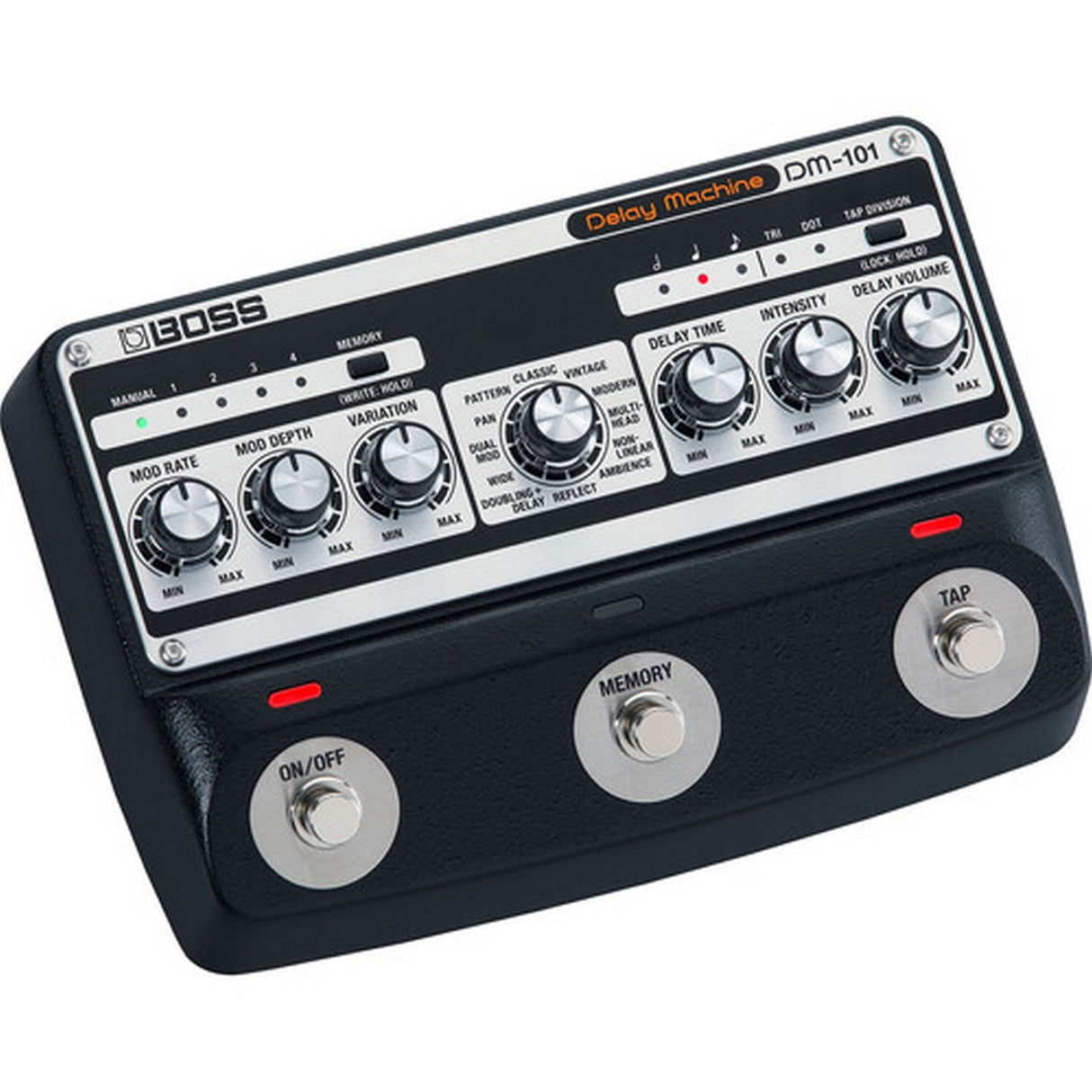

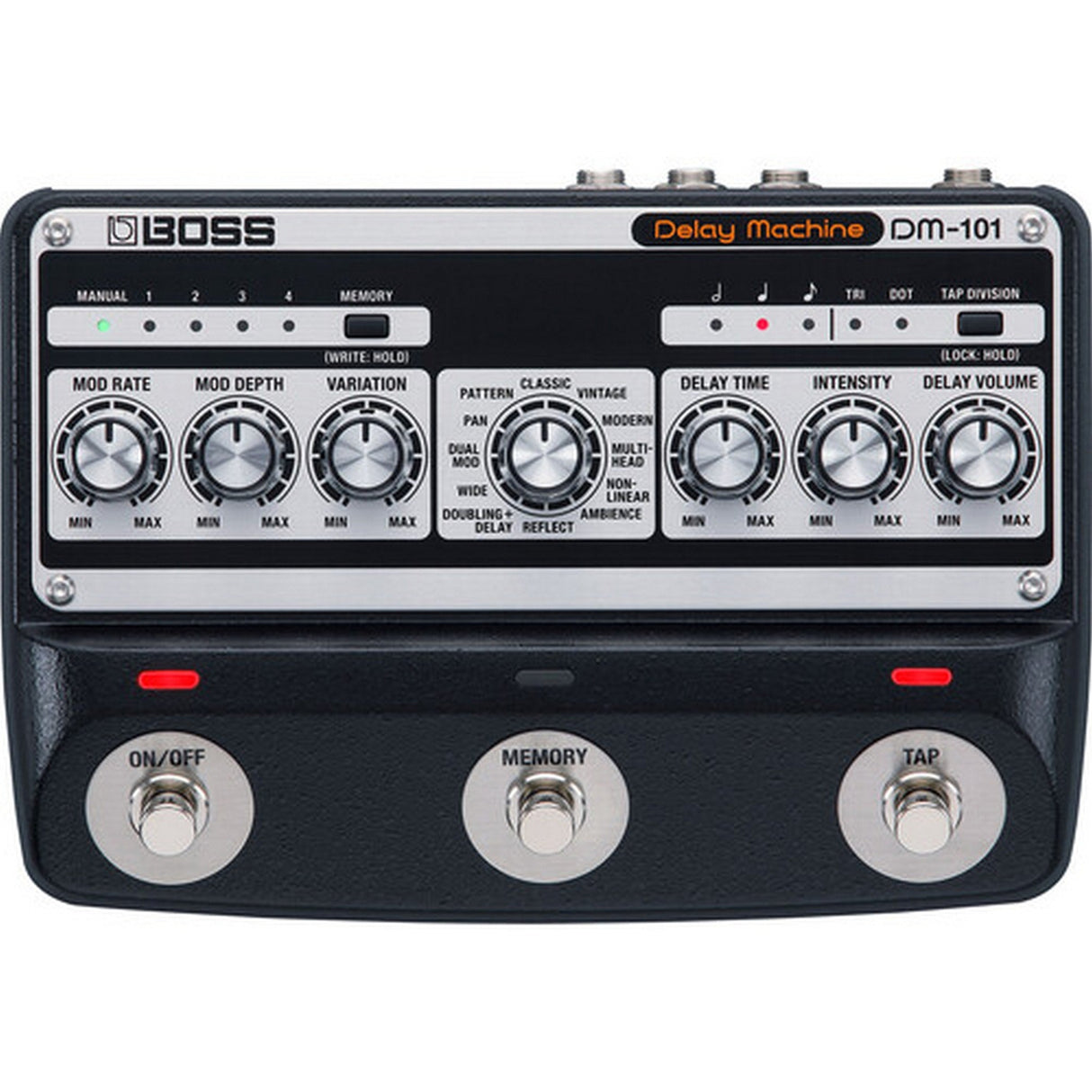

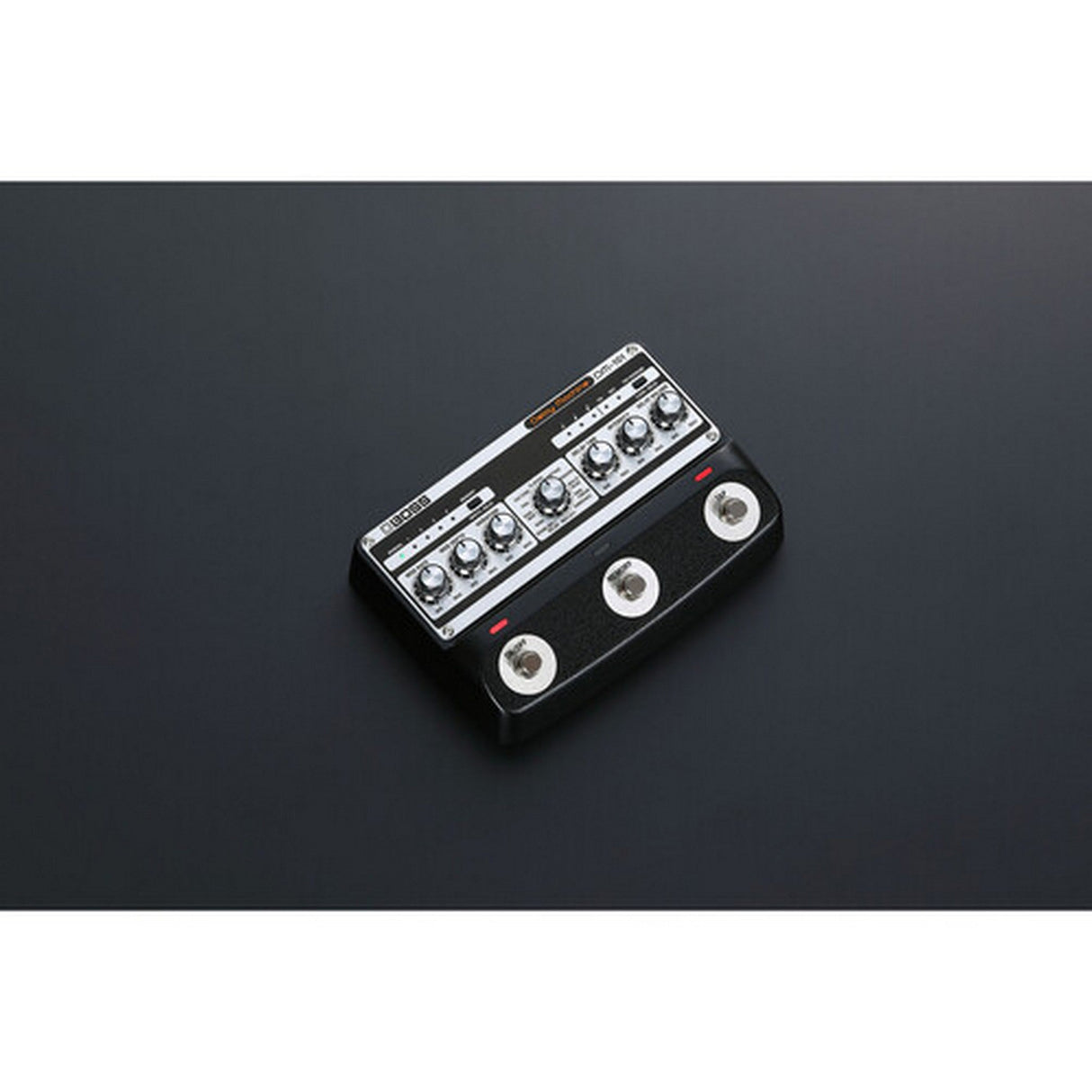

• Controls: MOD RATE, MOD DEPTH, VARIATION, MODE, DELAY TIME, INTENSITY, DELAY VOLUME
• Additional Controls: MEMORY button, TAP DIVISION button
• Indicators: LED status, memory, and tap-division indicators

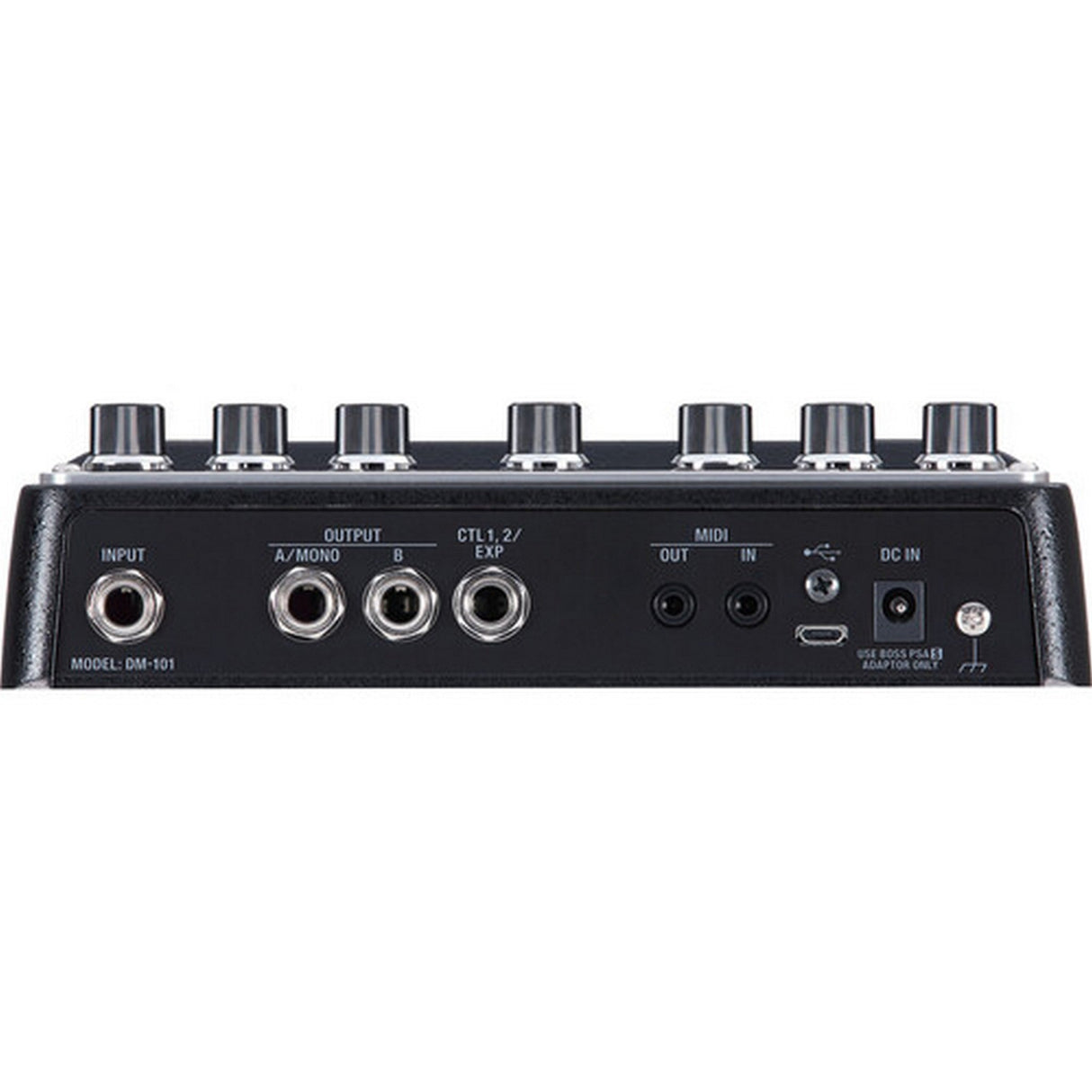

• Audio Input: 1 x 1/4-inch INPUT jack
• Audio Outputs: 2 x 1/4-inch OUTPUT A/MONO and OUTPUT B jacks
• External Control: 1 x 1/4-inch TRS CTL 1, 2/EXP jack
• MIDI Input: Stereo 3.5 mm miniature phone jack
• MIDI Output: Stereo 3.5 mm miniature phone jack
• USB: Micro-B port for program updates only
• Wireless: None
• Power: 9 VDC
• Power Supply: Included AC adapter
• Current Draw: 260 mA
• Battery Support: None
• Optional Footswitch: BOSS FS-5U
• Optional Dual Footswitches: BOSS FS-6, FS-7
• Optional Expression Pedals: BOSS FV-500H, FV-500L, EV-30, Roland EV-5
• Optional MIDI/TRS Cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• Dimensions (W x D x H): 7.6 x 5.2 x 2"
• Height Including Rubber Feet: 2.1"
• Weight: 1.8 lb
• Package Dimensions (L x W x H): 11.4 x 7 x 4"
• Package Weight: 2.9 lb

What's In the Box

• BOSS DM-101 Delay Machine Analog Delay Pedal
• AC adapter
• Owner's manual
• Safety, important notes, and information leaflet
• 4 rubber feet
