BOSS DS-1W Waza Craft Distortion Pedal

BOSS DS-1W Waza Craft Distortion Pedal

The BOSS DS-1W Waza Craft Distortion Pedal expands the classic DS-1 design with a revised two-stage discrete analog gain circuit and two selectable voices. Standard mode recreates the familiar DS-1 character, while Custom mode adds a thicker midrange response, greater touch sensitivity, and increased output for driving amplifiers and other pedals.

Guitarists seeking a Waza Craft distortion pedal can switch between defined classic distortion and a fuller, more dynamic alternative without adding another drive pedal. Dedicated DIST, TONE, and LEVEL controls keep operation immediate, while the mode switch changes the circuit response. The DS-1W also works as a distortion pedal for amp boosting and gain-stacking setups.

The fully analog signal path uses discrete components, while a premium buffered bypass helps maintain signal integrity when the effect is disengaged. Standard 1/4-inch input and output connections integrate easily into conventional guitar pedalboards. Power comes from a 9 V battery or an optional BOSS PSA-series adapter, and the compact enclosure follows the familiar BOSS pedal format.

Key Features

• Waza Craft Circuit: Uses a revised two-stage gain design with discrete analog components for expanded distortion response.
• Standard Mode: Delivers the established DS-1 distortion character with a focused attack and sustained drive.
• Custom Mode: Adds thicker mids, increased touch response, and a broader gain-boosting range.
• 6 dB Additional Level: Custom mode provides increased available output for pushing amplifiers and downstream effects.
• Mode-Specific Tone Control: Adjusts low- and high-frequency balance with voicing optimized for each operating mode.
• Dedicated Controls: DIST, TONE, and LEVEL knobs provide direct adjustment without menu navigation.
• Premium Buffered Bypass: Maintains an active buffered signal path when the distortion effect is disengaged.
• Flexible Power: Operates from an included 9 V alkaline battery or an optional PSA-series AC adapter.

Technical Specifications

• Brand: BOSS
• Model: DS-1W
• Series: Waza Craft
• Effect Type: Distortion
• Instrument: Guitar
• Circuit: Discrete all-analog two-stage gain circuit
• Modes: Standard, Custom
• Preset Storage: None
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

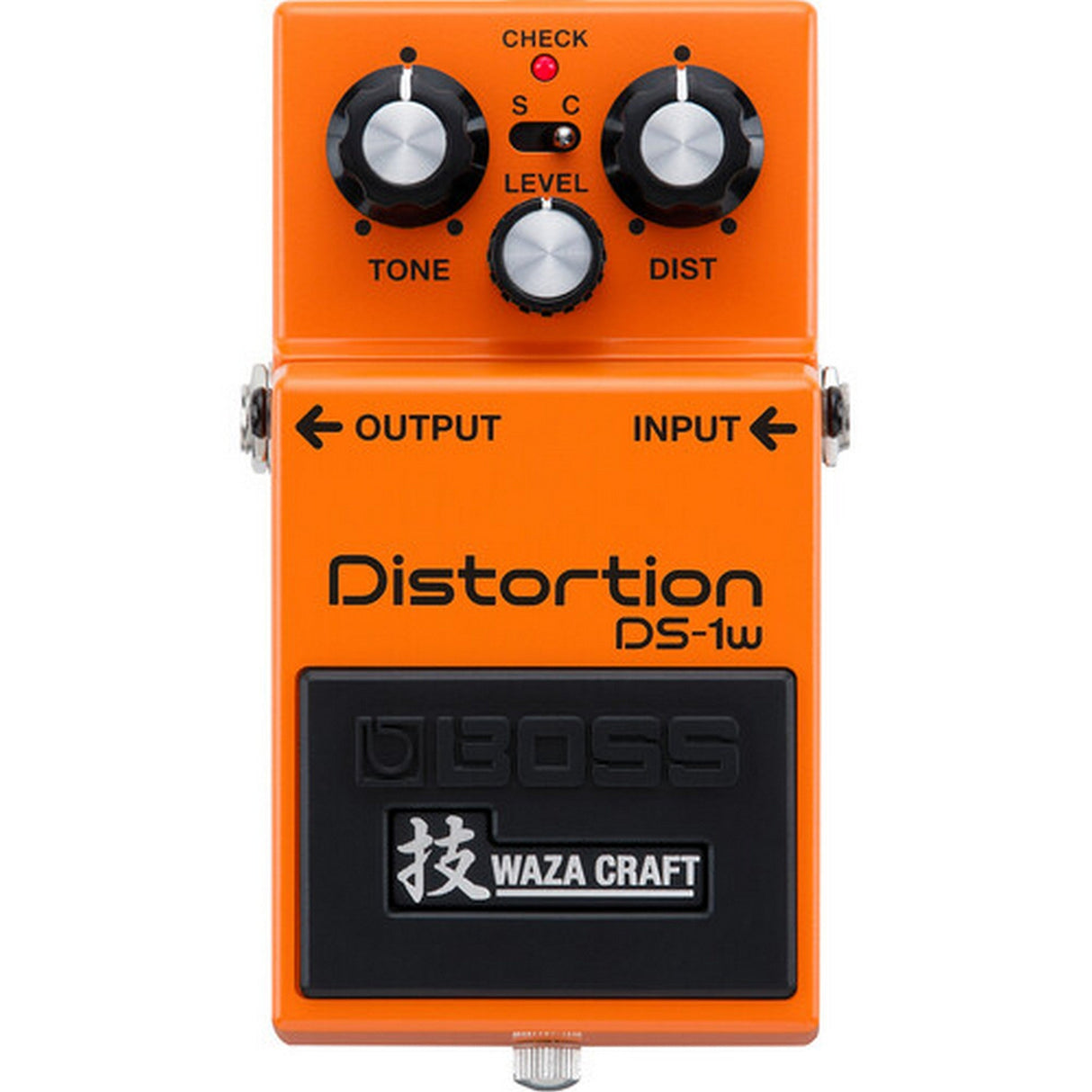

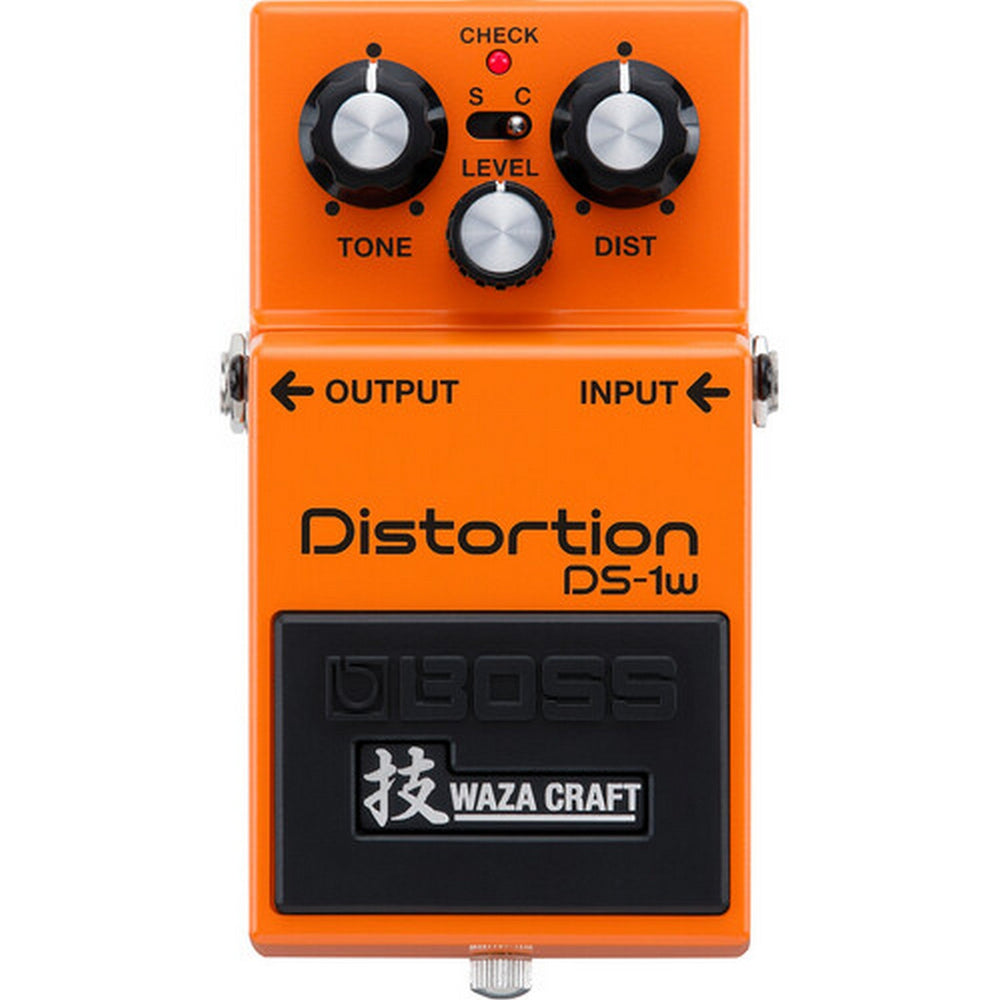

• Controls: Pedal switch, Mode switch, DIST knob, LEVEL knob, TONE knob
• Indicator: CHECK indicator with battery-status function
• Input: 1 x 1/4-inch phone-type jack
• Output: 1 x 1/4-inch phone-type jack

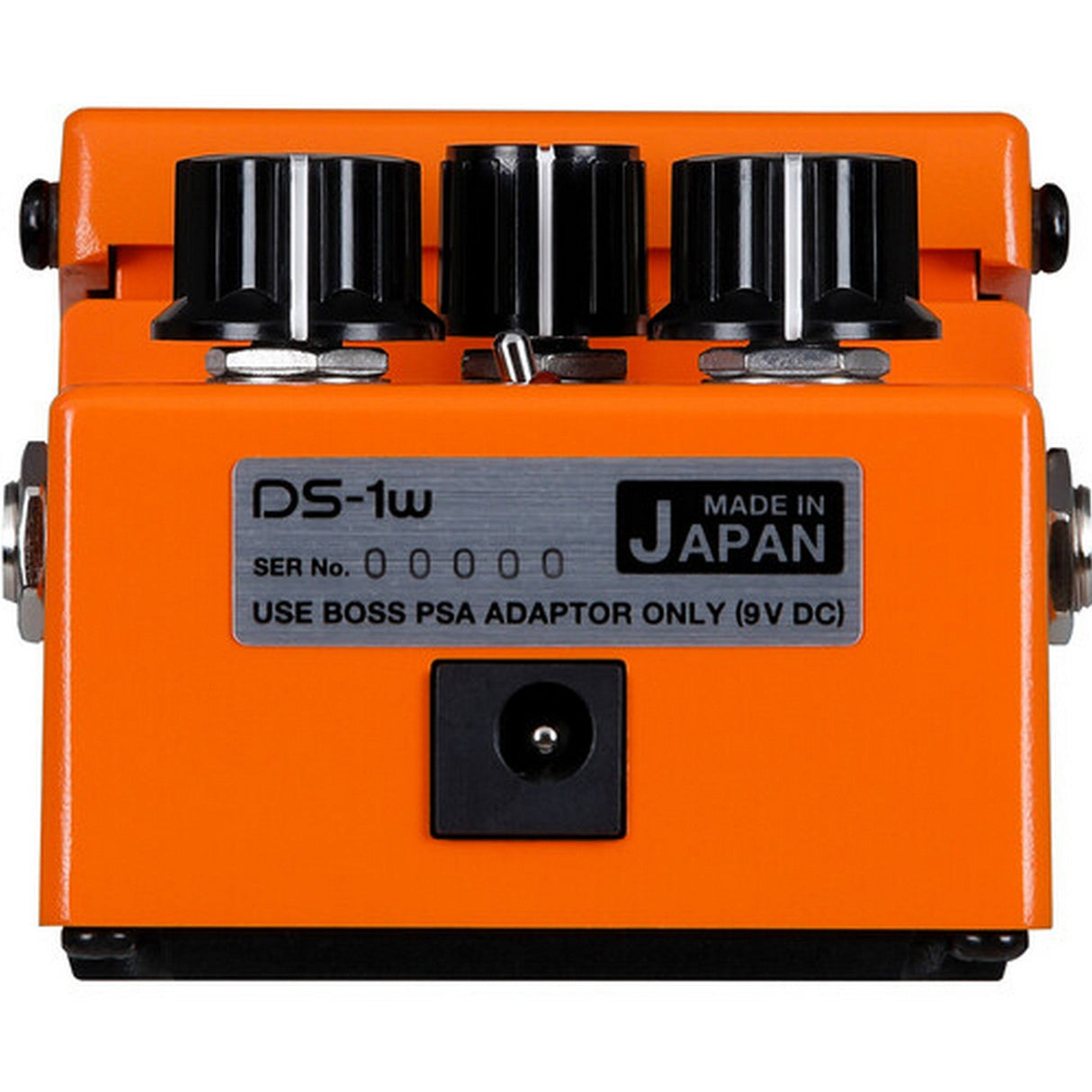

• Power Connector: DC IN jack
• USB: None
• Wireless: None
• Power Supply: 9 V alkaline battery, 9 V carbon-zinc battery, or optional PSA-series AC adapter
• Compatible Alkaline Battery: 6LR61 or 6LF22
• Compatible Carbon-Zinc Battery: 6F22
• Current Draw: 15 mA
• Expected Alkaline Battery Life: Approximately 50 hours under continuous use
• Expected Carbon-Zinc Battery Life: Approximately 25 hours under continuous use
• Dimensions (W x D x H): 2.9 x 5.1 x 2.3"
• Weight: 0.9 lb including battery
• Package Dimensions (L x W x H): 6.4 x 4.5 x 2.5"
• Package Weight: 1.2 lb
• Manufacturer Warranty: 5 years

What's In the Box

• BOSS DS-1W Waza Craft Distortion Pedal
• 9 V alkaline battery
• Safety, important notes, and product information leaflet
