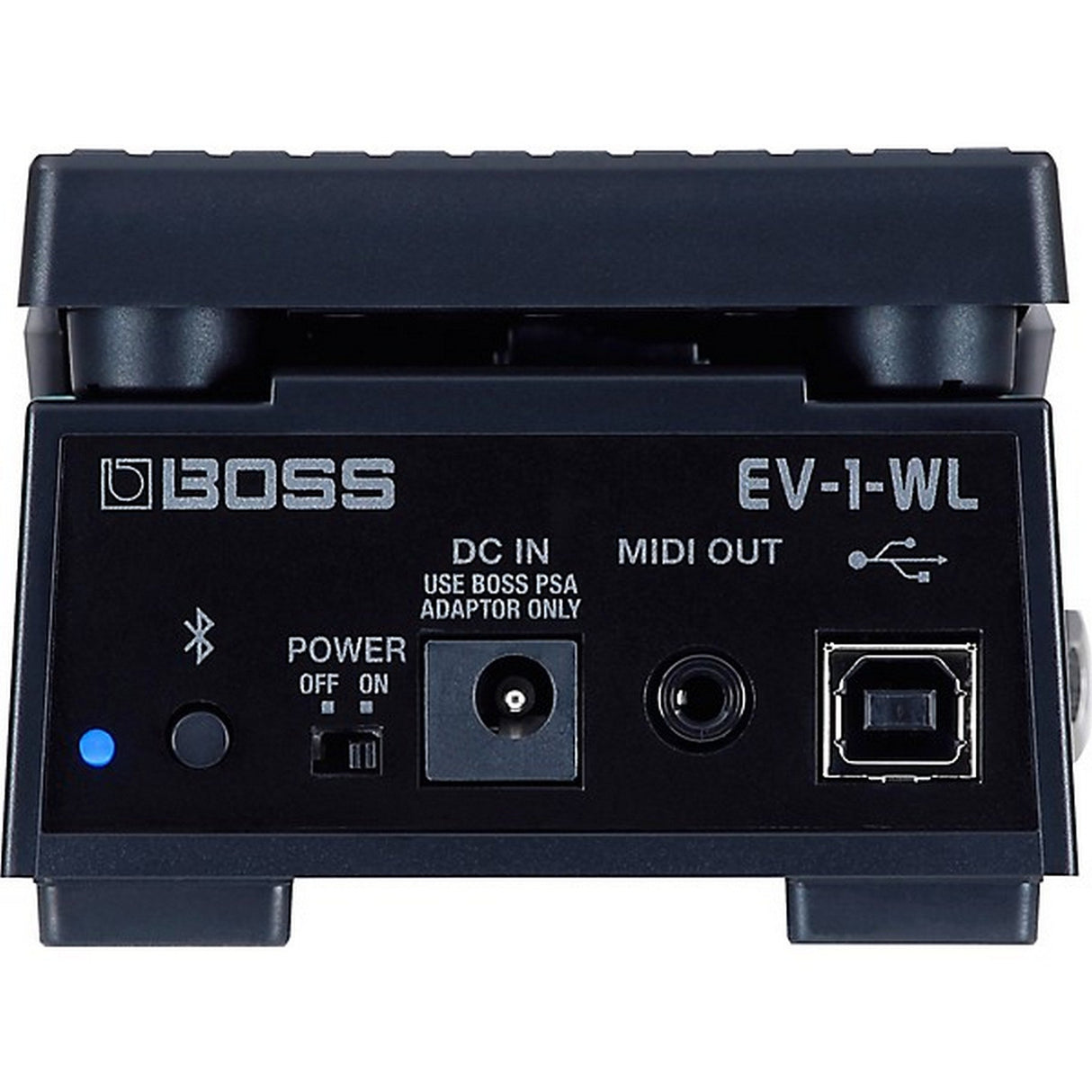

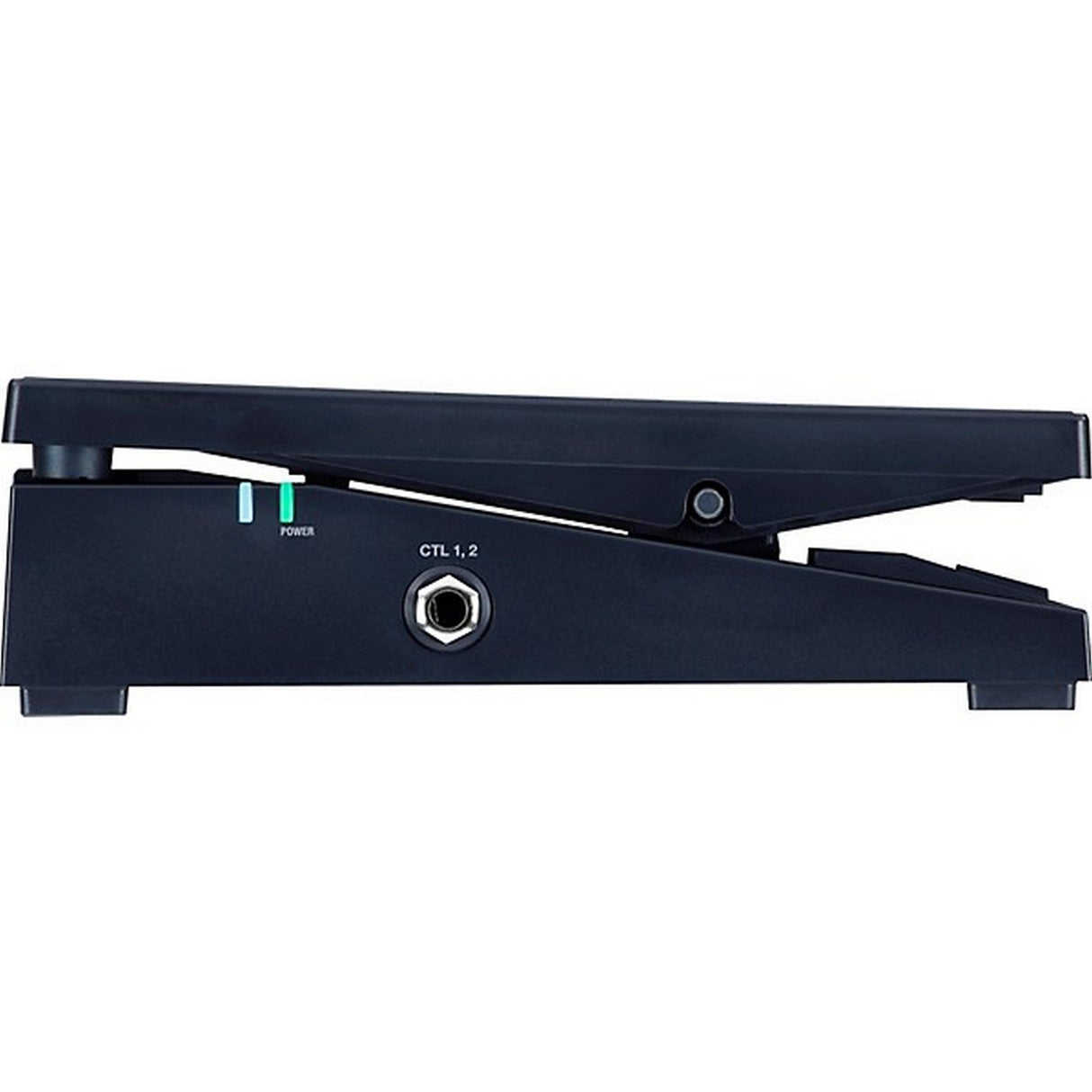

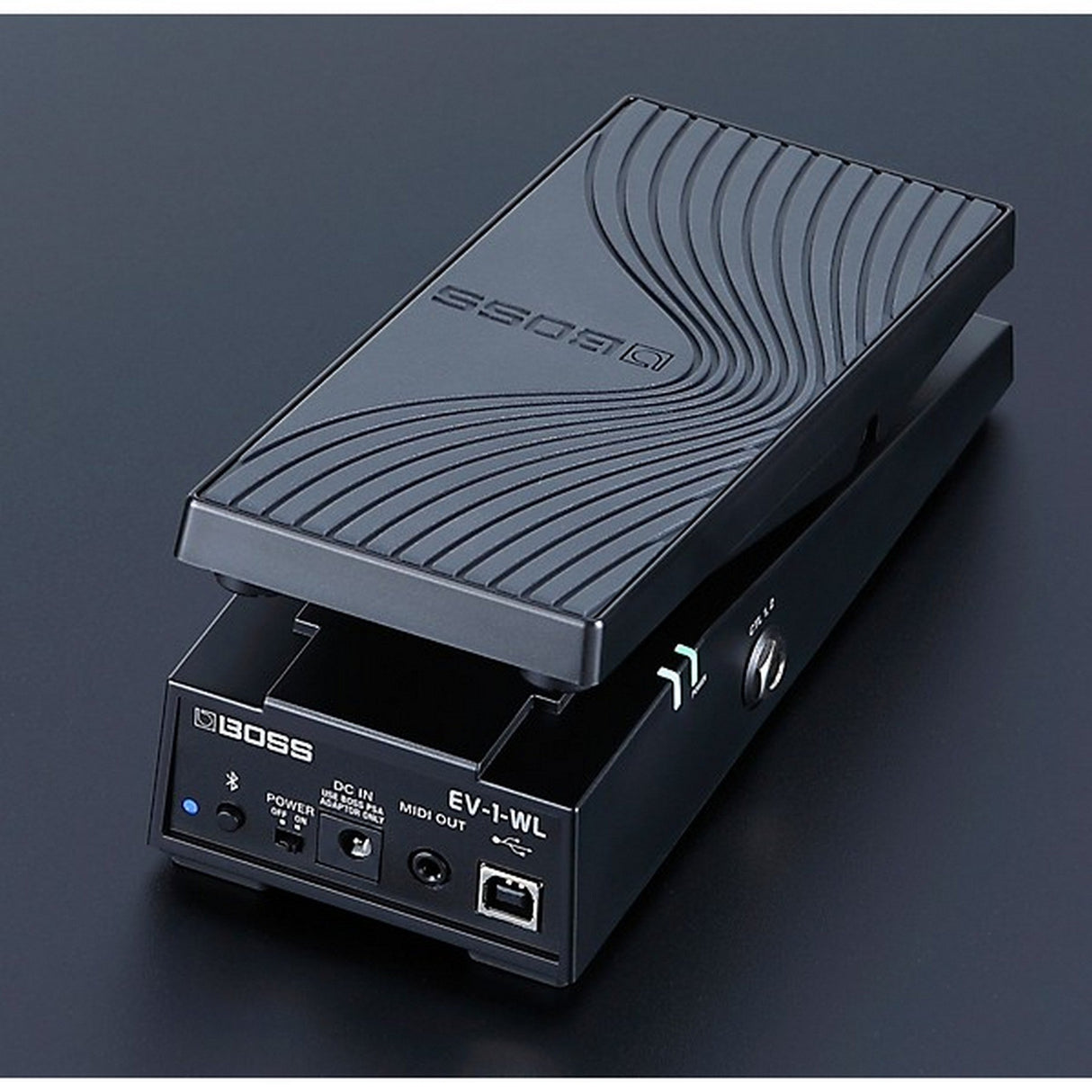

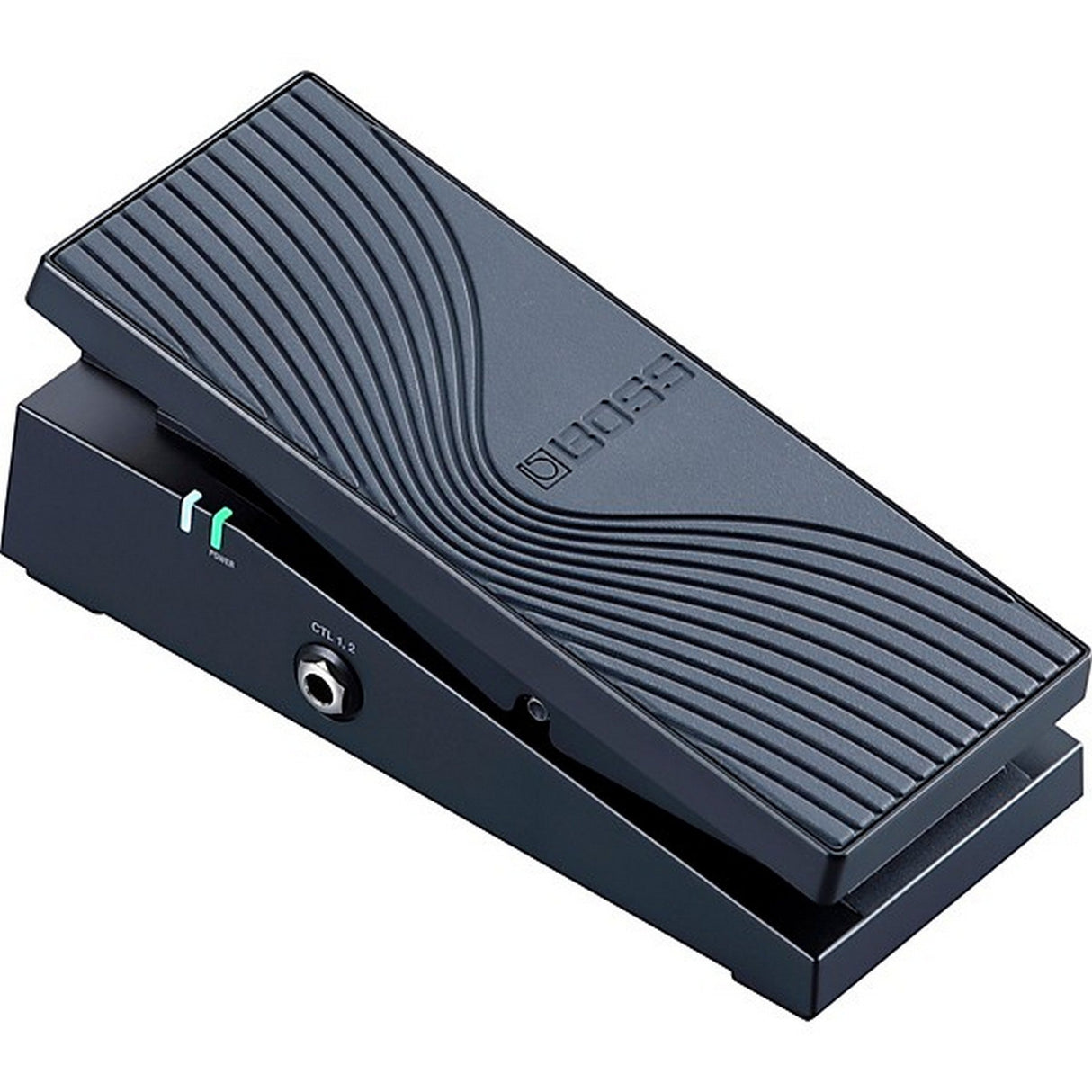

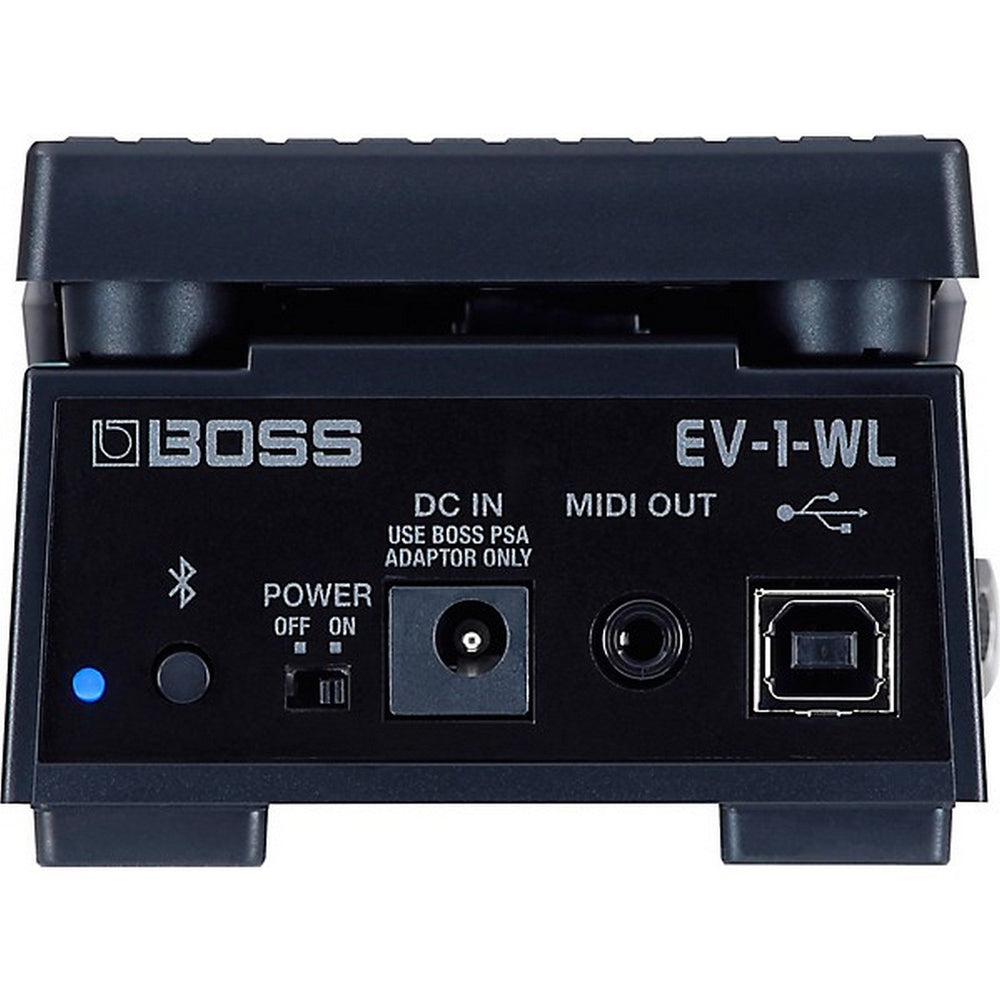

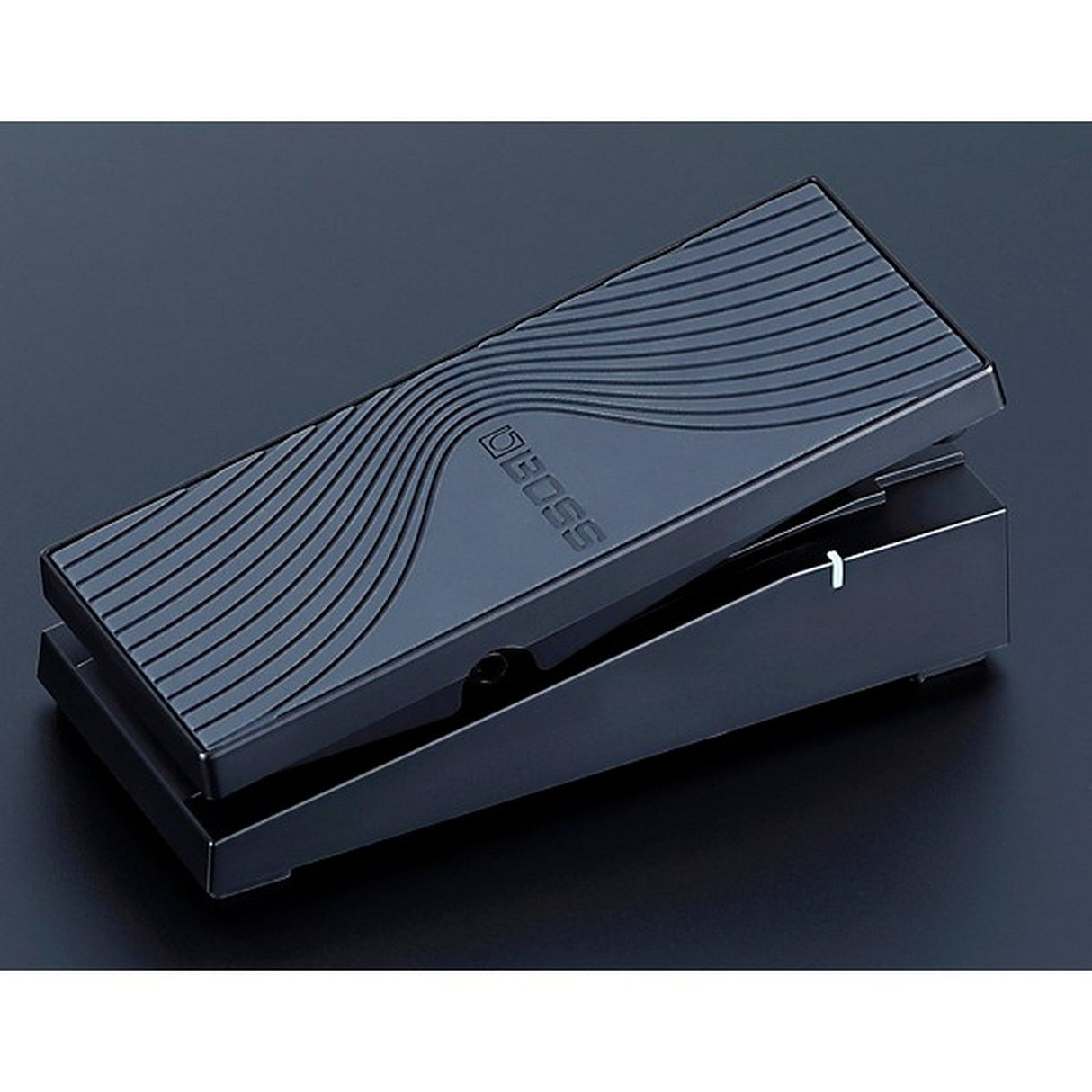

BOSS EV-1-WL Wireless MIDI Expression Pedal

BOSS EV-1-WL Wireless MIDI Expression Pedal

The BOSS EV-1-WL Wireless MIDI Expression Pedal provides foot-controlled MIDI operation through Bluetooth, USB, or TRS MIDI connections. Musicians can use all three outputs simultaneously with independent MIDI Control Change settings, making the pedal a flexible controller for compatible effects processors, music software, mobile apps, keyboards, drum machines, and other MIDI equipment.

Bluetooth MIDI enables cable-free control with compatible BOSS and Roland products, computers, smartphones, tablets, and other supported hardware. For wired setups, the class-compliant USB interface connects directly to macOS or Windows software without a dedicated driver, while the 3.5 mm TRS MIDI output controls compatible pedals and standard 5-pin MIDI equipment when used with the appropriate cable. A built-in toe switch expands hands-free control during performances.

The free EV-1-WL Editor for iOS and Android provides detailed control over MIDI CC assignments, pedal response, value ranges, MIDI channels, and switch behavior. A 1/4" TRS control input supports up to two compatible external footswitches. Power comes from two AA alkaline batteries for approximately 30 hours of continuous operation or an optional BOSS PSA-series AC adapter.

Key Features

• Three MIDI Connection Methods: Control compatible equipment through Bluetooth MIDI, USB, or TRS MIDI from one expression pedal.
• Simultaneous Output: Operates Bluetooth, USB, and TRS MIDI outputs together with independent MIDI CC settings.
• Wireless Foot Control: Connects to compatible BOSS and Roland products, mobile devices, computers, and Bluetooth MIDI equipment.
• Class-Compliant USB: Provides plug-and-play MIDI control with compatible macOS and Windows music software.
• TRS MIDI Output: Controls hardware equipped with TRS MIDI or standard 5-pin MIDI when paired with an appropriate cable.
• Built-In Toe Switch: Adds an assignable foot-operated control with status indicators on both sides of the pedal.
• External Footswitch Expansion: Supports up to two compatible BOSS FS-series footswitches through the CTL 1, 2 input.
• Editor App Customization: Adjust MIDI CC assignments, response curves, MIDI channels, value ranges, and switch modes from iOS or Android.

Technical Specifications

• Brand: BOSS
• Model: EV-1-WL
• Product Type: Wireless MIDI Expression Pedal
• MIDI Connectivity: Bluetooth MIDI, USB MIDI, TRS MIDI
• Simultaneous MIDI Outputs: Bluetooth, USB, and TRS MIDI
• Controls: Power switch, Bluetooth button, expression pedal, built-in toe switch
• Indicators: Power, Bluetooth, EXP SW
• MIDI Output: 3.5 mm stereo miniature TRS jack
• USB Computer Port: USB Type-B
• External Control Input: 1/4" TRS CTL 1, 2 jack
• External Footswitch Capacity: Up to 2 compatible BOSS FS-series footswitches
• Power Input: DC IN
• Battery Power: 2 AA alkaline batteries
• Optional AC Power: BOSS PSA-series AC adapter
• Current Draw: 75 mA
• Expected Battery Life: Approximately 30 hours of continuous use with alkaline batteries
• MIDI CC Range: CC 1-127
• MIDI Value Range: 0-127
• MIDI Channels: 1-16
• Expression Pedal Curves: Normal, Slow1, Slow2, Fast
• Switch Modes: Latch, Momentary
• Assignable Controls: Expression pedal with EXP SW on, expression pedal with EXP SW off, toe switch, CTL1, CTL2
• Editor: EV-1-WL Editor for iOS and Android
• Dimensions: 7.9 x 3.4 x 2.5" D x W x H
• Maximum Height: 3.6"
• Weight: 1.4 lb
• Weight with Batteries: 1.4 lb

What's In the Box

• BOSS EV-1-WL Wireless MIDI Expression Pedal
• 2 AA alkaline batteries
• Owner's manual
• Using the Unit Safely leaflet
