BOSS FV-30H High-Impedance Foot Volume Pedal with Tuner Out

BOSS FV-30H Foot Volume Pedal

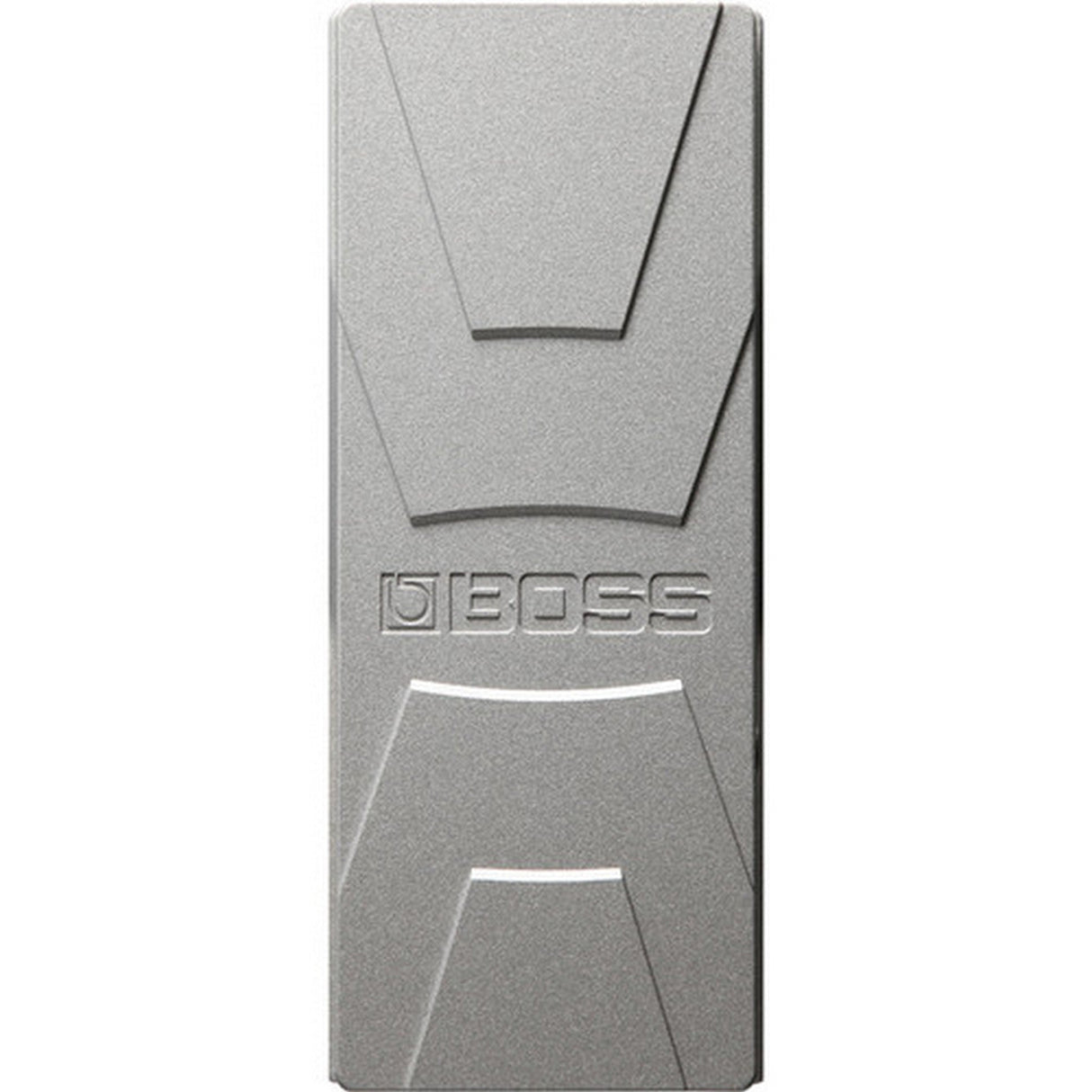

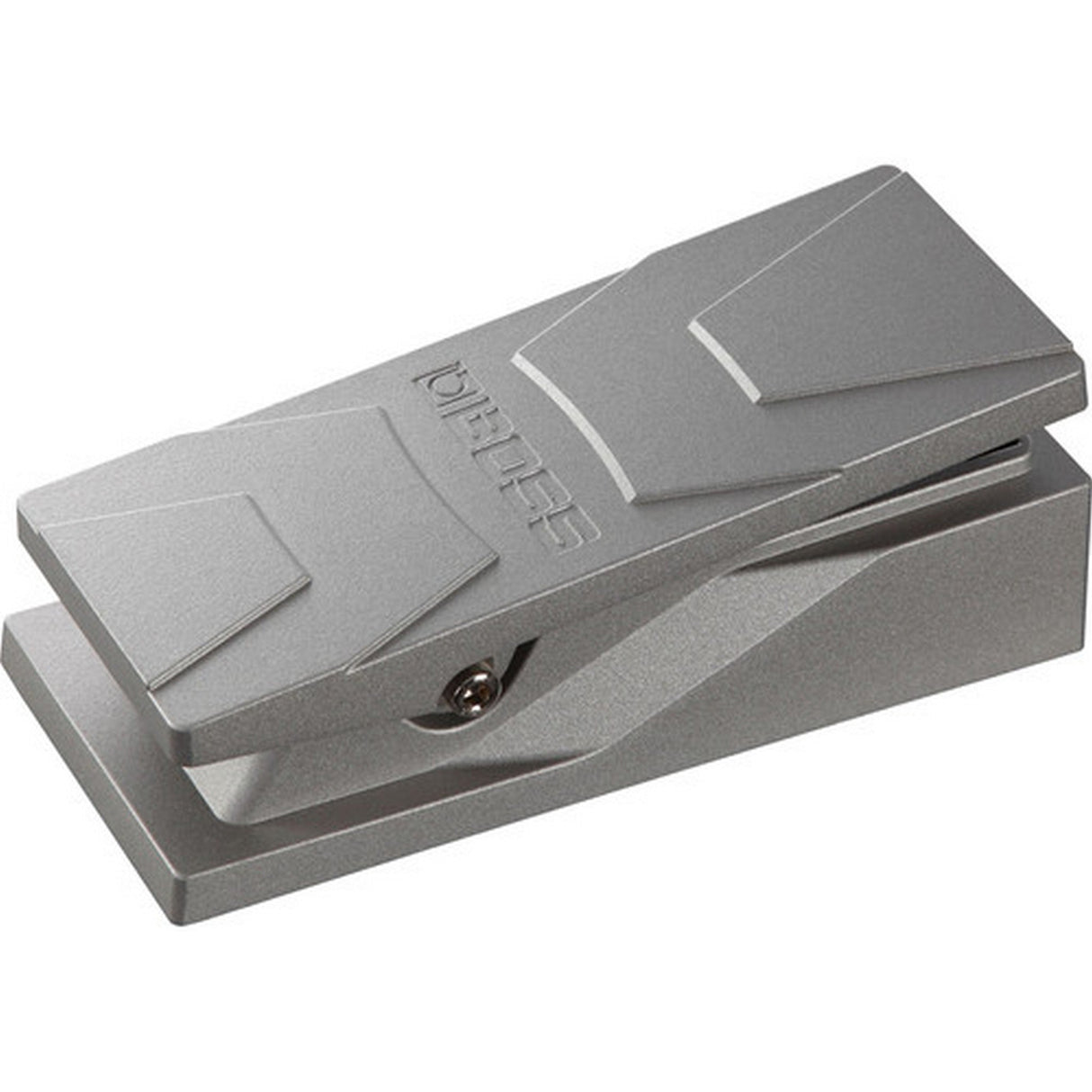

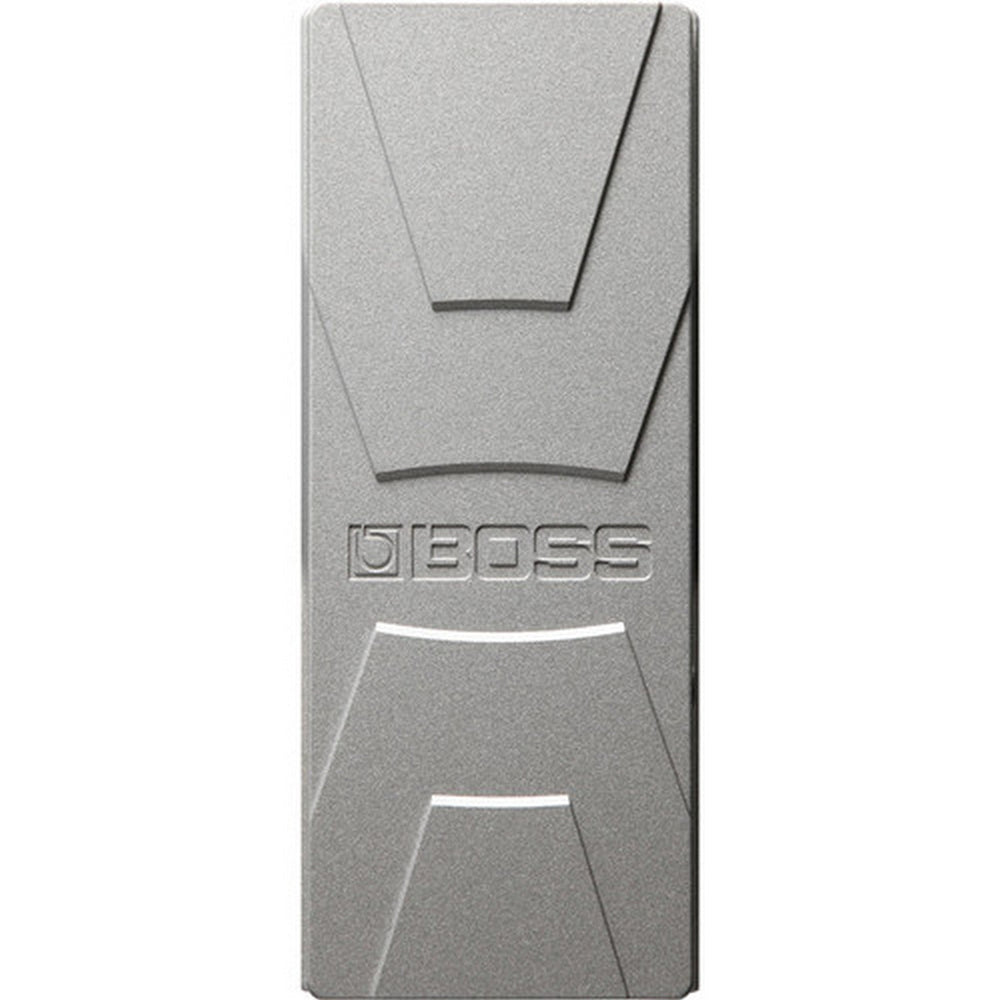

The BOSS FV-30H Foot Volume Pedal is a compact, high-impedance volume controller designed for direct connection to electric guitars and basses. Its die-cast aluminum body, smooth pivot action, and dedicated tuner output provide precise volume control while conserving space on crowded pedalboards and supporting silent instrument tuning.

The FV-30H suits guitarists and bassists who want a compact volume pedal with tuner output without sacrificing a substantial pedal feel. Rocking the pedal smoothly adjusts instrument level, while returning it to the minimum position allows silent tuning through the dedicated TUNER OUT connection. Its high-impedance design is optimized for placement directly after passive electric instruments.

A single 1/4-inch input and output provide straightforward mono signal routing, while the separate 1/4-inch tuner jack keeps a tuner connected and ready. The compact chassis measures only 3.1 inches wide yet uses rugged aluminum die-cast construction, making it practical for touring pedalboards, rehearsal rigs, and studio guitar or bass setups.

Key Features

• High-Impedance Design: Optimized for direct connection to electric guitars and electric basses.
• Compact Footprint: Saves pedalboard space while retaining a full-range volume-control action.

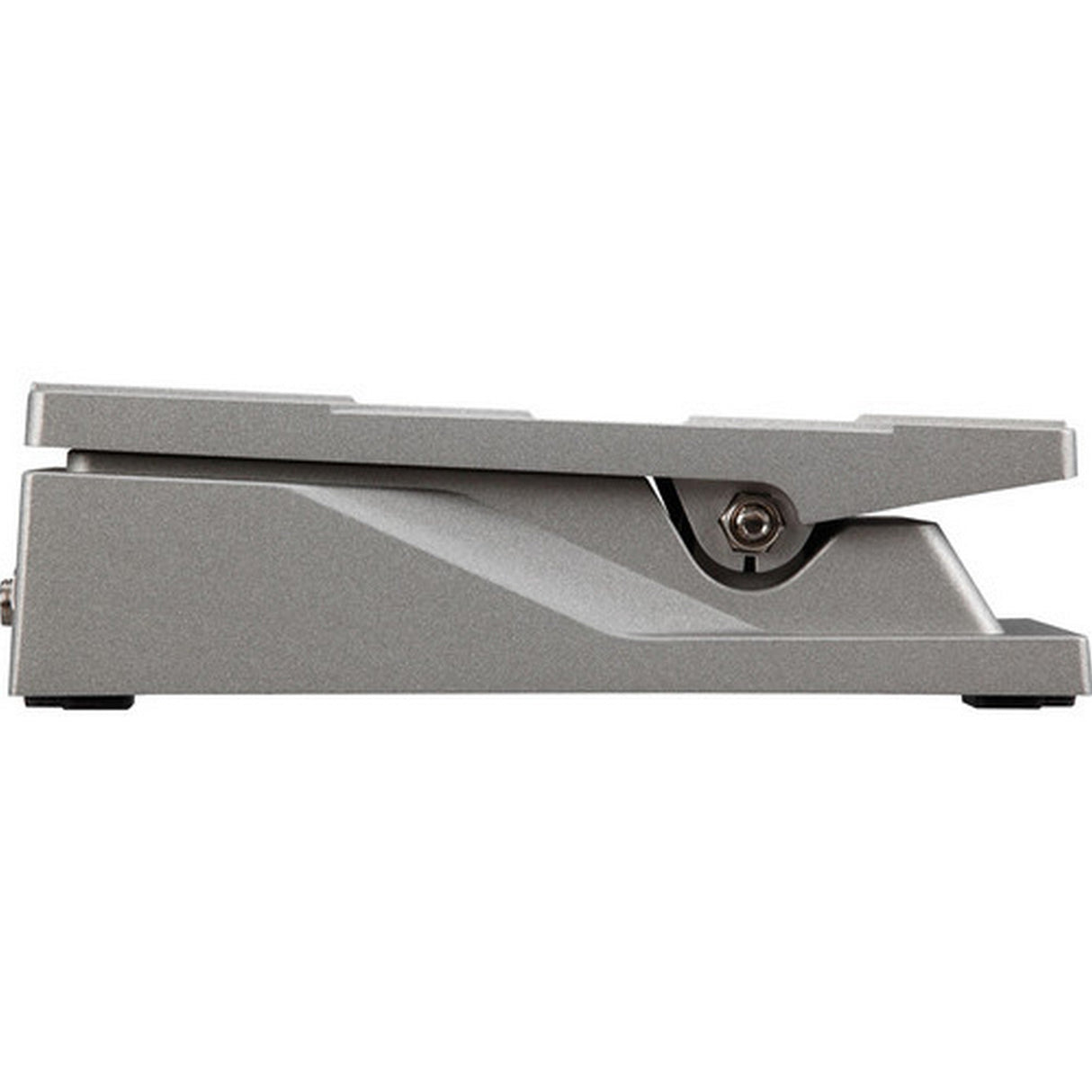

• Smooth Pivot Action: Supports subtle volume changes for swells, fades, and performance dynamics.
• Dedicated Tuner Output: Keeps a tuner connected separately from the primary audio output.
• Silent Tuning: Returning the pedal to minimum volume allows tuning without sending sound to the amplifier.
• Die-Cast Aluminum Body: Provides a rugged enclosure suitable for frequent stage and pedalboard use.
• Simple Mono Connectivity: Uses dedicated 1/4-inch input, output, and tuner connections for straightforward integration.

Technical Specifications

• Brand: BOSS
• Model: FV-30H
• Product Type: Foot volume pedal
• Impedance Type: High impedance
• Recommended Instruments: Electric guitar, electric bass
• Construction: Aluminum die-cast body

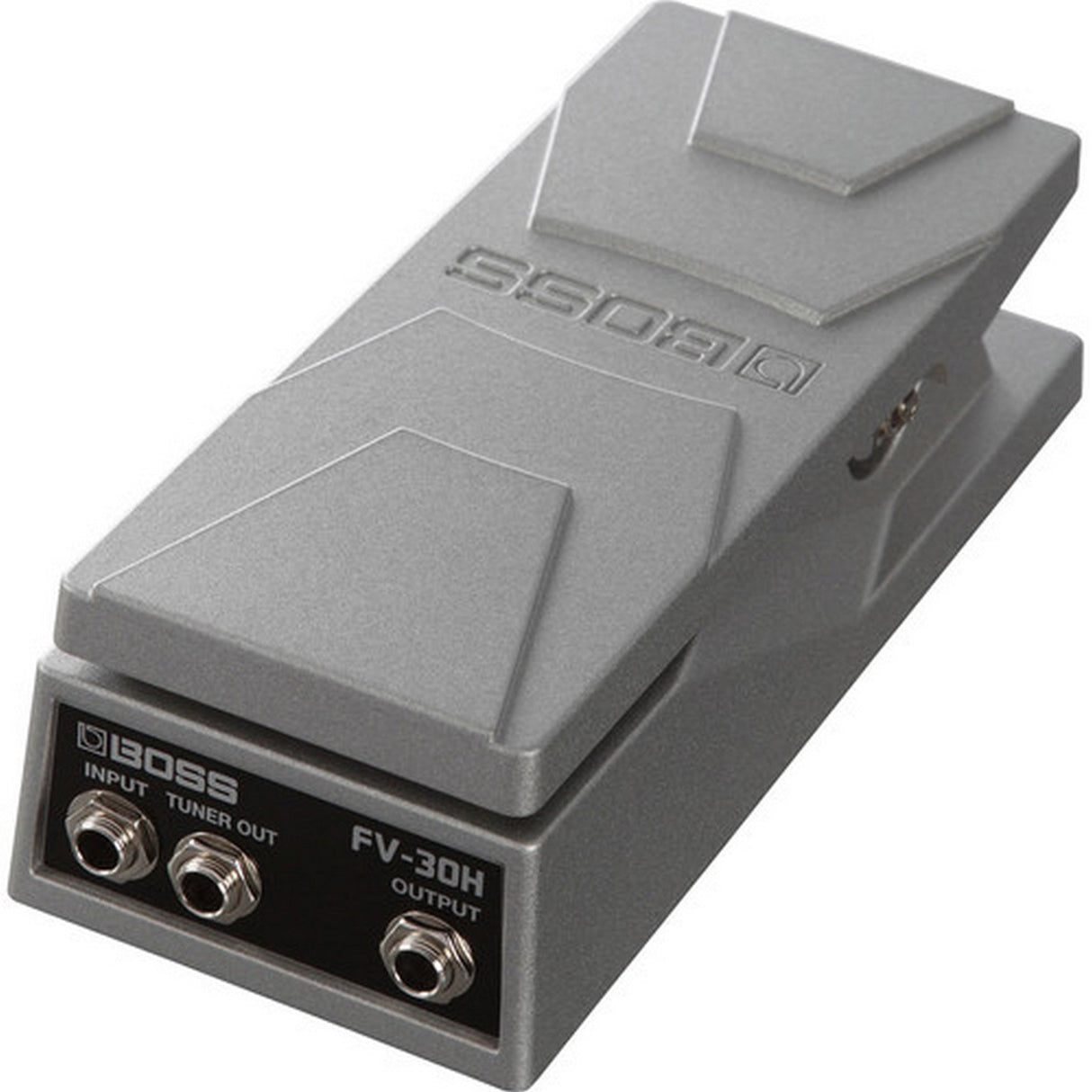

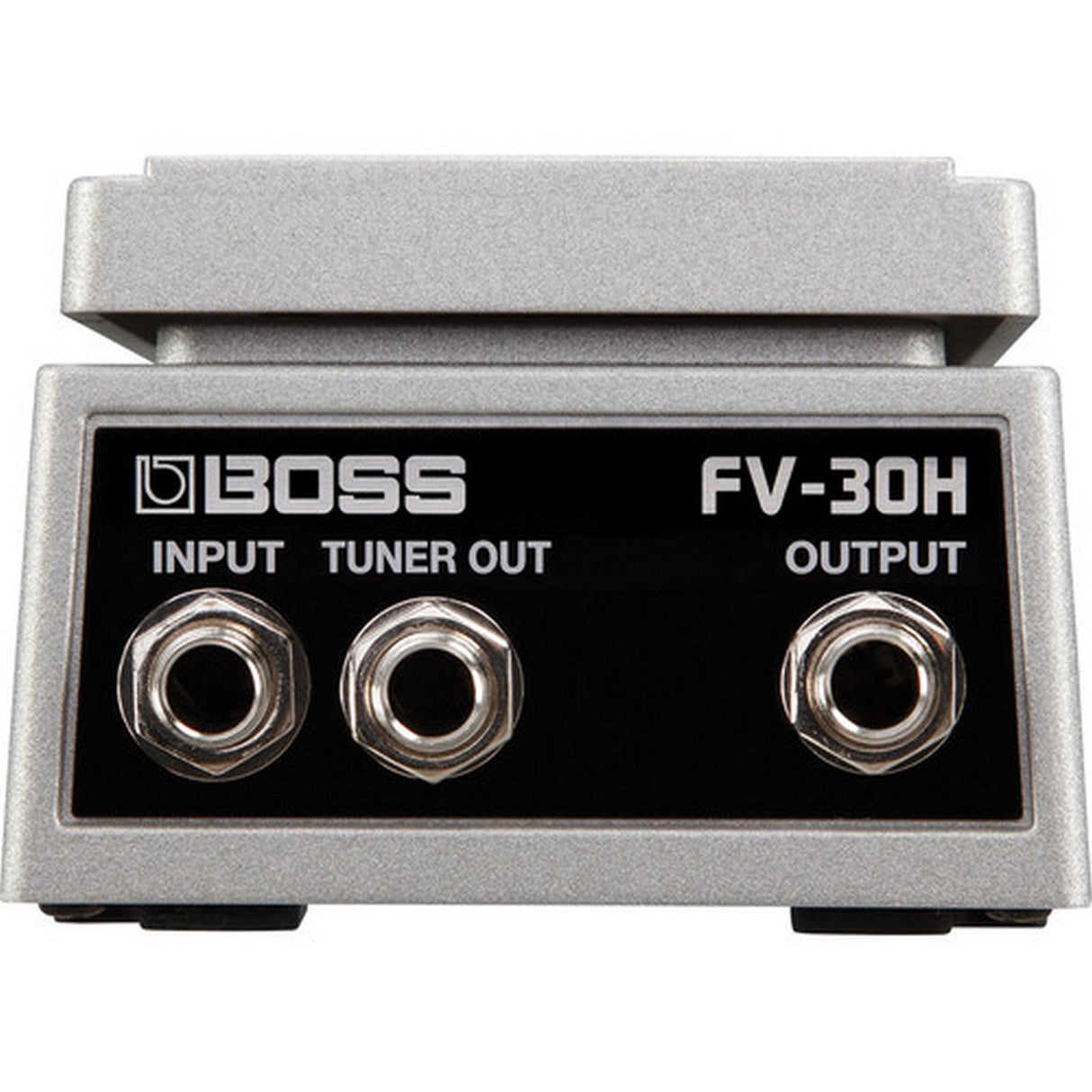

• Input: 1 x 1/4-inch phone-type jack
• Output: 1 x 1/4-inch phone-type jack
• Tuner Output: 1 x 1/4-inch phone-type jack
• Dimensions (W x D x H): 3.1 x 7.6 x 2.3"
• Maximum Height: 3.6"
• Weight: 1.9 lb

What's In the Box

• BOSS FV-30H Foot Volume Pedal
• Safety, Important Notes, and Information leaflet
