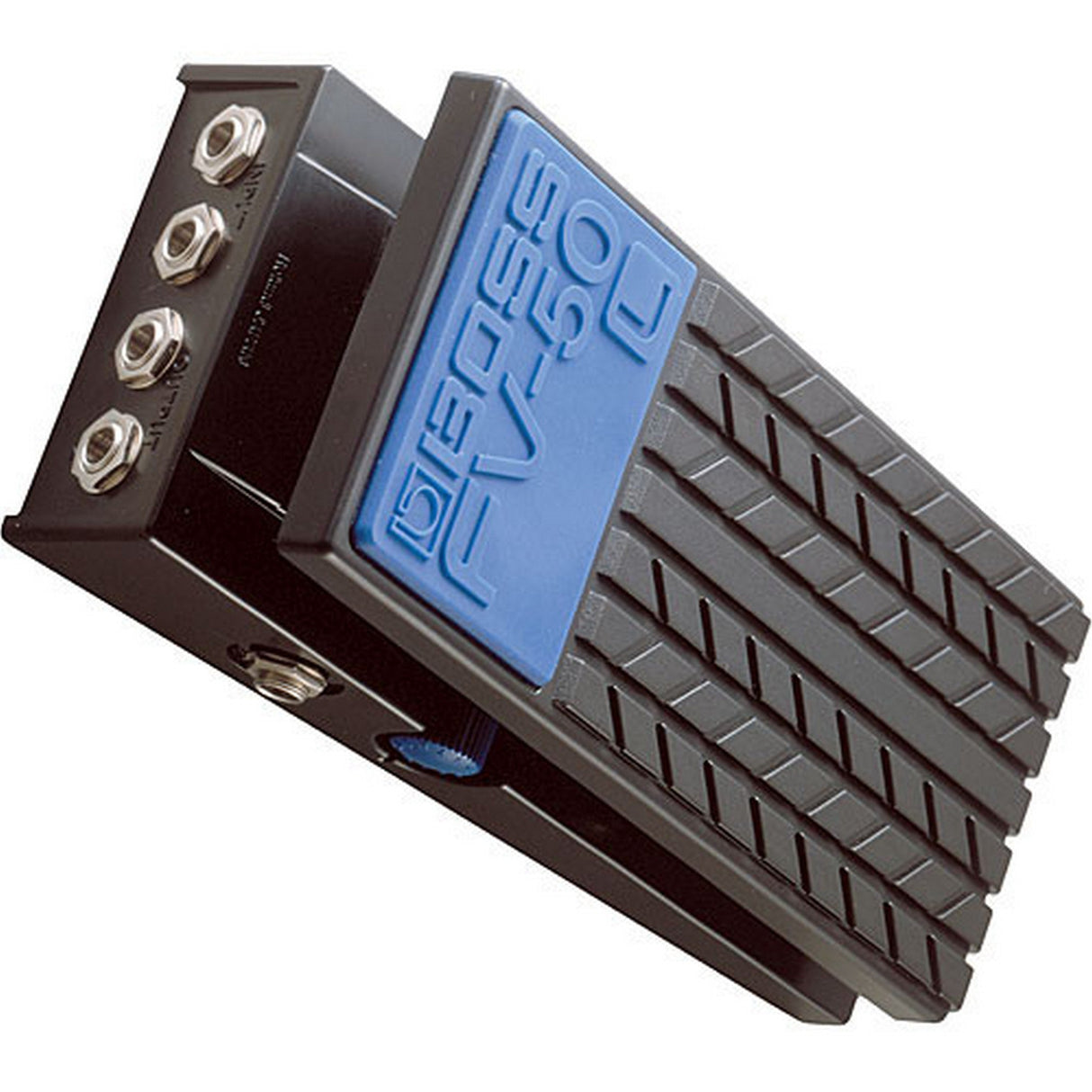

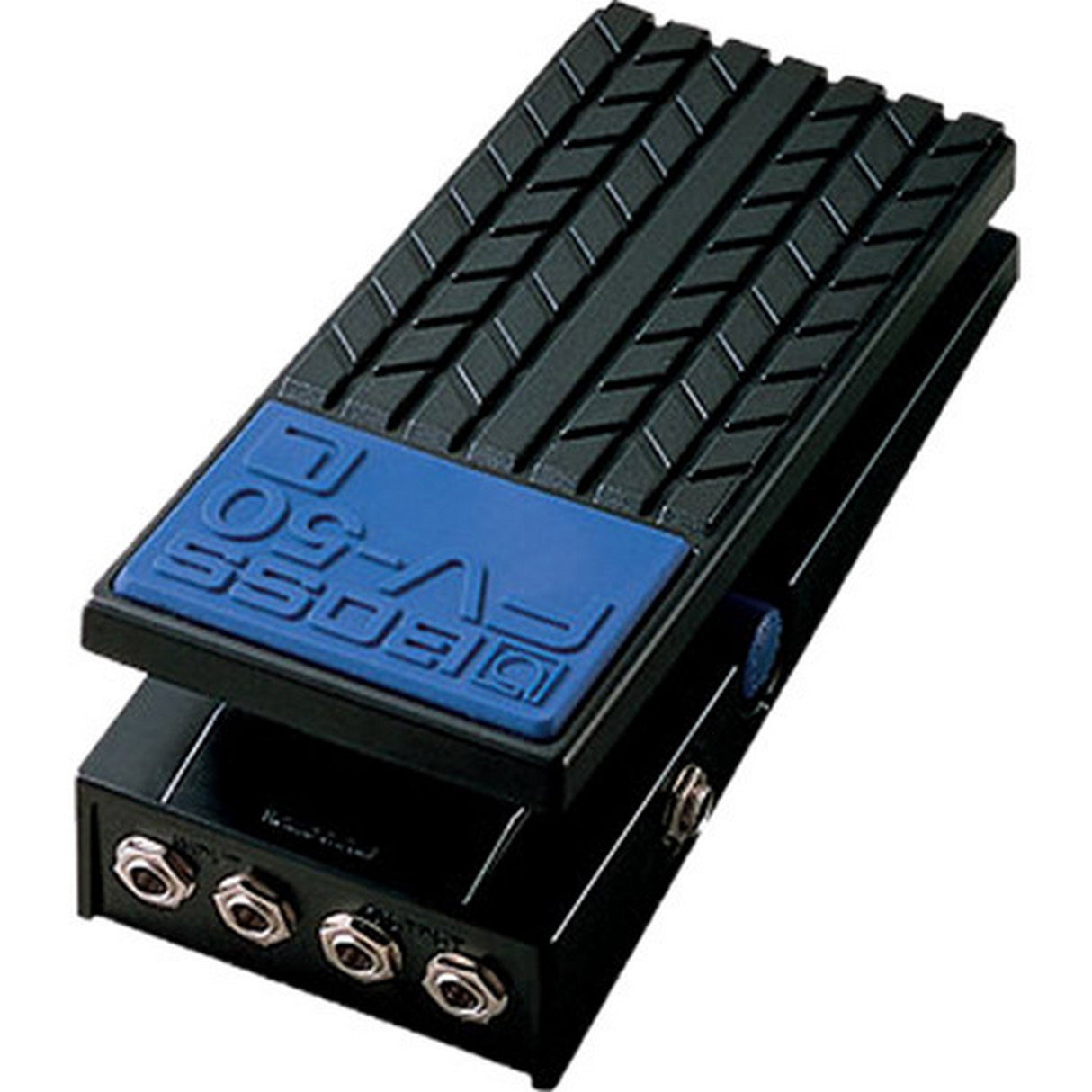

BOSS FV-50H High-Impedance Stereo Volume Pedal

BOSS FV-50H High-Impedance Stereo Volume Pedal

The BOSS FV-50H Stereo Volume Pedal is a compact, high-impedance foot controller designed for direct connection to guitars and other high-impedance instruments before effects pedals. Dual inputs and outputs provide stereo signal routing, while a Minimum Volume control and dedicated tuner output add useful performance flexibility for pedalboard and stage setups.

Players can use the pedal for smooth volume swells, fades, and hands-free level adjustment while retaining control over the lowest available volume. The two-channel signal path accommodates stereo routing when appropriate, and the dedicated TUNER OUT connection allows a tuner to remain connected without occupying the primary output path. Its lightweight construction also suits portable guitar rigs.

The FV-50H requires no battery or external power supply, keeping installation simple and eliminating another power connection from the pedalboard. BOSS specifically positions its high-impedance circuit for placement before guitar effects, where it can receive an instrument signal directly. A compact chassis measuring approximately 7.9 inches deep helps conserve floor and pedalboard space.

Key Features

• High-Impedance Design: Optimized for direct connection to guitars and other high-impedance instrument sources before effects units.
• Stereo Signal Path: Two inputs and two outputs provide dual-channel volume control for compatible signal configurations.
• Minimum Volume Control: Sets the lowest output level available through the pedal's travel for customized performance response.
• Dedicated Tuner Output: Keeps a tuner connected separately from the main outputs for convenient stage tuning.
• Silent Tuning Support: Setting minimum volume to zero allows tuning without sending the instrument signal through the main output path.
• Passive Operation: Requires no battery or external power supply for standard volume-control operation.
• Compact Construction: Provides foot-operated volume control in a lightweight enclosure suited to portable pedalboards.

Technical Specifications

• Brand: BOSS
• Model: FV-50H
• Product Type: Stereo volume pedal
• Impedance Type: High impedance
• Recommended Signal Placement: Before guitar effects units
• Control: Main Volume Pedal
• Minimum Level Control: MINIMUM VOLUME knob
• Inputs: 2 x 1/4-inch phone-type jacks
• Outputs: 2 x 1/4-inch phone-type jacks
• Tuner Output: 1 x 1/4-inch phone-type jack
• Tuner Output Source: Input 1
• Power Requirement: None
• Dimensions (W x D x H): 3.4 x 7.9 x 2.1"
• Weight: 0.9 lb

What's In the Box

• BOSS FV-50H Volume Pedal
