BOSS FZ-5 Fuzz Pedal with COSM Vintage Fuzz Models

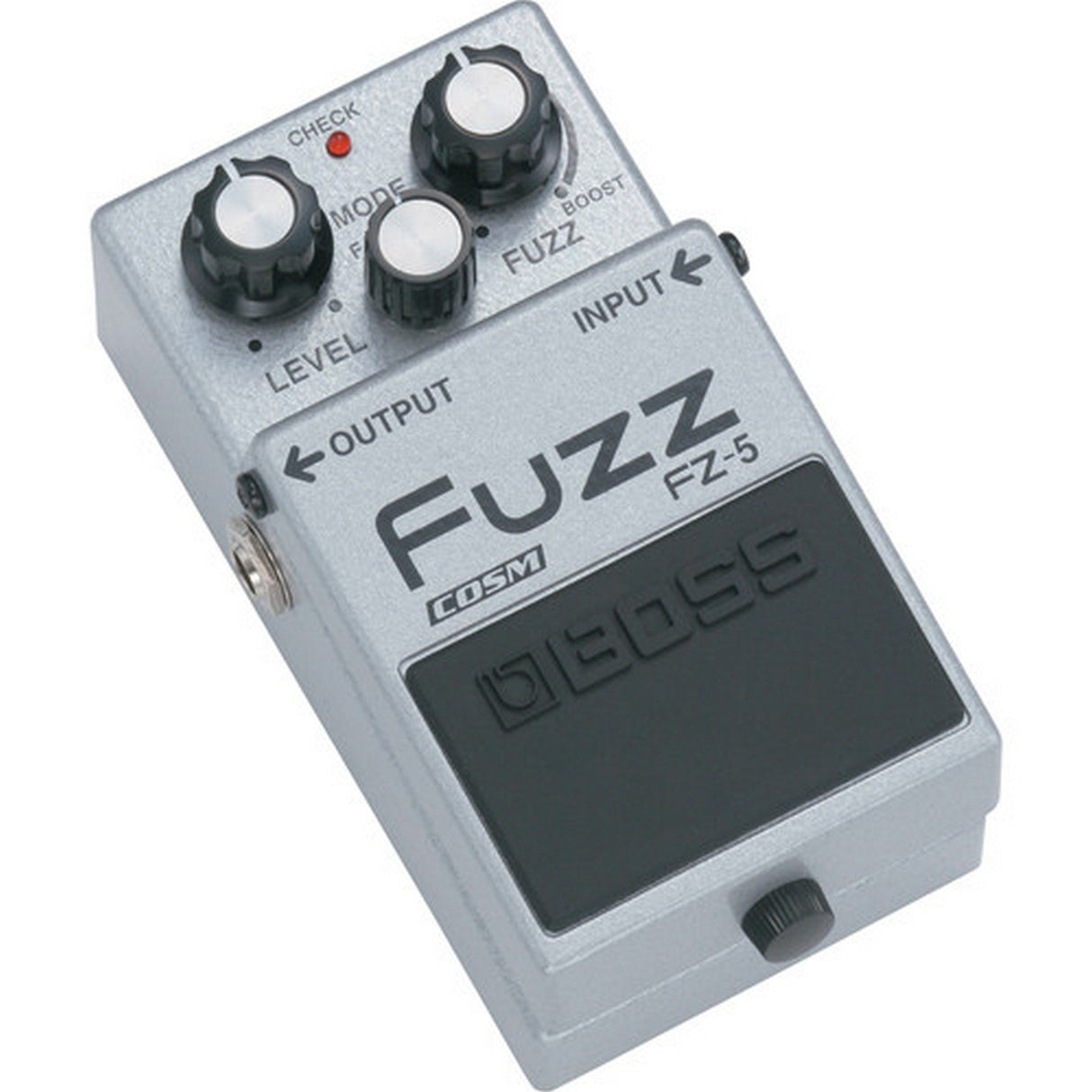

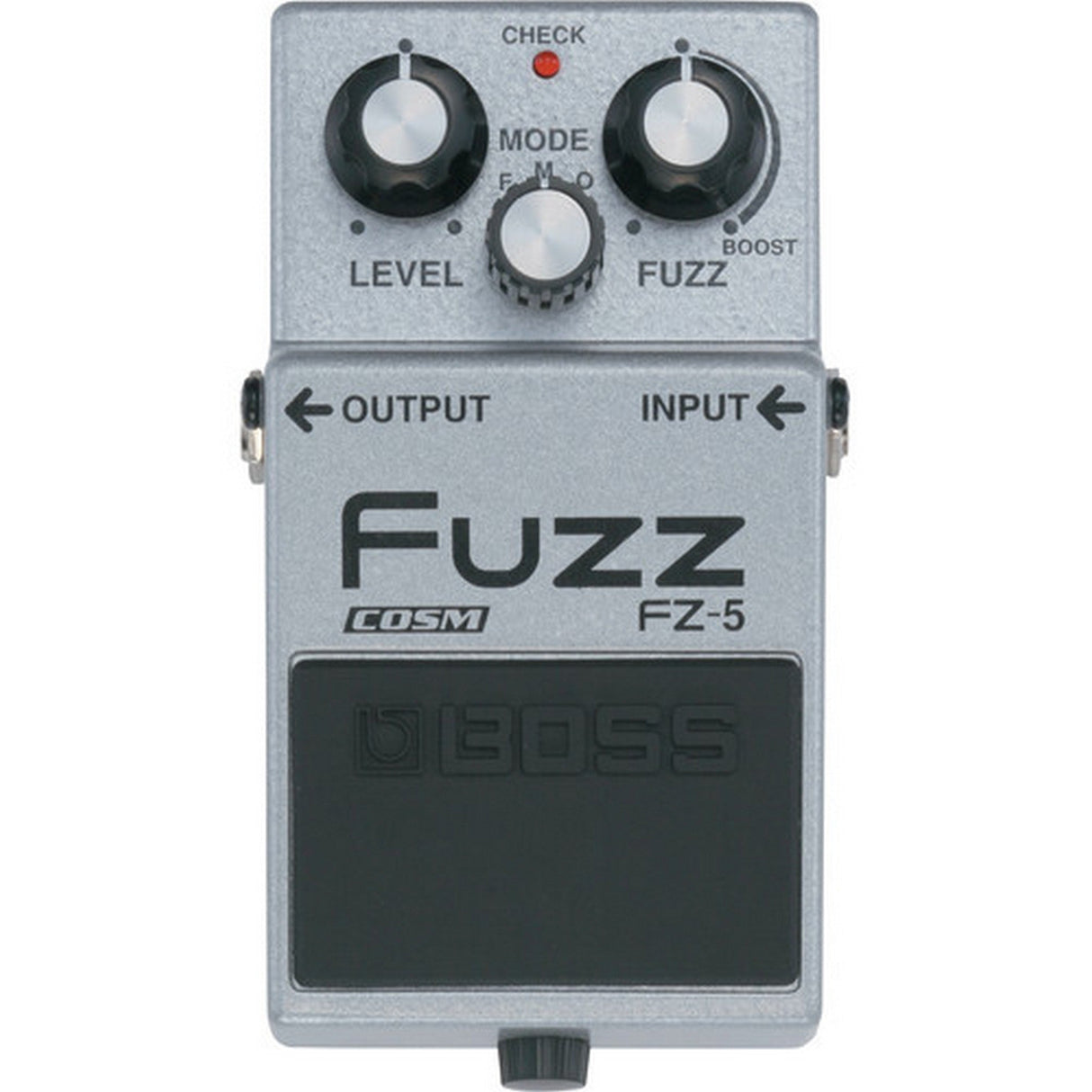

BOSS FZ-5 Fuzz Pedal

The BOSS FZ-5 Fuzz Pedal uses COSM modeling technology to recreate three vintage-inspired fuzz circuits from the 1960s and 1970s. Selectable F, M, and O modes cover classic face-style, early transistor fuzz, and octave-fuzz responses, while the FUZZ control includes an extended BOOST range for more aggressive distortion.

Guitarists can choose the fuzz character that best fits a riff, lead tone, or retro rock arrangement without carrying several individual vintage-style pedals. The LEVEL control balances effect volume, while the FUZZ knob moves from modeled original gain behavior into additional boost. Its octave-fuzz mode can also produce pronounced upper-octave content for single-note lead lines.

The FZ-5 combines digital COSM modeling with the familiar compact BOSS pedal format, buffered bypass, and standard instrument-level connections. A 1 M ohm input impedance supports conventional guitar pedalboard integration, while power comes from the included 9 V alkaline battery or an optional PSA-series AC adapter. Current manufacturer specifications rate continuous alkaline battery operation at approximately four hours.

Key Features

• Three Fuzz Models: Selects F, M, or O modes for distinct vintage-inspired fuzz responses.
• F Mode: Models the character of a Dallas-Arbiter Fuzz Face-style circuit with a rounded, psychedelic fuzz response.
• M Mode: Recreates characteristics associated with the Maestro FZ-1A and its prominent upper-mid response.
• O Mode: Produces octave-fuzz behavior with an upper-octave component that becomes especially noticeable on single notes.
• Extended Boost Range: Turning the FUZZ control beyond the modeled original range provides deeper distortion than the referenced vintage circuits.
• Buffered Bypass: Maintains an active buffered signal path when the fuzz effect is disengaged.
• Compact Pedal Format: Uses the familiar BOSS metal enclosure for pedalboard and stage applications.

Technical Specifications

• Brand: BOSS
• Model: FZ-5
• Effect Type: Fuzz
• Instrument: Guitar
• Modeling Technology: COSM
• Fuzz Modes: F (FACE), M (MST FUZZ), O (OCTAVE FUZZ)
• Preset Storage: None
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: FUZZ knob, MODE knob, LEVEL knob, pedal switch
• Indicator: CHECK indicator with battery-status function
• Input: 1 x 1/4-inch phone-type jack
• Output: 1 x 1/4-inch phone-type jack
• Power Connector: DC IN jack
• USB: None
• Wireless: None
• Power Supply: 9 V alkaline battery or optional PSA-series AC adapter
• Compatible Battery: 6LR61 alkaline 9 V
• Current Draw: 60 mA
• Expected Alkaline Battery Life: Approximately 4 hours under continuous use
• Dimensions (W x D x H): 2.9 x 5.1 x 2.3"
• Weight: 0.9 lb including battery
• Package Dimensions (L x W x H): 6.1 x 3.9 x 2.6"
• Package Weight: 1.3 lb
• Manufacturer Warranty: 5 years

What's In the Box

• BOSS FZ-5 Fuzz Pedal
• 9 V alkaline battery
• Safety, Important Notes, and Information leaflet
