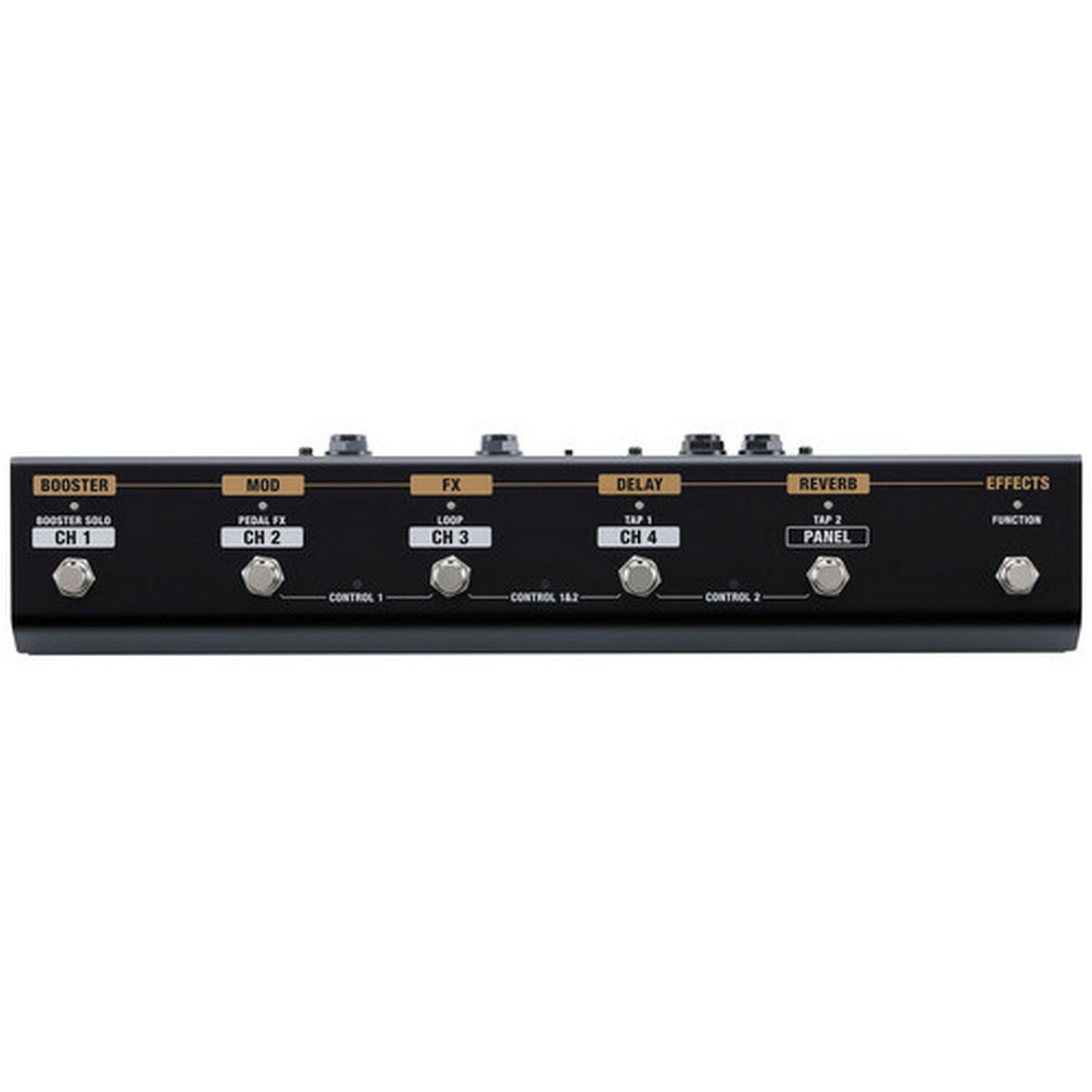

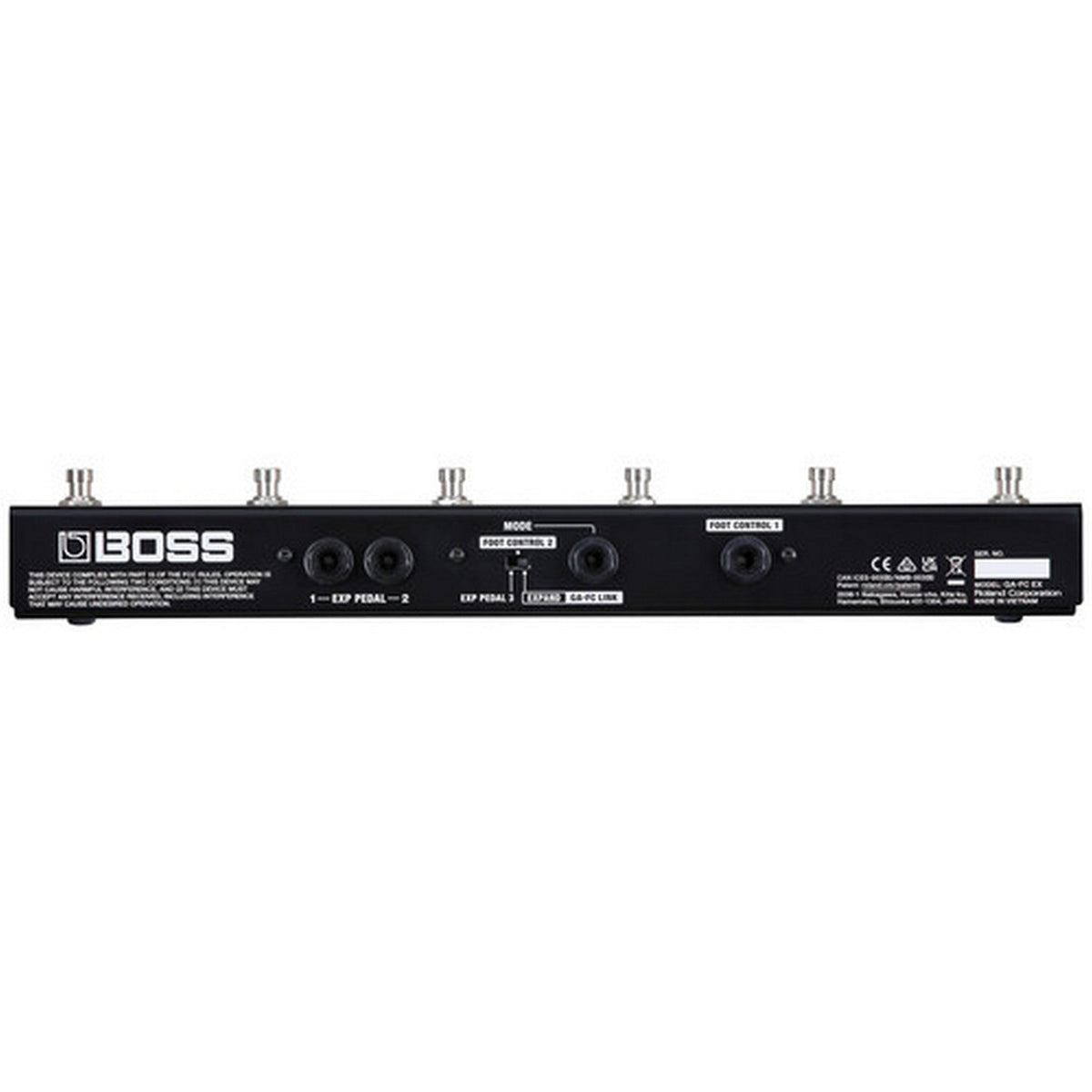

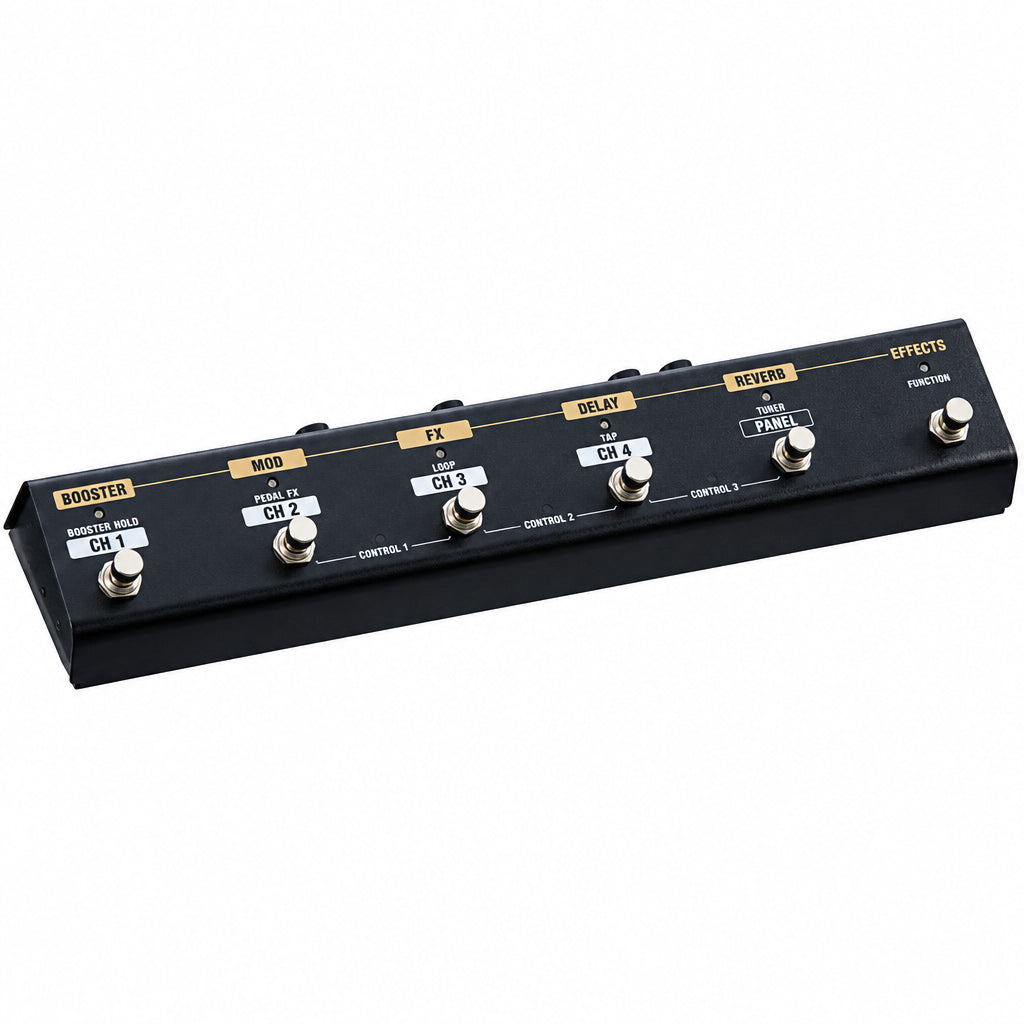

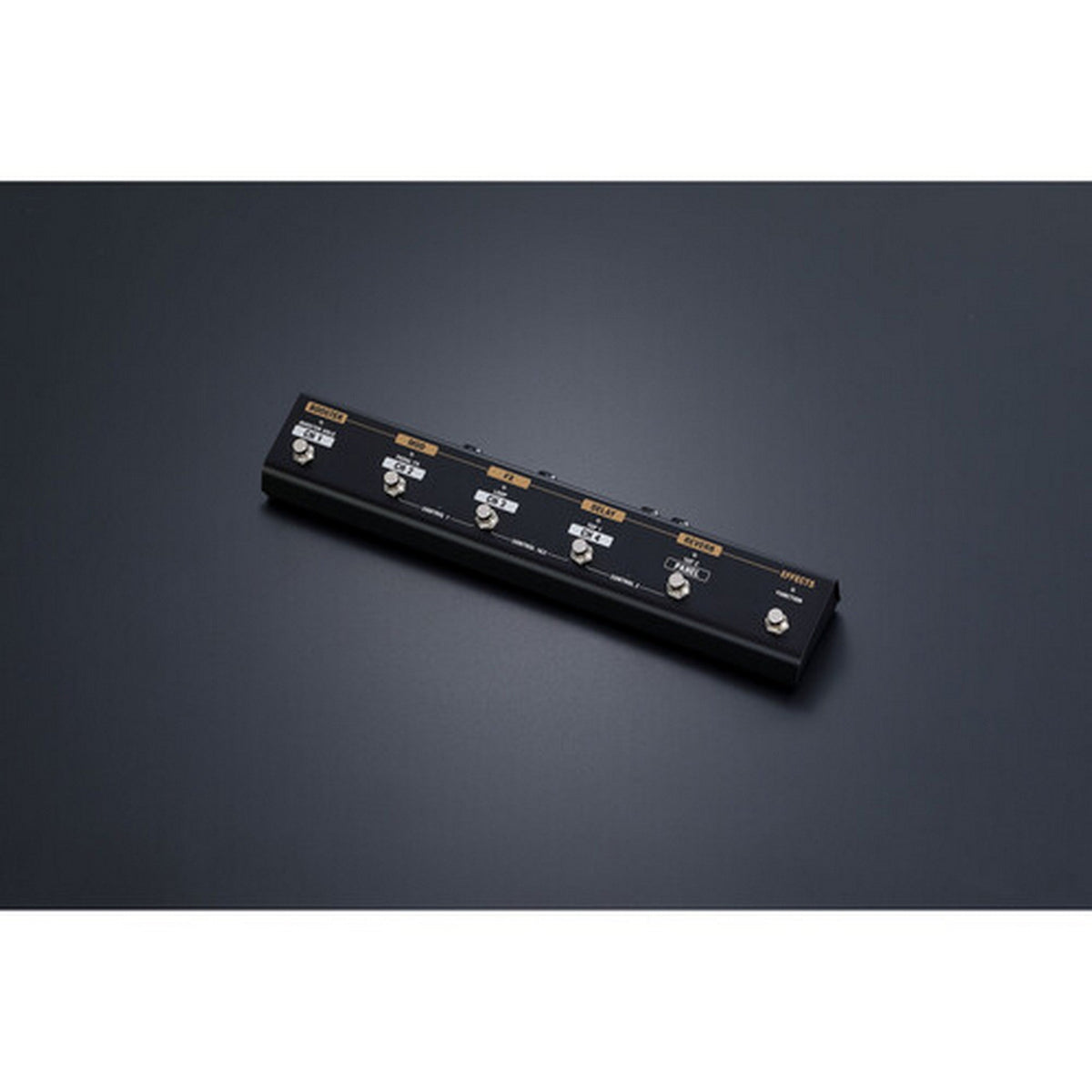

BOSS GA-FC EX Foot Controller

BOSS GA-FC EX Foot Controller for Select BOSS Amplifiers

The BOSS GA-FC EX foot controller provides expanded hands-free control for compatible BOSS amplifiers, including supported Katana Gen 3 and Katana MkII models. Six heavy-duty footswitches handle channel selection, effects, and other amplifier functions, while two-color indicators make the active control state easy to see during rehearsals, recording sessions, and live performances.

The GA-FC EX extends the original GA-FC design with two dedicated expression pedal inputs and a third multifunction control connection. EXPAND mode links another GA-FC EX or GA-FC for additional switches, FOOT CONTROL 2 mode operates two compatible amplifiers, and EXP PEDAL 3 mode adds a third expression pedal. These options make the controller useful for guitarists building more flexible stage and studio amplifier rigs.

A rugged metal chassis supports repeated professional use, while a single 1/4-inch tip-ring-sleeve (TRS) cable connects the controller to a compatible amplifier without requiring an external power supply. The GA-FC EX also works as a standard GA-FC controller with a wider range of BOSS and Roland products, including selected Nextone, Katana Bass, Acoustic Singer, Blues Cube, Gigcaster, and SDE-3000 models.

Key Features

• Six Heavy-Duty Footswitches: Provides direct floor control of channels, effects, and supported amplifier functions.
• Two-Color Status LEDs: Clearly displays control states for easier operation during performances and rehearsals.
• Two Expression Pedal Inputs: Connects compatible expression pedals for continuous control of supported amplifier parameters.
• Three-Way Mode Selector: Configures the additional control jack for expansion, dual-amplifier operation, or a third expression pedal.
• EXPAND Mode: Links a second GA-FC EX or standard GA-FC for expanded access to memories and effects.
• FOOT CONTROL 2 Mode: Controls two compatible amplifiers from one floor controller.
• No External Power Required: Operates through its amplifier connection using the included 1/4-inch TRS cable.
• Metal Construction: Provides a durable platform for frequent stage, rehearsal, and studio use.

Technical Specifications

• Model: GA-FC EX
• Product Type: Amplifier foot controller
• Color: Black
• Construction: Metal chassis
• Footswitches: 6
• Additional Control: Mode switch
• Indicators: CH 1, CH 2, CH 3, CH 4, PANEL, FUNCTION, CONTROL 1, CONTROL 1&2, CONTROL 2
• Expression Pedal Inputs: 2 x 1/4" TRS
• Mode Connection: 1 x 1/4" TRS
• Foot Control 1 Connection: 1 x 1/4" TRS
• Operating Modes: EXPAND, FOOT CONTROL 2, EXP PEDAL 3
• Power Requirement: No external power required
• Full GA-FC EX Compatibility: All Katana Gen 3 models except Katana-50 Gen 3; all Katana MkII models except Katana-50 MkII
• Standard GA-FC Compatibility: Katana-100, Katana-100/212, Katana-Head, Katana-Artist, Nextone Special, Nextone Artist, Nextone Stage, Waza Tube Amp Expander, Katana-210 Bass, Katana-110 Bass, Katana-500 Bass Head, Acoustic Singer Pro, Acoustic Singer Live, Gigcaster 8, Gigcaster 5, SDE-3000EVH, SDE-3000D, Roland Blues Cube Artist, Roland Blues Cube Artist 212, Roland Blues Cube Tour
• Optional Expression Pedals: BOSS FV-500L, BOSS FV-500H, Roland EV-5
• Optional Footswitch: BOSS FS-5U
• Dimensions (W x D x H): 15.4 x 3.2 x 1.9"
• Weight: 2.3 lb

What's In the Box

• BOSS GA-FC EX Foot Controller
• Foot Controller Cable
• Owner's Manual
