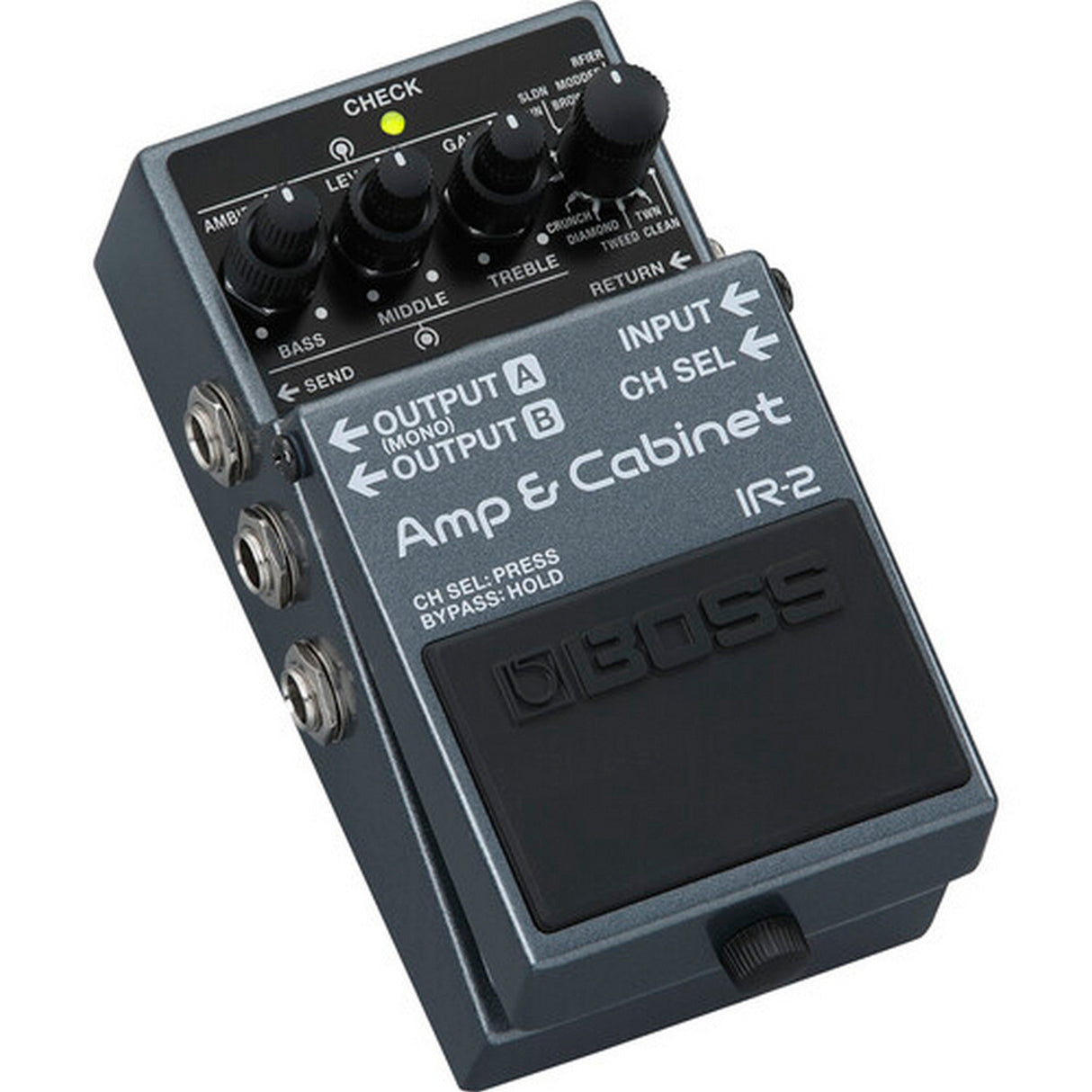

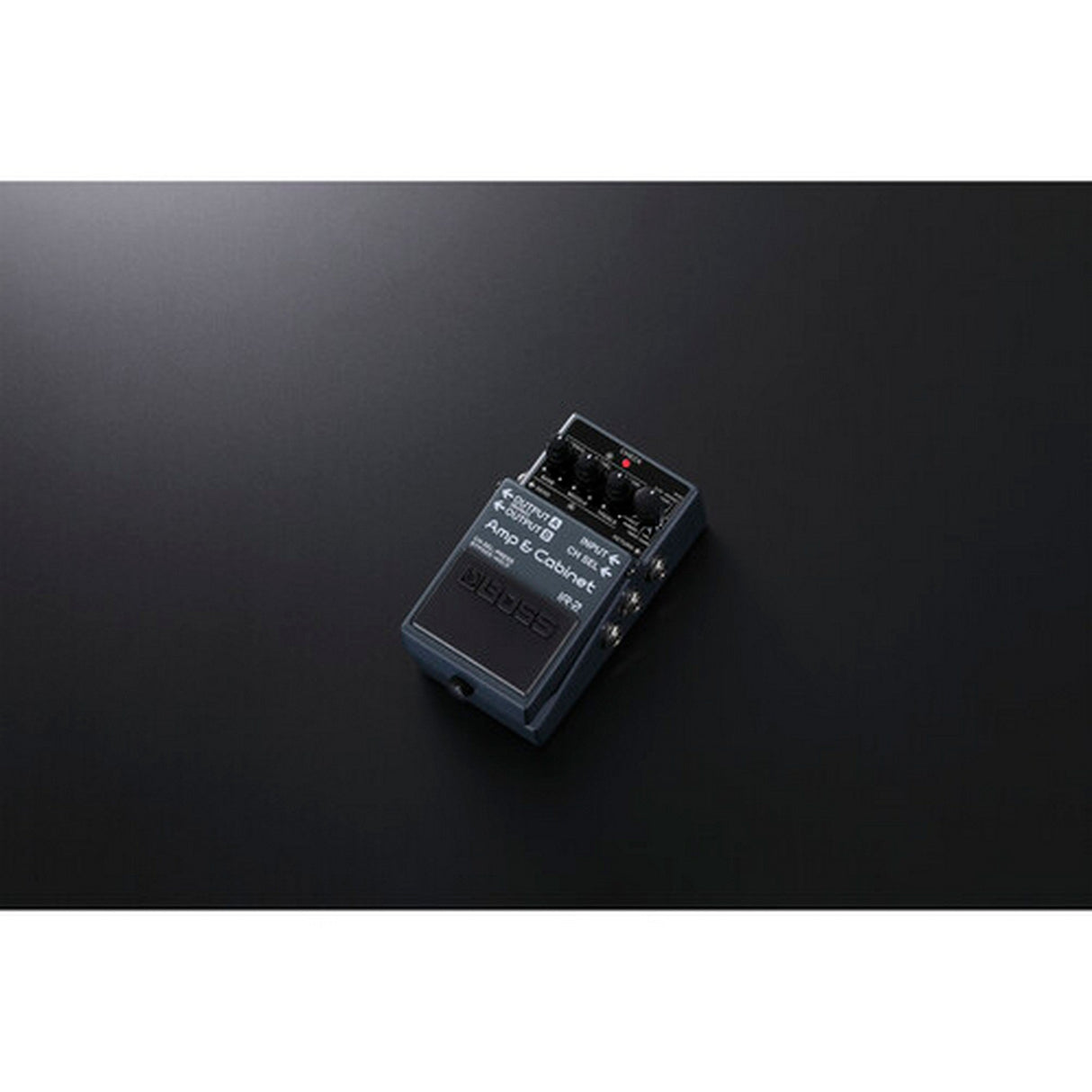

BOSS IR-2 Amp & Cabinet Simulator Pedal with IR Loader

BOSS IR-2 Amp & Cabinet Simulator Pedal

The BOSS IR-2 Amp & Cabinet Simulator Pedal combines 11 guitar amplifier models with matched Celestion Digital cabinet impulse responses (IRs) in a compact stompbox. It supports direct recording, PA connection, headphone practice, custom IR loading, stereo output, and 32-bit floating-point processing at a 96 kHz sampling rate.

Guitarists can build two separate amp-and-cab sounds and switch between them from the onboard pedal or an optional external footswitch. A mono/stereo effects loop places modulation, delay, and reverb pedals after the amplifier emulation, while dedicated Gain, three-band EQ, Level, and Ambience controls provide fast sound shaping without menu navigation.

USB-C provides direct audio recording and playback with compatible computers and mobile devices while also supporting the dedicated IR Loader application. Eleven cabinet locations accept compatible custom WAV impulse responses, and the amp and cabinet sections can operate independently. Buffered bypass, stereo outputs, and a headphone connection support pedalboards, silent practice, recording rigs, and direct live performance.

Key Features

• 11 Amp and Cabinet Combinations: Covers clean, vintage, crunch, and high-gain amplifier styles paired with Celestion Digital cabinet IRs.
• Custom IR Loading: Loads compatible mono WAV cabinet impulse responses through the dedicated IR Loader application.
• Two Switchable Channels: Stores two amp-and-cab configurations that can be selected from the pedal or an optional external footswitch.
• 96 kHz Processing: Uses 24-bit plus AF method A/D conversion, 32-bit D/A conversion, and 32-bit floating-point processing.
• Post-Amp Effects Loop: Mono send and stereo-capable TRS return connections integrate modulation, delay, and reverb after amp processing.
• USB-C Audio: Connects directly to compatible recording software and supports playback from computers or mobile devices.
• Stereo and Headphone Outputs: Supports direct PA feeds, stereo rigs, recording, monitoring, and quiet practice.
• Independent Amp and Cabinet Sections: Allows the amplifier emulation and cabinet IR processing to be enabled or disabled separately.

Technical Specifications

• Brand: BOSS
• Model: IR-2
• Product Type: Amp and cabinet simulator pedal
• Instrument: Guitar
• Sampling Frequency: 96 kHz
• A/D Conversion: 24-bit plus AF method
• D/A Conversion: 32-bit
• Processing: 32-bit floating point
• Amp Types: 11
• Amp Models: CLEAN, TWN, TWEED, DIAMOND, CRUNCH, BRIT, HI-GAIN, SLDN, BROWN, MODDED, RFIER
• CLEAN Cabinet IR: 1x12" Celestion V-Type
• TWN Cabinet IR: 2x12" Celestion A-Type
• TWEED Cabinet IR: 4x10" Celestion G10 Gold
• DIAMOND Cabinet IR: 2x12" Celestion Blue
• CRUNCH Cabinet IR: 2x12" Celestion G12-65
• BRIT Cabinet IR: 4x12" Celestion G12M-Heritage
• HI-GAIN Cabinet IR: 4x12" Celestion G12M Creamback
• SLDN Cabinet IR: 4x12" Celestion Vintage 30
• BROWN Cabinet IR: 4x12" Celestion G12M-Heritage
• MODDED Cabinet IR: 4x12" Celestion G12K-100
• RFIER Cabinet IR: 4x12" Celestion Vintage 30
• Preset IR Cabinets: 11
• User IR Cabinet Slots: 11, shared with the preset IR cabinet locations
• Custom IR Format: Mono WAV, maximum 500 ms
• Custom IR Sample Rates: 44.1, 48, or 96 kHz
• Custom IR Bit Depth: 16-bit linear, 24-bit linear, or 32-bit floating point
• Nominal Input Level: INPUT and RETURN -20 dBu
• Maximum Input Level: INPUT and RETURN +7 dBu
• Input Impedance: INPUT and RETURN 1 M ohm
• Nominal Output Level: OUTPUT A, OUTPUT B, SEND, and PHONES -20 dBu
• Maximum Output Level: OUTPUT A, OUTPUT B, SEND, and PHONES +7 dBu
• Output Impedance: OUTPUT A, OUTPUT B, and SEND 1 k ohm; PHONES 44 ohms
• Recommended Load Impedance: OUTPUT A, OUTPUT B, and SEND 10 k ohms or greater; PHONES 44 ohms or greater
• Bypass: Buffered bypass

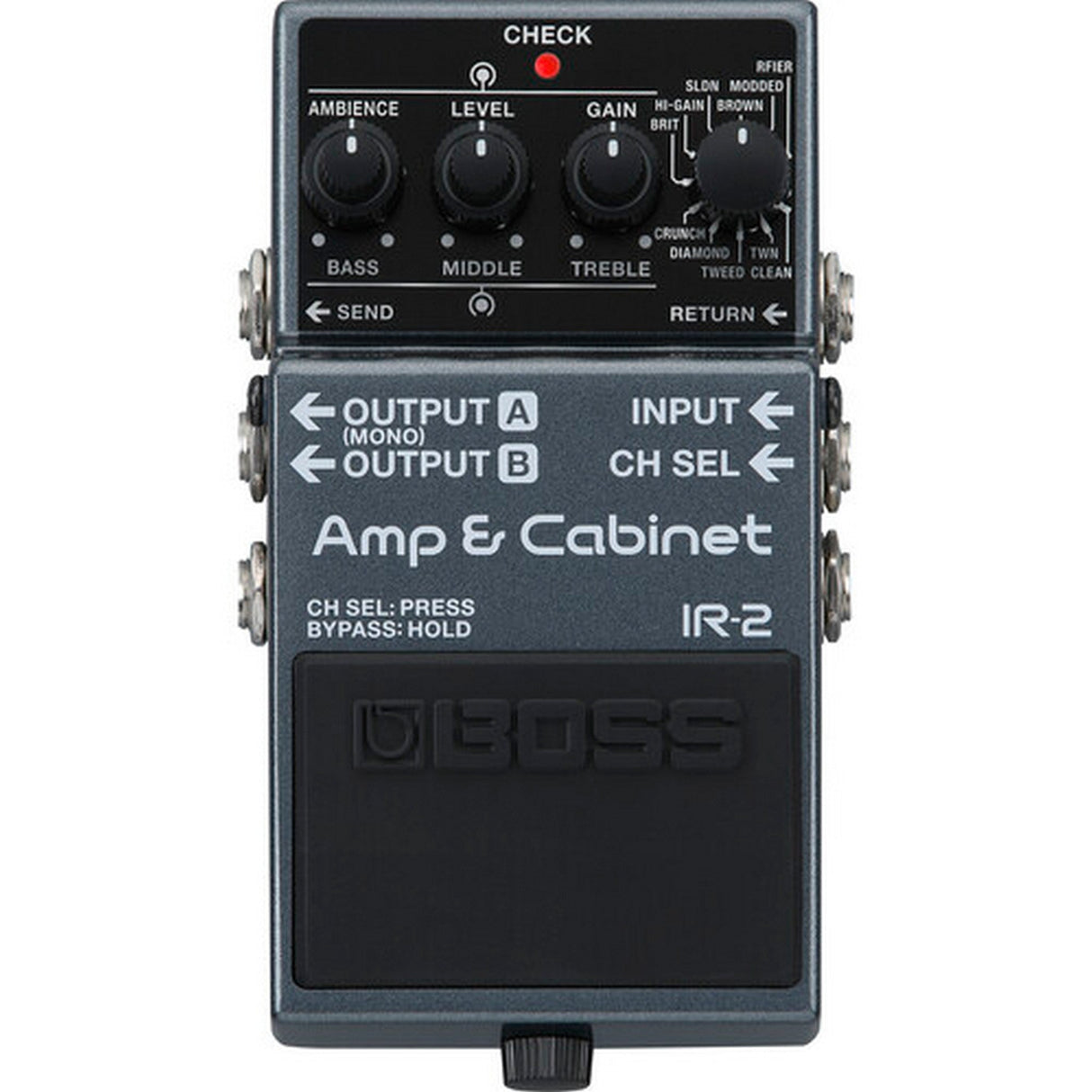

• Controls: TYPE, GAIN, TREBLE, MIDDLE, BASS, LEVEL, AMBIENCE, pedal switch
• Indicator: CHECK indicator for channel and battery-status indication
• Input: 1 x 1/4-inch phone-type jack
• Outputs: OUTPUT A/MONO and OUTPUT B, 1/4-inch phone-type jacks
• Effects Send: 1 x 1/4-inch phone-type SEND jack
• Effects Return: 1 x 1/4-inch TRS RETURN jack with stereo support
• External Control: 1 x 1/4-inch CH SEL jack

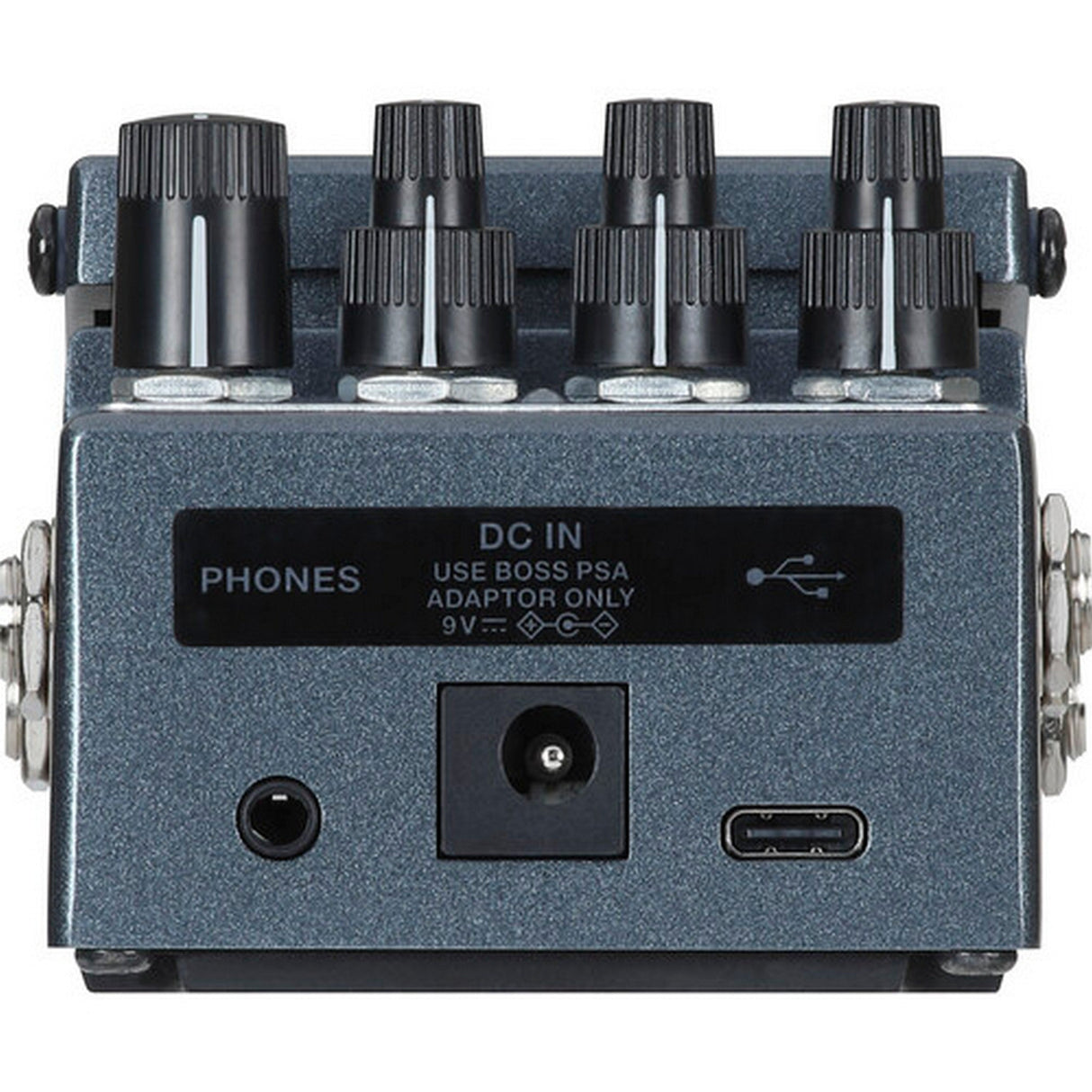

• Headphone Output: 1 x stereo 3.5 mm miniature phone jack
• USB: USB Type-C
• Wireless: None
• Power: 9 V alkaline battery or optional PSA-series AC adapter
• Compatible Battery: 6LR61 or 6LF22 alkaline 9 V
• Current Draw: 160 mA
• Expected Battery Life: Approximately 3.5 hours with a 6LR61 alkaline battery under continuous use
• Optional Footswitch: BOSS FS-5U
• Optional Dual Footswitches: BOSS FS-6, FS-7
• Dimensions (W x D x H): 2.9 x 5.1 x 2.3"
• Weight: 1 lb including battery
• Package Dimensions (L x W x H): 5.7 x 4.6 x 2.5"
• Package Weight: 1.2 lb
• Manufacturer Warranty: 5 years

What's In the Box

• BOSS IR-2 Amp & Cabinet Simulator Pedal
• 9 V alkaline battery
• Safety, Important Notes, and Information leaflet
