BOSS IR-200 Amp & IR Cabinet Simulator Pedal

BOSS IR-200 Amp & IR Cabinet Simulator Pedal

The BOSS IR-200 Amp & IR Cabinet Simulator Pedal combines eight guitar amps, three bass amps, 154 preset cabinet impulse responses, and 128 user IR slots in a compact direct-sound processor. It supports mono or stereo IRs, dual-IR processing, 128 memories, USB audio, MIDI control, and flexible routing for stage, studio, and practice.

Guitarists and bassists can build direct tones for a PA, recording system, headphones, or conventional amplifier without relying on a separate cabinet. Two cabinet IRs can run simultaneously for blended or stereo sounds, while two configurable EQ blocks, three ambience types, and a movable effects loop provide deeper tone shaping. The 128 memories make complex live and studio configurations easy to recall.

High-resolution processing operates at 96 kHz with 32-bit conversion and 32-bit floating-point DSP. Custom impulse responses can be loaded in mono or stereo WAV format at up to 500 ms. Stereo outputs, an auxiliary input, headphone monitoring, external control, TRS MIDI, and USB audio interface functionality make the IR-200 suitable for professional pedalboards, recording workflows, livestreaming, and silent practice.

Key Features

• 11 Amp Types: Includes eight guitar and three bass amplifier models covering clean, vintage, high-gain, and driven sounds.
• 154 Preset Cabinet IRs: Provides 144 BOSS cabinet impulse responses plus 10 Celestion Digital IRs.
• 128 User IR Slots: Loads custom mono or stereo WAV cabinet IRs at up to 32-bit floating-point and 96 kHz resolution.
• Dual-IR Processing: Runs up to two cabinet impulse responses simultaneously for blended or stereo configurations.
• 128 Memories: Stores complete amp, cabinet, EQ, ambience, routing, and control configurations for instant recall.
• Flexible Effects Loop: Provides mono send and stereo-capable return with selectable placement within the processing chain.
• USB Audio Interface: Supports recording, playback, monitoring, and re-amping with compatible computers and iOS devices.
• MIDI and External Control: TRS MIDI, footswitch, and expression-pedal connections support advanced pedalboard automation.

Technical Specifications

• Brand: BOSS
• Model: IR-200
• Product Type: Amp and IR cabinet simulator pedal
• Instrument Compatibility: Guitar, bass
• Sampling Frequency: 96 kHz
• A/D Conversion: 32-bit plus AF method
• D/A Conversion: 32-bit
• Processing: 32-bit floating point
• Memories: 128
• Guitar Amp Types: 8
• Guitar Amp Models: NATURAL, JC-120, TWIN COMBO, DIAMOND AMP, TWEED COMBO, X-HI GAIN, BRITISH STACK, BGR UB METAL
• Bass Amp Types: 3
• Bass Amp Models: NATURAL BASS, X-DRIVE BASS, CONCERT
• Preset Cabinet IRs: 154
• BOSS Preset IRs: 144
• Celestion Digital Preset IRs: 10
• User IR Slots: 128
• Simultaneous IRs: Up to 2
• IR Channels: Mono or stereo
• Maximum IR Length: 500 ms
• Supported IR Sample Rates: 44.1, 48, 96 kHz
• Supported IR Bit Depths: 16-bit linear, 24-bit linear, 32-bit floating point
• Memory EQ: 2 EQ blocks per memory with selectable parametric or graphic operation
• Global EQ: 2 EQ blocks with selectable parametric or graphic operation
• Ambience Types: Room, Studio, Hall
• Effects Loop: Mono send, mono/stereo return
• Effects Loop Position: Selectable pre-cab or post-EQ positioning
• Nominal Input Level: INPUT and RETURN -10 dBu; AUX IN -20 dBu
• Maximum Input Level: INPUT and RETURN +7 dBu; AUX IN 0 dBu
• Input Impedance: INPUT and RETURN 1 M ohm; AUX IN 27 k ohms
• Nominal Output Level: OUTPUT A/MONO, OUTPUT B, SEND, and PHONES -10 dBu
• Maximum Output Level: OUTPUT A/MONO, OUTPUT B, SEND, and PHONES +7 dBu
• Output Impedance: OUTPUT A/MONO, OUTPUT B, and SEND 1 k ohm; PHONES 44 ohms
• Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B, and SEND 10 k ohms or greater; PHONES 44 ohms or greater
• Footswitches: DOWN, UP

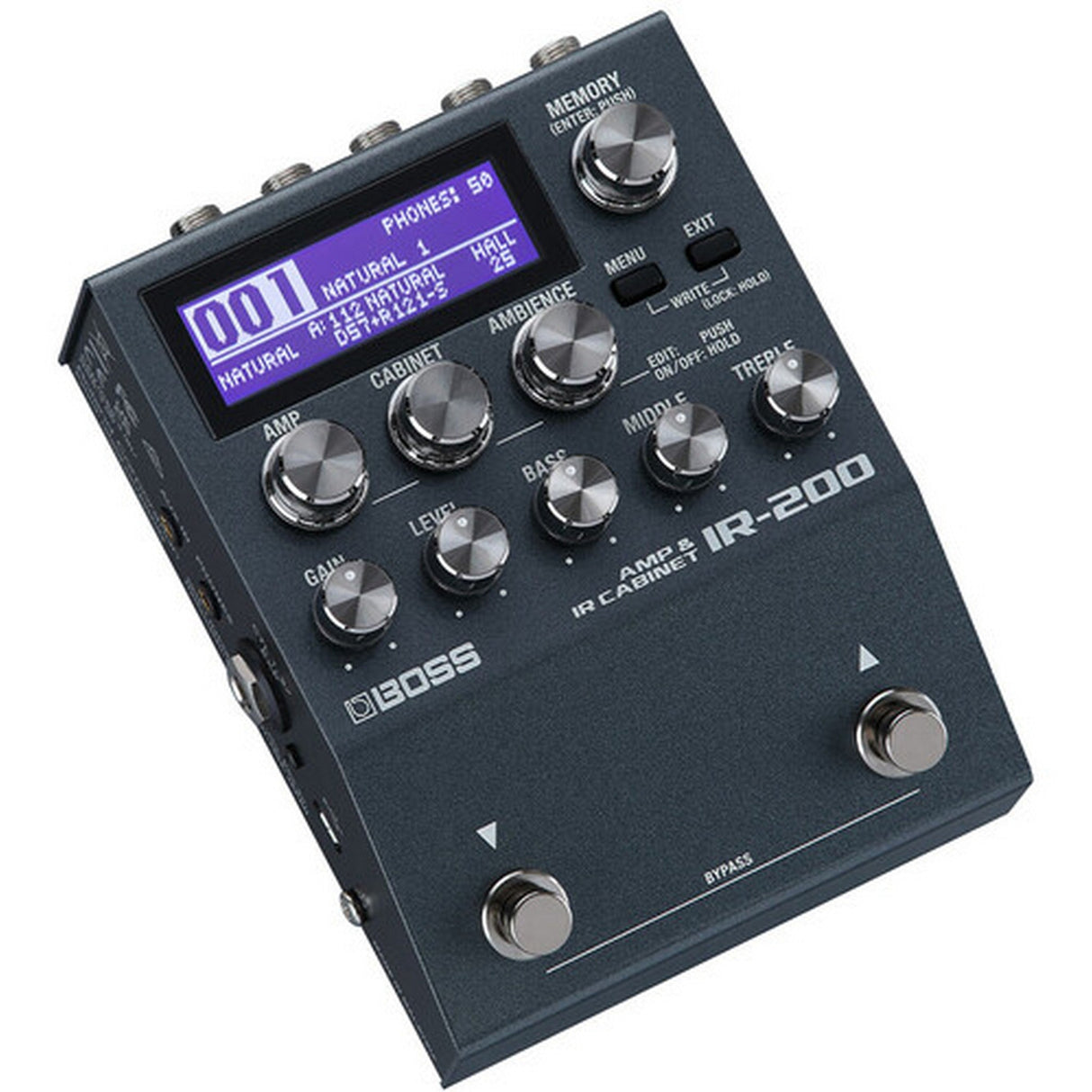

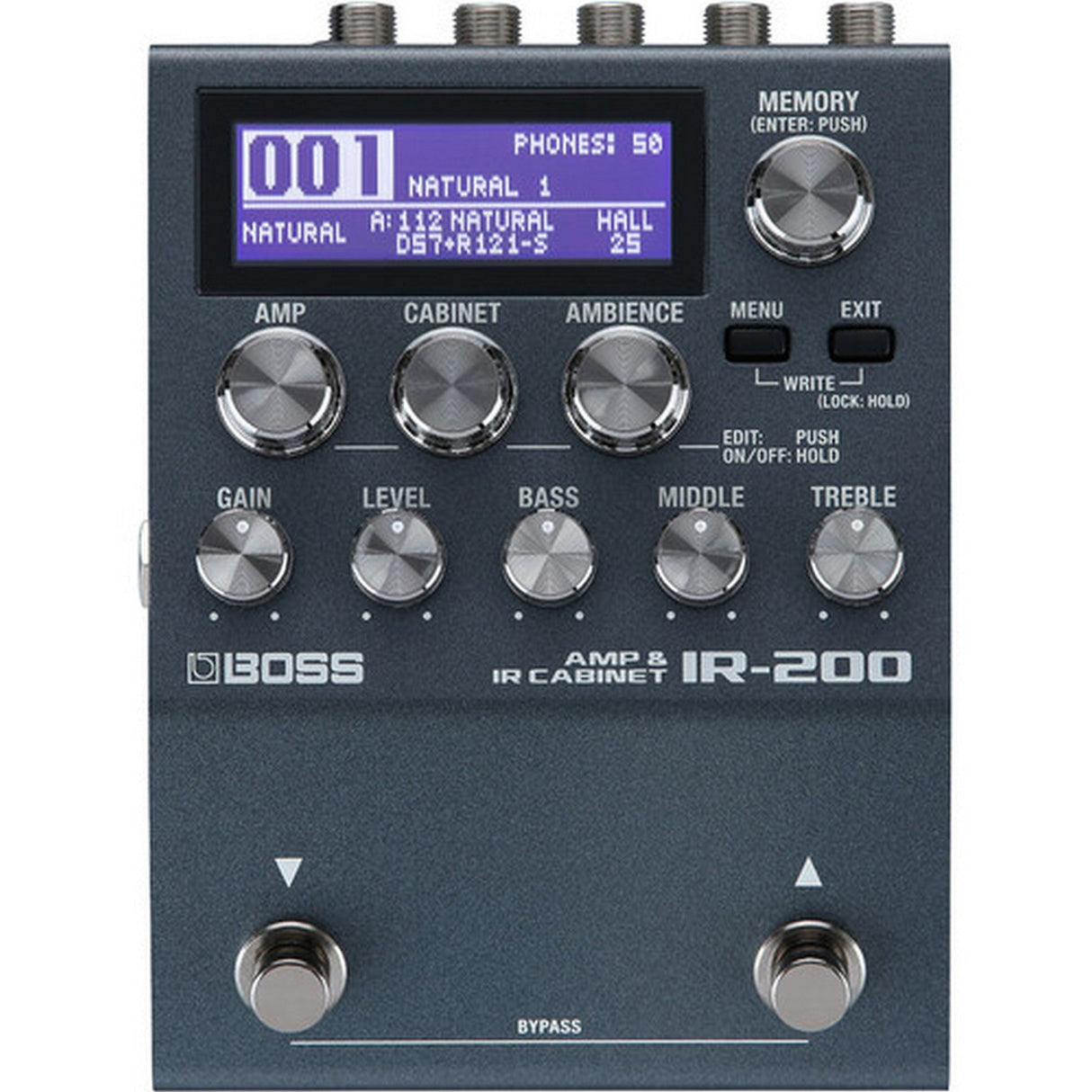

• Panel Controls: MEMORY, AMP, CABINET, AMBIENCE, GAIN, LEVEL, BASS, MIDDLE, TREBLE, MENU, EXIT
• Display: 132 x 32-dot backlit graphic LCD

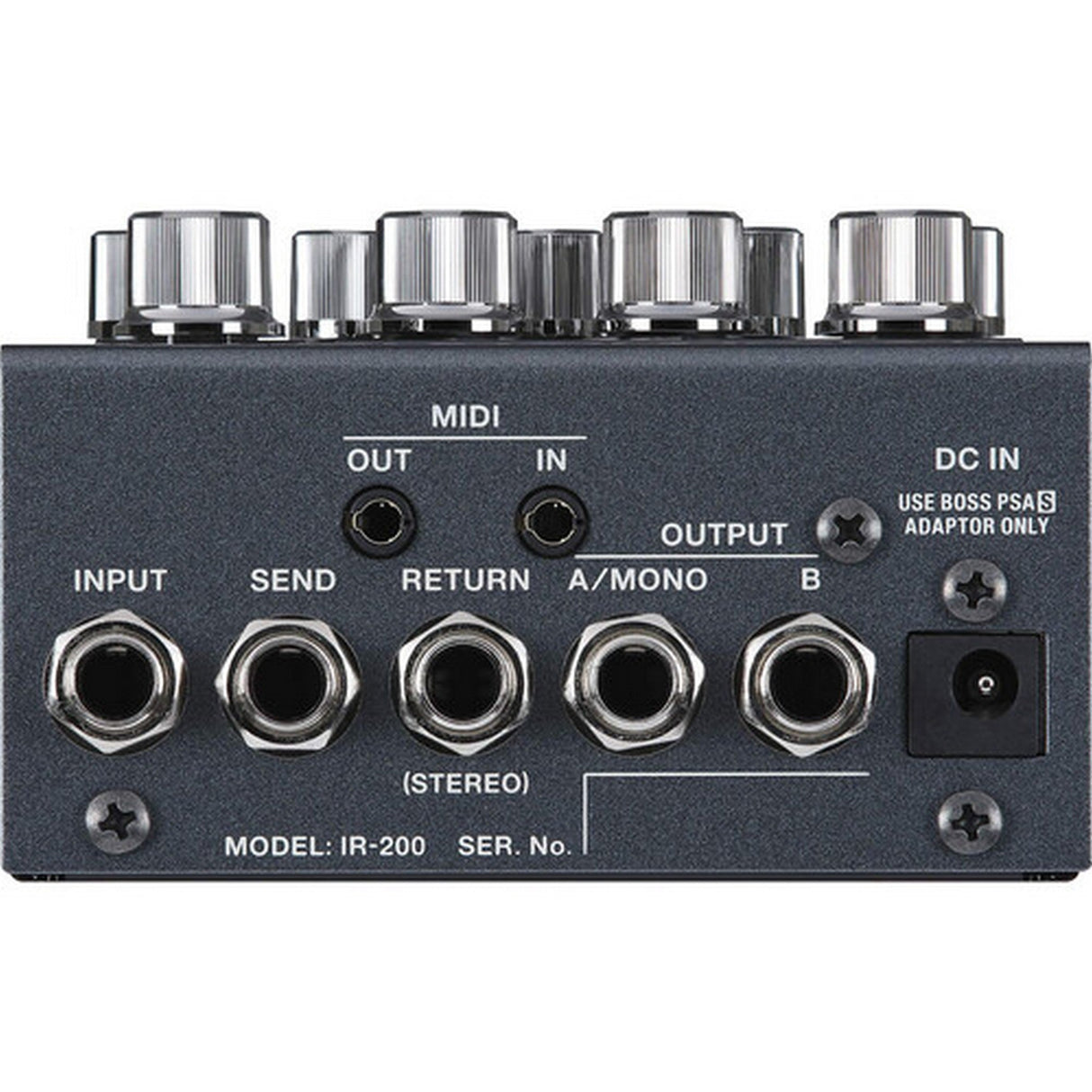

• Input: 1 x 1/4-inch phone-type jack
• Effects Send: 1 x 1/4-inch phone-type jack
• Effects Return: 1 x 1/4-inch TRS phone-type jack
• Main Outputs: OUTPUT A/MONO and OUTPUT B, 1/4-inch phone-type jacks

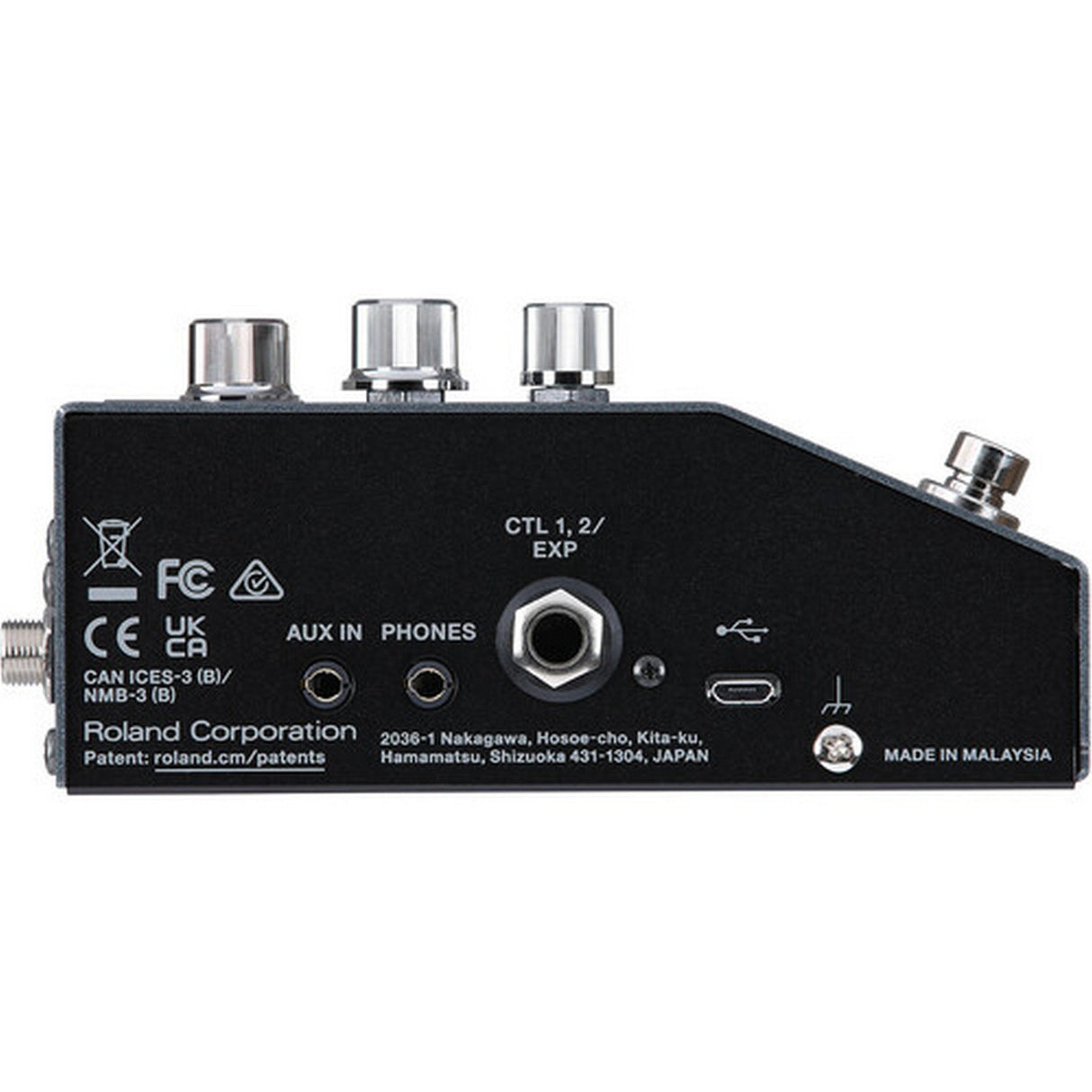

• Auxiliary Input: 1 x stereo 3.5 mm miniature phone jack
• Headphone Output: 1 x 3.5 mm stereo headphone jack
• External Control: CTL 1,2/EXP, 1/4-inch TRS phone type
• MIDI: MIDI IN and MIDI OUT, stereo 3.5 mm TRS
• USB: USB Micro-B COMPUTER port
• USB Function: Audio interface, recording, playback, and re-amping
• Power Supply: Included AC adapter
• Current Draw: 335 mA
• Off-Mode Power Consumption: 0.1 W when automatically powered off
• Optional Footswitch: BOSS FS-5U
• Optional Dual Footswitches: BOSS FS-6, FS-7
• Optional Expression Pedals: BOSS FV-500H, FV-500L, EV-30, Roland EV-5
• Optional TRS/MIDI Cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• Dimensions (W x D x H): 4 x 5.4 x 2.5"
• Height Including Rubber Feet: 2.6"
• Weight: 1.5 lb excluding AC adapter

What's In the Box

• BOSS IR-200 Amp & IR Cabinet Simulator Pedal
• AC adapter
• 4 rubber feet
• Safety leaflet
• Owner's manual information leaflet
