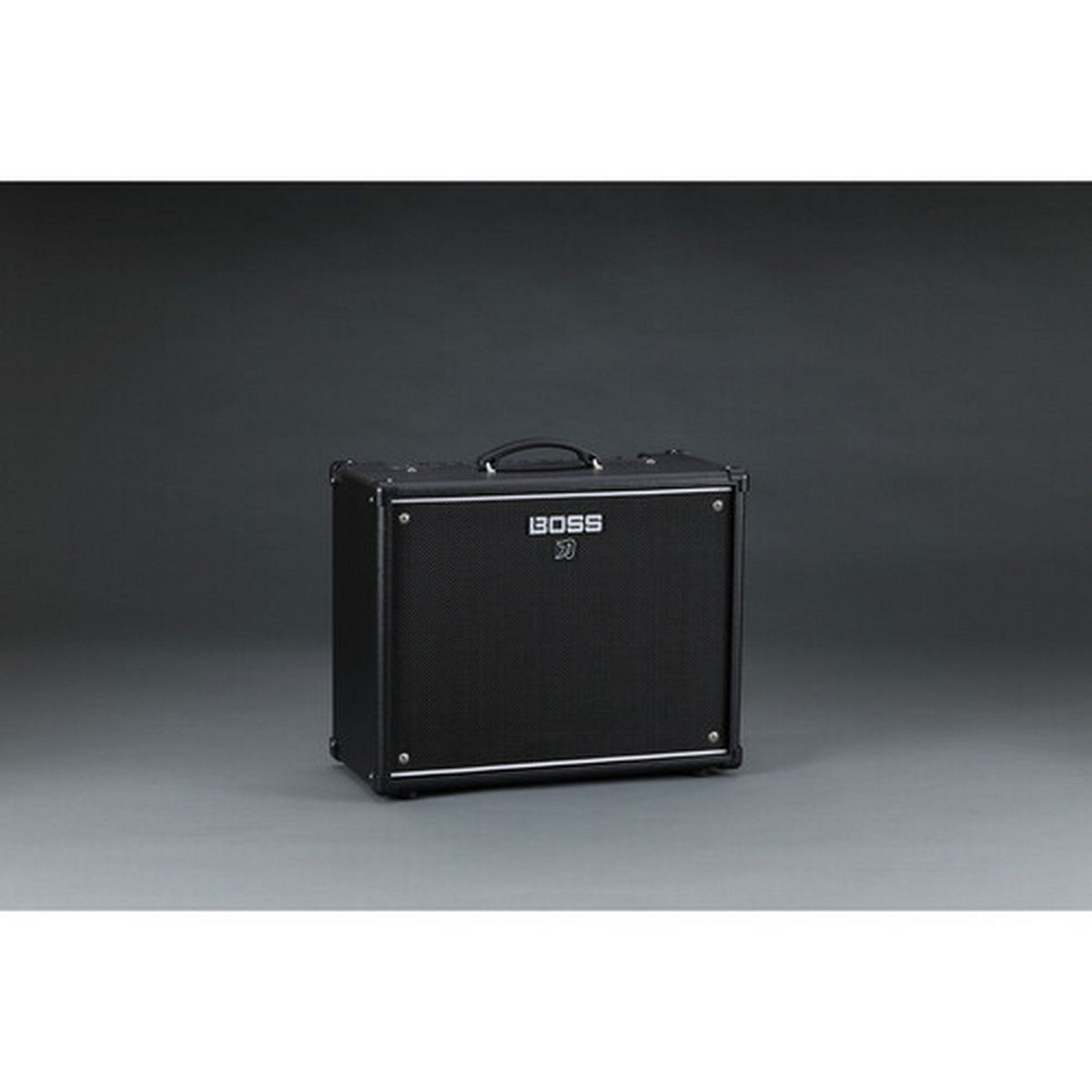

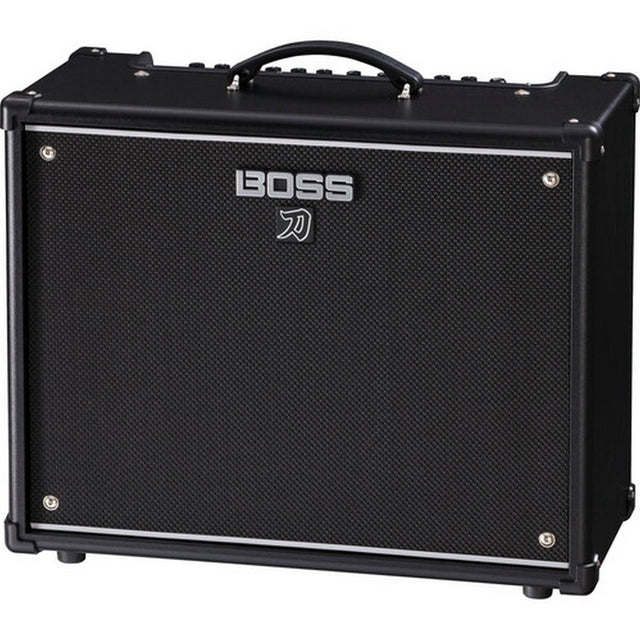

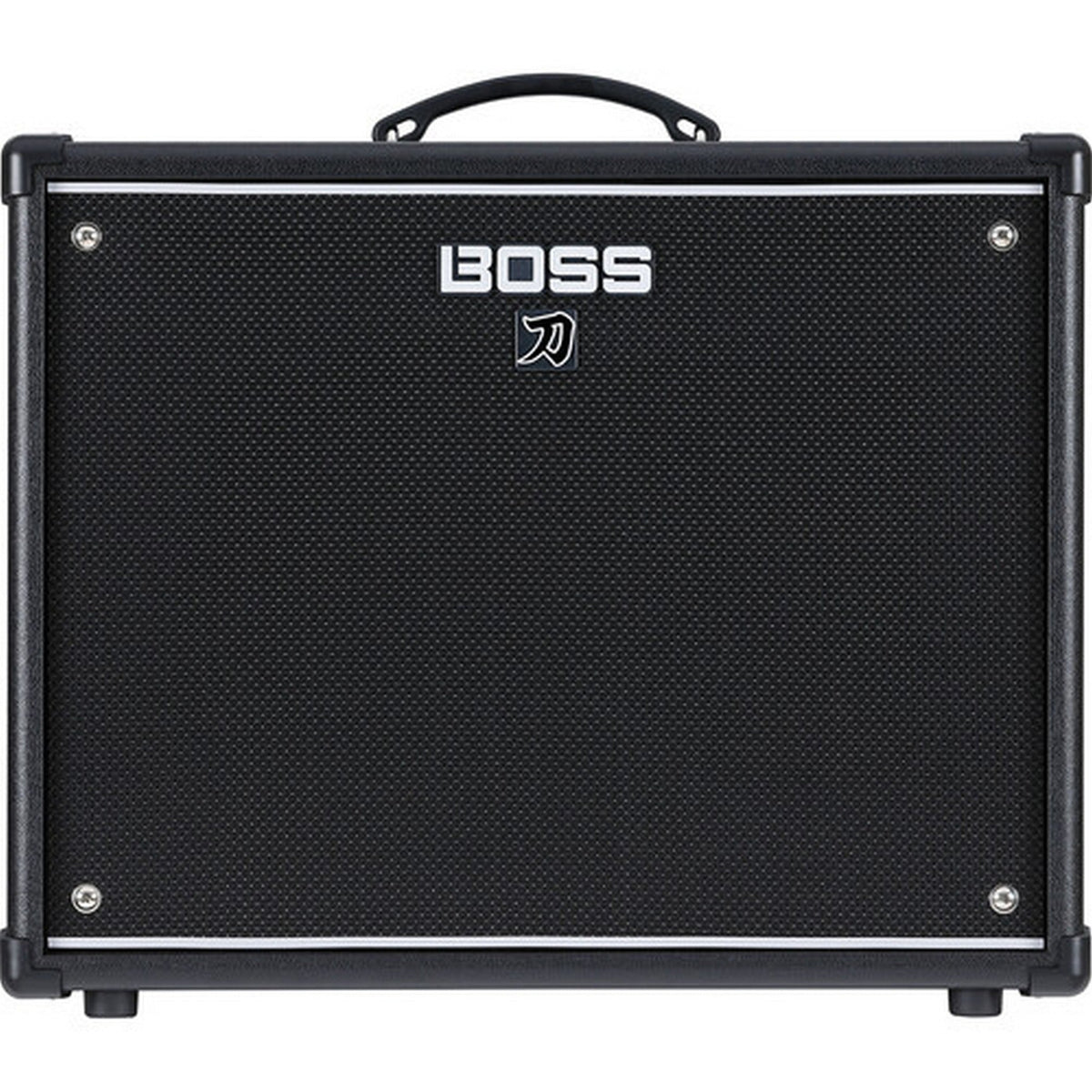

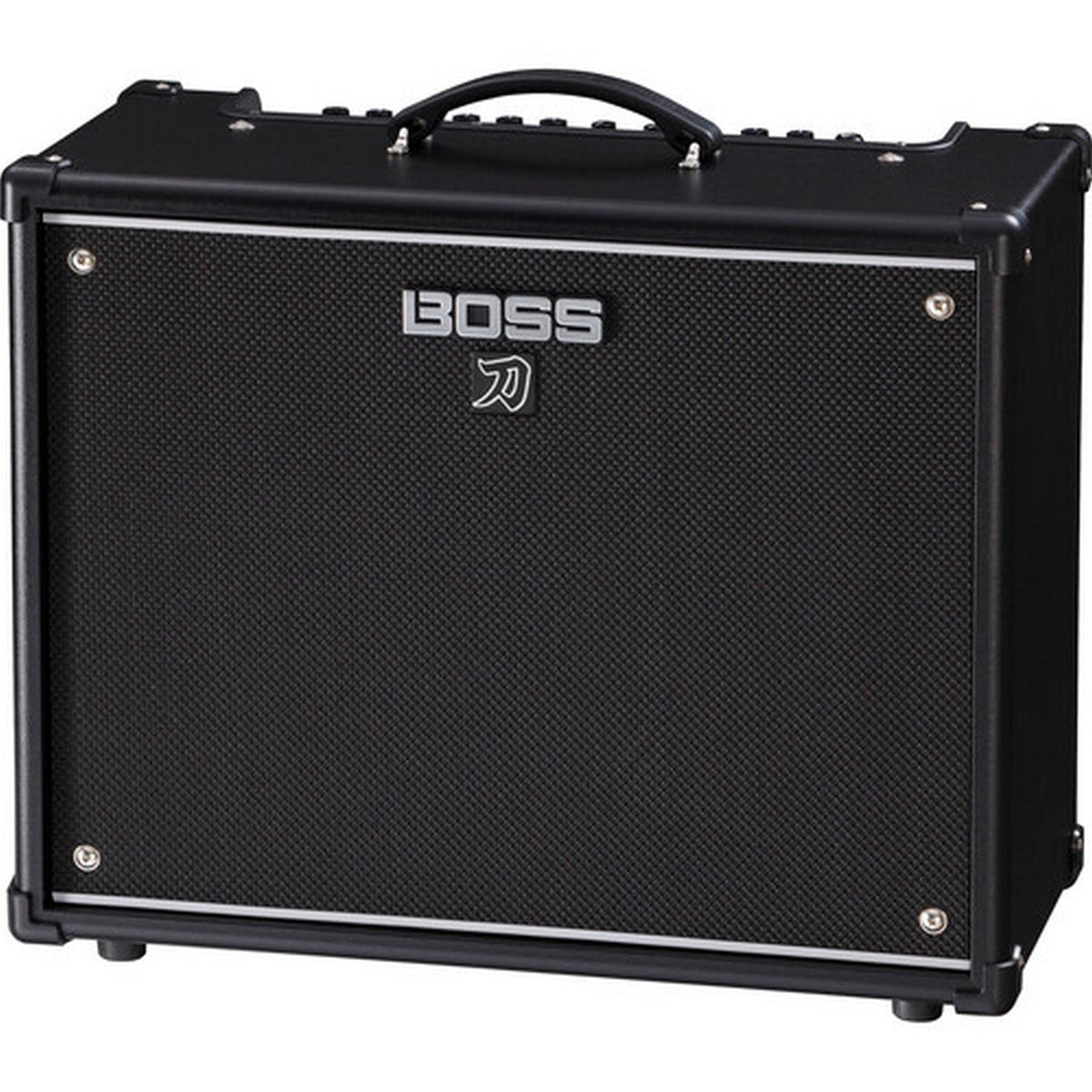

BOSS Katana-100 Gen 3 100W 1x12 Modeling Guitar Amplifier

BOSS Katana-100 Gen 3 100W Modeling Combo Guitar Amplifier

The BOSS Katana-100 Gen 3 guitar amplifier combines 100 watts of reactive Class AB power with a custom 12-inch speaker, evolved Tube Logic technology, and extensive onboard tone shaping. Six amplifier characters with selectable variations provide 12 core voices, while five independent effects sections support practice, recording, rehearsal, and stage performance.

The Acoustic, Clean, Pushed, Crunch, Lead, and Brown amp types cover everything from clean instrument amplification to saturated high-gain sounds. Players looking for a 100W guitar combo for live performance, a 1x12 modeling amplifier for recording, or a Katana amp with an effects loop also get eight Tone Setting memories, Power Control, three Contour settings, and selectable cabinet resonance.

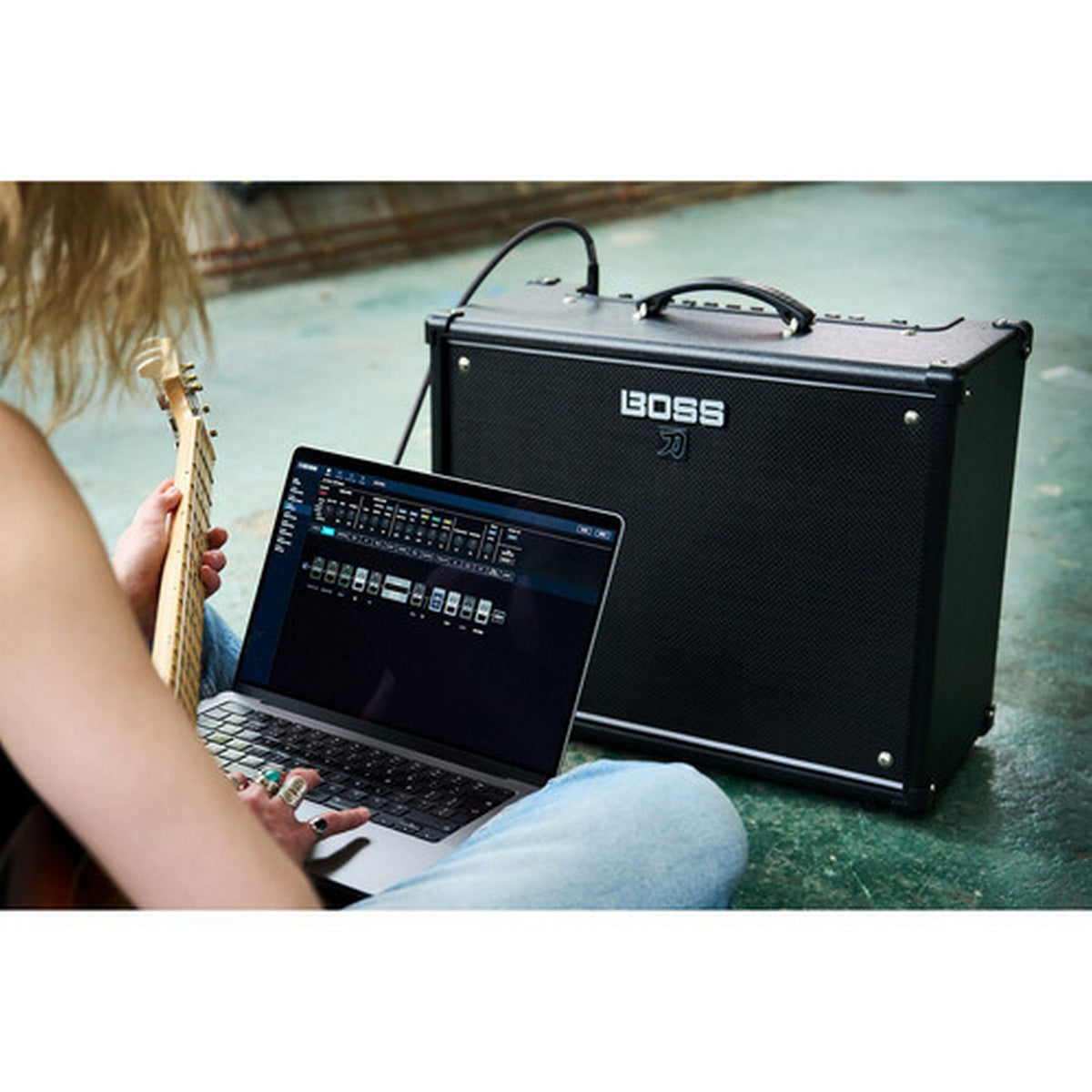

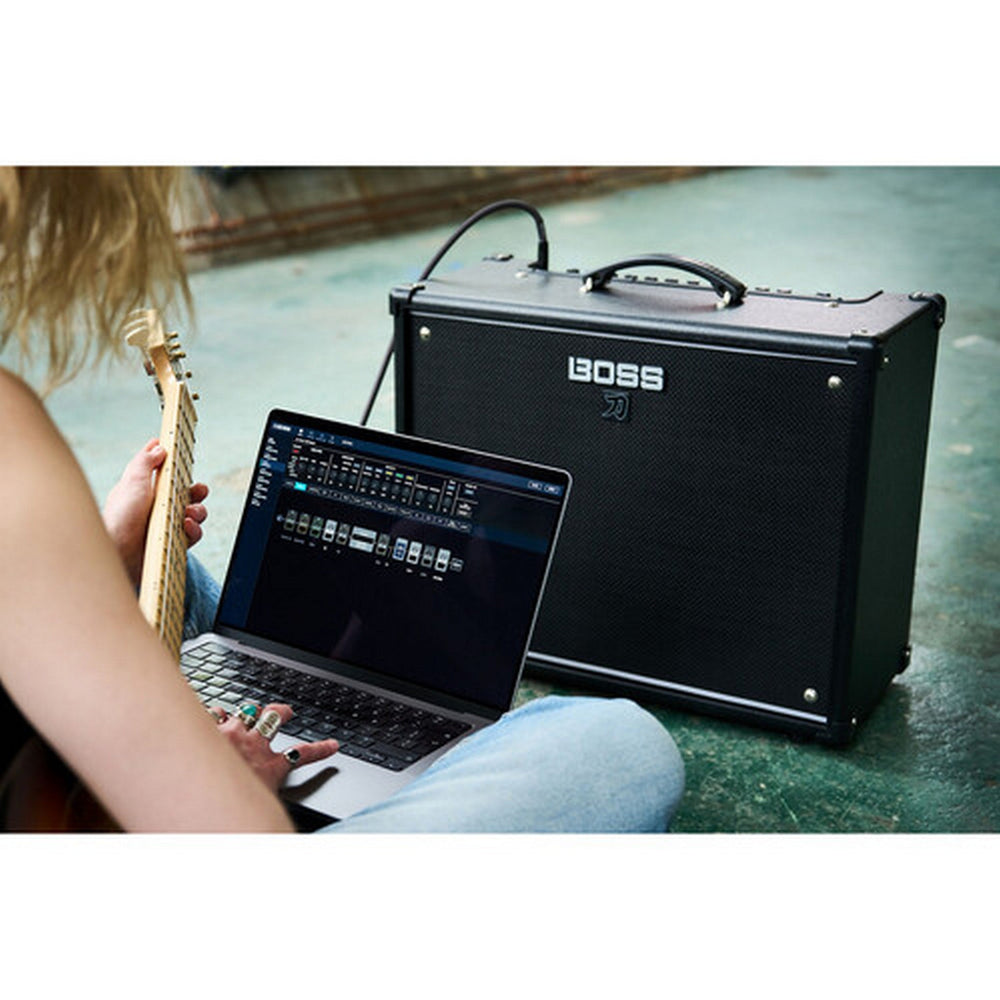

USB-C supports computer and mobile-device recording, while the line and stereo headphone outputs use IR-based cabinet sound with selectable Air Feel settings. Stereo Expand links a second compatible Katana amplifier, and the send/return loop integrates external effects. The GA-FC and GA-FC EX foot controllers are supported, while the optional BT-DUAL adapter adds Bluetooth audio and wireless mobile editing.

Key Features

• 100W Class AB Power: Delivers stage-ready output through BOSS Tube Logic architecture and a reactive power section.
• Custom 12-Inch Speaker: Uses a single purpose-designed speaker for a portable 1x12 combo configuration.
• Six Amp Characters: Select Acoustic, Clean, Pushed, Crunch, Lead, or Brown, with a variation available for every type.
• Five Effects Sections: Runs Booster, Mod, FX, Delay, and Reverb with direct panel controls and additional editing options.
• Eight Tone Memories: Stores complete amplifier and effect setups for fast recall during rehearsals, sessions, and performances.
• Power Control: Offers Standby, 0.5W, Half, and Max settings for responsive tones at different listening levels.

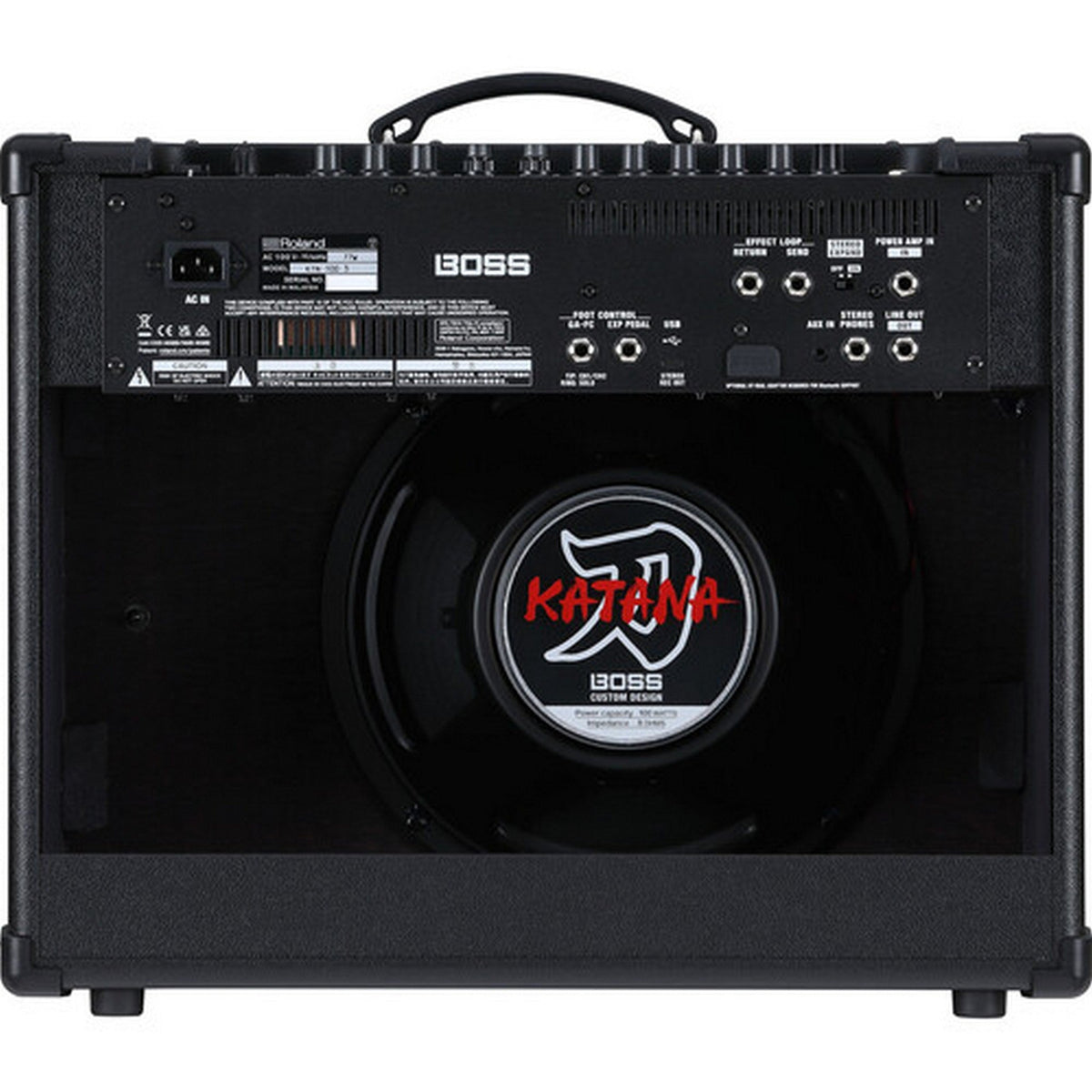

• Stage and Studio Connectivity: Includes an effects loop, line output, stereo headphones, USB-C, Power Amp In, and Stereo Expand functionality.
• Expandable Control: Supports compatible footswitches, expression pedals, GA-FC controllers, and the optional BT-DUAL Bluetooth adapter.

Technical Specifications

• Model: Katana-100 Gen 3
• Manufacturer Part Number: KTN-100 3
• Amplifier Type: Modeling combo guitar amplifier
• Amplifier Technology: Tube Logic with reactive Class AB power
• Rated Power Output: 100 W
• Speaker: 1 x 12" custom speaker
• Speaker Impedance: 8 ohms
• Amp Types: Acoustic, Clean, Pushed, Crunch, Lead, Brown
• Amp Variations: Selectable variation for each amp type
• Tone Setting Memories: 8
• Effects Sections: Booster, Mod, FX, Delay, Reverb
• Effect Variations: 3 per onboard effects section
• BOSS Tone Studio Effects: More than 60 available effect types
• Equalizer: Bass, Middle, Treble
• Contour: 3 selectable settings
• Cabinet Resonance: Vintage, Modern, Deep
• Power Control: Standby, 0.5 W, Half, Max
• Input Nominal Level: -10 dBu, 1 megohm
• Aux Input Nominal Level: -10 dBu, 20 kilohms
• Return Input Nominal Level: -10 dBu, 100 kilohms
• Instrument Input: 1/4" phone jack
• Power Amp Input: 1/4" phone jack
• Line Output: 1/4" phone jack
• Effects Send: 1/4" phone jack
• Effects Return: 1/4" phone jack
• Stereo Headphone Output: 1/4" stereo phone jack
• Expression Pedal Connection: 1/4" TRS phone jack
• Foot Controller Connection: 1/4" TRS GA-FC/CTL CH1/CH2 SOLO jack
• Auxiliary Input: 3.5 mm stereo mini phone jack
• USB Computer Port: USB-C
• Bluetooth Adapter Slot: Supports optional BT-DUAL Bluetooth Audio MIDI Dual Adaptor
• Stereo Expand: Supported
• Power Input: AC mains
• Power Consumption: 77 W

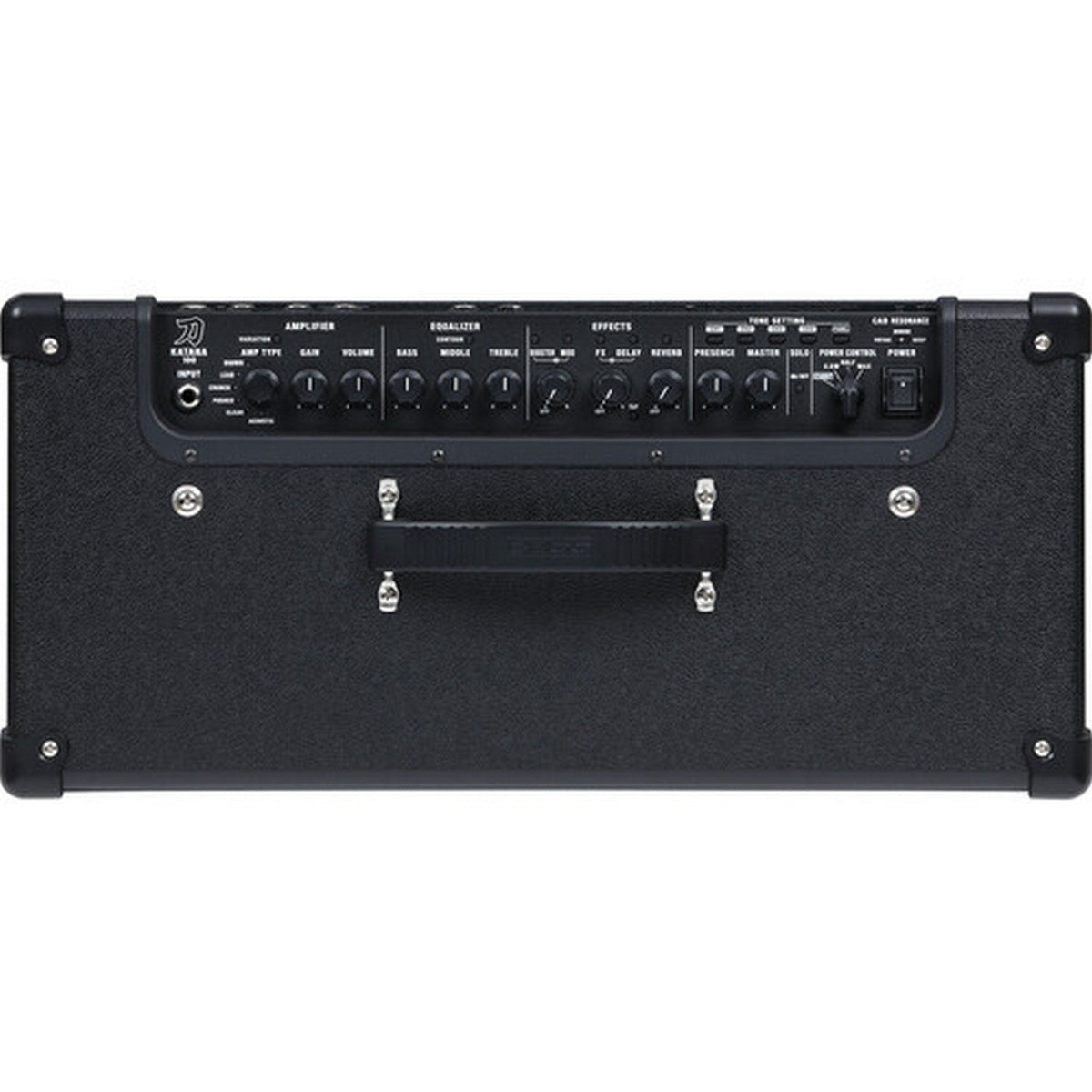

• Controls: Power, Presence, Master, Solo, Power Control, Cabinet Resonance, Variation, Amp Type, Gain, Volume, Contour, Bass, Middle, Treble, Booster, Mod, FX, Delay, Reverb, Tap, CH1, CH2, CH3, CH4, Panel, Stereo Expand
• Indicators: Variation, Acoustic, Clean, Pushed, Crunch, Lead, Brown, Contour, Booster, Mod, FX, Delay, Reverb, Tap, Solo, CH1, CH2, CH3, CH4, Panel
• Compatible Footswitches: BOSS FS-5L, FS-6, FS-7
• Compatible Expression Pedals: Roland EV-5, BOSS EV-30, FV-500L, FV-500H
• Compatible Foot Controllers: BOSS GA-FC, GA-FC EX
• Optional Bluetooth Adapter: BOSS BT-DUAL
• Optional Amplifier Stand: BOSS BAS-1
• Dimensions (W x D x H): 20.9 x 9.8 x 17.5"
• Weight: 32.7 lb

What's In the Box

• BOSS Katana-100 Gen 3 Guitar Amplifier
• Power Cord
• Owner's Manual
• GA-FC Sticker
