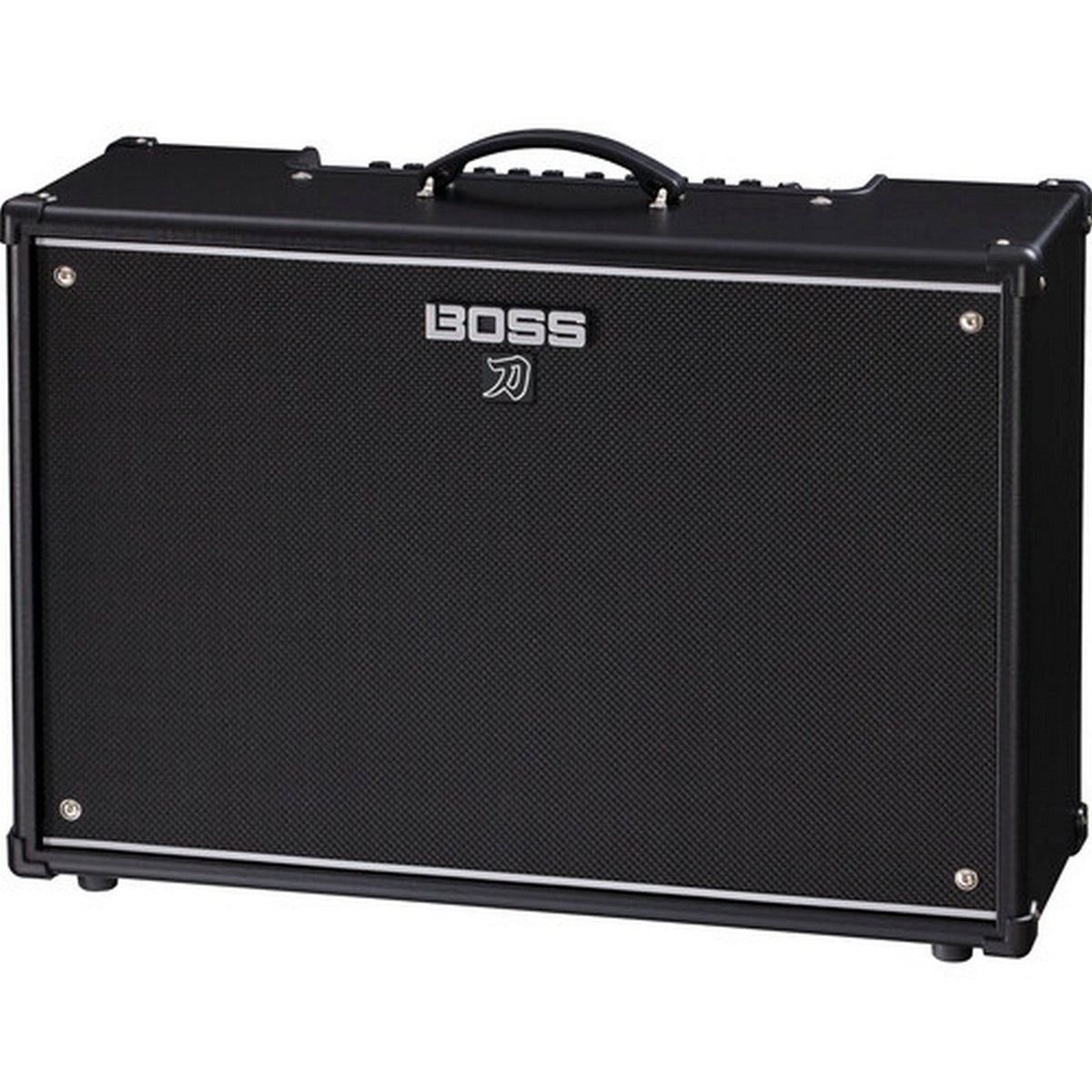

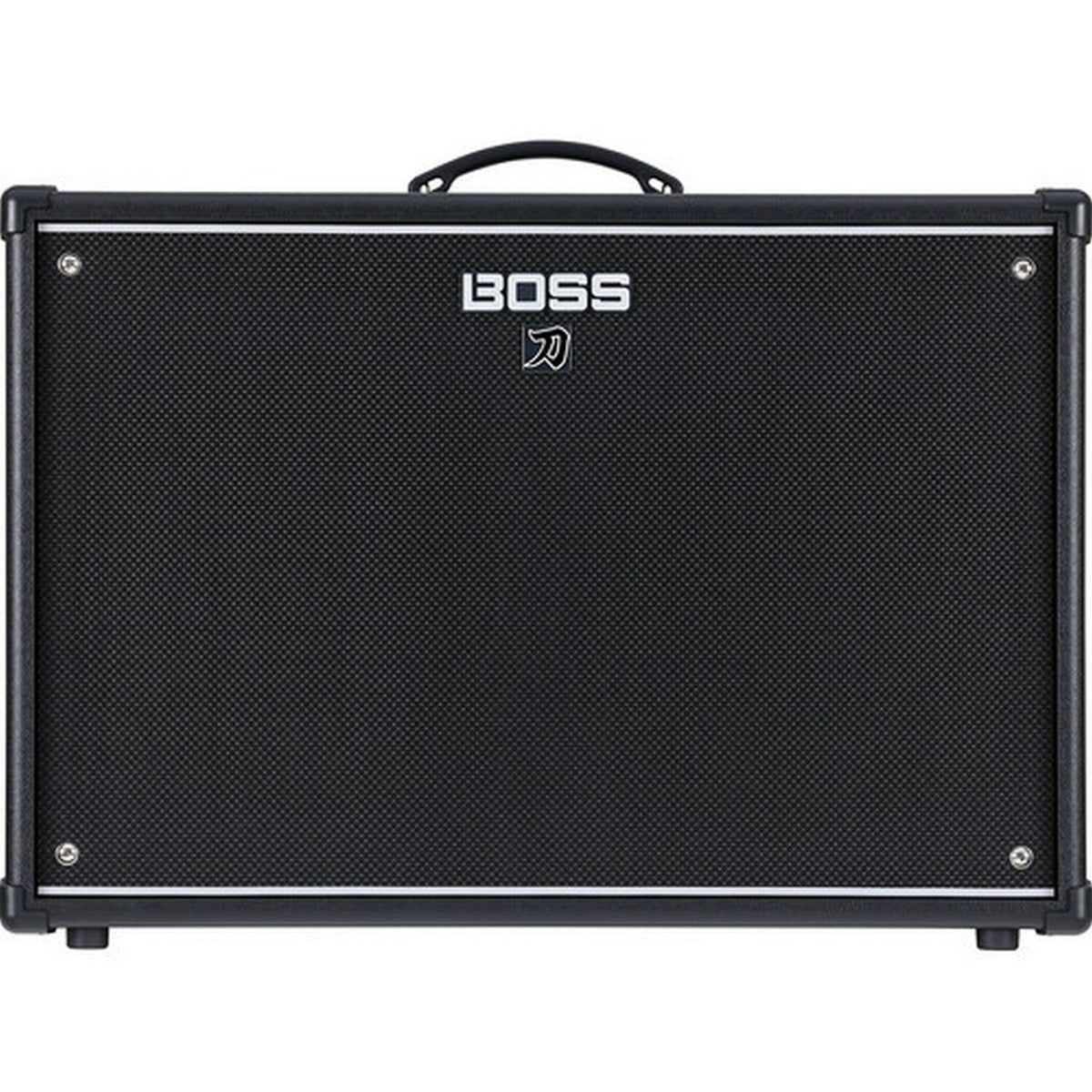

BOSS Katana-212 Gen 3 100W 2x12 Modeling Guitar Amplifier

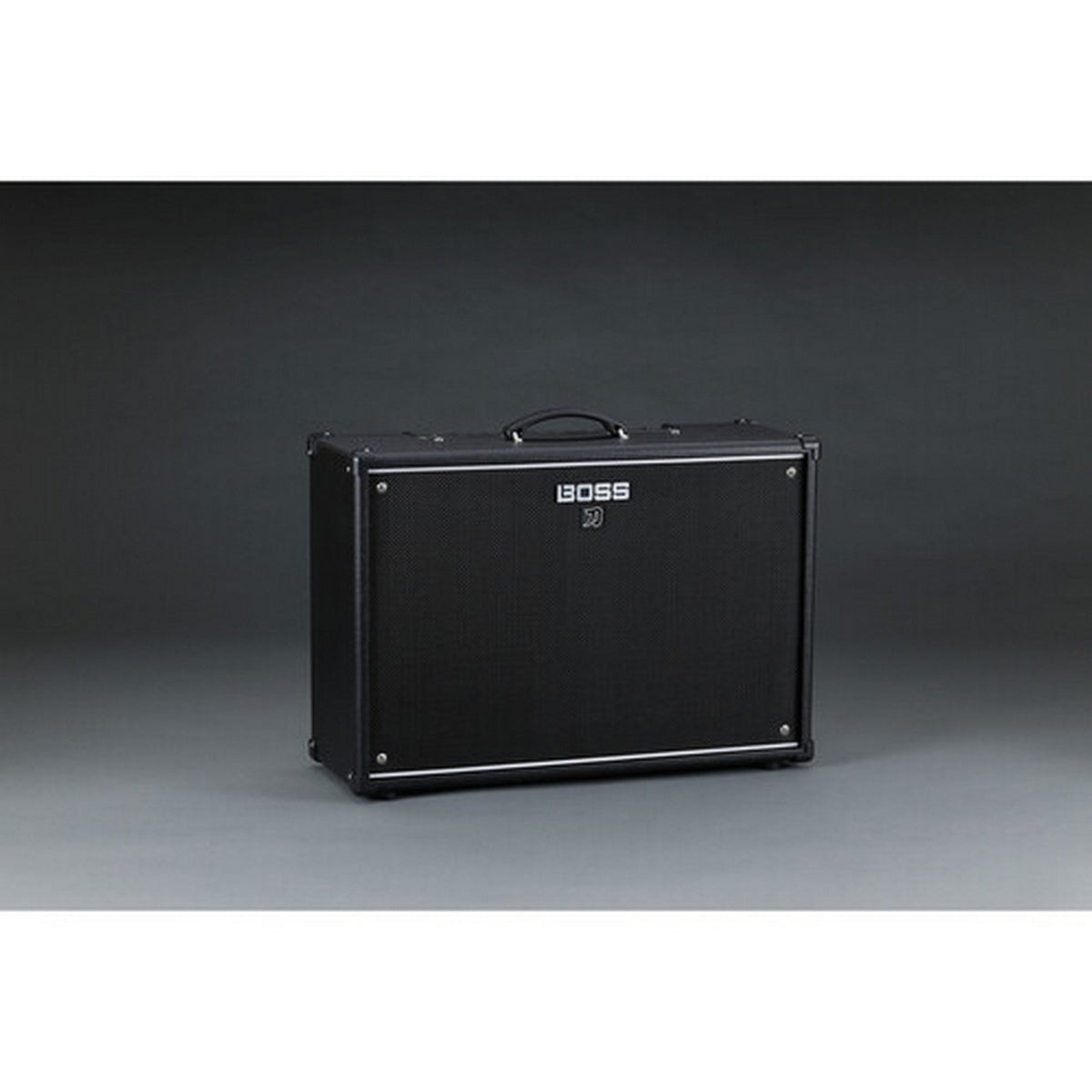

BOSS Katana-100/212 Gen 3 100W 2x12 Modeling Guitar Amplifier

The BOSS Katana-100/212 Gen 3 guitar amplifier combines 100 watts of reactive Class AB power with two custom 12-inch speakers and evolved Tube Logic technology. Six amp characters with selectable variations create 12 core voices, while five independent effects sections provide an integrated platform for stage performance, recording, rehearsal, and everyday practice.

Acoustic, Clean, Pushed, Crunch, Lead, and Brown amp types cover clean instrument amplification through saturated high-gain sounds. Players seeking a 100W 2x12 guitar combo for live performance also get eight Tone Setting memories, three Contour settings, Vintage, Modern, and Deep cabinet resonance options, and Power Control for achieving responsive amplified tones at reduced volume levels.

The Katana-100/212 Gen 3 integrates with professional and home setups through an effects loop, line output, stereo headphone connection, USB-C recording, Power Amp In, and Stereo Expand. GA-FC and GA-FC EX foot controllers provide expanded stage control, while the optional BT-DUAL adapter enables Bluetooth audio playback and wireless editing from compatible mobile devices.

Key Features

• 100W Class AB Power: Provides stage-ready output through evolved Tube Logic architecture and a responsive power section.
• Dual 12-Inch Speakers: Two custom speakers provide the wider projection and cabinet response of a 2x12 combo configuration.
• Six Amp Characters: Choose Acoustic, Clean, Pushed, Crunch, Lead, or Brown, with a selectable variation for every type.
• Five Effects Sections: Runs Booster, Mod, FX, Delay, and Reverb with dedicated controls and three onboard variations per section.
• Eight Tone Memories: Stores complete amplifier and effect setups for quick recall during rehearsals, recording, and live sets.
• Advanced Tone Shaping: Three Contour settings and Vintage, Modern, or Deep cabinet resonance provide additional tonal control.

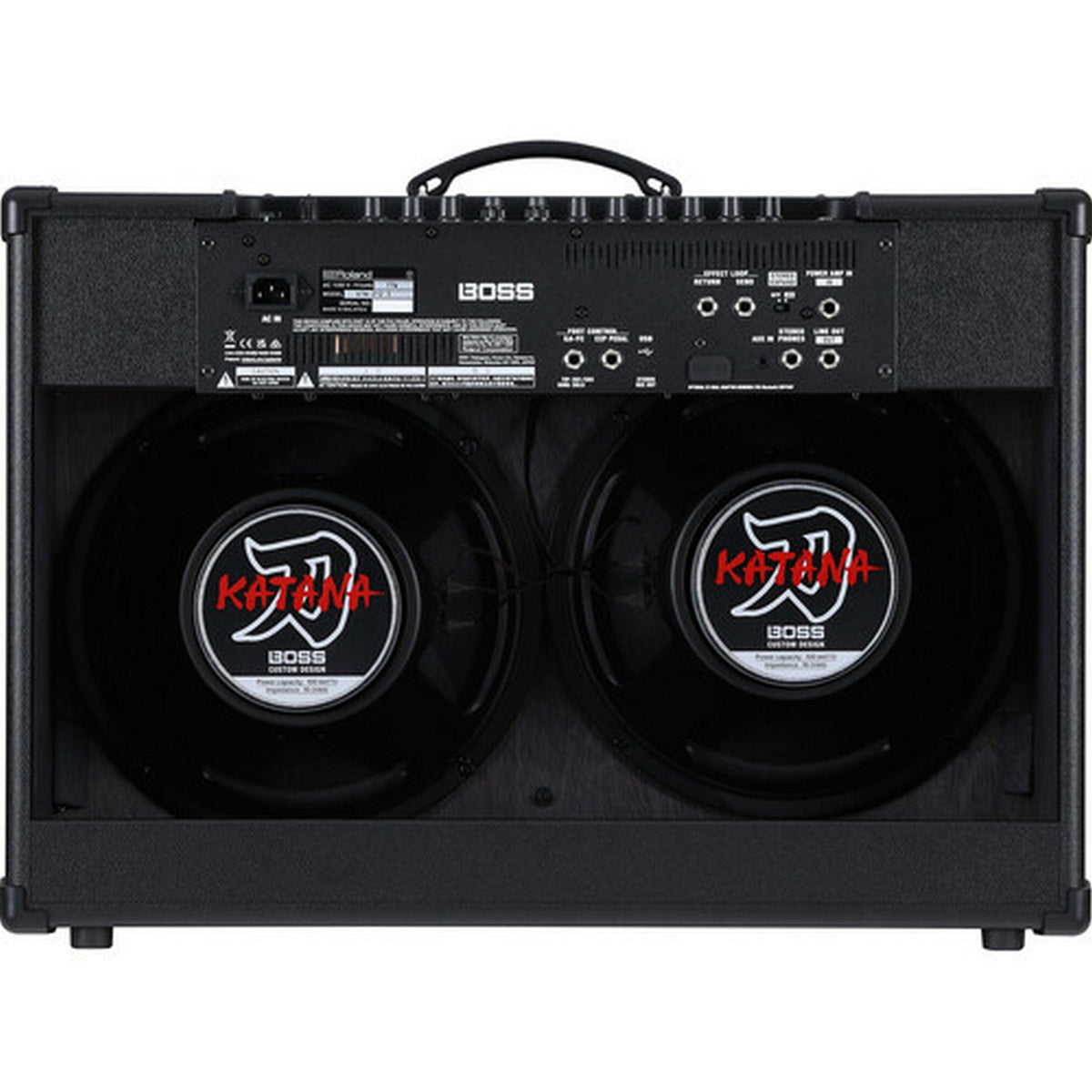

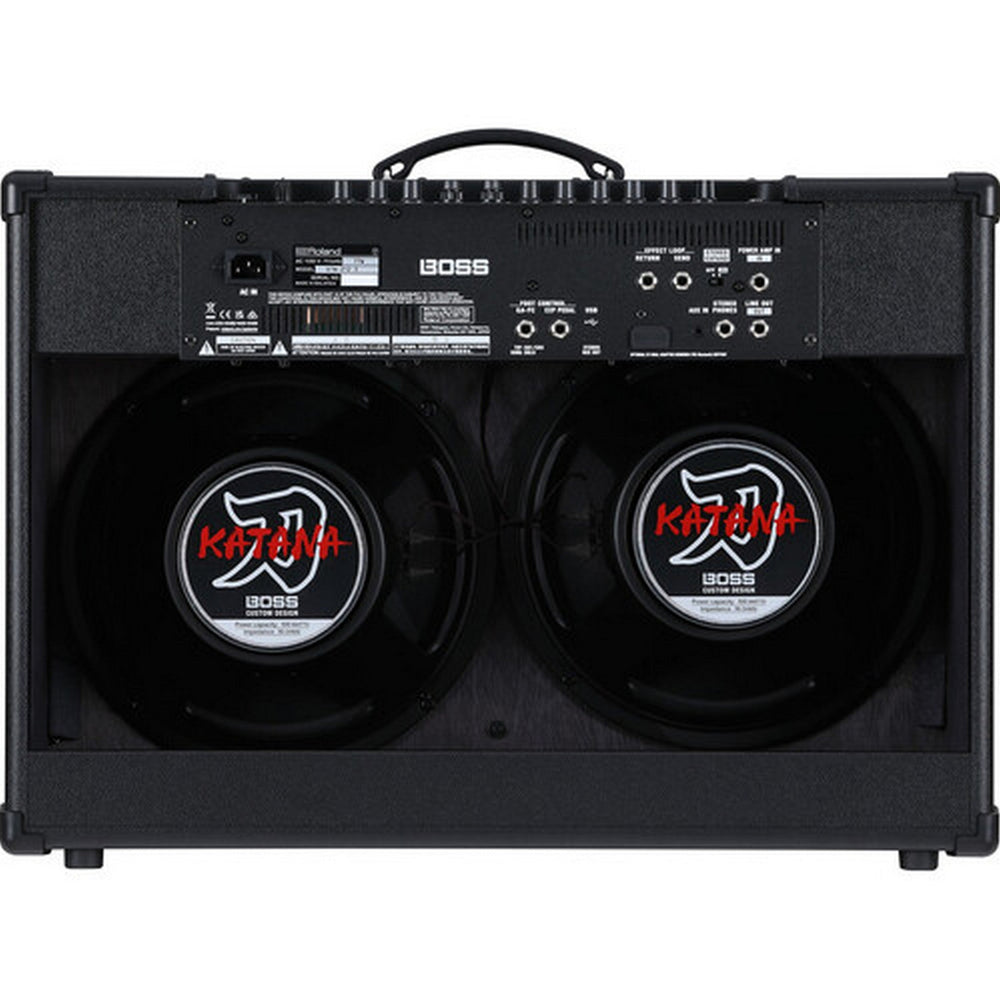

• Flexible Connectivity: Includes an effects loop, USB-C, line output, stereo headphones, Power Amp In, and Stereo Expand functionality.
• Expandable Stage Control: Supports compatible footswitches, expression pedals, GA-FC controllers, and the optional BT-DUAL Bluetooth adapter.

Technical Specifications

• Model: Katana-100/212 Gen 3
• Manufacturer Part Number: KTN-212 3
• Amplifier Type: Modeling combo guitar amplifier
• Amplifier Architecture: Tube Logic with reactive Class AB power
• Rated Power Output: 100 W
• Speakers: 2 x 12" custom speakers
• Amp Types: Acoustic, Clean, Pushed, Crunch, Lead, Brown
• Amp Variations: Selectable variation for each amp type
• Tone Setting Memories: 8
• Effects Sections: Booster, Mod, FX, Delay, Reverb
• Onboard Effect Variations: 3 per effects section
• BOSS Tone Studio Effects: More than 60 available effect types
• Equalizer: Bass, Middle, Treble
• Contour: 3 selectable settings
• Cabinet Resonance: Vintage, Modern, Deep
• Power Control: Standby, 0.5 W, Half, Max
• Input Nominal Level: -10 dBu, 1 megohm
• Aux Input Nominal Level: -10 dBu, 20 kilohms
• Return Input Nominal Level: -10 dBu, 100 kilohms
• Instrument Input: 1/4" phone jack
• Power Amp Input: 1/4" phone jack
• Line Output: 1/4" phone jack
• Effects Send: 1/4" phone jack
• Effects Return: 1/4" phone jack
• Stereo Headphone Output: 1/4" stereo phone jack
• Expression Pedal Connection: 1/4" TRS phone jack
• Foot Controller Connection: 1/4" TRS GA-FC/CTL CH1/CH2 SOLO jack
• Auxiliary Input: 3.5 mm stereo mini phone jack
• USB Computer Port: USB-C
• Bluetooth Adapter Slot: Supports optional BT-DUAL Bluetooth Audio MIDI Dual Adaptor
• Stereo Expand: Supported
• Power Input: AC mains
• Power Consumption: 77 W

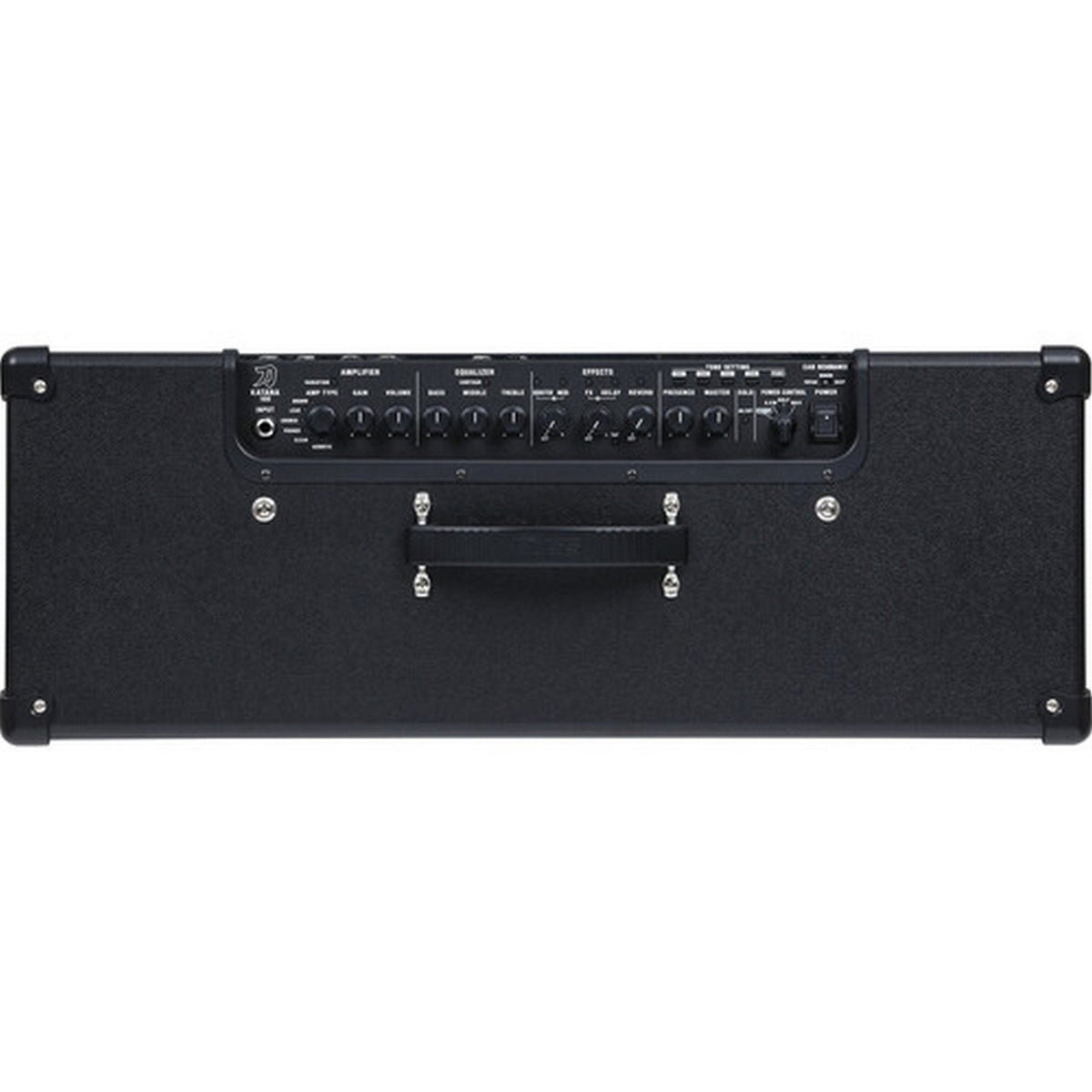

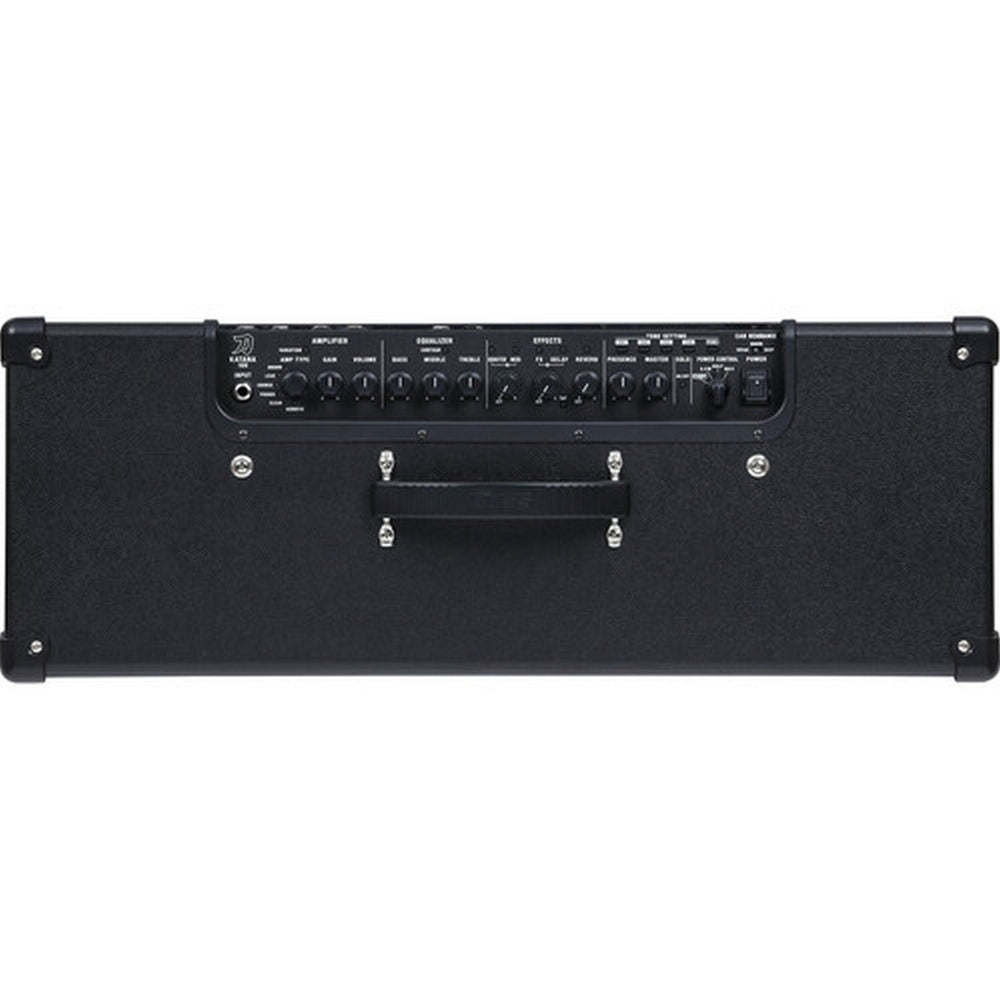

• Controls: Power, Presence, Master, Solo, Power Control, Cabinet Resonance, Variation, Amp Type, Gain, Volume, Contour, Bass, Middle, Treble, Booster, Mod, FX, Delay, Reverb, Tap, CH1, CH2, CH3, CH4, Panel, Stereo Expand
• Indicators: Variation, Acoustic, Clean, Pushed, Crunch, Lead, Brown, Contour, Booster, Mod, FX, Delay, Reverb, Tap, Solo, CH1, CH2, CH3, CH4, Panel
• Compatible Footswitches: BOSS FS-5L, FS-6, FS-7
• Compatible Expression Pedals: Roland EV-5, BOSS EV-30, FV-500L, FV-500H
• Compatible Foot Controllers: BOSS GA-FC, GA-FC EX
• Optional Bluetooth Adapter: BOSS BT-DUAL
• Optional Amplifier Stand: BOSS BAS-1
• Dimensions (W x D x H): 26.4 x 9.8 x 19.1"
• Weight: 43.7 lb

What's In the Box

• BOSS Katana-100/212 Gen 3 Guitar Amplifier
• Power Cord
• Owner's Manual
• GA-FC Sticker
