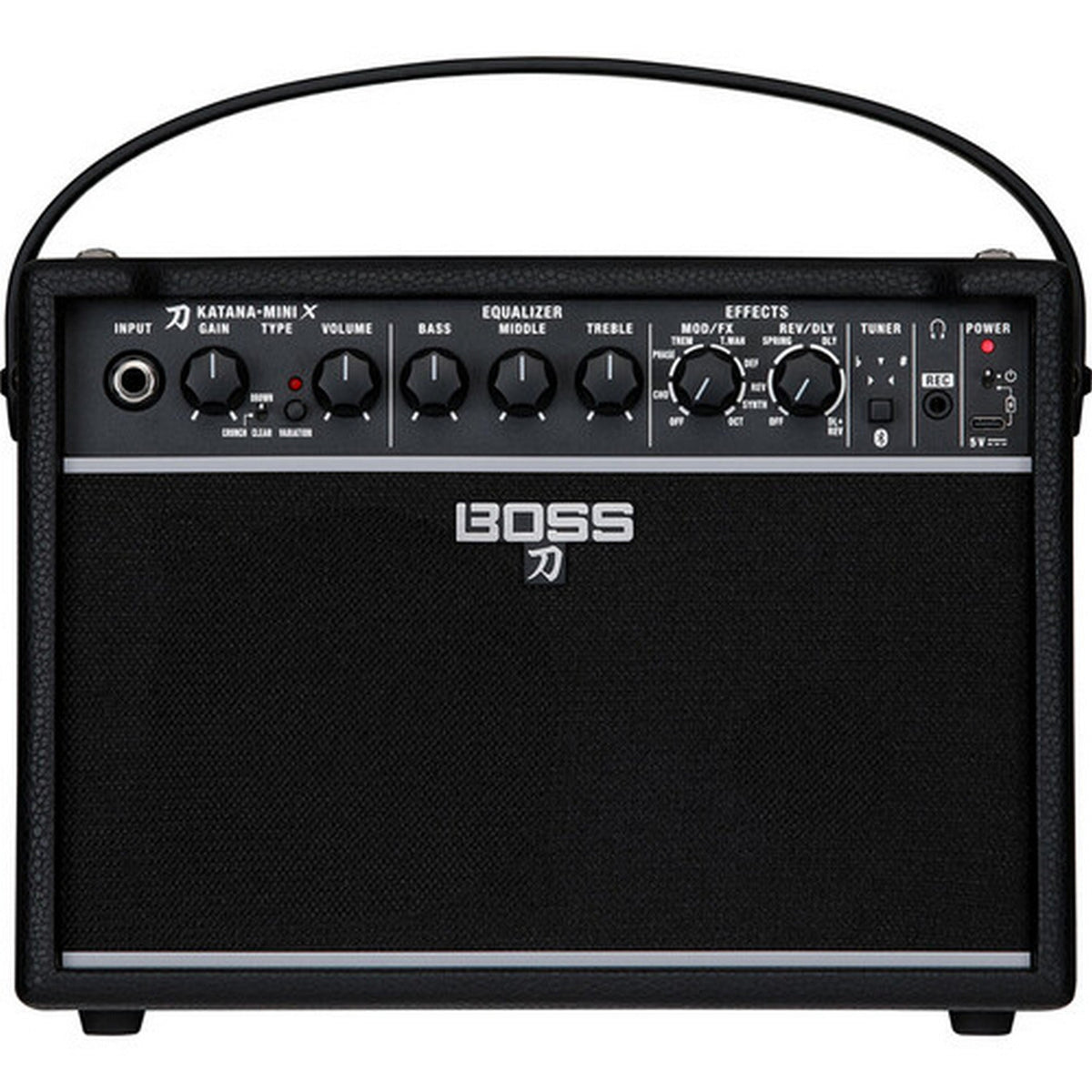

BOSS Katana-Mini X 10W Portable Guitar Amplifier

BOSS Katana-Mini X Guitar Amplifier with Bluetooth

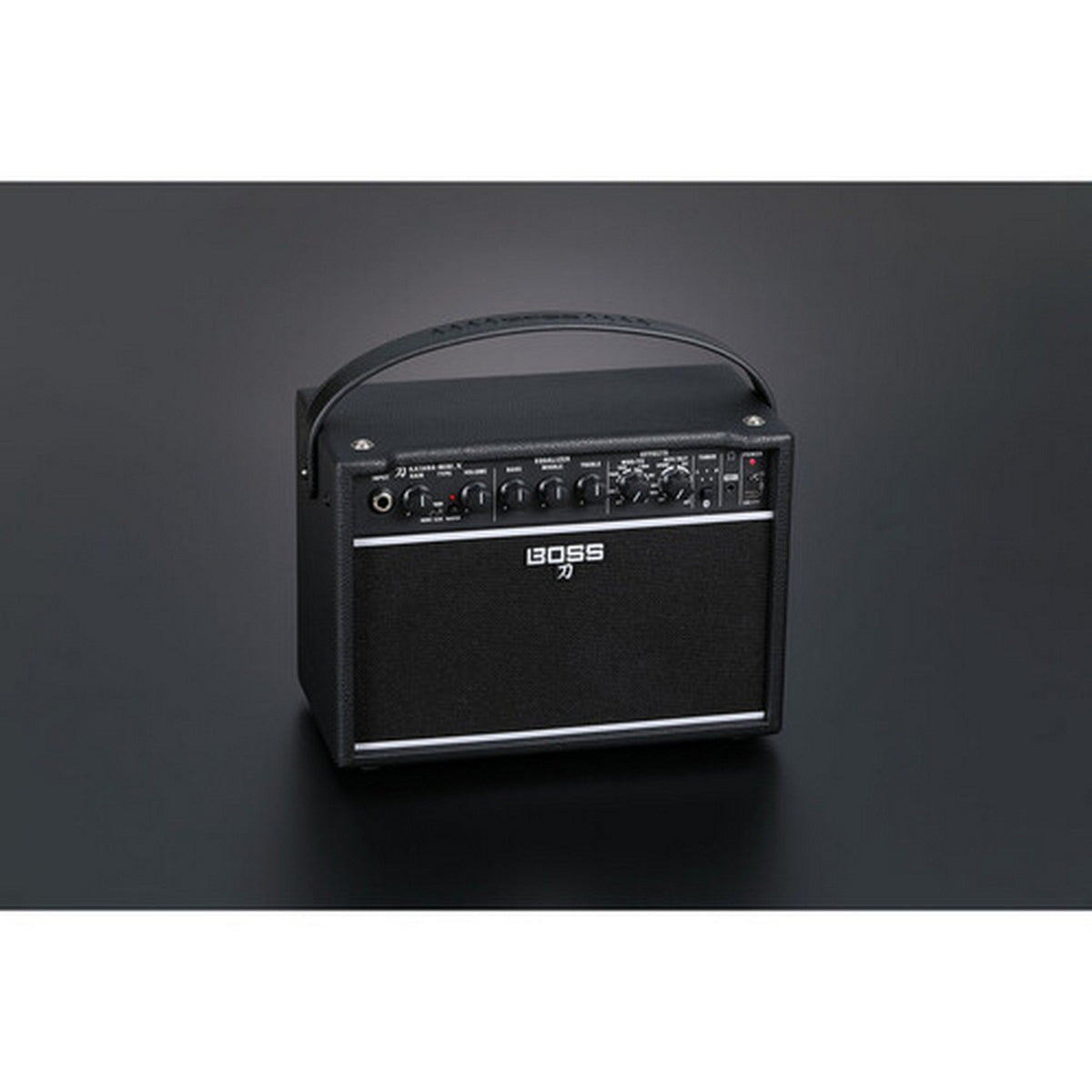

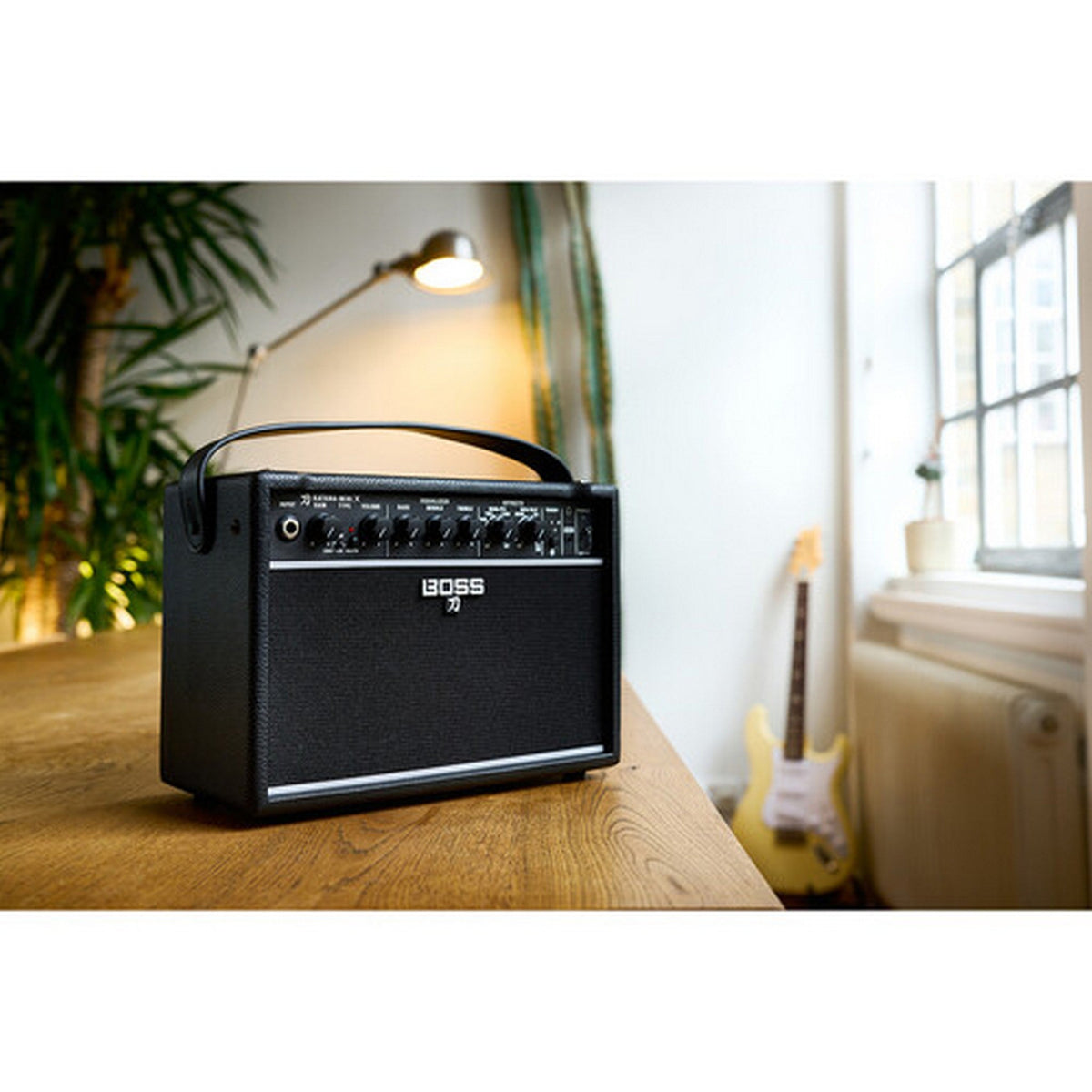

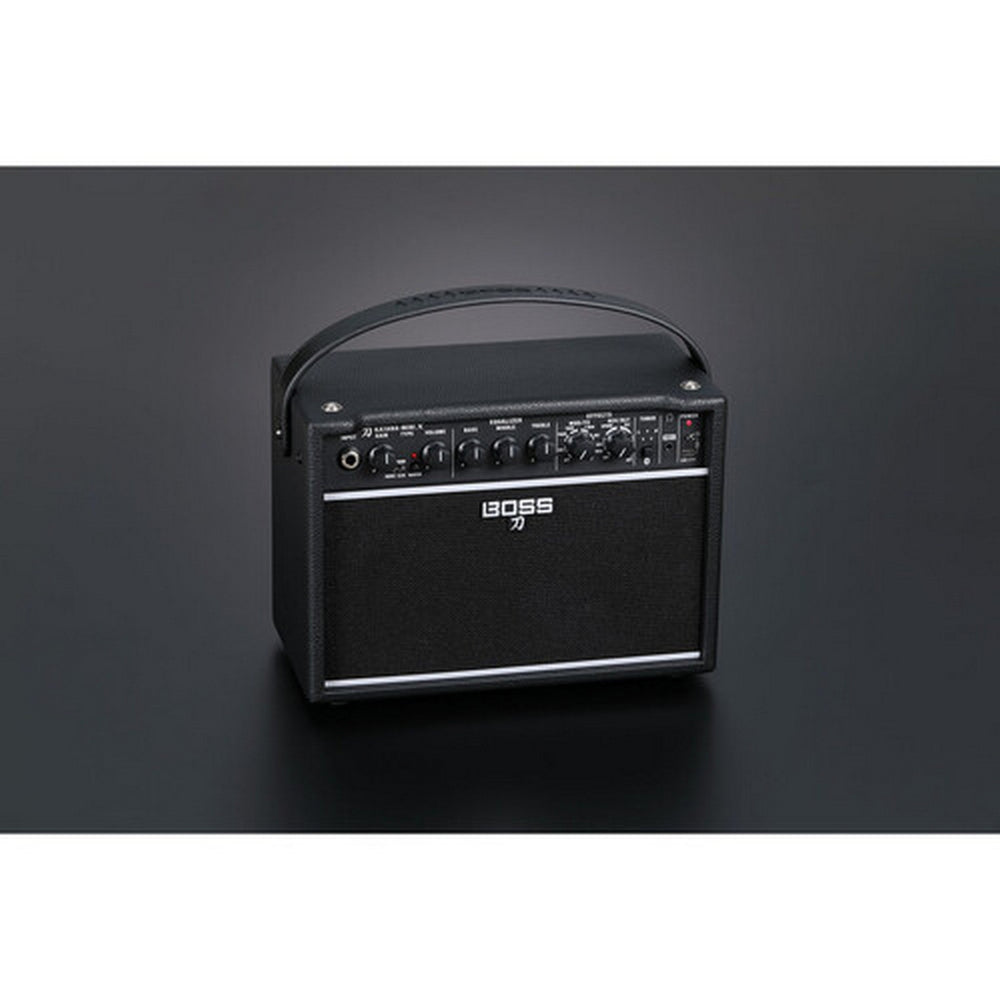

The BOSS Katana-Mini X Guitar Amplifier is a portable 10-watt practice amp with a custom 5-inch speaker, six selectable amp sounds, dual effects sections, Bluetooth audio streaming, and an internal rechargeable battery. Its multi-stage analog gain circuit and three-band tone stack deliver flexible electric guitar tones in a compact wood cabinet.

Designed for practice, jamming, travel, and compact home setups, the Katana-Mini X provides Brown, Crunch, and Clean amp types with a dedicated variation for each. The Clean variation offers a flat-response option suitable for acoustic-electric guitar and bass. Players can combine modulation and FX processing with reverb or delay while adjusting sounds directly from the front-facing controls.

Bluetooth A2DP support lets musicians stream backing tracks and other audio from a mobile device through the amplifier. A built-in guitar and bass tuner simplifies practice sessions, while the stereo Phones/Rec output provides cabinet-simulated sound for headphones or recording. The rechargeable Ni-MH battery delivers approximately 10 hours of operation and recharges through USB-C in about three hours.

Key Features

• 10-Watt Portable Amplifier: Combines a compact footprint with a custom 5-inch speaker and robust wood cabinet for everyday practice and jamming.
• Six Amp Sounds: Brown, Crunch, and Clean types each provide a selectable variation for expanded tonal flexibility.
• Dual Effects Sections: MOD/FX and REV/DLY controls can operate simultaneously for layered modulation, delay, and reverb sounds.
• Three-Band Analog EQ: Dedicated Bass, Middle, and Treble controls provide familiar hands-on tone shaping.
• Bluetooth Audio Streaming: Plays audio wirelessly from compatible mobile devices for backing tracks, practice, and casual listening.
• Built-In Tuner: Supports standard six-string guitar and four-string bass tuning with front-panel status indicators.
• Stereo Phones/Recording Output: Provides cabinet-simulated sound for silent practice and direct recording while muting the internal speaker.
• Rechargeable Battery: Delivers approximately 10 hours of continuous operation and charges through USB-C.

Technical Specifications

Amplifier and Speaker

• Model: KTN-MINI X
• Product Type: Portable Guitar Amplifier
• Rated Power Output: 10 W
• Speaker: 5-inch custom speaker
• Nominal Input Level: -10 dBu
• Input Impedance: 1 MOhm
• Cabinet: Wood construction

Amp Types and Tone Controls

• Amp Types: Brown, Crunch, Clean
• Variations: 1 selectable variation for each amp type
• Clean Variation: Flat-response sound suitable for acoustic-electric guitar and electric bass
• Gain Control: Gain knob
• Volume Control: Volume knob
• Equalizer: Three-band analog tone stack
• EQ Controls: Bass, Middle, Treble

Effects

• Effects Sections: MOD/FX and REV/DLY
• Total Effect Types: 10
• MOD/FX Settings: Chorus, Phaser, Tremolo, Touch Wah, Defretter, Synth, Octave
• REV/DLY Settings: Reverb, Spring Reverb, Delay, Delay + Reverb
• Simultaneous Effects: MOD/FX and REV/DLY sections can be used together

Tuner and Bluetooth

• Built-In Tuner: Guitar and bass tuner
• Tuner Reference Pitch: A4 = 440 Hz
• Bluetooth Profile: A2DP audio
• Bluetooth Function: Wireless audio streaming from compatible mobile devices

Connections

• Instrument Input: 1/4-inch phone type
• Phones/Recording Output: Stereo miniature phone type
• Phones/Recording Function: Stereo cabinet-simulated output for headphones or recording
• Charging Port: USB Type-C
• USB Power Requirement: 5 V, 2 A or higher

Power

• Power Supply: Internal rechargeable Ni-MH battery
• Current Draw: 1500 mA
• Expected Battery Life: Approximately 10 hours
• Charging Time: Approximately 3 hours

Controls and Indicators

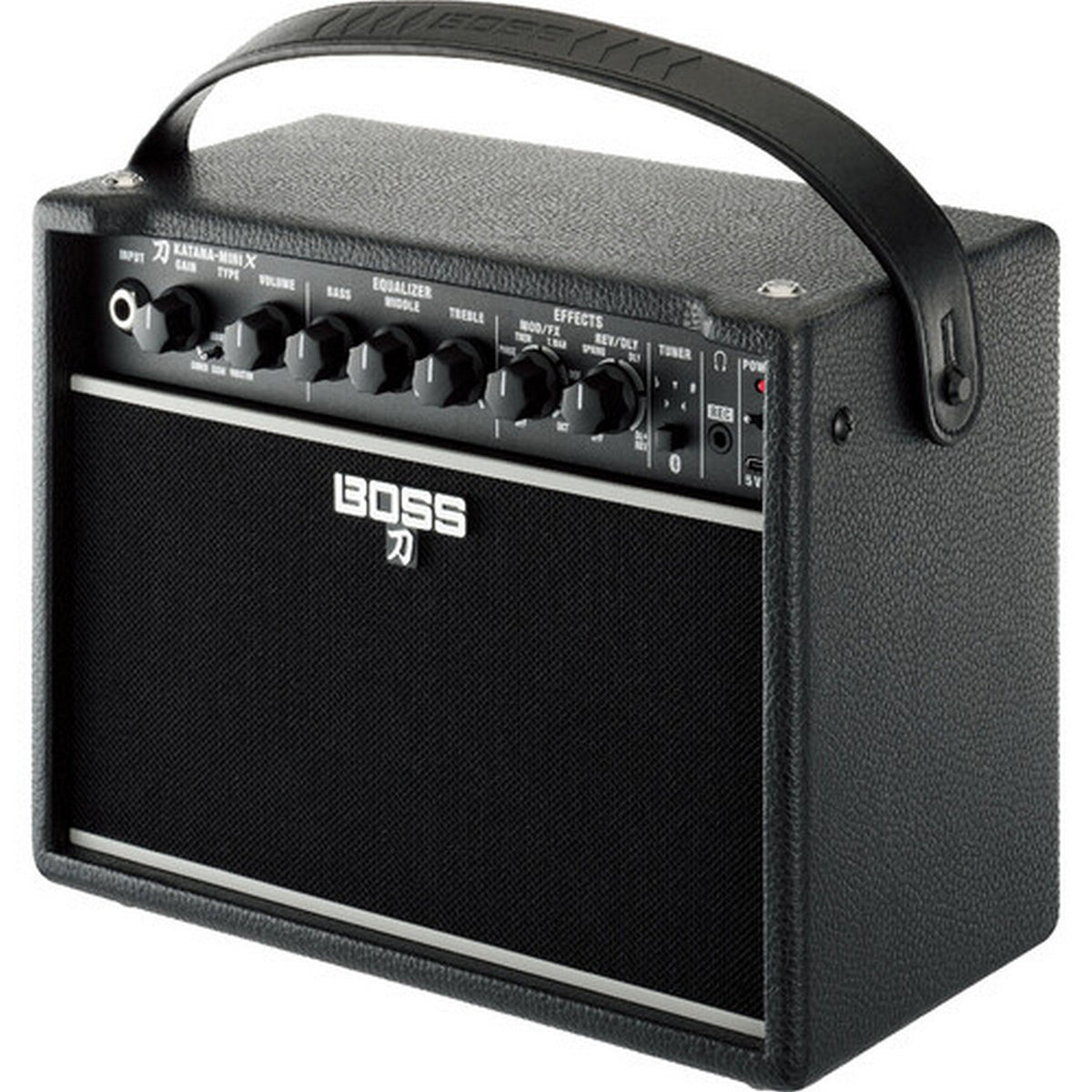

• Controls: Power switch, Type switch, Variation button, Gain, Volume, Bass, Middle, Treble, MOD/FX, REV/DLY, Tuner/Bluetooth button
• Indicators: Power, Variation, Tuner/Bluetooth

Physical Specifications

• Dimensions: 11.3 x 5.7 x 7.9 inches (W x D x H), excluding strap

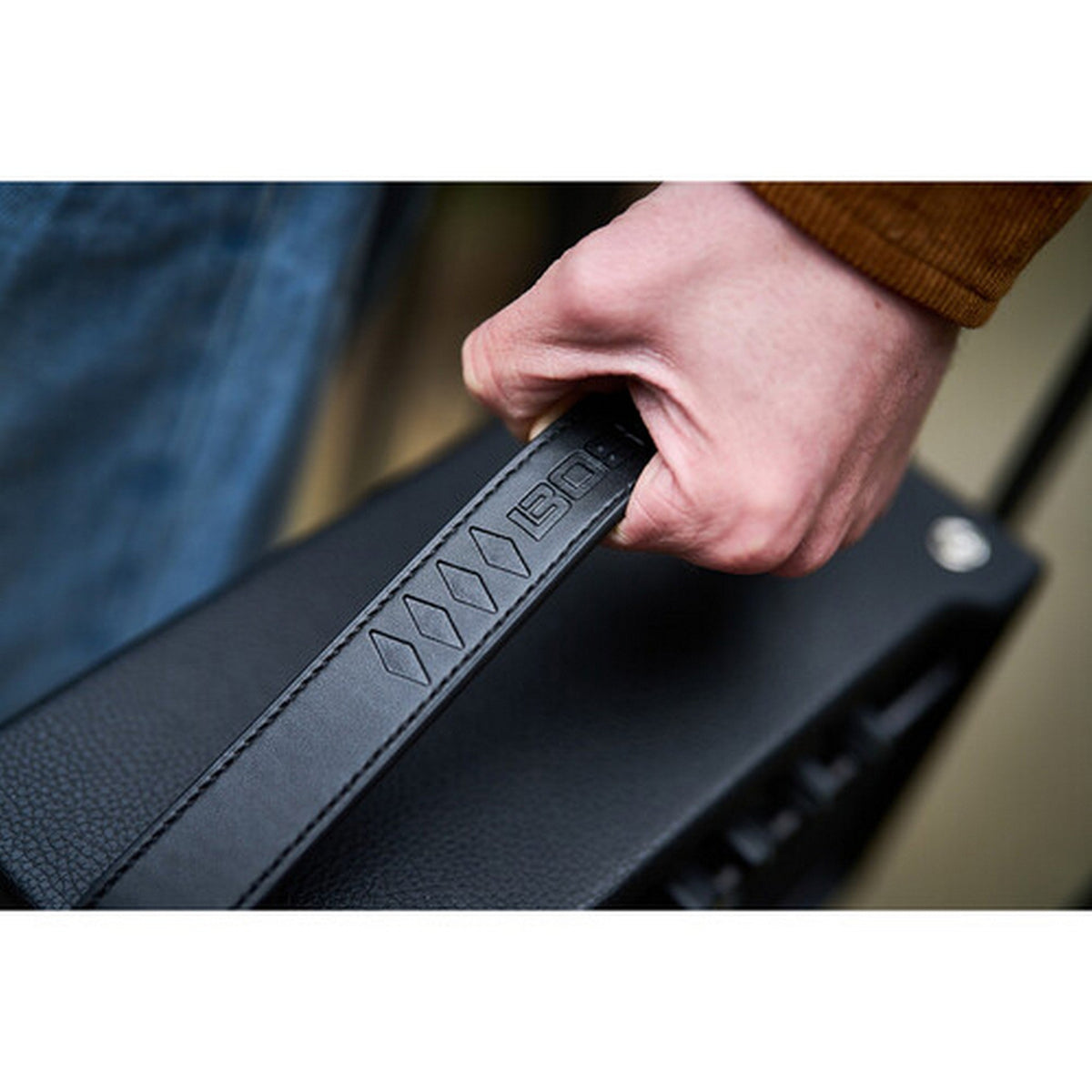

• Weight: 6 lb, including strap

What's In the Box

• BOSS Katana-Mini X Guitar Amplifier
• USB Type-C to USB Type-A Charging Cable
• Read Me First Leaflet
