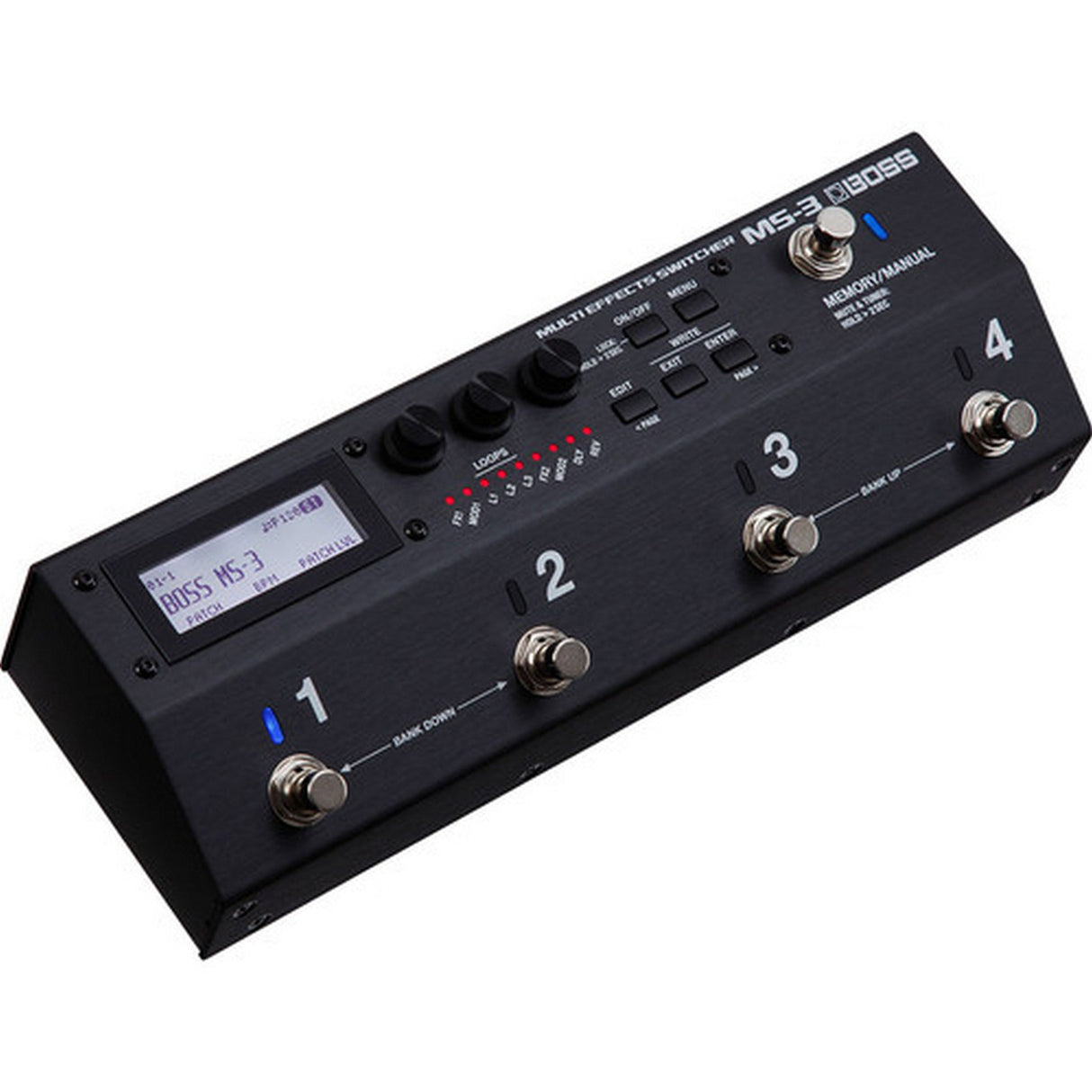

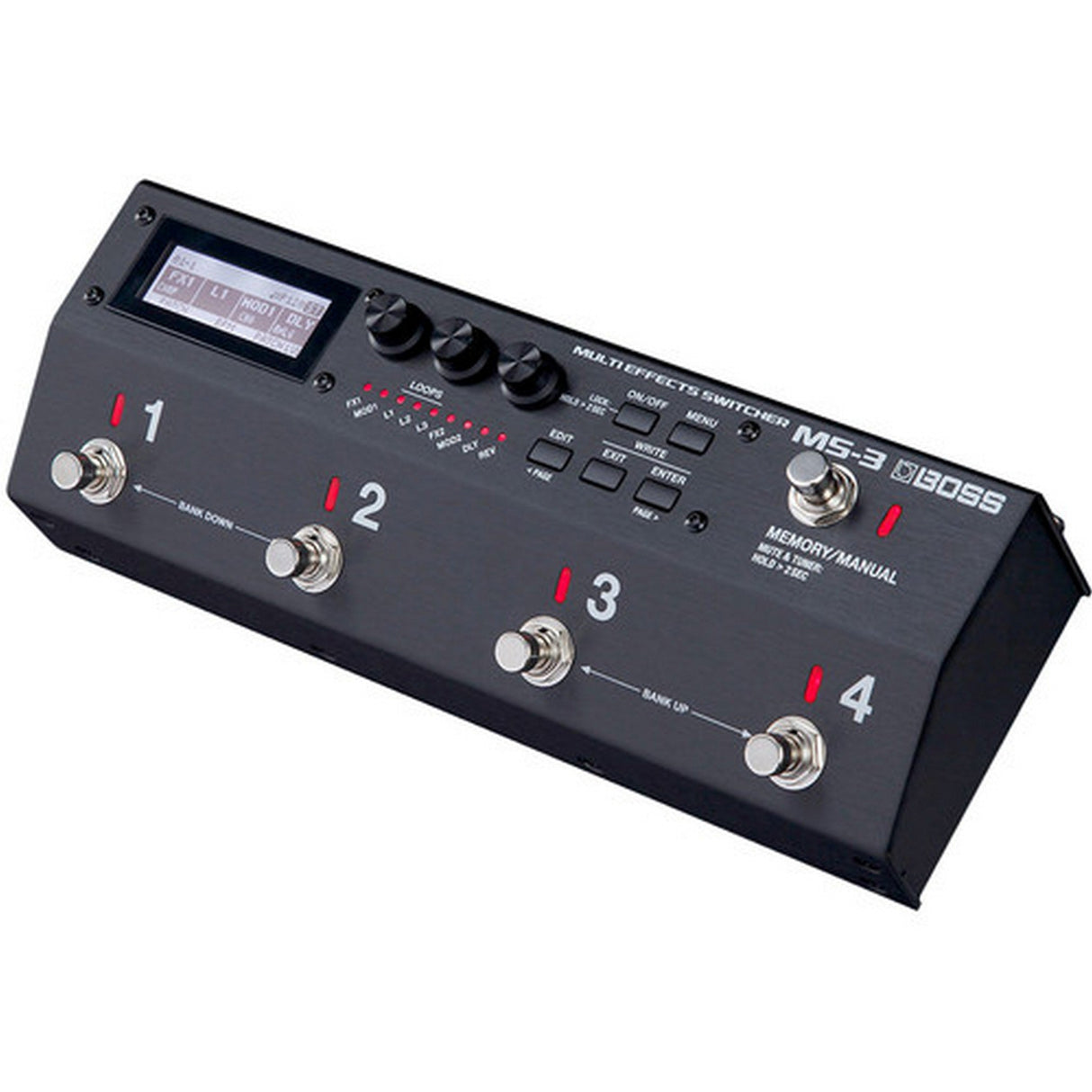

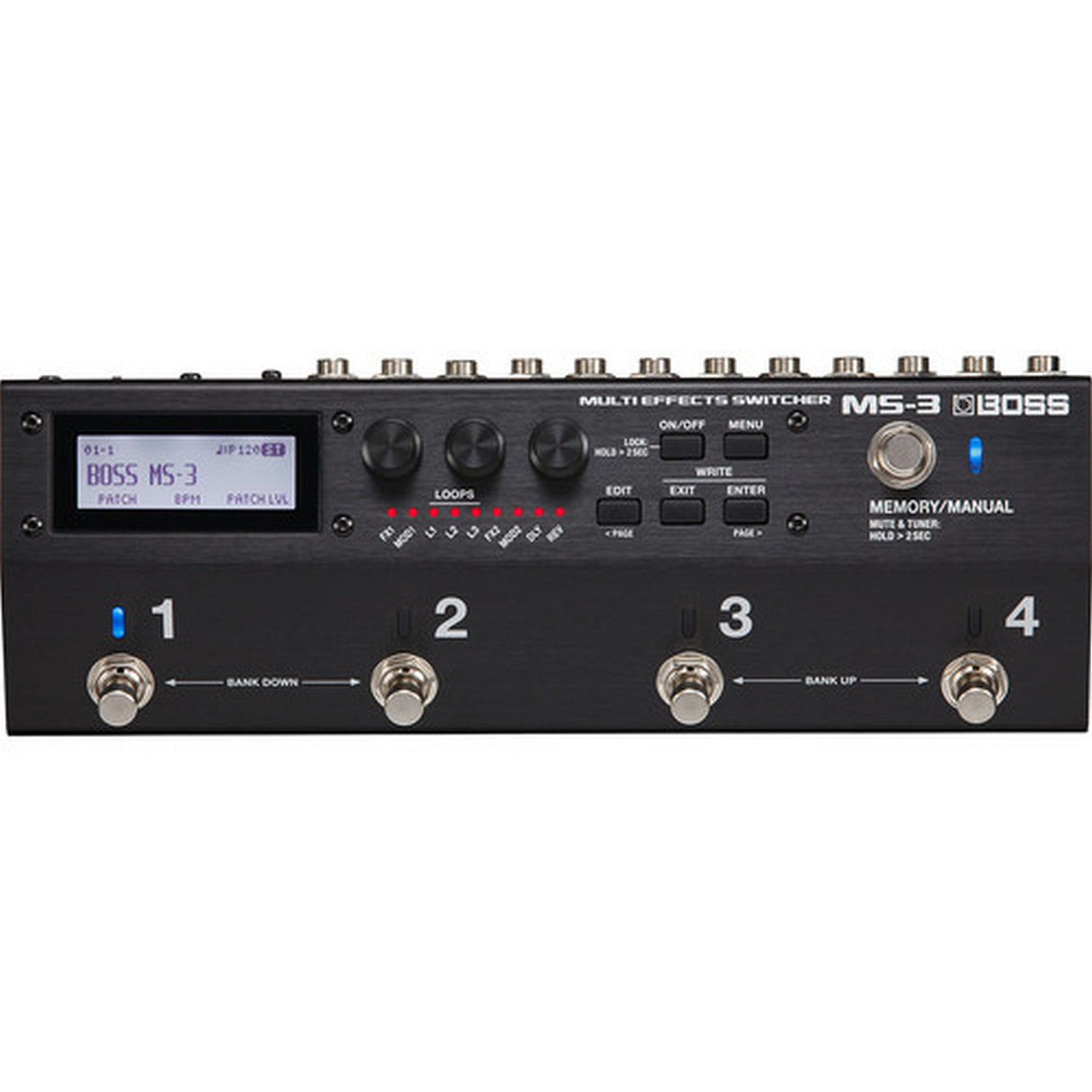

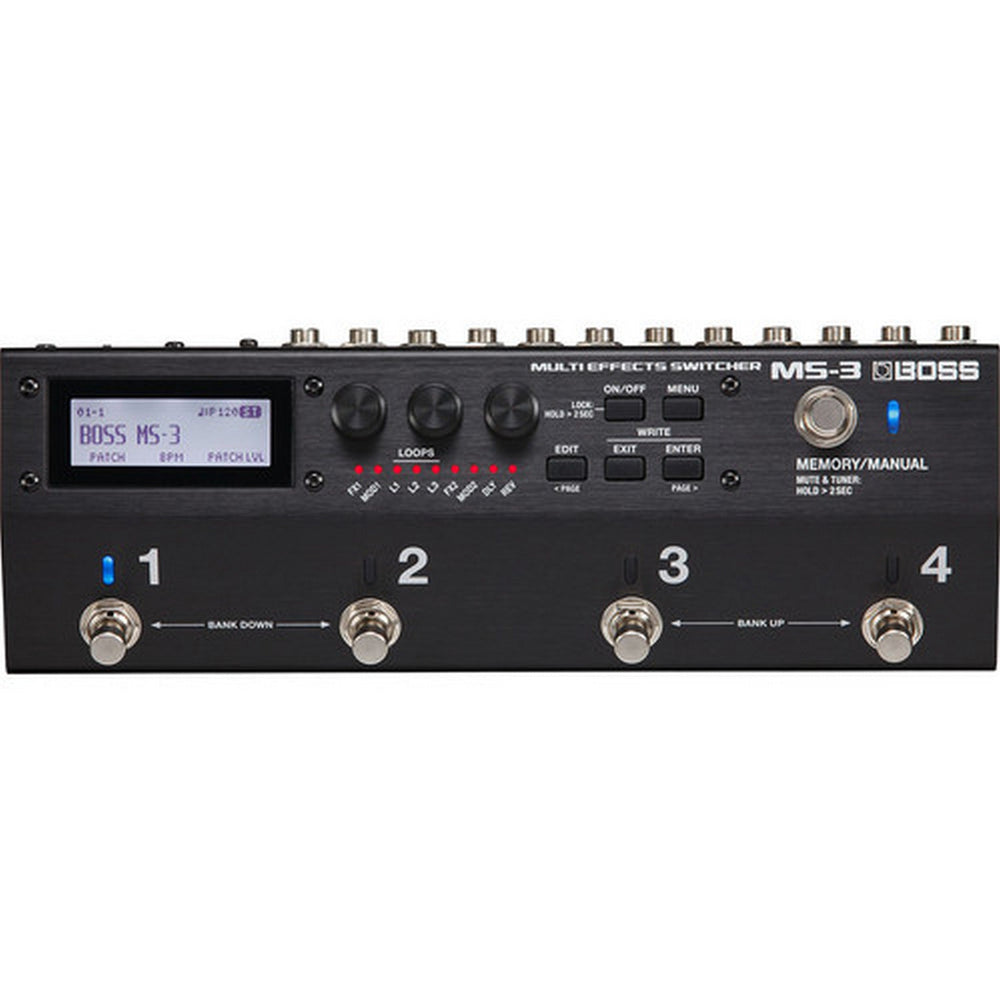

BOSS MS-3 Multi Effects Switcher with Multi-Looper

BOSS MS-3 Multi Effects Switcher

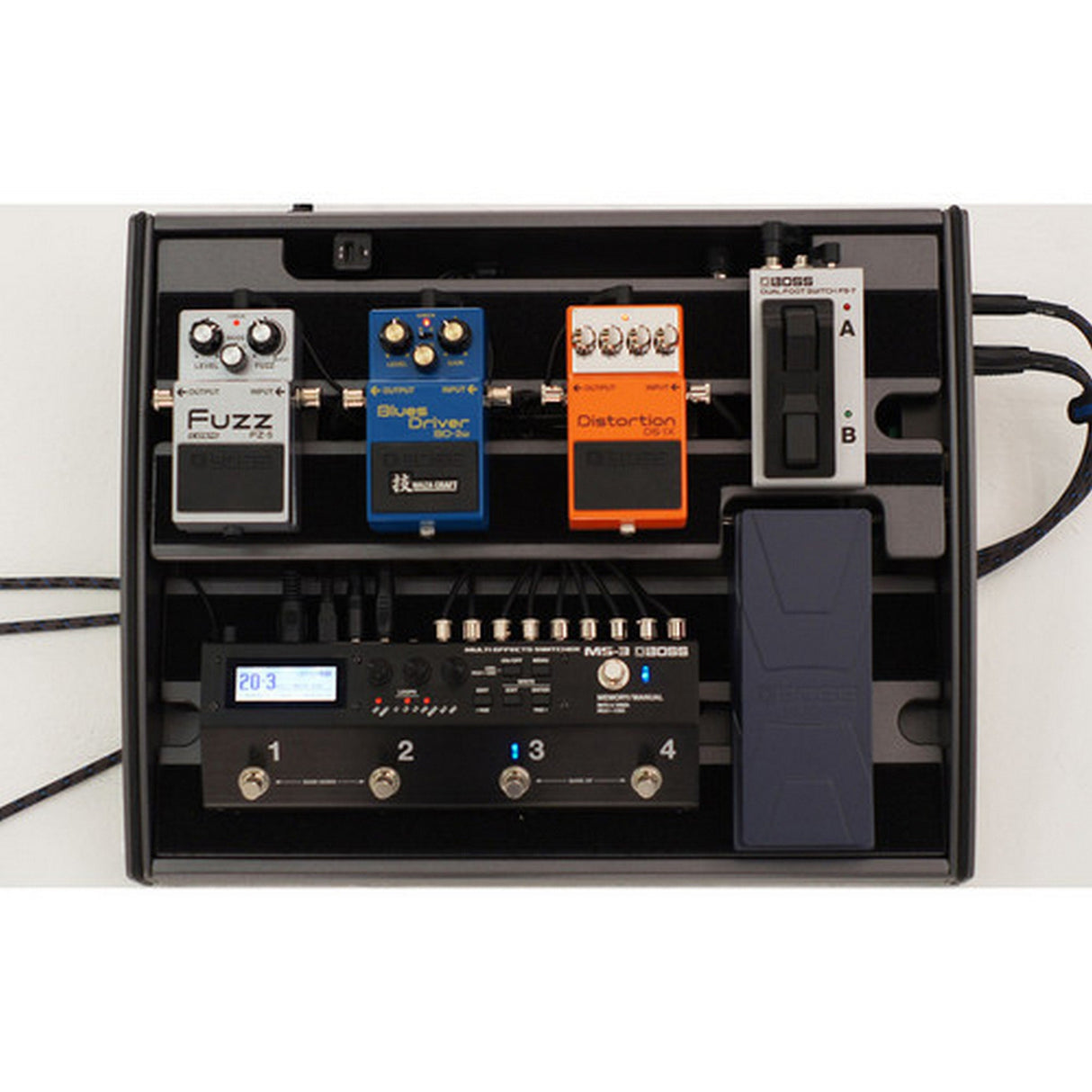

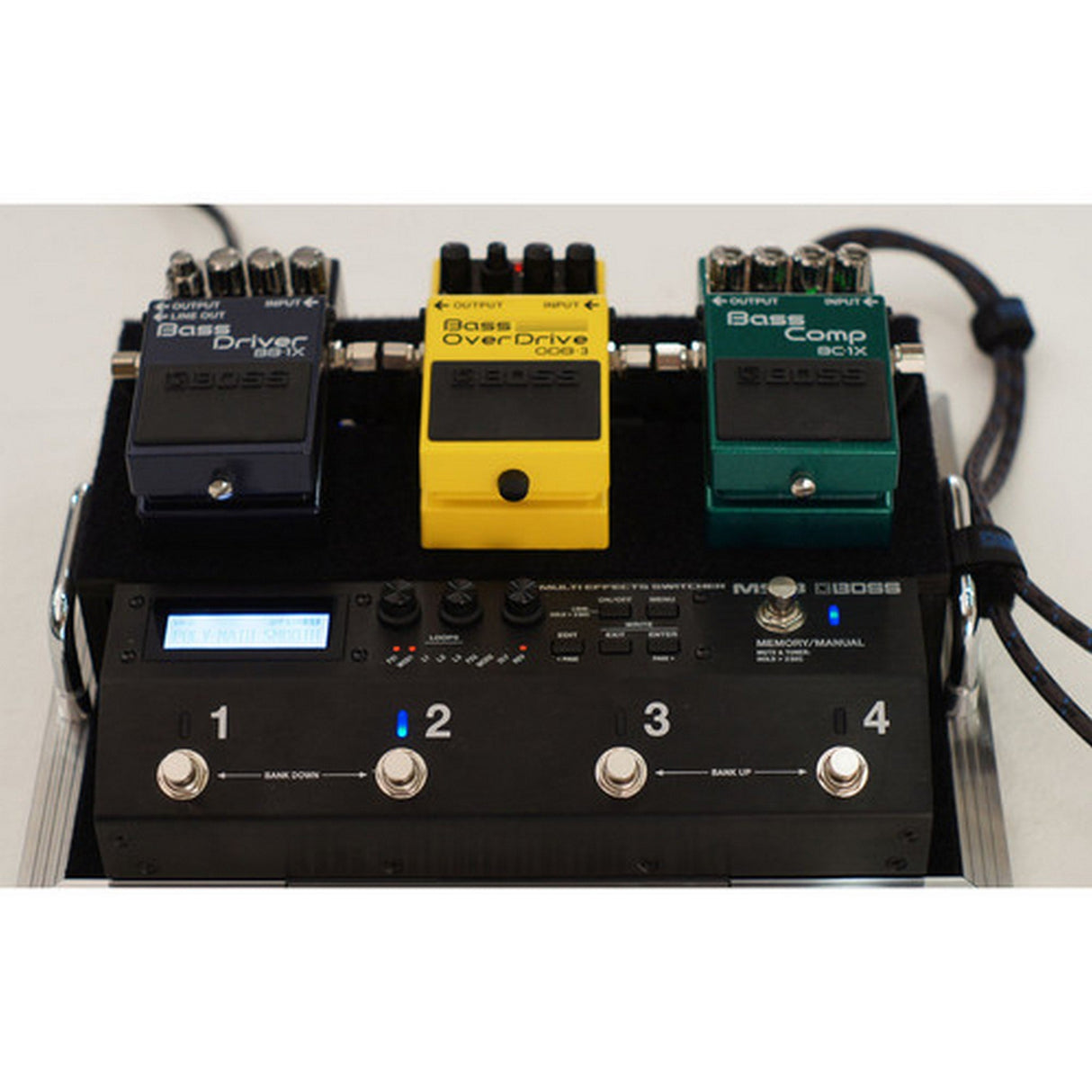

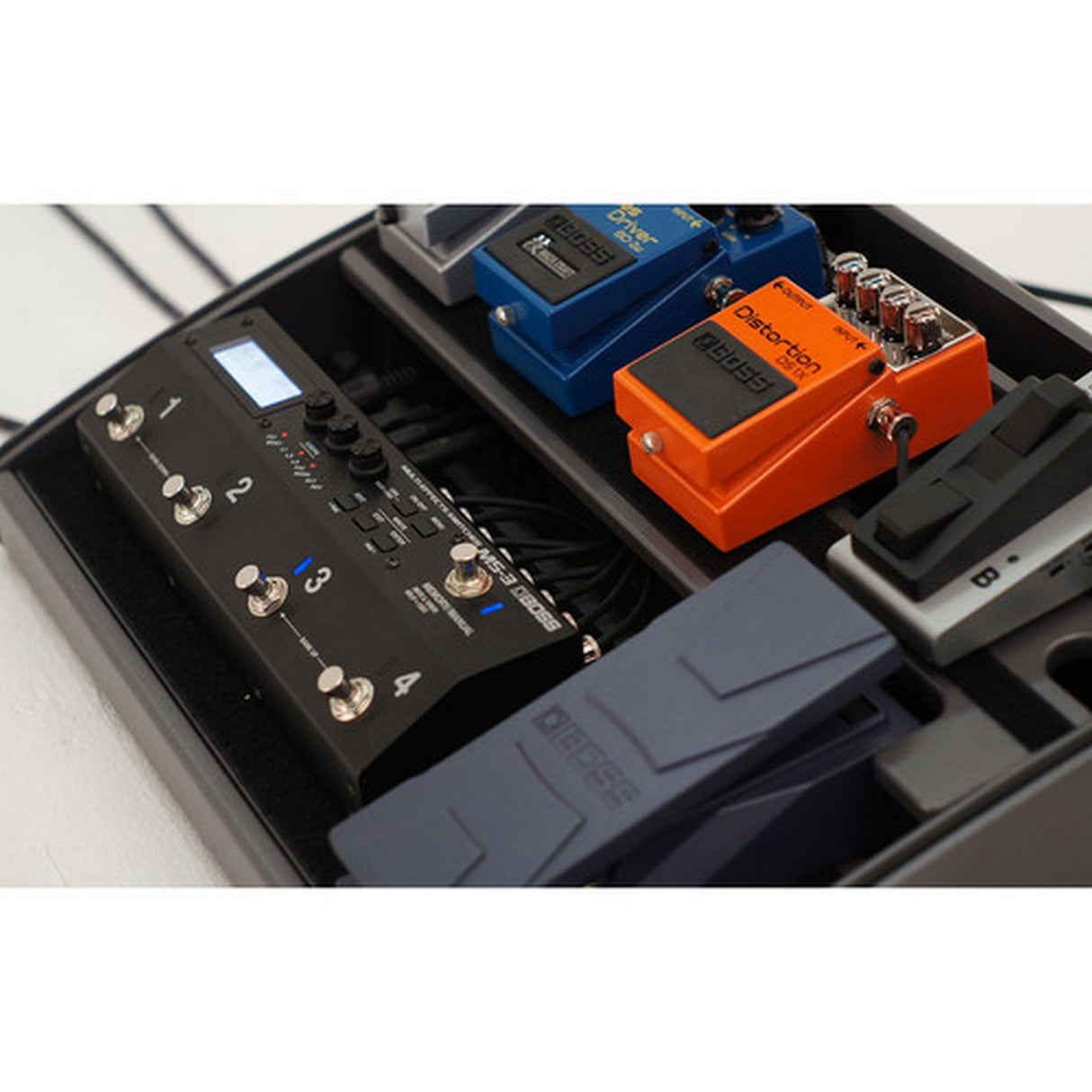

The BOSS MS-3 Multi Effects Switcher combines a programmable effects processor and three-loop pedal switcher in one compact floor unit for guitar and bass. It can run up to six internal effects simultaneously while integrating three external pedals, giving players centralized control over effects, routing, amp switching, and MIDI-equipped gear.

With 112 built-in effects types and 200 patch locations, the MS-3 supports everything from streamlined stage rigs to more complex hybrid pedalboards. Players looking for a compact guitar pedalboard switching system can combine favorite analog stompboxes with onboard delays, reverbs, modulation, pitch processing, overdrive, distortion, and other effects. Memory and Manual modes provide flexible preset recall or direct footswitch control during performance.

The MS-3 uses 24-bit A/D and D/A conversion at a 44.1 kHz sampling rate and provides stereo outputs, three external effect loops, control connections, MIDI output, and USB computer connectivity. The free MS-3 Editor/Librarian software supports patch editing, parameter assignments, backups, restores, and Live Set organization from compatible Mac and Windows computers.

Key Features

• Integrated Effects and Switching: Combines onboard BOSS processing with three independent loops for external pedals.
• Six Simultaneous Effects: Runs up to six internal pedal effects at once alongside connected external gear.
• 112 Effect Types: Provides guitar and bass processing including delay, reverb, modulation, pitch, overdrive, distortion, and more.
• 200 Patch Locations: Stores effects settings, control assignments, and performance configurations for instant recall.
• Memory and Manual Modes: Switch between preset-based operation and direct control of assigned loops and effects.
• Expanded Rig Control: Supports external footswitches, expression pedals, amp channel switching, and compatible externally controlled effects.
• MIDI Output: Sends program change, control change, tempo, and related commands to MIDI-equipped devices.
• USB Editing: Connects to MS-3 Editor/Librarian software for graphical editing, backup, restore, and Live Set management.

Technical Specifications

• Product Type: Multi-effects processor and pedal switcher
• Compatible Instruments: Guitar and bass
• Operating Modes: Memory and Manual
• External Effect Loops: 3
• Simultaneous Internal Effects: Up to 6
• Effect Types: 112
• Patch Locations: 200
• A/D Conversion: 24-bit plus AF method
• D/A Conversion: 24-bit
• Sampling Frequency: 44.1 kHz
• Nominal Input Level: Input -10 dBu; Loops L1-L3 Return -10 dBu
• Maximum Input Level: Input +7 dBu; Loops L1-L3 Return +7 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: Output L/Mono and R -10 dBu; Loops L1-L3 Send -10 dBu
• Output Impedance: Output L/Mono and R 1 k ohm
• Recommended Load Impedance: Output L/Mono and R 10 k ohms or greater; Loops 1-L3 Send 10 k ohms or greater
• Footswitches: Number switches 1-4 and Memory/Manual switch
• Panel Controls: On/Off, Menu, Edit, Exit, Enter, three parameter knobs, and Power switch
• Display: 132 x 32-dot backlit graphic LCD
• Indicators: Number 1-4, Memory/Manual, FX1, MOD1, L1-L3, FX2, MOD2, DLY, and REV

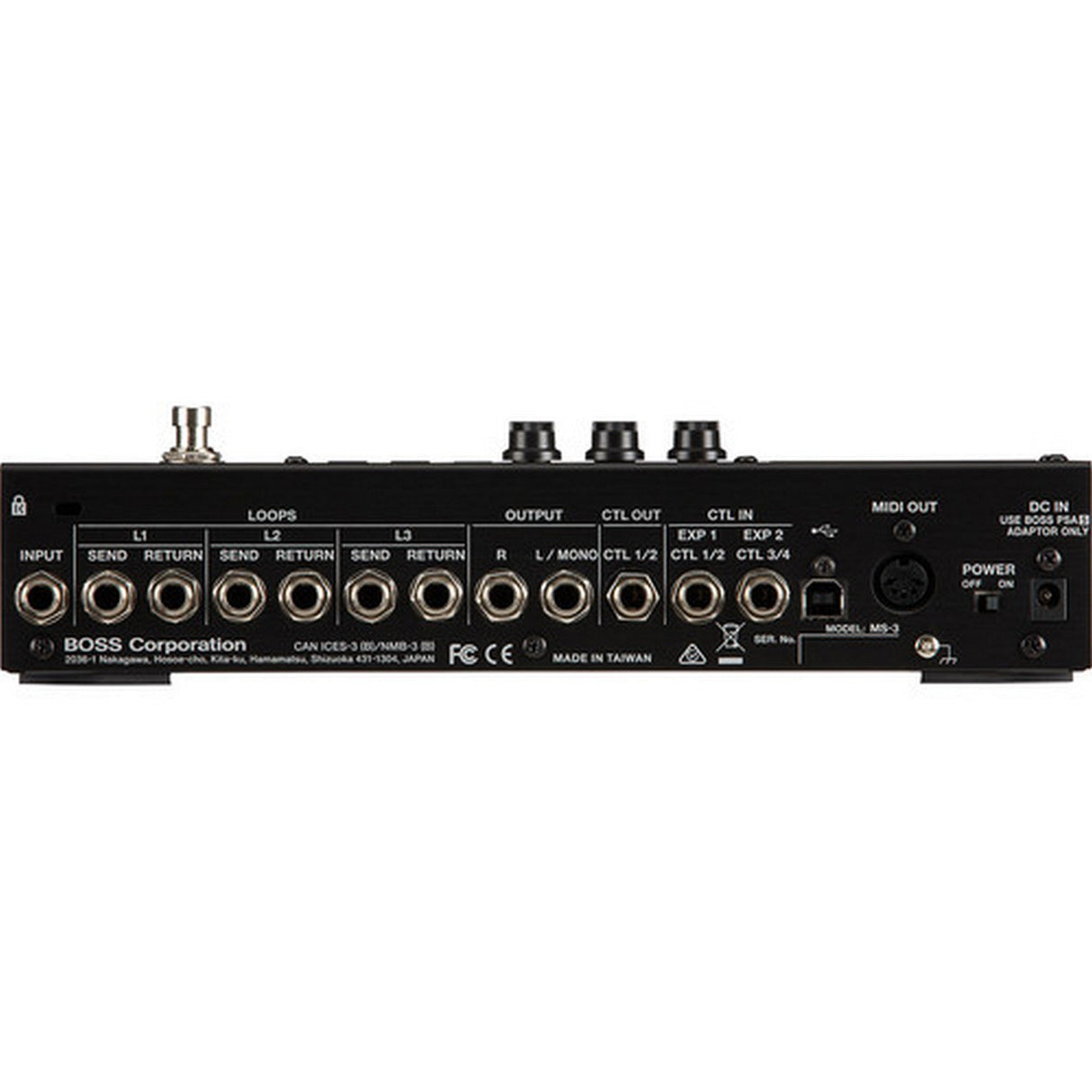

• Instrument Input: 1 x 1/4-inch phone jack
• Loop Sends: 3 x 1/4-inch phone jacks
• Loop Returns: 3 x 1/4-inch phone jacks
• Audio Outputs: 2 x 1/4-inch phone jacks for L/Mono and R
• Control Output: CTL OUT CTL1/2 1/4-inch TRS phone jack
• Control Inputs: CTL IN EXP1 CTL1/2 and CTL IN EXP2 CTL3/4 1/4-inch TRS phone jacks
• USB: USB Type-B computer port
• MIDI: MIDI Out connector
• Power Input: DC IN jack
• Power Supply: AC adapter
• Current Draw: 280 mA
• Off-Mode Power Consumption: 0.1 W when automatic power-off is active
• Optional Footswitches: BOSS FS-5U, FS-5L, FS-6, and FS-7
• Optional Expression Pedals: BOSS EV-30, FV-500L, FV-500H, and Roland EV-5
• Dimensions (W x D x H): 10.9 x 3.9 x 2.7 inches
• Weight: 2.4 lb

What's In the Box

• BOSS MS-3 Multi Effects Switcher
• AC adapter
• 4 rubber feet
• Owner's manual
• Safety information leaflet
