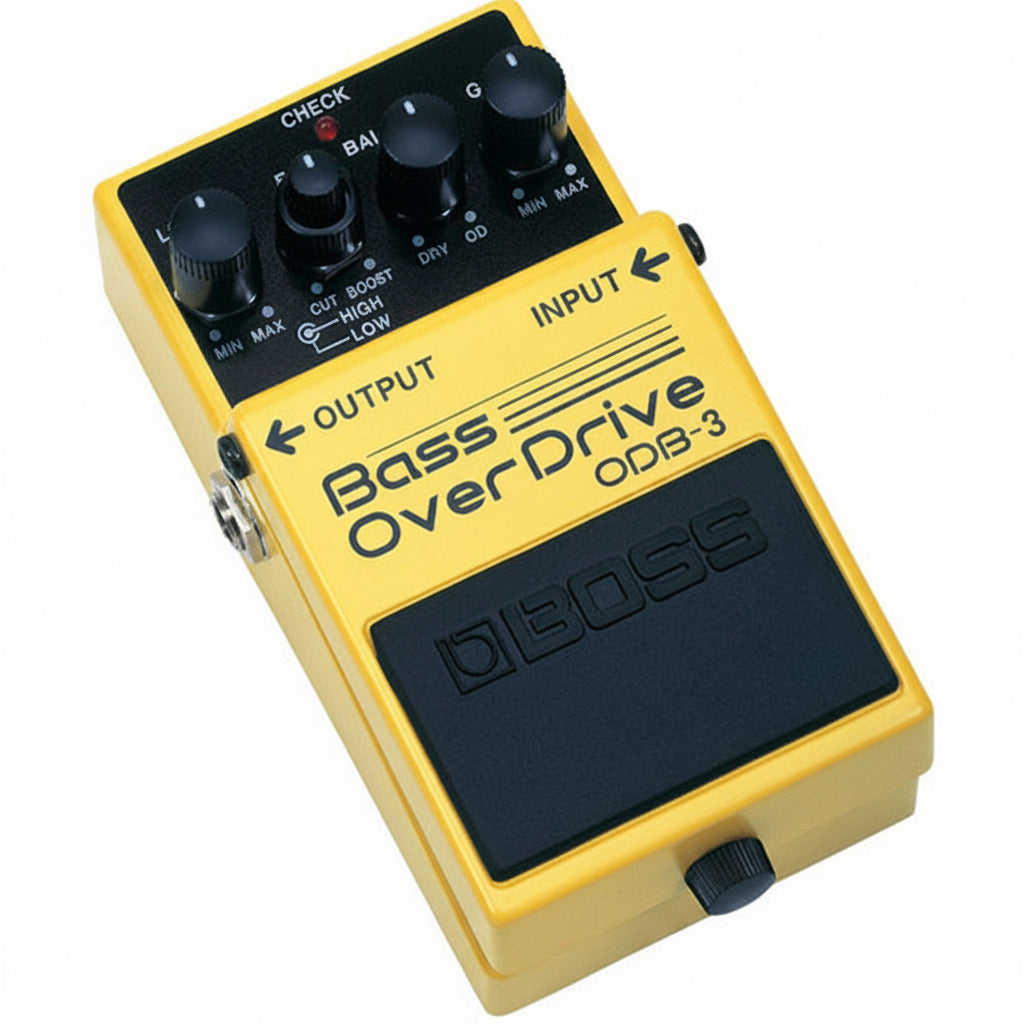

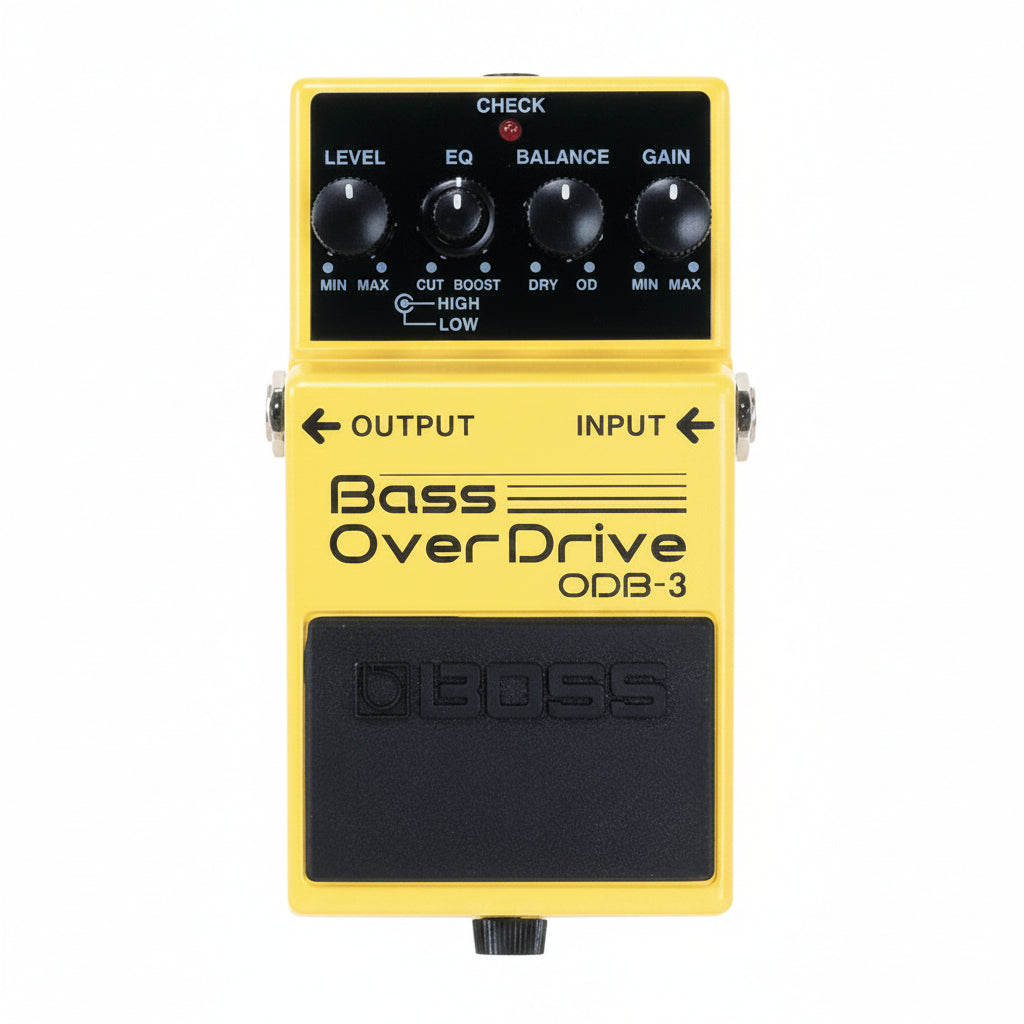

BOSS ODB-3 Bass OverDrive Pedal with 2-Band EQ

BOSS ODB-3 Bass OverDrive Pedal

The BOSS ODB-3 Bass OverDrive Pedal is a compact bass-specific overdrive that blends the clean instrument signal with driven tone through a dedicated Balance control. A two-band EQ, Gain, and Level controls let bassists shape aggressive distortion while retaining low-frequency definition for rock, punk, metal, rehearsal, recording, and live performance.

Designed specifically for electric bass, the ODB-3 gives players more control than a basic single-tone overdrive. The Balance knob mixes the unaffected bass signal with the processed sound, making it possible to add grit while maintaining fundamental low-end presence. Separate High and Low EQ controls help tailor attack, brightness, body, and weight for different instruments, amplifiers, and playing styles.

The pedal uses buffered bypass, which maintains an active signal path when the effect is disengaged, and provides standard 1/4-inch input and output connections for straightforward pedalboard integration. It operates from a 9V carbon-zinc or alkaline battery or an optional BOSS PSA-series AC adapter. The CHECK indicator also provides battery-status monitoring during use.

Key Features

• Bass-Specific Overdrive: Produces driven and distorted tones while addressing the low-frequency requirements of electric bass.
• Dry and Driven Blend: The Balance control mixes clean bass signal with overdrive for stronger low-end definition.
• Two-Band Equalizer: Independent High and Low adjustment provides direct control over brightness, attack, body, and bass response.
• Adjustable Gain: Moves from moderate overdrive to more aggressive distortion for heavier playing styles.
• Output Level Control: Matches the processed volume to the rest of a bass rig or adds level as needed.
• Buffered Bypass: Maintains a buffered signal path when the effect is switched off.
• Flexible Power: Supports 9V battery operation or an optional BOSS PSA-series AC adapter.

Technical Specifications

• Product Type: Bass overdrive effects pedal
• Instrument: Electric bass
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: Gain, Balance, High/Low EQ, Level, and pedal switch
• Equalizer: Two-band High and Low EQ
• Indicator: CHECK indicator with battery-status function
• Input: 1/4-inch phone jack
• Output: 1/4-inch phone jack
• Power Connector: DC IN jack
• Power Supply: 9V 6F22 carbon-zinc battery, 9V 6LR61 alkaline battery, or optional AC adapter
• Compatible AC Adapter: BOSS PSA series, sold separately
• Current Draw: 20 mA
• Carbon-Zinc Battery Life: Approximately 24.5 hours under continuous use
• Alkaline Battery Life: Approximately 40.5 hours under continuous use
• Dimensions (W x D x H): 2.9 x 5.1 x 2.3 inches
• Weight: 0.9 lb including battery
• Warranty: BOSS five-year warranty

What's In the Box

• BOSS ODB-3 Bass OverDrive pedal
• 9V carbon-zinc battery
• Safety, important notes, and information leaflet
