BOSS RC-10R Rhythm Loop Station Pedal with Drum Machine

BOSS RC-10R Rhythm Loop Station Pedal

The BOSS RC-10R Rhythm Loop Station combines a stereo two-track looper with an integrated rhythm engine for songwriting, practice, and live performance. It provides approximately six hours of stereo recording, 99 phrase memories, more than 280 rhythm styles, 16 drum kits, and song-oriented rhythm structures with intros, fills, two patterns, and endings.

Designed for guitarists, bassists, keyboard players, and other performing musicians, the RC-10R supports two independent loop tracks arranged as separate song sections. Rhythm and loop engines can operate together or independently, while dedicated Loop and Rhythm footswitches provide hands-free performance control. Users can also store up to 50 custom rhythms and import their own material with compatible computer software.

The audio engine uses 32-bit A/D and D/A conversion with 32-bit floating-point processing for detailed loop playback. Stereo inputs and outputs support flexible routing, including separate loop and rhythm destinations, while selectable output filters optimize response for guitar amplifiers or full-range systems. MIDI I/O, external footswitch and expression control, USB connectivity, and buffered bypass support expanded stage and studio configurations.

Key Features

• Integrated Looper and Rhythm Engine: Combines stereo phrase looping with song-structured drum accompaniment in one compact floor pedal.
• Six-Hour Stereo Recording: Provides approximately six hours of total stereo loop recording time across 99 phrase memories.
• Two-Track Song Structure: Creates two independent loop sections for arrangements with distinct musical parts.
• Extensive Rhythm Library: Includes more than 280 rhythm styles and 16 drum kits covering a broad range of musical genres.
• Dynamic Rhythm Control: Provides Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, and Ending sections.
• Custom Rhythm Storage: Stores up to 50 user rhythms for personalized accompaniment and song arrangements.
• Flexible Output Routing: Sends loop and rhythm signals to separate outputs or optimizes both for a single guitar amp or full-range system.
• Expanded Performance Control: Supports external footswitches, expression pedals, MIDI equipment, and computer connectivity.

Technical Specifications

• Product Type: Rhythm looper and drum machine pedal
• Looper Sampling Frequency: 44.1 kHz
• A/D Conversion: 32-bit
• D/A Conversion: 32-bit
• Internal Processing: 32-bit floating point
• Maximum Recording Time: Approximately 6 hours stereo
• Maximum Phrase Memories: 99
• Looper Tracks: 2
• Looper Data Format: WAV, 44.1 kHz, 32-bit float, stereo
• Preset Rhythm Types: 280 or greater
• User Rhythm Locations: 50
• Rhythm Sections: Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, and Ending
• Rhythm Kits: 16
• Rhythm Maximum Polyphony: 24 voices
• Rhythm Effect: Reverb
• Memory: 99
• Nominal Input Level: -10 dBu
• Maximum Input Level: +8 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Maximum Output Level: +8 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Footswitches: Rhythm and Loop

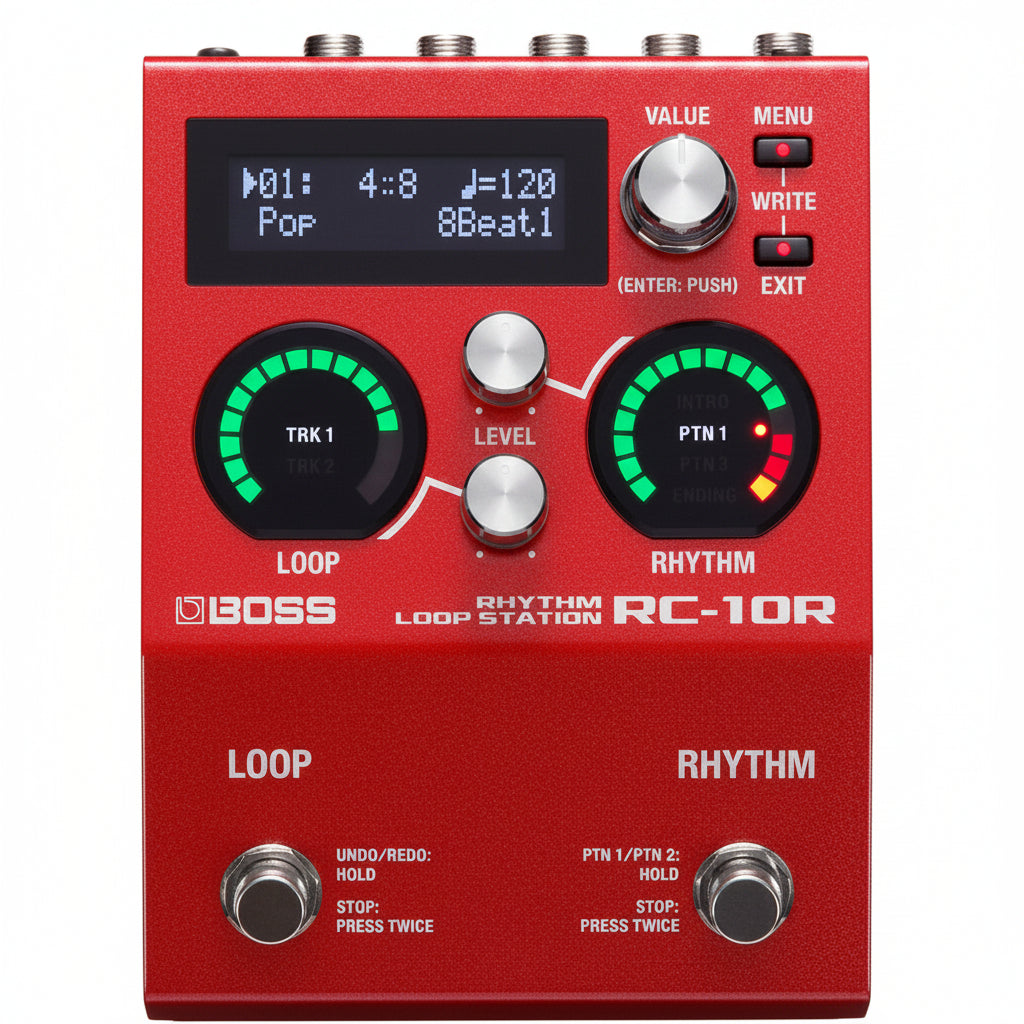

• Controls: Value, Rhythm Level, Loop Level, Menu, and Exit
• Display: 16-character x 2-line backlit LCD
• Indicators: Rhythm and Loop circular indicators

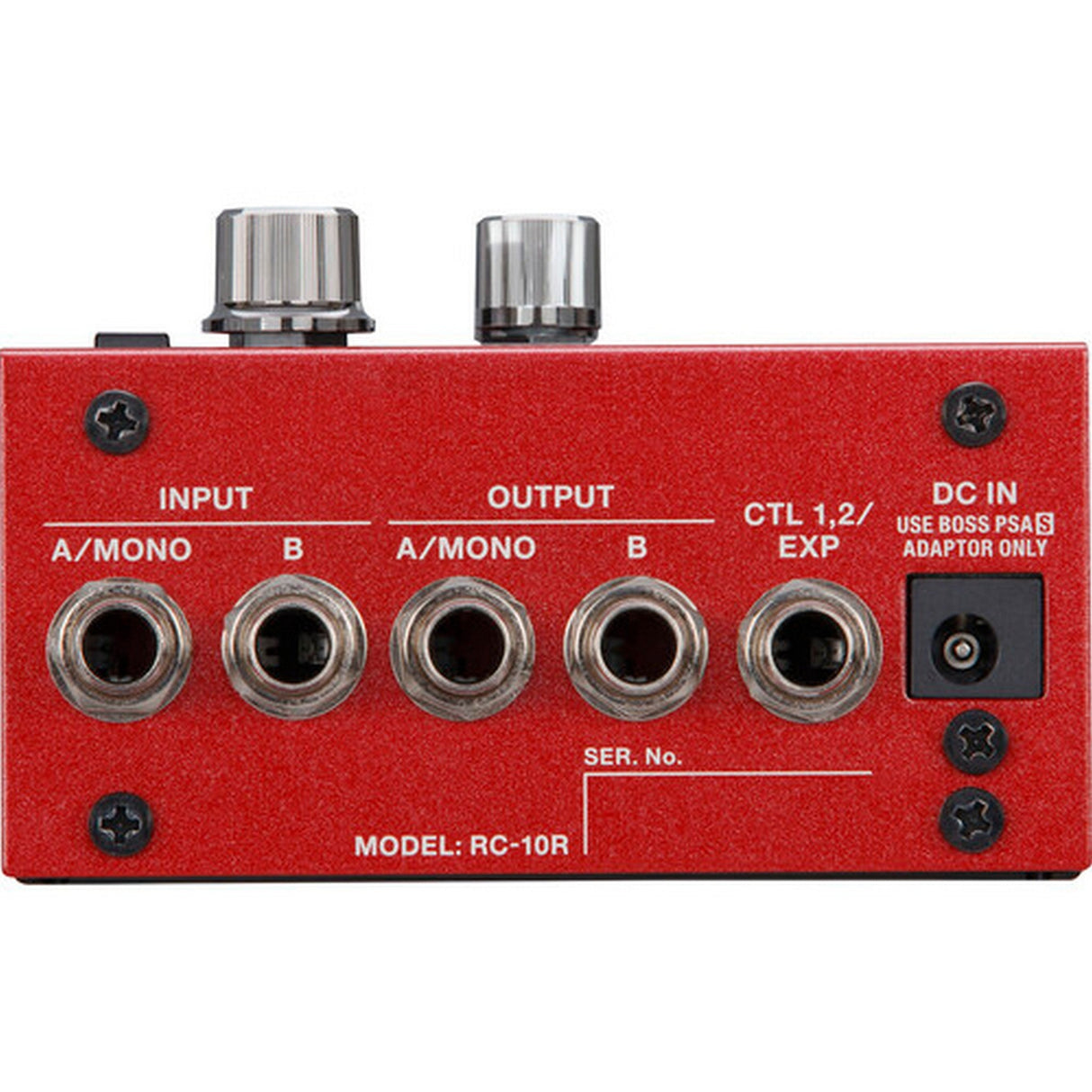

• Audio Inputs: Input A/Mono and Input B, 1/4-inch phone jacks
• Audio Outputs: Output A/Mono and Output B, 1/4-inch phone jacks
• External Control: CTL 1, 2/EXP 1/4-inch TRS jack

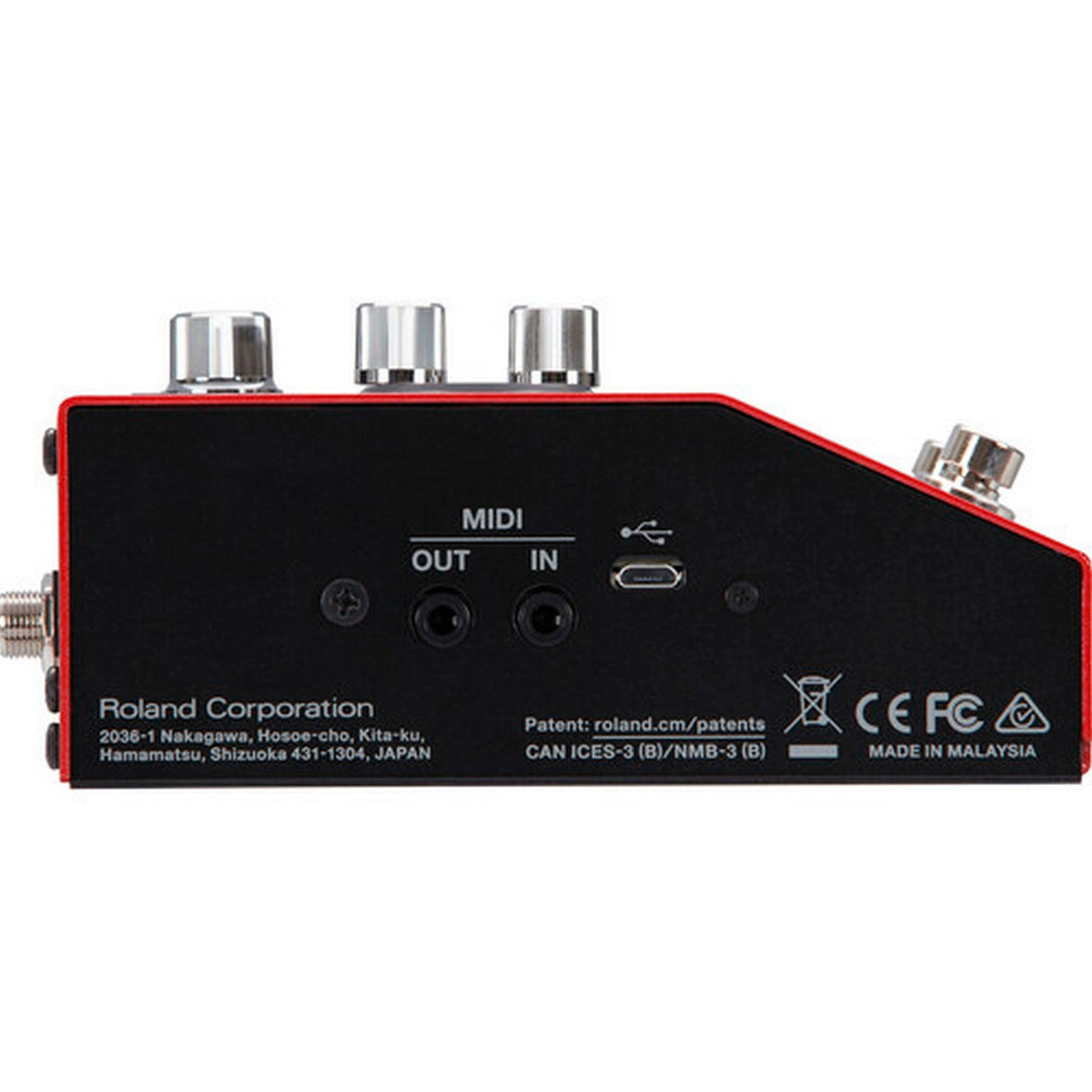

• MIDI: Stereo miniature MIDI In and Out jacks
• USB: USB Micro-B computer port
• Power Input: DC IN jack
• Power Supply: AC adapter
• Current Draw: 250 mA
• Off-Mode Power Consumption: 0 W when automatic power-off is active
• Optional Footswitch: BOSS FS-5U
• Optional Dual Footswitches: BOSS FS-6 and FS-7
• Optional Expression Pedals: BOSS FV-500H, FV-500L, EV-30, and Roland EV-5
• Optional MIDI Cables: BOSS BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, and BCC-2-3535
• Dimensions (W x D x H): 4 x 5.4 x 2.5 inches without rubber feet
• Height with Rubber Feet: 2.6 inches
• Weight: 1.4 lb excluding AC adapter

What's In the Box

• BOSS RC-10R Rhythm Loop Station
• AC adapter
• 4 rubber feet
• Owner's manual
• Safety information leaflet
