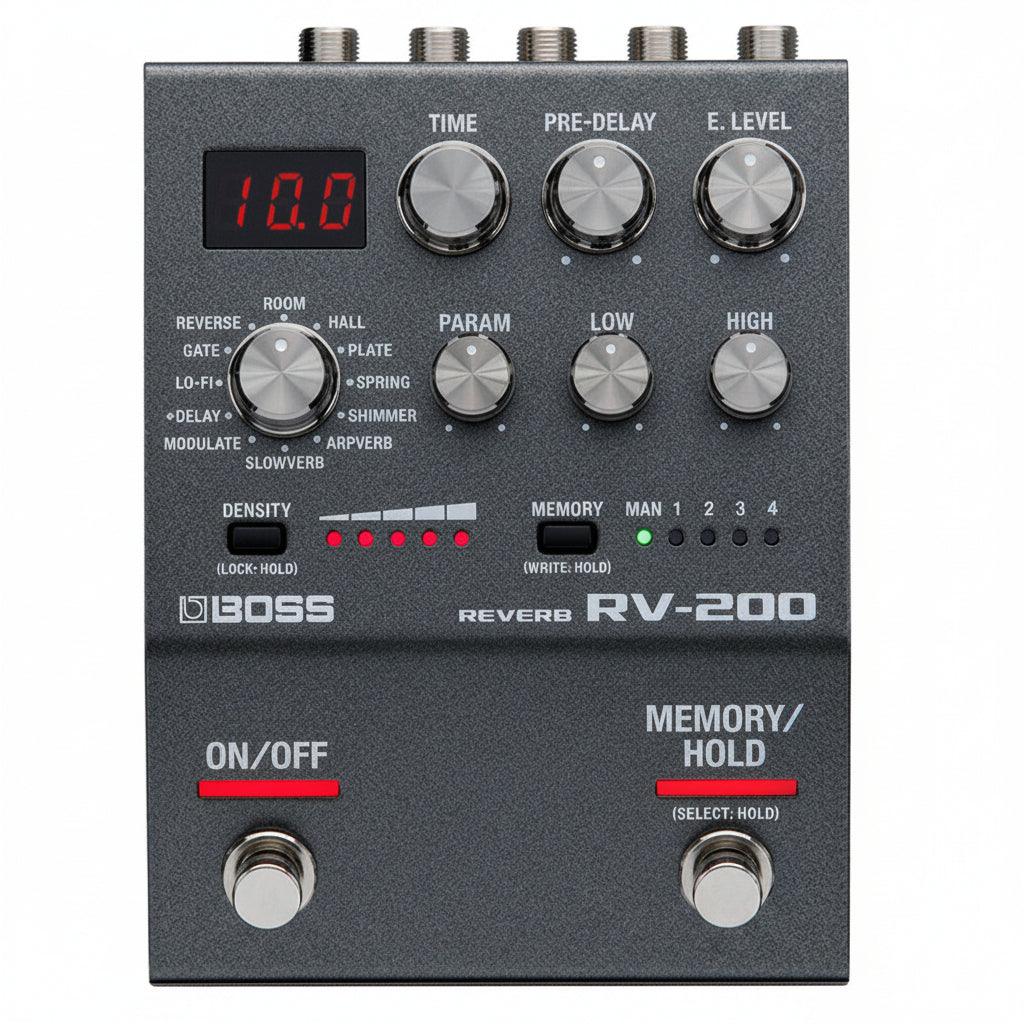

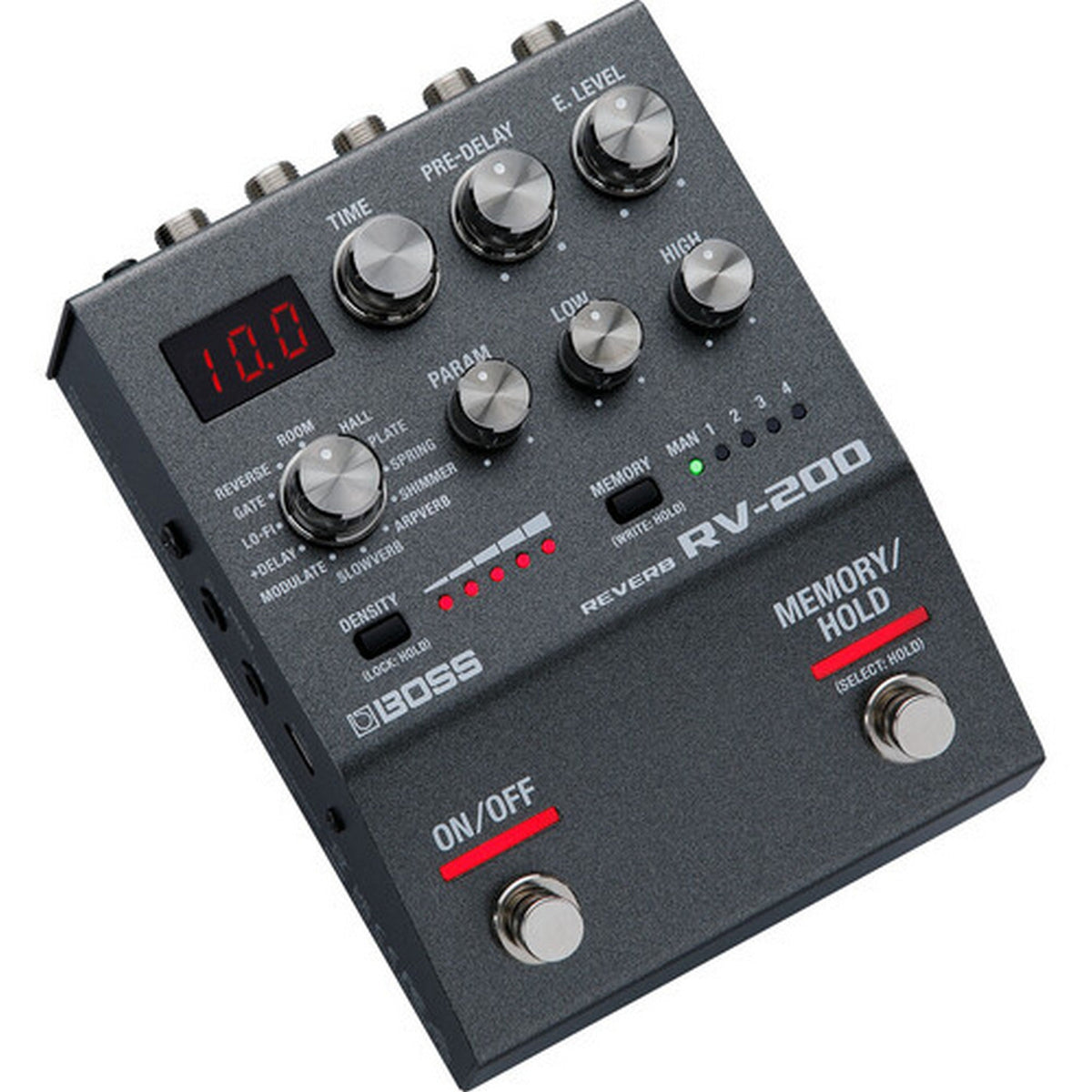

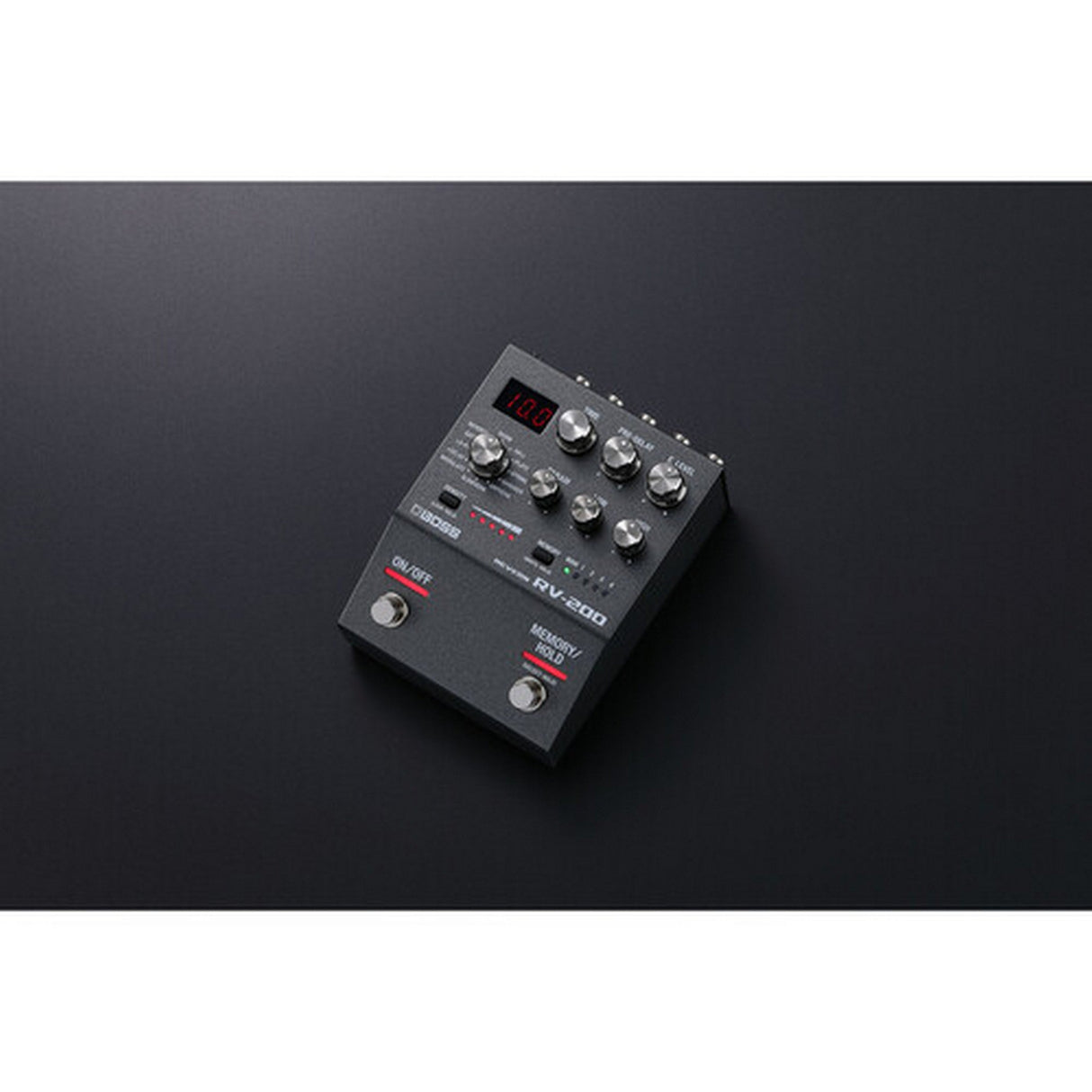

BOSS RV-200 Reverb Pedal

BOSS RV-200 Reverb Pedal

The BOSS RV-200 Reverb Pedal combines 12 reverb algorithms, 127 user memories, 32-bit AD/DA conversion, 32-bit floating-point processing, and a 96 kHz sampling rate in a compact performance pedal. Stereo operation, selectable carryover, six-stage density control, and dedicated sound-shaping controls cover traditional spaces through expansive ambient effects.

Designed as a studio-grade reverb pedal for guitar and synth rigs, the RV-200 provides Room, Hall, Plate, Spring, Shimmer, Arpverb, Slowverb, Modulate, +Delay, Lo-Fi, Gate, and Reverse modes. Two assignable footswitches access memories and expressive Hold, Warp, Twist, and Fade functions. Players building a stereo reverb pedal with MIDI control can also connect external footswitches, expression pedals, and compatible TRS MIDI equipment.

The RV-200 supports stereo input and output configurations, wet/dry routing, dry mute operation, and buffered bypass for flexible pedalboard and recording workflows. A panel lock helps prevent unwanted setting changes during performance. BOSS specifies three AA batteries for portable operation, while an optional PSA-S series adapter supports permanent pedalboard installations.

Key Features

• 12 Reverb Modes: Covers conventional room and hall spaces plus pitch-shifted, modulated, gated, reversed, and combined delay textures.
• 127 User Memories: Stores customized sounds for quick recall alongside a dedicated Manual operating mode.
• Studio-Grade Processing: Uses 32-bit AD/DA conversion, 32-bit floating-point processing, and 96 kHz sampling.
• Six-Stage Density Control: Adjusts the weight and concentration of the reverb response without navigating deep menus.
• Expressive Footswitch Effects: Supports Hold, Warp, Twist, and Fade functions for real-time performance control.
• Stereo Signal Routing: Dual inputs and outputs support stereo operation, wet/dry configurations, and dry mute output.
• External and MIDI Control: Connects compatible footswitches, expression pedals, and TRS MIDI devices for expanded control.
• Panel Lock: Prevents accidental parameter changes during live performances and pedalboard use.

Technical Specifications

Audio Processing

• Effect Type: Reverb
• Model: RV-200
• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32-bit
• Processing: 32-bit floating point
• Reverb Modes: 12
• Reverb Types: Room, Hall, Plate, Spring, Shimmer, Arpverb, Slowverb, Modulate, +Delay, Lo-Fi, Gate, Reverse
• Memory: 127 user memories plus Manual mode
• Density: 6 stages
• Carryover: Selectable
• Bypass: Buffered bypass
• Output Routing: Stereo, wet/dry, and dry mute options

Controls and Display

• Footswitches: ON/OFF and MEMORY/HOLD
• Rotary Controls: Mode, Time, Pre-Delay, E. Level, Param, Low, High
• Buttons: Density, Memory
• Performance Functions: Hold, Warp, Twist, Fade
• Panel Lock: Supported
• Display: 3-character, 7-segment LED
• Indicators: Density and Memory indicators

Audio Specifications

• Nominal Input Level: -10 dBu
• Maximum Input Level: +7 dBu
• Input Impedance: 2 megohms
• Nominal Output Level: -10 dBu
• Maximum Output Level: +7 dBu
• Output Impedance: 1 kilohm
• Recommended Load Impedance: 10 kilohms or greater

Connections

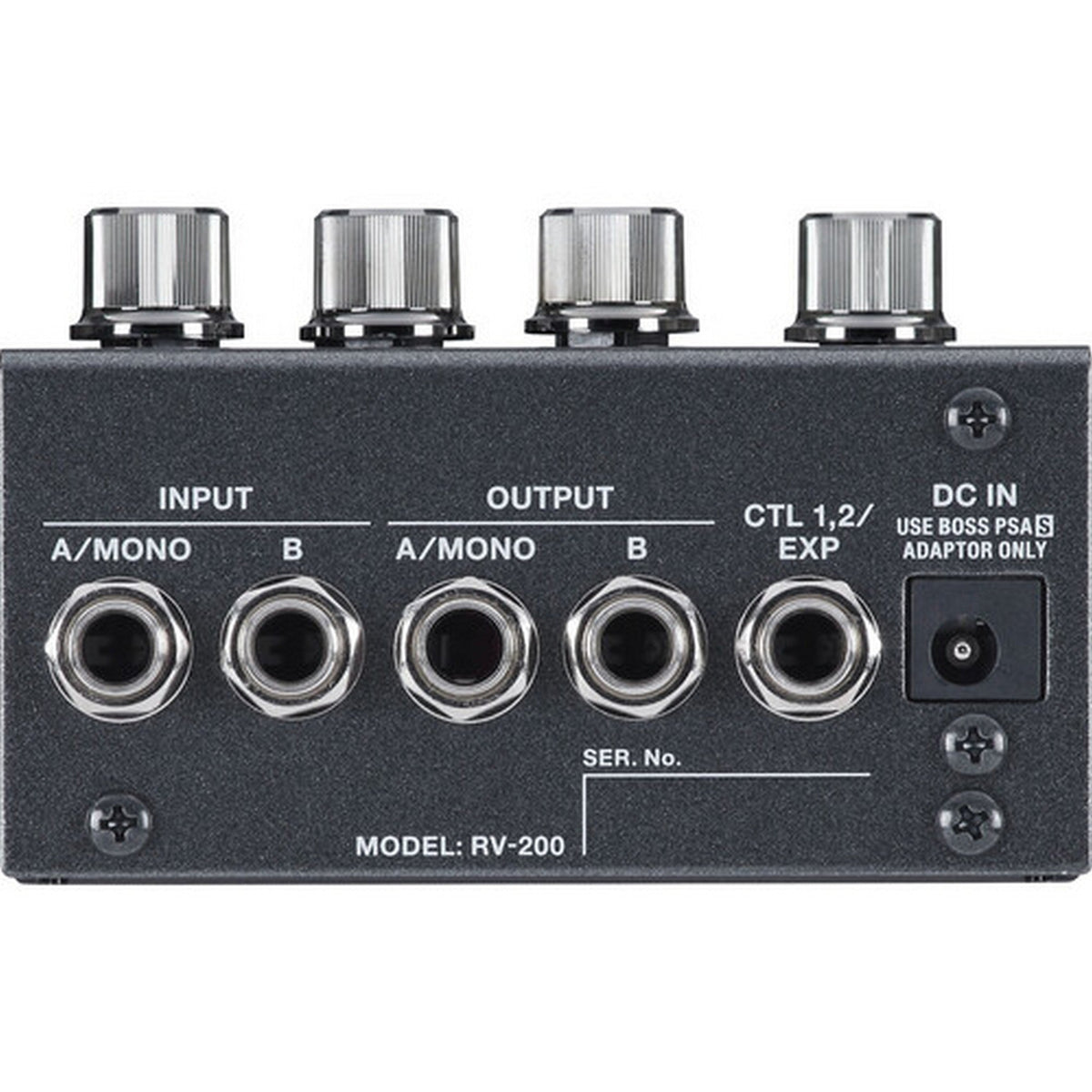

• Inputs: 2 x 1/4" phone jacks, Input A/Mono and Input B
• Outputs: 2 x 1/4" phone jacks, Output A/Mono and Output B
• External Control: 1 x 1/4" TRS CTL 1,2/EXP jack

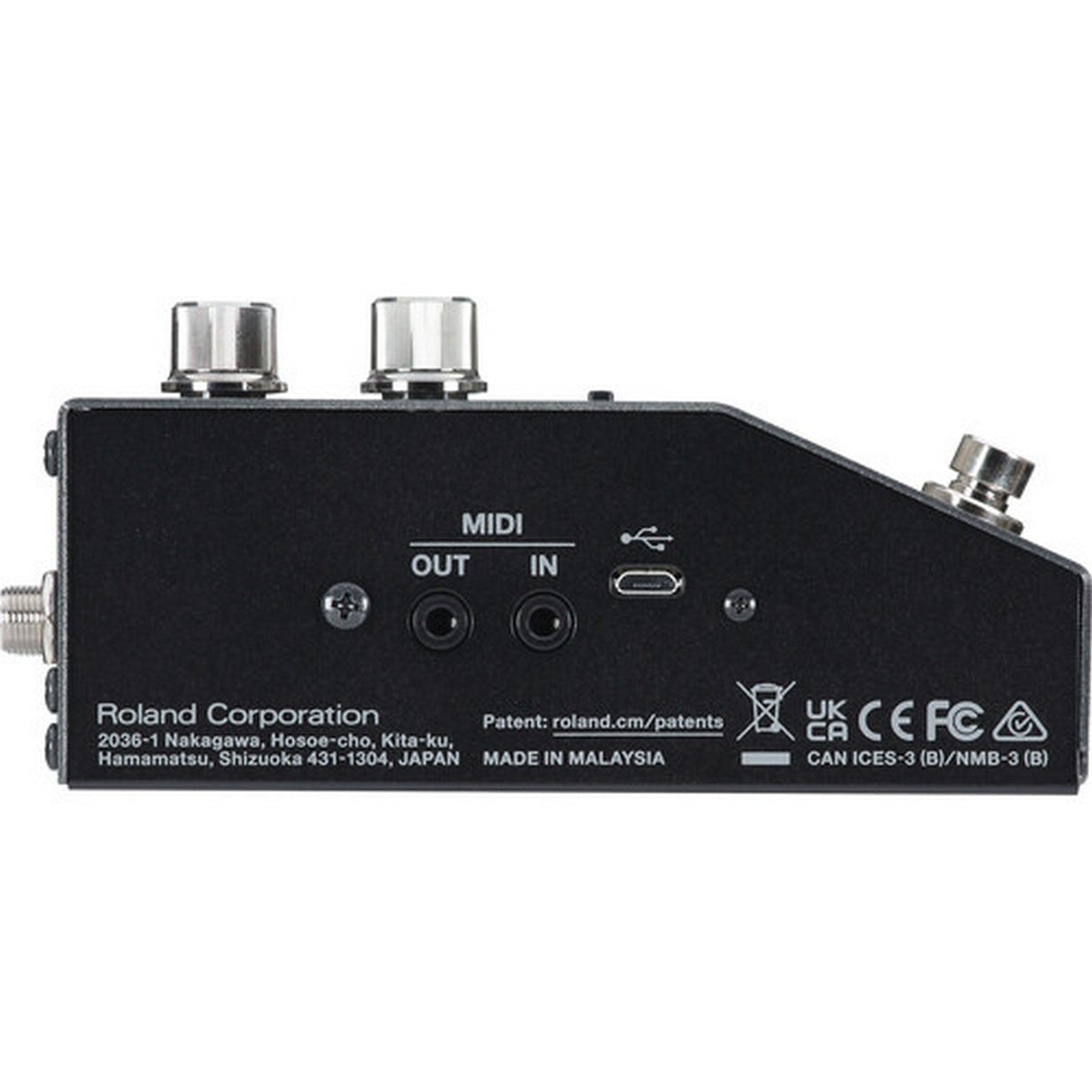

• MIDI Input: 1 x 3.5 mm stereo miniature phone jack
• MIDI Output: 1 x 3.5 mm stereo miniature phone jack
• USB: USB 2.0 Micro-B for program updates only
• Power Connection: DC input for optional PSA-S series adapter

Power

• Battery Power: 3 x AA alkaline batteries
• AC Power: Optional BOSS PSA-S series adapter
• Current Draw: 260 mA
• Expected Alkaline Battery Life: Approximately 4 hours

Dimensions and Weight

• Dimensions (W x D x H): 4 x 5.4 x 2.5 in
• Dimensions with Rubber Feet (W x D x H): 4 x 5.4 x 2.6 in
• Weight without Batteries: 1.3 lb
• Weight with Batteries: 1.5 lb
• Package Dimensions (L x W x H): 8.1 x 7.7 x 4.3 in
• Package Weight: 2.2 lb
• Limited Manufacturer Warranty: 5 years

Compatible Optional Accessories

• AC Adapter: BOSS PSA-S series
• Footswitch: BOSS FS-5U
• Dual Footswitches: BOSS FS-6, FS-7
• Expression Pedals: BOSS FV-500H, FV-500L, EV-30; Roland EV-5
• TRS/MIDI Cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

What's In the Box

• BOSS RV-200 Reverb Pedal
• 3 AA alkaline batteries
• 4 rubber feet
• Using the Unit Safely leaflet
• Owner's Manual information leaflet
