BOSS SL-2 Slicer Pattern Processing Pedal with 88 Patterns

BOSS SL-2 Slicer Pattern Processing Pedal

The BOSS SL-2 Slicer Pattern Processing Pedal transforms continuous audio into rhythmic patterns using single and dual Slicer paths, internal effects, and stereo spatial processing. It includes 88 onboard patterns, seven stereo output modes, tap tempo, external control, MIDI synchronization, and USB connectivity for loading alternate patterns through BOSS Tone Studio.

Designed for guitarists, keyboardists, loop performers, DJs, and electronic musicians, the SL-2 creates tremolo-like pulses, percussive sequences, pitch-based movement, and processed rhythmic effects. Attack and Duty controls shape each audio slice, while the Balance control provides a ±12 dB output adjustment. Stereo routing adds ping-pong, automated movement, and three-dimensional spatial effects.

The pedal processes audio at 48 kHz with 24-bit plus Adaptive Focus AD conversion and 32-bit DA conversion. Dual inputs and outputs support mono or stereo systems, while a CTL/EXP jack accepts compatible footswitches or expression pedals. TRS MIDI input supports clock synchronization and CC control, and the USB-B connection enables pattern management through BOSS Tone Studio.

Key Features

• 88 Onboard Patterns: Eight pattern types with 11 variations each provide a wide range of rhythmic slicing effects.
• Single and Dual Slicer Paths: Creates simple rhythmic chopping or layered patterns processed through multiple internal effects.
• Seven Stereo Output Modes: Fixed, EFX/Direct, Random, Ping-Pong, Auto, 3D Cross, and 3D Rotation expand spatial positioning.
• Attack and Duty Controls: Shape the edge and duration of individual audio slices for sharp or flowing rhythmic textures.
• Tap Tempo: Synchronizes Slicer patterns from the onboard pedal switch or a compatible external controller.
• MIDI Synchronization: TRS MIDI input accepts external clock and supported CC messages from compatible MIDI equipment.
• BOSS Tone Studio Support: USB connectivity allows alternate patterns to be auditioned, loaded, and organized from a computer.
• External Performance Control: Connect up to two footswitches or an expression pedal for expanded real-time operation.

Technical Specifications

Processing and Patterns

• Product Type: Rhythmic pattern processing effects pedal
• Model: SL-2
• Sample Rate: 48 kHz
• AD Conversion: 24-bit plus Adaptive Focus method
• DA Conversion: 32-bit
• Onboard Patterns: 88
• Pattern Structure: 8 types with 11 variations each
• Pattern Types: Single 1, Single 2, Dual 3, Dual 4, Tremolo 5, Harmonic 6, SFX 7, SFX 8
• Output Level Adjustment: ±12 dB
• Stereo Output Modes: Fixed, EFX/Direct, Random, Ping-Pong, Auto, 3D Cross, 3D Rotation
• Tap Tempo: Supported
• Bypass: Buffered bypass

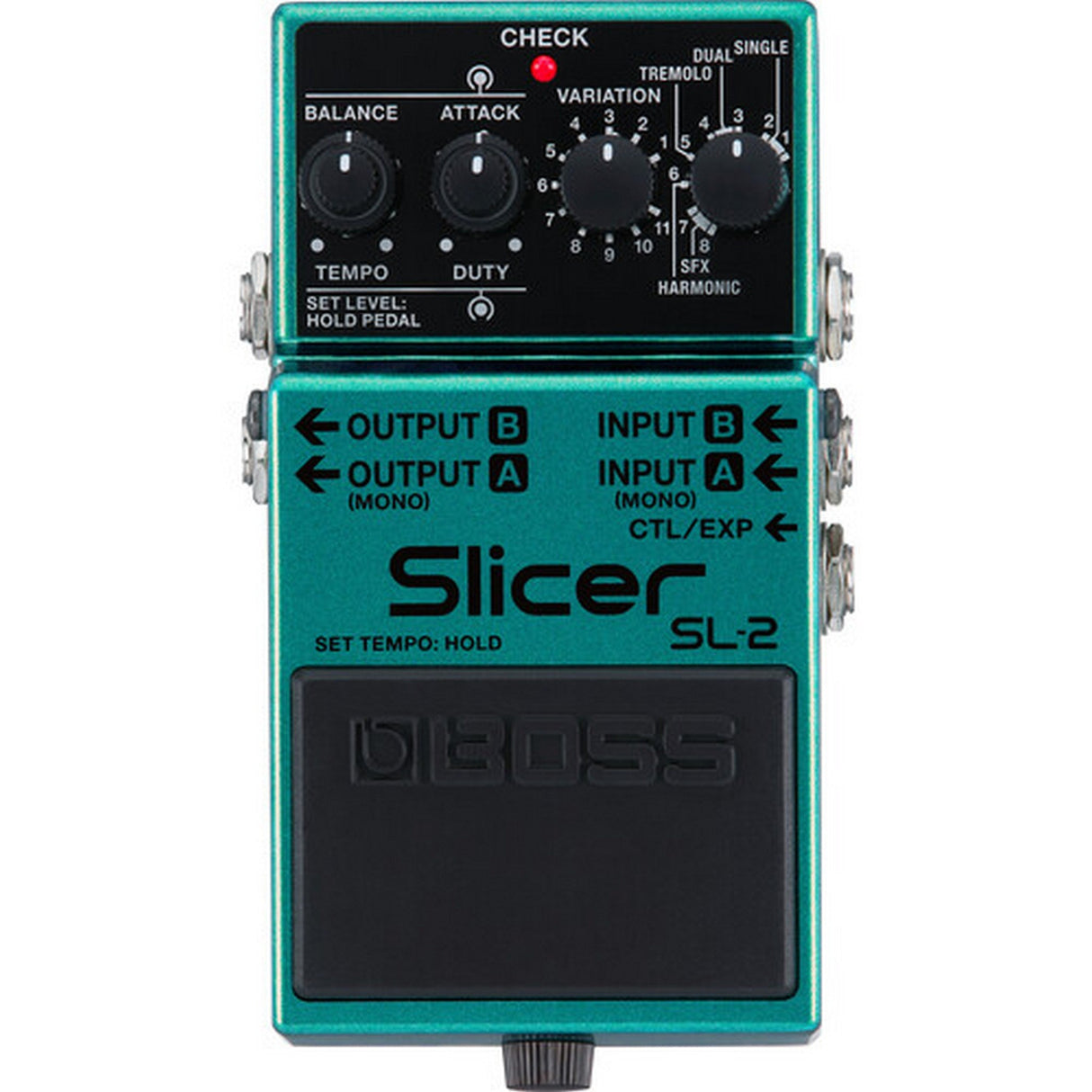

Controls

• Rotary Controls: Type, Variation, Attack, Duty, Tempo, Balance
• Pedal Switch: Effect bypass and tap-tempo operation
• Indicator: Check indicator for tempo and battery status
• External Control: Compatible footswitch or expression pedal through CTL/EXP

Audio Specifications

• Nominal Input Level: -20 dBu
• Maximum Input Level: +7 dBu
• Input Impedance: 1 megohm
• Nominal Output Level: -20 dBu
• Maximum Output Level: +7 dBu
• Output Impedance: 1 kilohm
• Recommended Load Impedance: 10 kilohms or greater

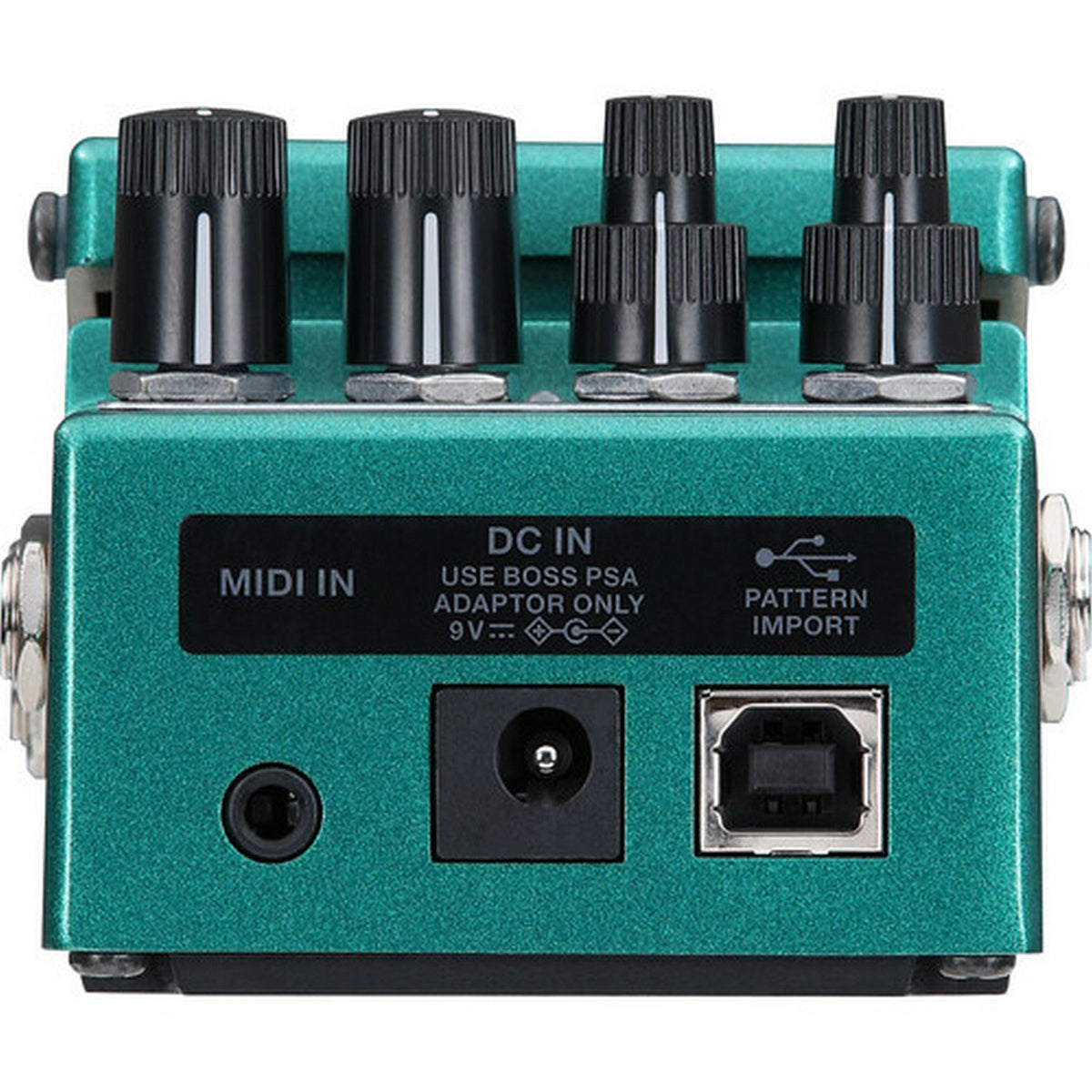

Connections

• Inputs: Input A/Mono and Input B, 1/4" phone jacks
• Outputs: Output A/Mono and Output B, 1/4" phone jacks
• Control/Expression: 1 x 1/4" TRS CTL/EXP jack
• MIDI Input: 1 x 3.5 mm stereo miniature phone jack
• MIDI Functions: Clock synchronization and supported CC control
• USB: USB-B for BOSS Tone Studio pattern management
• Power Connection: DC input

Power, Dimensions, and Compatibility

• Battery Power: 1 x 9V alkaline battery, 6LR61 or 6LF22
• AC Power: Optional BOSS PSA-series adapter
• Current Draw: 95 mA
• Expected Alkaline Battery Life: Approximately 2.5 hours
• Dimensions (W x D x H): 2.9 x 5.1 x 2.3 in
• Weight: 1 lb including battery
• Compatible Footswitch: BOSS FS-5U
• Compatible Dual Footswitches: BOSS FS-6, FS-7
• Compatible Expression Pedals: BOSS FV-500H, FV-500L, EV-30; Roland EV-5
• Compatible TRS/MIDI Cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
• Package Dimensions (L x W x H): 6.9 x 3.6 x 2.5 in
• Package Weight: 1.2 lb
• Warranty: 5 years

What's In the Box

• BOSS SL-2 Slicer
• 9V dry battery
• Safety, important notes, and information leaflet
